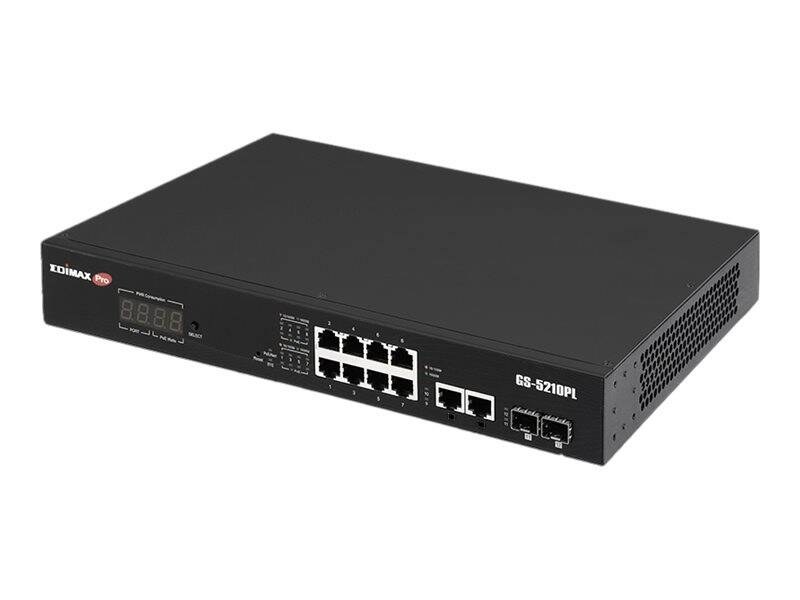

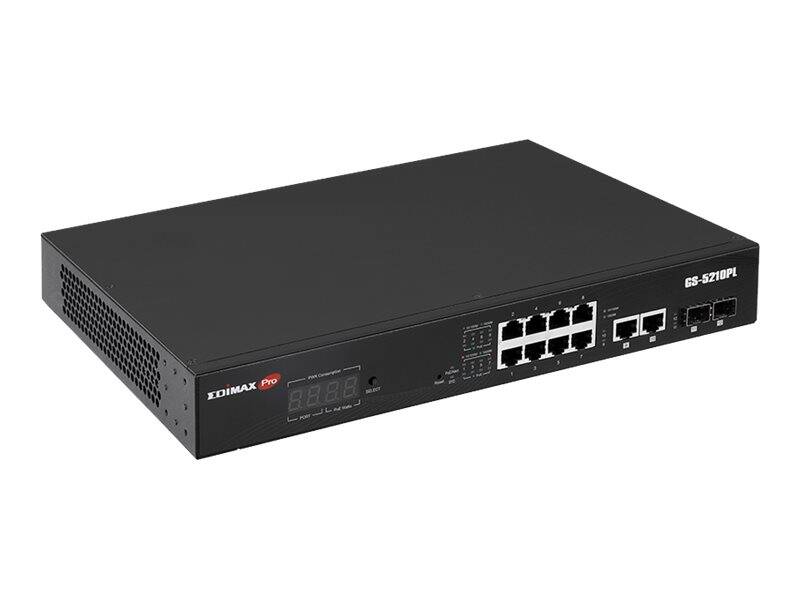

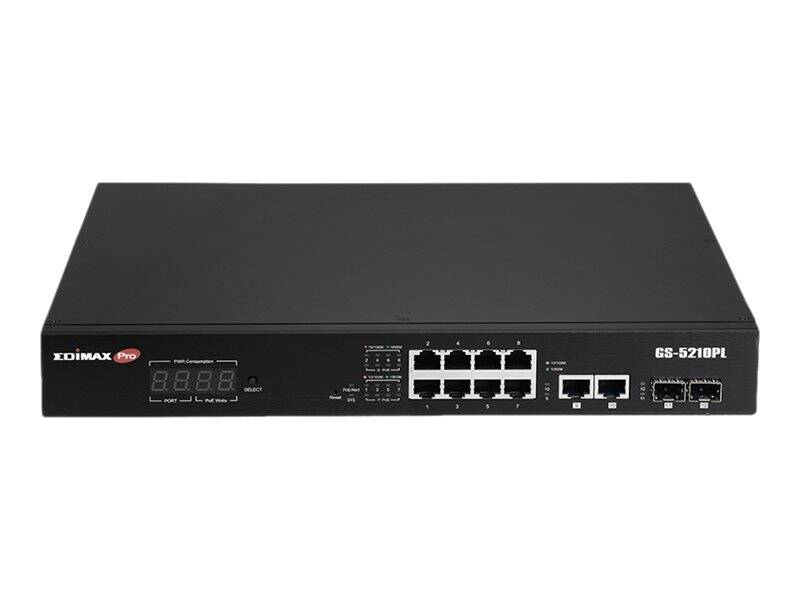

Edimax GS-5210PL - Switch - smart - 10 x 10/100/1000 + 2 x Gigabit SFP (uplink) - desktop - PoE+ (110 W) | GS-5210PL

Product Features

• ONVIF Profile Q compliant
  With ONVIF Profile Q standards, the GS-5210PL provides system integrators easy setup, quick discovery, configuration, and control of ONVIF conformant products on the network. Just plug and play.
• Beyond security
  The EDIMAX ONVIF switches series greatly enhances IP surveillance network systems; it supports the ONVIF Profile Q standard, which is compatible with working ONVIF compliant Profiles G/Q/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.
• Let safety be known
  The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.
• Strong ability to proceed data
  With 24Gbps backplane bandwidth and a forwarding rate of 17.8Mpps, the GS-5210PL provides maximum available bandwidth without delay.
• Robust failover mechanisms
  The GS-5210PL has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.
• Guaranteed 200 meters
  While general Ethernet switches have a distance restriction of 100 meters, the GS-5210PL long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.

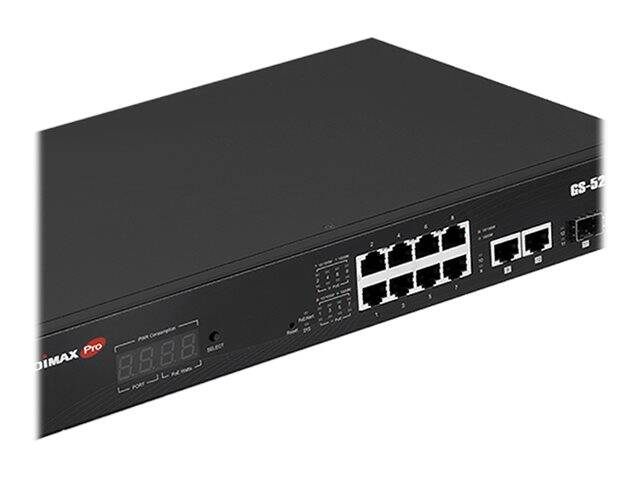

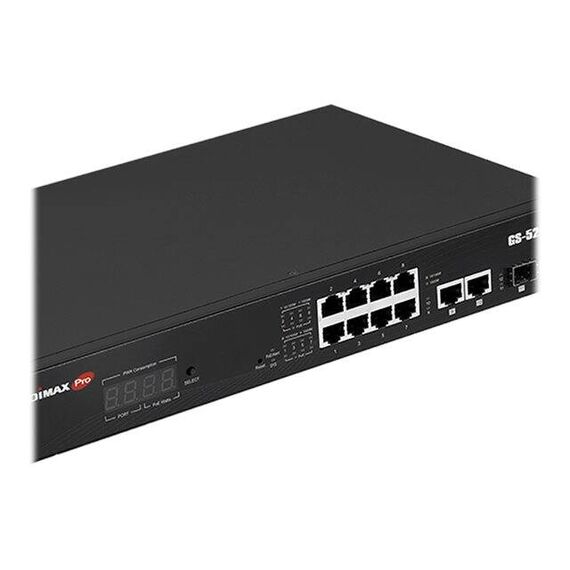

• 4-digit LED display
  In addition to a web-based GUI to keep track of port power, the GS-5210PL features an intuitive 4-digit LED display showing its power consumption. System integrators can check the total power budget, power consumption per port, and available power left. All with a single hardware select button.
• Safe power backfeed protection
  Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.

Special Fetures

• Supports ONVIF Profile Q standard which is compatible with working ONVIF compliant Profiles G/Q/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication
• Guaranteed PoE long distance to 200 meters
• PoE powered devices (PD) alive check to enhance the reliability of the network
• IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 110W) for powering PoE-enabled devices
• Dual-firmware image for robust failover mechanisms
• IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
• 4-digit LED display showing total PoE power, available power, and power consumption
• Auto-detection of powered devices (PD) and power consumption levels
• Power backfeed protection to avoid damaging the PoE ports
• DHCP snooping to protect the integrity of legitimate DHCP server and its operations
• Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping and Port Mirroring

Product Specification
