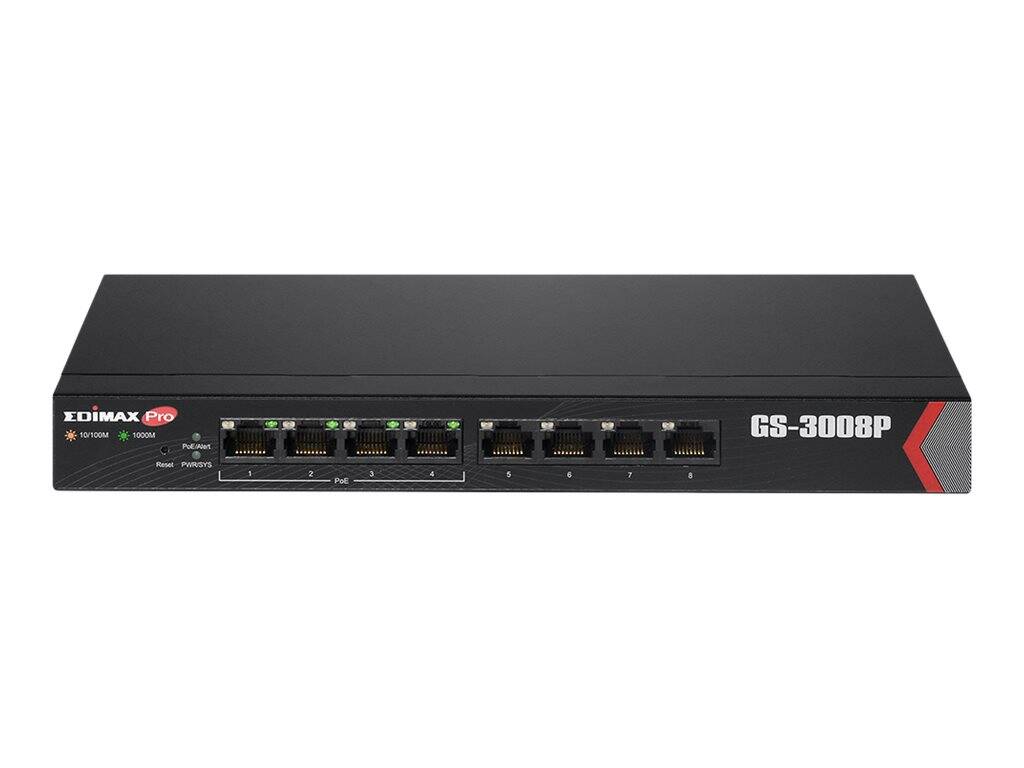

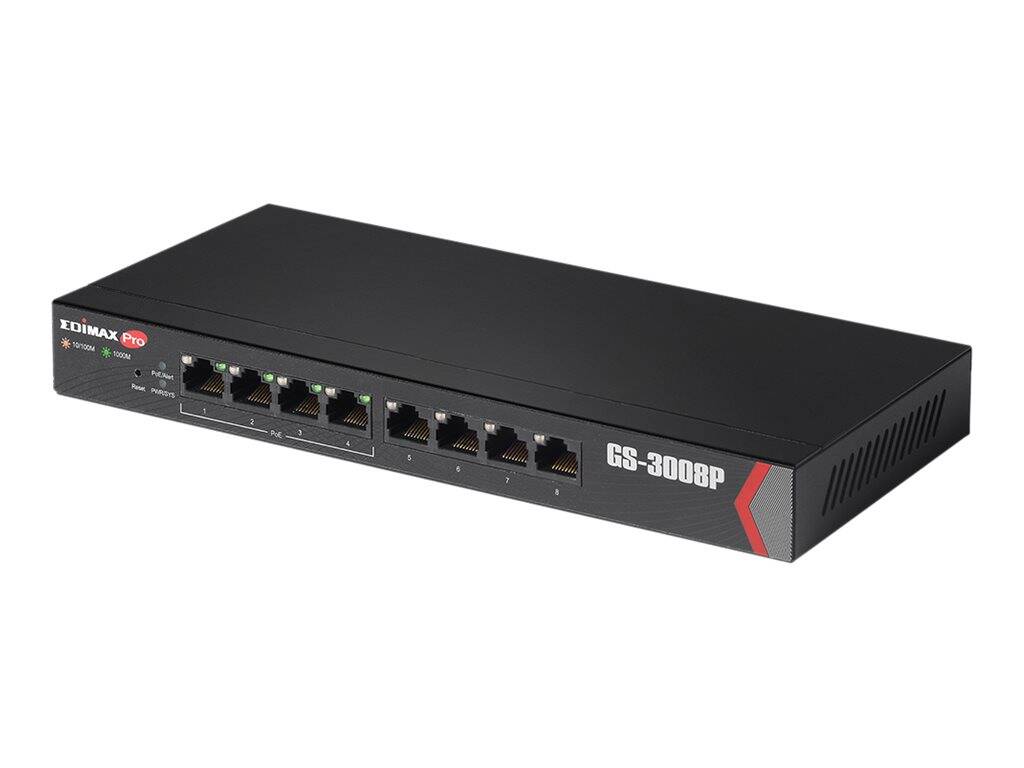

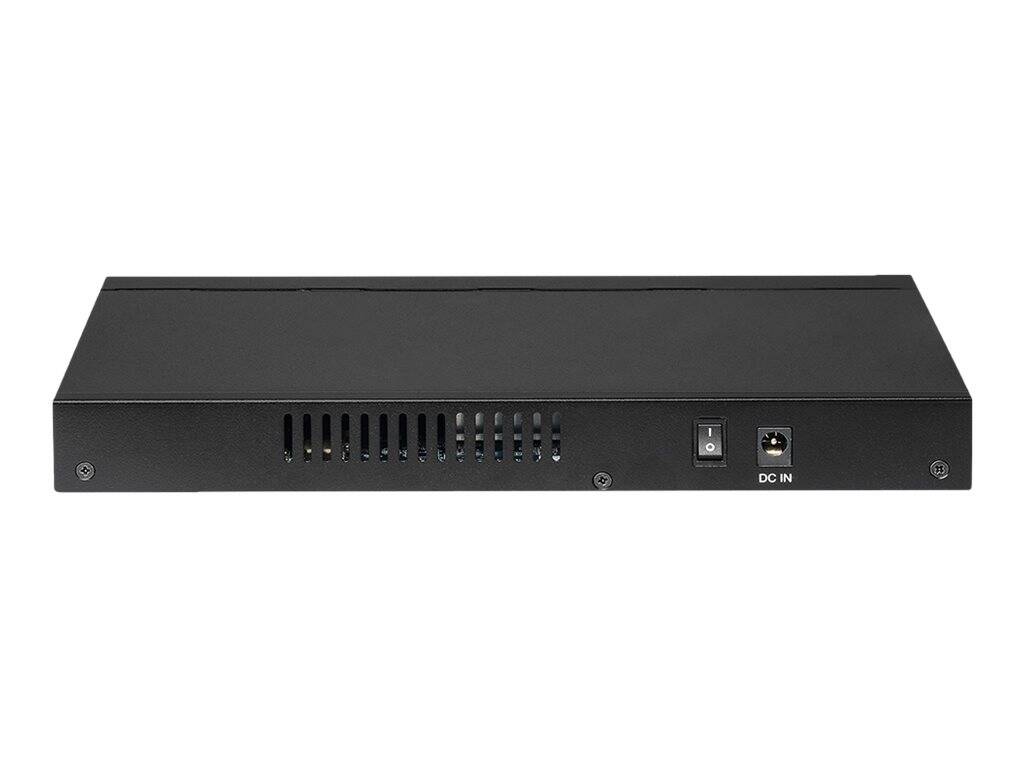

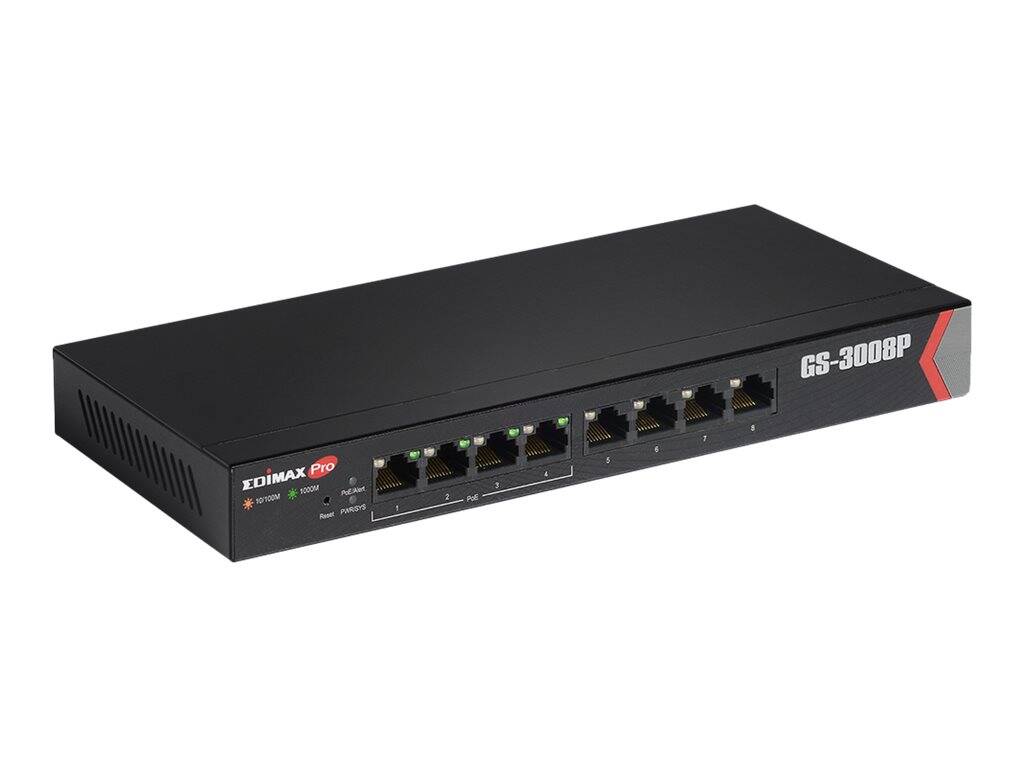

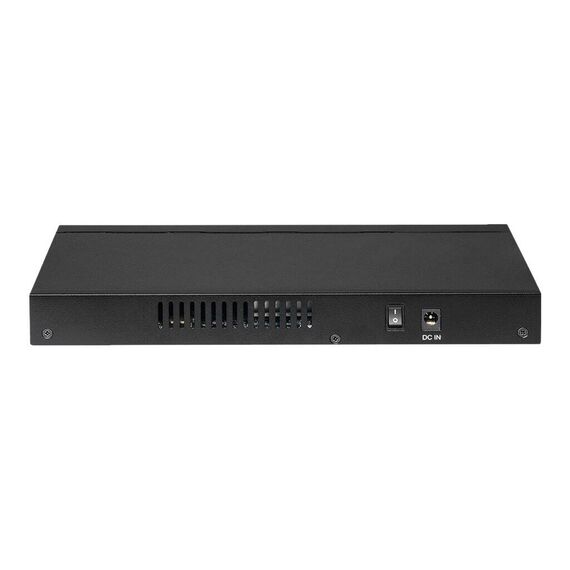

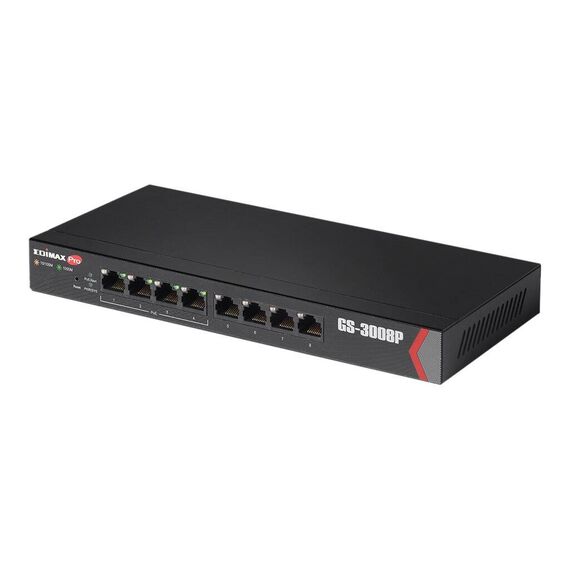

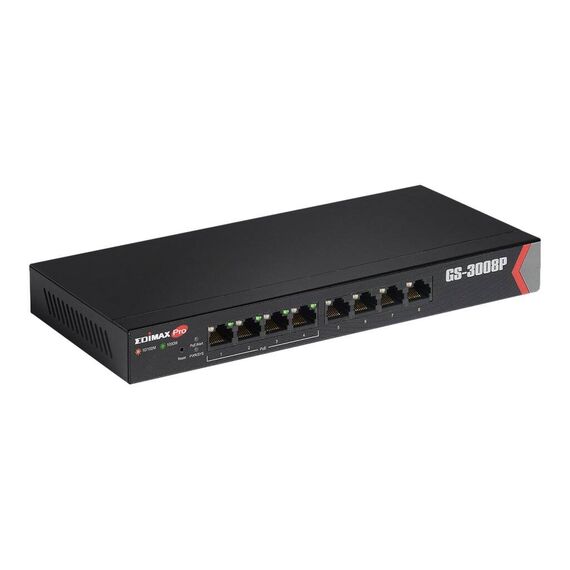

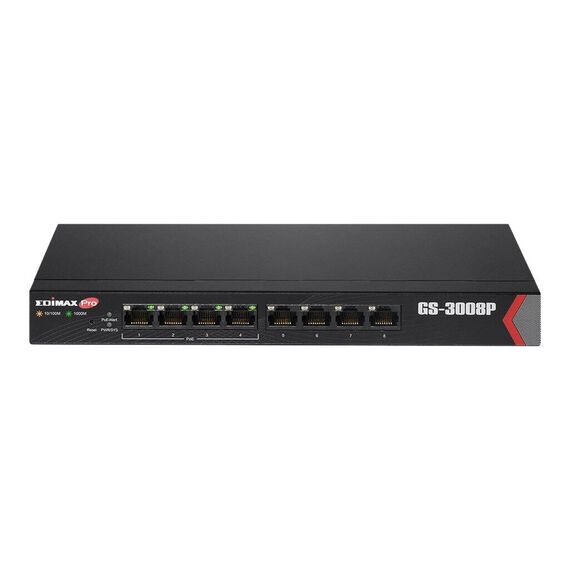

Edimax Pro GS-3008P - Switch - smart - 8 x 10/100/1000 (4 PoE+) - desktop - PoE+ (72 W) | GS-3008P
Please sign in so that we can notify you about a reply
Product Features
- PoE for easy installation and better cost efficiency
PoE technology enables the Ethernet cable to carry both data and power, reducing cable installation and eliminating the need for extension cords or electrical outlets on the walls and ceiling. - Power and data distance extension
The GS-3008P provides extended PoE power delivery to a long distance. The specification creates flexibility in planning for installing PoE-enabled devices such as IP cameras. - Smart tools for improved network efficiency and security
The GS-3008P features smart and simple network monitoring tools that allow for improved network efficiency and security. The web-based interface management features include QoS bandwidth control for better traffic management, VLAN for enhanced network security.
Special Fetures
- PoE for easy installation and better cost efficiency
- Power and data distance extension
- Smart tools for improved network efficiency and security
Product Specification
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (4 PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 72 W |
| Performance | Switching capacity: 16 Gbps ¦ Forwarding performance: 35.712 Mpps |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9KB |
| Remote Management Protocol | HTTP |
| Features | Flow control, VLAN support, IGMP snooping, store and forward, Broadcast Storm Control, firmware upgradable, Access Control List (ACL) support, Quality of Service (QoS), reset button, fanless, 128KB packet buffer, LACP support, over-current protection, over-voltage protection, Energy Efficient Ethernet, loop prevention, undercurrent protection, undervoltage protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, status, link/activity |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-T RJ-45 |
| Power | |
| Power Device | External power adapter |
| Power Provided | 55 V - 1.3 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, RoHS |
| Dimensions & Weight | |
| Width | 24 cm |
| Depth | 10.5 cm |
| Height | 2.6 cm |
| Weight | 590 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Edimax - GS-3008P
General
8-Port
More Details
Product Code
04:281500
EAN Code
4717964702814
Manufacturer
Edimax
