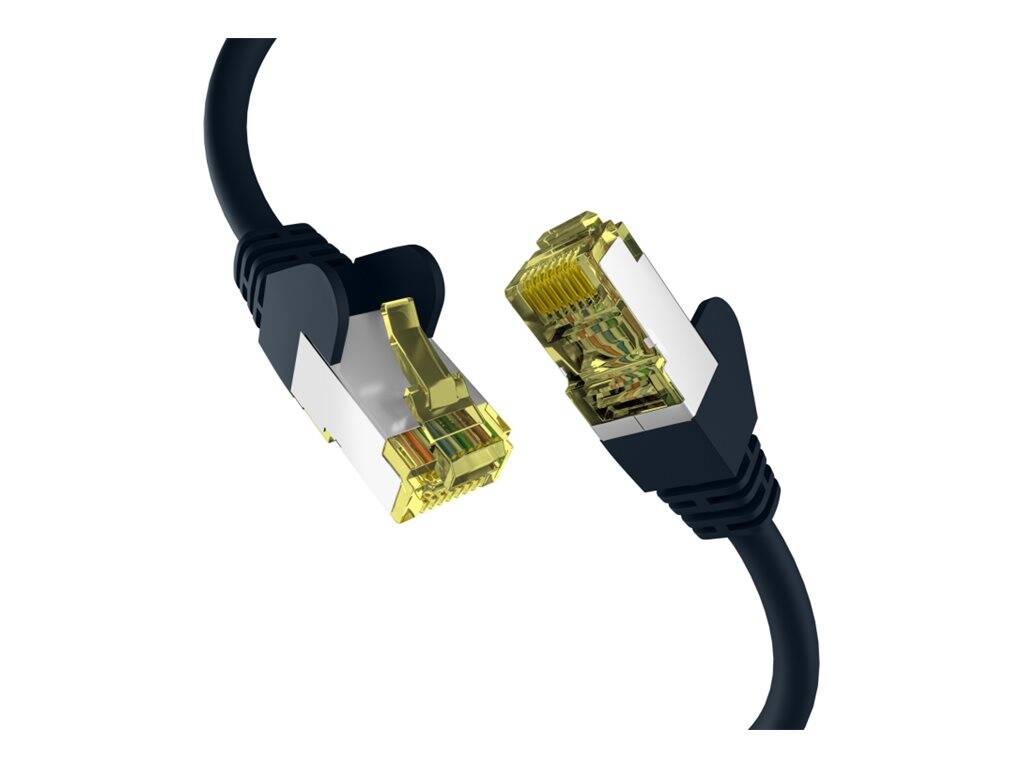

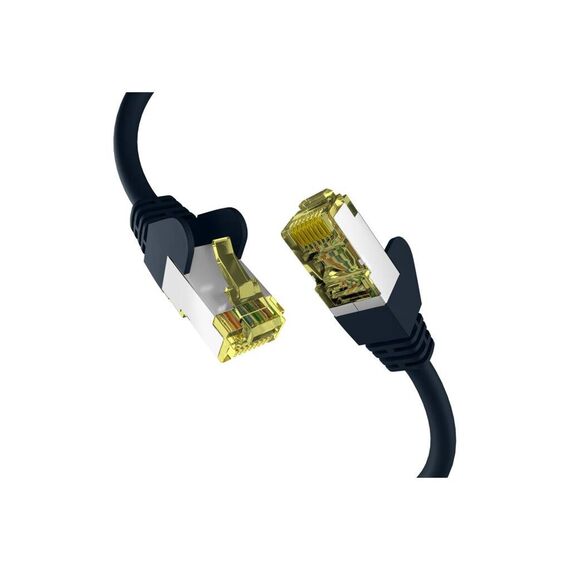

EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 (M) - 5 m - 6 mm - S/FTP, PiMF - CAT 6a - booted, halogen-free, molded, stranded, anti-kink sleeve, up to 10 Gbps data transfer rate, pin assignment: 1:1 - black | EC020200038
Please sign in so that we can notify you about a reply
Product Specification
| Network Cable Type | Patch cable - CAT 6a |
| Technology | S/FTP, PiMF |
| Wiring Scheme | T568B |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 27/7 |
| Wires per Cable | 8 wires |
| Plated Connector | Gold |
| Features | Booted, halogen-free, molded, stranded, anti-kink sleeve, up to 10 Gbps data transfer rate, pin assignment: 1:1, latch protection, copper conductor |
| Length | 5 m |
| Diameter | 6 mm |
| Colour | Black |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B, IP20, ANSI/TIA/EIA 568-C.2 - up to 500 MHz |
Features - EFB - EC020200038
Colour
black
Length
5m
General
CAT6a
More Details
Product Code
CI29601
EAN Code
4049759288860
Manufacturer
EFB
