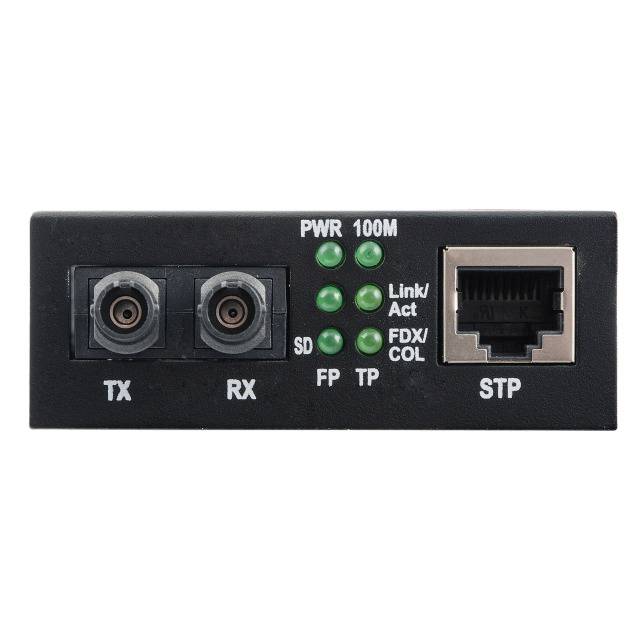

EFB-Elektronik EL022V2 / Fibre media converter / 100Mb LAN / 100Base-FX, 100Base-TX / RJ-45 / ST multi-mode / up to 2 km / 1310 nm | EL022V2
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 2 km |
| Status Indicators | Power, link/activity |
| Features | Auto-negotiation, full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - ST multi-mode female x 2 |
| Power | Power |
| Power Device | External power adapter |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.1 cm |
| Depth | 11.6 cm |
| Height | 2.6 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% |
Features - EFB - EL022V2
More Details
Product Code
04:261587
EAN Code
4049759057893
Manufacturer
EFB
