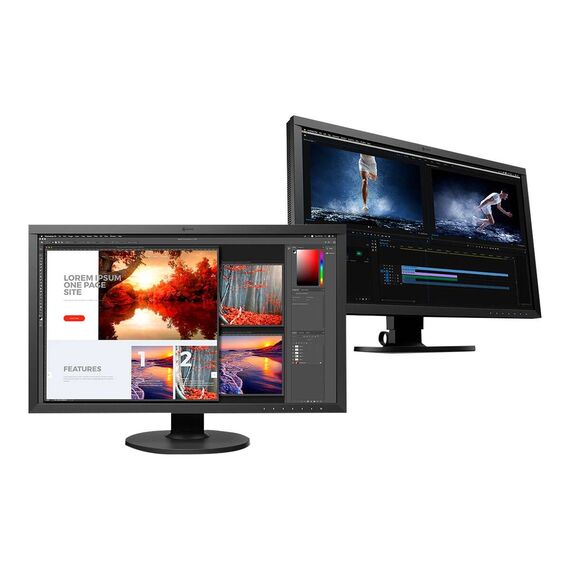

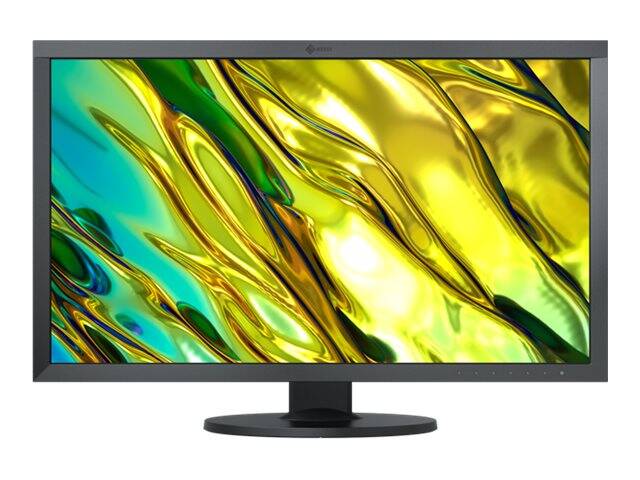

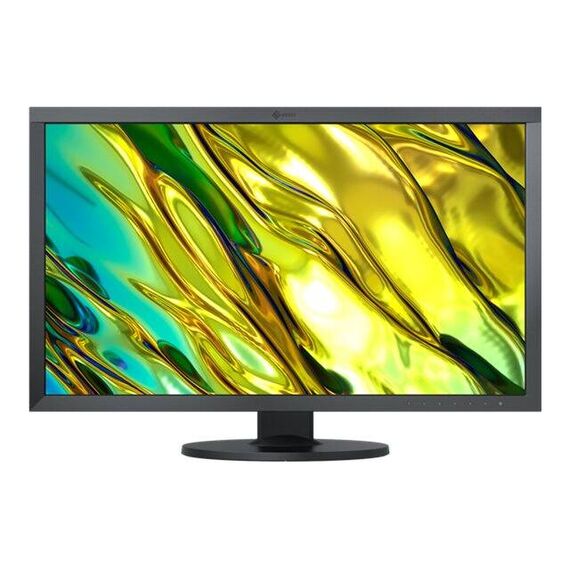

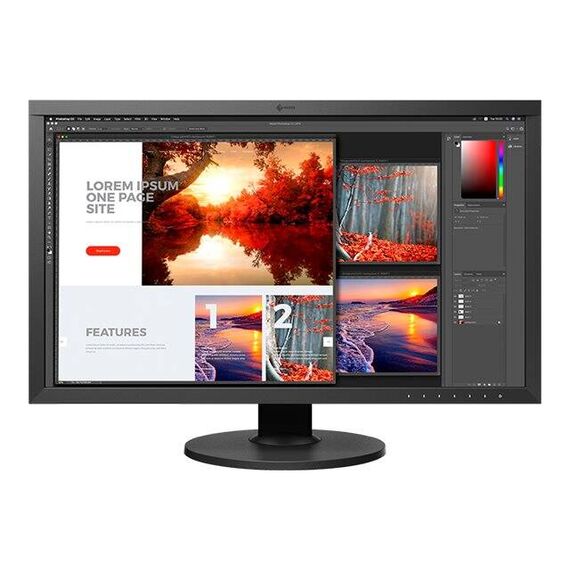

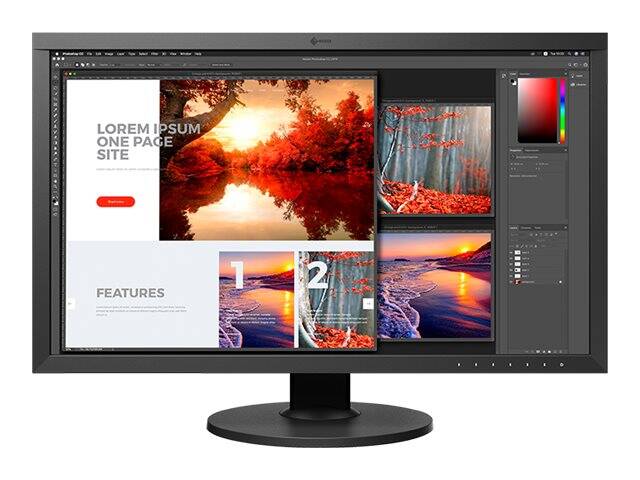

EIZO ColorEdge cs2740 - LED monitor - 27" (26.9" viewable) - 3840 x 2160 4K @ 61 Hz - IPS - 350 cd/m² - 1000:1 - 10 ms - HDMI, DisplayPort, USB-C - black | CS2740
Product Features
- High pixel density for smooth display
Alphanumeric characters and contours are distinguished with excellent sharpness so you can check even the finest details without needing to zoom in. - Stable image display
The gamma level for each ColorEdge monitor is adjusted at the factory in a way to select the most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images. - Uniformity across the screen
ColorEdge monitors are equipped with digital uniformity equalizer technology which corrects deviations in every tone across the screen to ensure stable display. - Seamless electrostatic switches
The flat design uses electrostatic switches on the front bezel for seamless access to monitor setting. - Built-in carrying handle
A carrying handle on the back of the monitor allows you to easily move it from one location to another. - Minimized reflections with non-glare panel
The monitor is equipped with a non-glare panel for high visibility. It also uses dimming technology to minimize flicker and help prevent eye fatigue for a more comfortable working environment. - I/P conversion for flicker-free display
The HDMI input supports I/P conversion for converting the interlace signals from TV and video into progressive signals for flicker-free display. - Wide viewing angles with IPS panel
The wide viewing angles afforded by the IPS panel technology allow two or more people to view the screen at once with little change in color or contrast. - Ergonomic stand for comfort and convenience

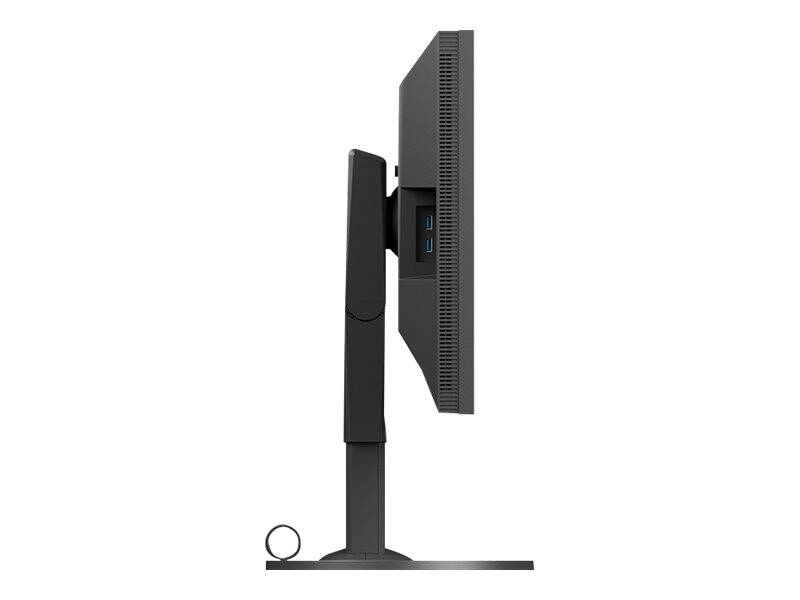

The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments as well as portrait display. The stand is also equipped with a quick release that allows you to easily remove the screen from the stand with one touch. - Multiple inputs
The ColorEdge CS2740 is equipped with HDMI and DisplayPort inputs. In addition to USB Type-C, it also has a USB Type-B and four USB Type-A ports.
Special Fetures
- High pixel density for smooth display
- Stable image display
- Uniformity across the screen
- Seamless electrostatic switches
- Built-in carrying handle
- Minimized reflections with non-glare panel
- I/P conversion for flicker-free display
- Wide viewing angles with IPS panel
- Ergonomic stand for comfort and convenience
- Multiple inputs
Product Specification
Display Type | LED-backlit LCD monitor / TFT active matrix |
Energy Class | Class G |
Diagonal Size | 27" |
Viewable Size | 26.9" |
Built-in Devices | USB 3.1 Gen 1 hub |
USB Power Delivery | 60 Watt |
Panel Type | IPS |
Aspect Ratio | 16:9 |
Native Resolution | 4K 3840 x 2160 at 61 Hz |
Pixel Pitch | 0.155 mm |
Pixel Per Inch | 164 |
Brightness | 350 cd/m² |
Contrast Ratio | 1000:1 |
Colour Support | 1.07 billion colours |
Colour Gamut | 99% Adobe RGB |
Response Time | 10 ms (grey-to-grey) |
Vertical Refresh Rate | 23 - 61 Hz |
Horizontal Refresh Rate | 25 - 137 kHz |
Horizontal Viewing Angle | 178 |
Vertical Viewing Angle | 178 |
Backlight Technology | LED backlight |
OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Swedish, Spanish, Japanese |
Features | HDCP, Digital Uniformity Equalizer (DUE), Wide Colour Gamut, colour adjustment mode, Custom Key, Noise Reduction, Power Saving Mode |
Colour | Black |
Dimensions (WxDxH) | 63.8 cm x 26.5 cm x 40.4 cm - with stand |
Weight | 10.3 kg |
Connectivity | |
Interfaces | USB-C (HDCP 1.3) ¦ DisplayPort (HDCP 1.3) ¦ HDMI (HDCP 2.2) ¦ USB-C 3.1 Gen 1 upstream/DisplayPort Alt Mode with Power Delivery (power up to 60W) ¦ USB 3.1 Gen 1 upstream (Type B) ¦ 2 x USB 3.1 Gen 1 downstream ¦ 2 x USB 2.0 downstream |
Mechanical | |

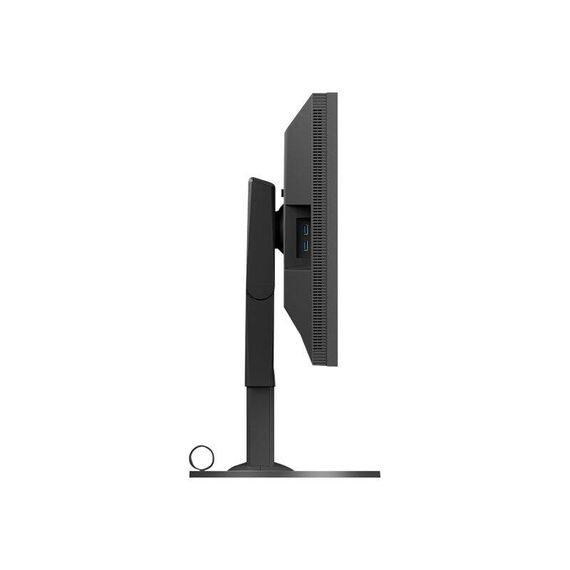

Display Position Adjustments | Height, pivot (rotation), swivel, tilt |
Tilt Angle | -5/+35 |
Swivel Angle | 344 |
Rotation Angle | 90 |
Height Adjustment | 155 mm |
VESA Mounting Interface | 100 x 100 mm |
Miscellaneous | |

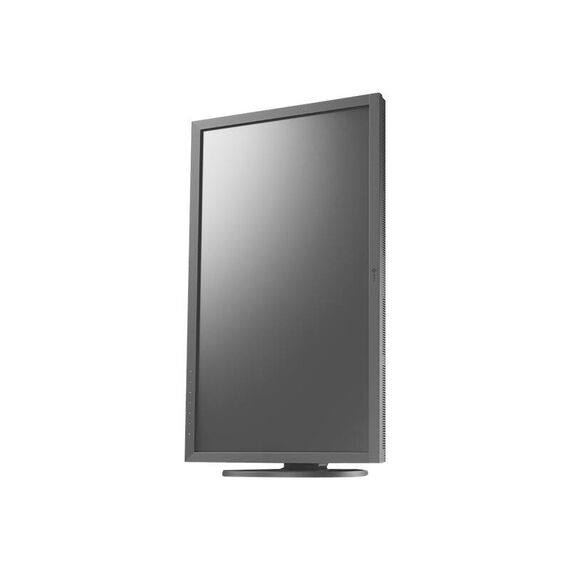

Features | Portrait / landscape mode |
Cables Included | 1 x USB-C cable - 2 m ¦ 1 x DisplayPort cable - 2 m ¦ 1 x USB cable |
Compliant Standards | FCC Class B certified, TUV GS, TUV S, CB, TUV Ergo, RoHS, WEEE, PSE Mark, cTUVus, VCCI Class B, EAC, RCM, CAN ICES-3 Class B |
Power | |
Input Voltage | AC 120/230 V (50/60 Hz) |
Power Consumption (On mode) | 37.8 W |
Power Consumption SDR (On mode) | 37.8 kWh/1000h |
Power Consumption (Typical) | 36 Watt |
Power Consumption (Max) | 168 Watt |
Power Consumption Stand by | 1 Watt |
Software / System Requirements | |
Included Software | EIZO Quick Color Match, EIZO ColorNavigator 7 |
Dimensions & Weight | |
Dimensions & Weight Details | With stand - width: 63.8 cm - depth: 26.5 cm - height: 40.4 cm - weight: 10.3 kg ¦ Without stand - width: 63.8 cm - depth: 7.5 cm - height: 37.82 cm - weight: 6.7 kg |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 20 - 80% (non-condensing) |
