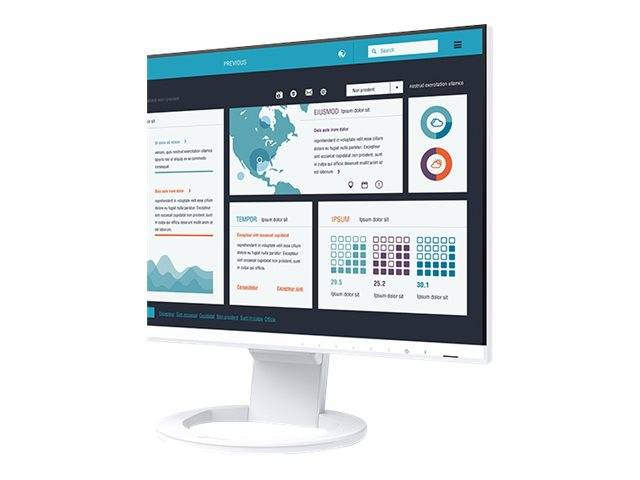

EIZO FlexScan EV2490-WT / With FlexStand / LED monitor / 23.8" / 1920 x 1080 Full HD (1080p) @ 60 Hz / IPS / 250 cd/m2 / 1000:1 / 5 ms / HDMI, DisplayPort, USB-C / speakers / white | EV2490-WT
Product Features
- Streamlined connection with USB Type-C
The monitor is equipped with a USB Type-C connection that allows you display video, playback audio, transmit USB signals, supply power to connected PCs, and even transmit a network signal. This convenient multi-purpose connectivity makes it faster and easier to connect your laptop when moving between workstations or working away from the office. - 70 Watt power delivery
The 70 watt power delivery via USB Type-C reliably charges small desktop PCs or laptops. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk. - Stable network connection
While many modern laptops are not equipped with a dedicated LAN port, the monitor has one directly built in for a stable wired connection. Connecting any laptop via USB Type-C allows access to the network through the monitor. This allows you to conduct online conference calls or data transfers reliably and at high speed. - Directly connect peripherals
While many modern laptops are designed to be thin and more portable, they often have limited connectivity options for peripherals. Connecting to the monitor via USB Type-C gives access to a hub with three USB Type-A and one USB Type-C ports for easily connecting an external keyboard, mouse, or web camera. - Efficient multi-screen setup
The monitor's USB Type-C connection supports daisy chaining for easily connecting multiple monitors from a single video signal output. This allows you to effortlessly connect up to four screens. When using multiple applications, such as Outlook, Excel, or web conference on a laptop with a small screen, the windows overlap, often requiring you to switch between them. With multiple monitors, you can have large enough screen to display multiple applications simultaneously, allowing you to boost work efficiency. - Convenient connection and comfortable to use
The monitor makes connection to a PC convenient and includes various features and functions for working more comfortably. - Multiple connectivity and flexibility
The monitor is equipped with USB Type-C, DisplayPort, and HDMI video inputs for flexible connection. It is convenient for use in offices that have a free address system, where employees do not have fixed seats and can freely use any available seat to work, or in open spaces where participants can bring their own laptops to meetings. - Improve work efficiency
The monitor is equipped with a 23.8-inch IPS panel with Full HD (1920 x 1080 pixels) resolution. When connected to a laptop, for example, the total available screen area is about three times that of a 14-inch laptop. This improves efficiency by allowing you to display more information at once instead of needing to frequently switch windows. - Comfortably fits in modest workspaces
The monitor features a space-saving design with a width of 537.8 mm and a depth of 230 mm. With its small footprint, it fits neatly into even the most modest workspaces or home offices to save more desk space. In addition, the stand has a wide adjustable range of 191.2 mm, allowing you to comfortably place a laptop under the monitor for a quick and compact multi-screen configuration. - Versatile stand for optimal positioning

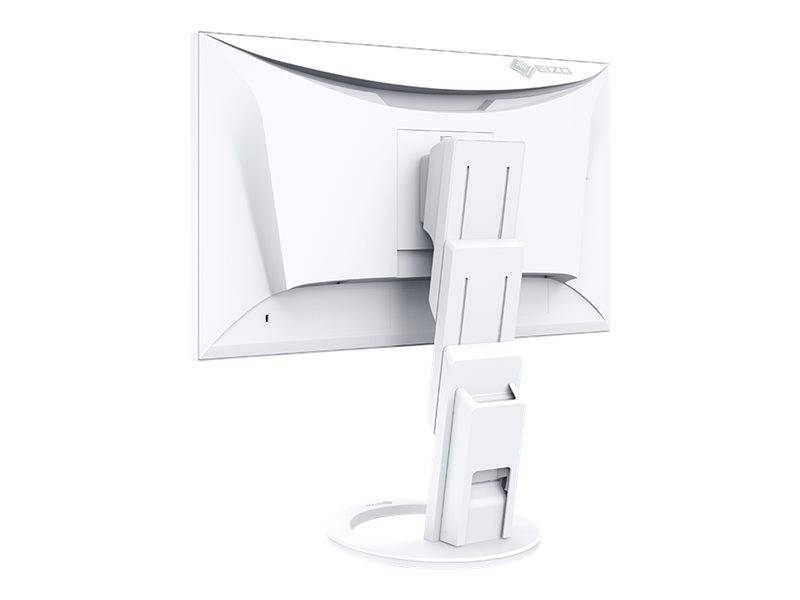

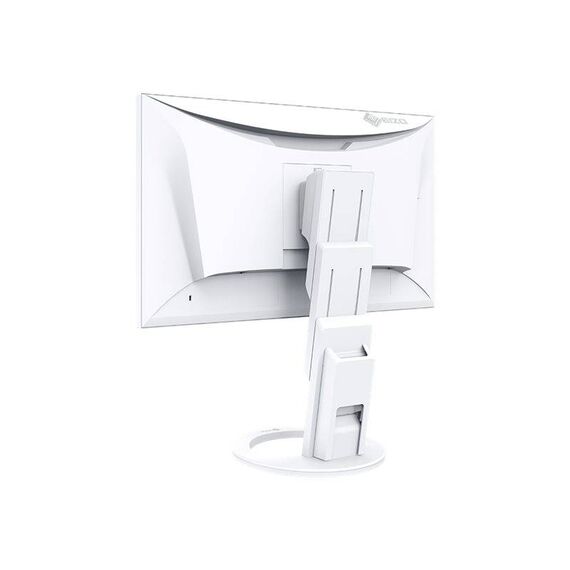

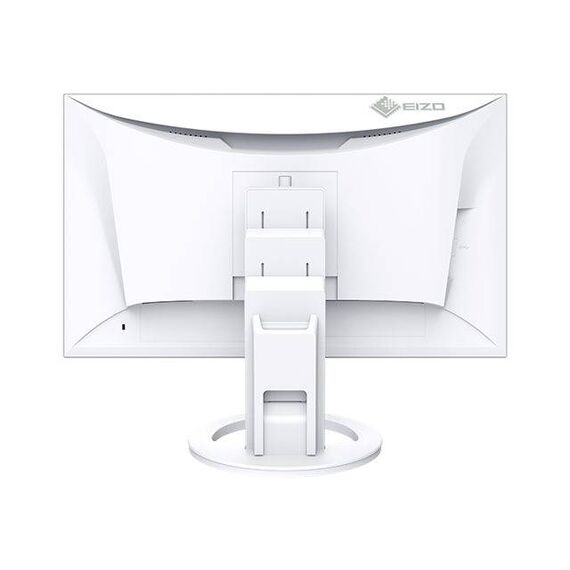

The stand has a wide adjustment range, featuring height adjustment, tilt and swivel. This allows you to set the monitor to the perfect position, whether sitting or standing at your desk. - Portrait mode for vertical viewing
The versatile stand allows you to rotate the monitor to portrait mode for reading long text documents or vertically optimized webpages and applications.
Special Features
- Streamlined connection with USB Type-C
- Convenient connection and comfortable to use
- Aesthetically pleasing design
- Say goodbye to tired eyes
- Commitment to quality
- Care for the environment and you
Product Specification
Display Type | LED-backlit LCD monitor / TFT active matrix |
Diagonal Size | 23.8" |
Daisy Chaining | Yes |
Built-in Devices | USB 3.1 Gen 1 hub |
Panel Type | IPS |
Aspect Ratio | 16:9 |
Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
Pixel Pitch | 0.275 mm |
Pixel Per Inch | 93 |
Brightness | 250 cd/m2 |
Contrast Ratio | 1000:1 |
Colour Support | 16.7 million colours |
Colour Gamut | 100% sRGB |
Response Time | 5 ms (grey-to-grey) |
Vertical Refresh Rate | 59 - 61 Hz |
Horizontal Refresh Rate | 31 - 68 kHz |
Horizontal Viewing Angle | 178 |
Vertical Viewing Angle | 178 |
Backlight Technology | LED backlight |
OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Swedish, Spanish, Japanese |
Features | sRGB colour management, Auto EcoView, The Paper Mode, Flicker Free technology, Blue Light Filter technology, Power Saving Mode, 100 x 100 VESA mounting |
Colour | White |
Dimensions (WxDxH) | 53.78 cm x 33.24 cm x 23 cm - with stand |
Weight | 7.2 kg |
Audio | Audio |
Type | Speakers - stereo |
Output Power / Channel | 1 Watt |
Connectivity | Connectivity |
Interfaces | HDMI (HDCP 1.4) ¦ DisplayPort (HDCP 1.3) ¦ USB-C (HDCP 1.3) ¦ USB 3.1 Gen 1 upstream (Type B) ¦ Headphones (mini-jack) ¦ USB-C 3.1 Gen 1 upstream/DisplayPort Alt Mode with Power Delivery ¦ 3 x USB 3.1 Gen 1 downstream (Type A) ¦ USB-C 3.1 downstream with Power Delivery ¦ LAN (RJ-45) |
Mechanical | Mechanical |
Display Position Adjustments | Height, pivot (rotation), swivel, tilt |
Tilt Angle | -5/+35 |
Swivel Angle | 344 |
Rotation Angle | 90 |
Height Adjustment | 191.2 mm |
VESA Mounting Interface | 100 x 100 mm |
Miscellaneous | Miscellaneous |
Features | Detachable stand, VESA interface support |
Cables Included | 1 x USB-C cable - 2 m |
Compliant Standards | FCC Class B certified, TUV, TUV GS, GS, TUV S, CB, CCC, TUV Ergo, RoHS, WEEE, PSE Mark, cTUVus, China Energy Label Level 2, EPA, VCCI Class B, EAC, China RoHS, RCM, CAN ICES-3 Class B, TUV LBL |
Power | Power |
Input Voltage | AC 120/230 V (50/60 Hz) |
Power Consumption (Typical) | 11 Watt |
Power Consumption (Max) | 155 Watt |
Power Consumption Stand by | 0.5 Watt |
Software / System Requirements | Software / System Requirements |
Included Software | EIZO Screen InStyle |
Dimensions & Weight | Dimensions & Weight |
Dimensions & Weight Details | With stand - width: 53.78 cm - depth: 33.24 cm - height: 23 cm - weight: 7.2 kg ¦ Without stand - width: 53.78 cm - depth: 5.74 cm - height: 32.04 cm - weight: 4.5 kg |
Environmental Standards | Environmental Standards |
ENERGY STAR Certified | Yes |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 5 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 20 - 80% (non-condensing) |
