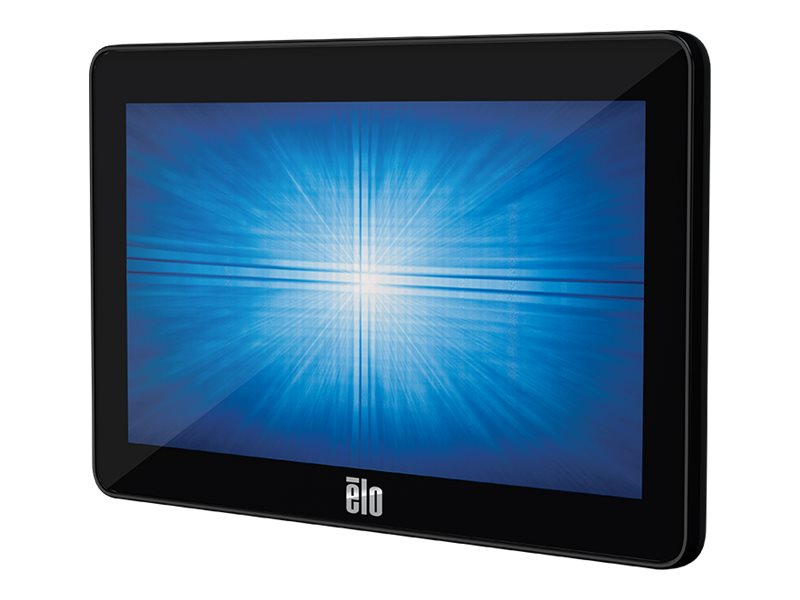

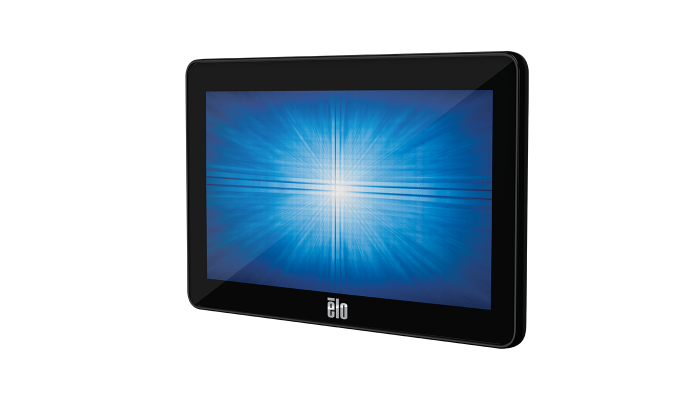

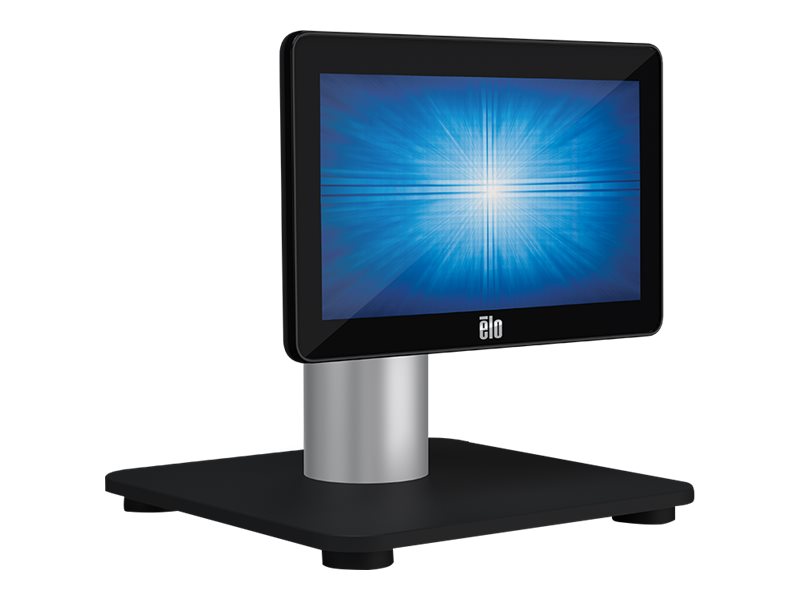

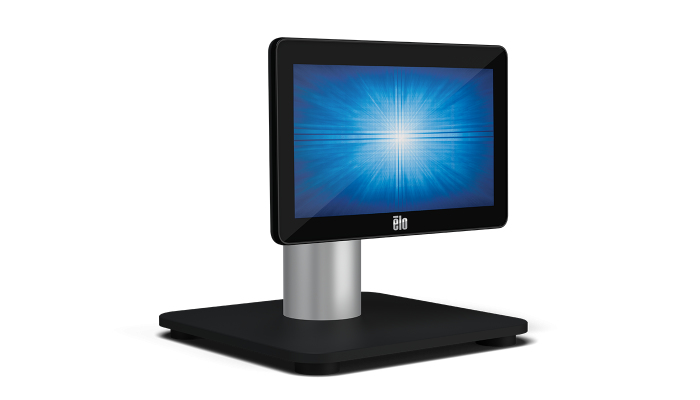

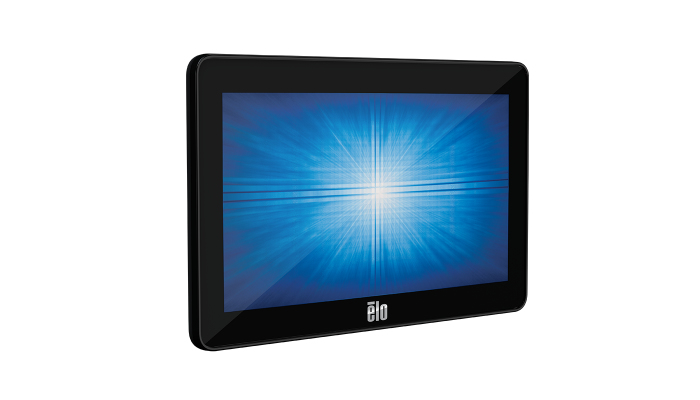

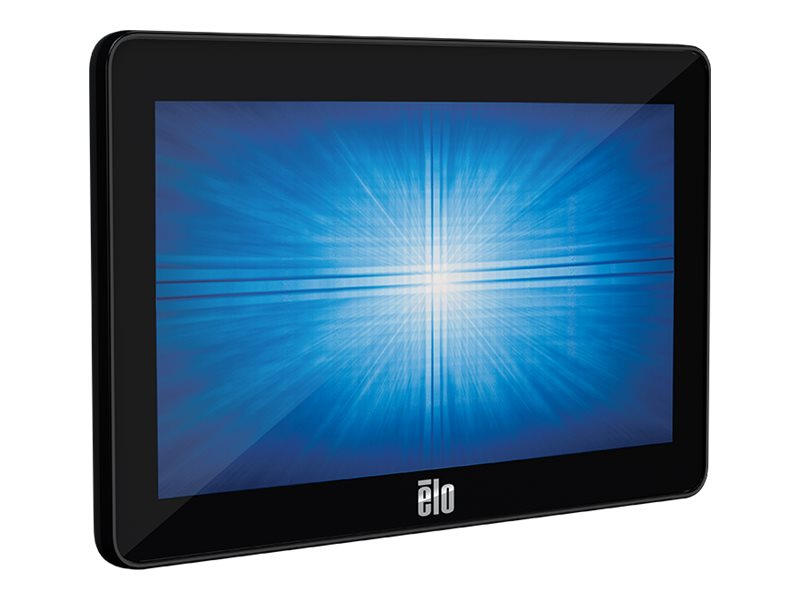

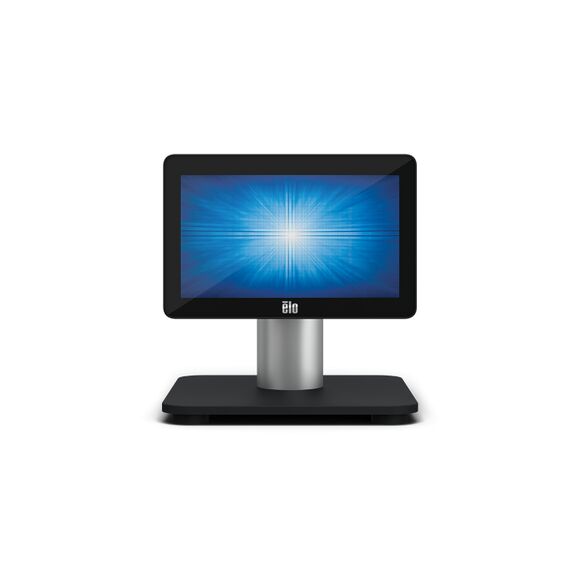

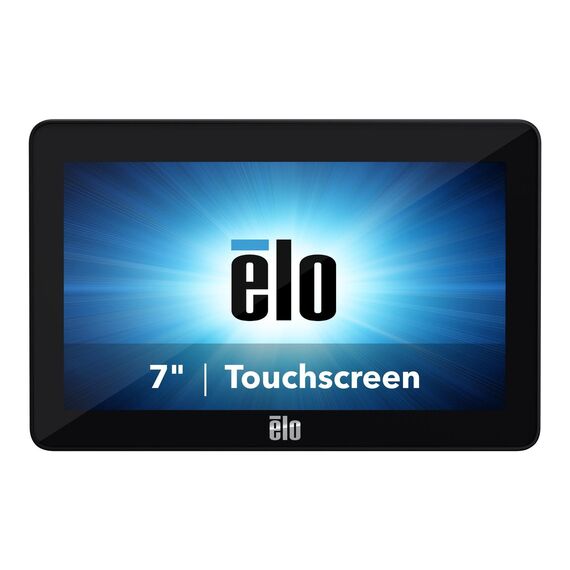

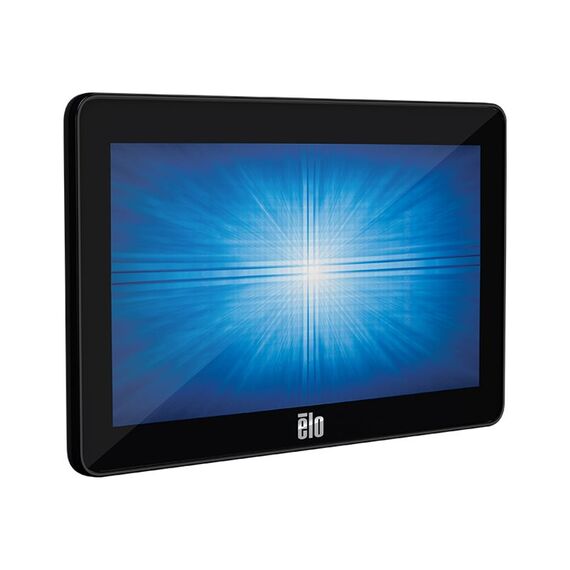

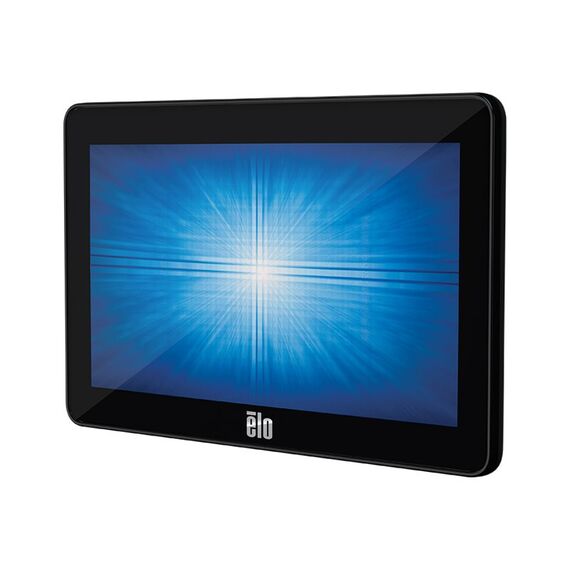

Elo 0702L - LED monitor - 7" - touchscreen - 800 x 480 @ 60 Hz - 430 cd/m² - 500:1 - 25 ms - USB - black | E796382
E796382
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- DisplayLink technology provides touch, video and power connectivity over a single cable
- Touchscreen is compatible with use of finger, glove and stylus

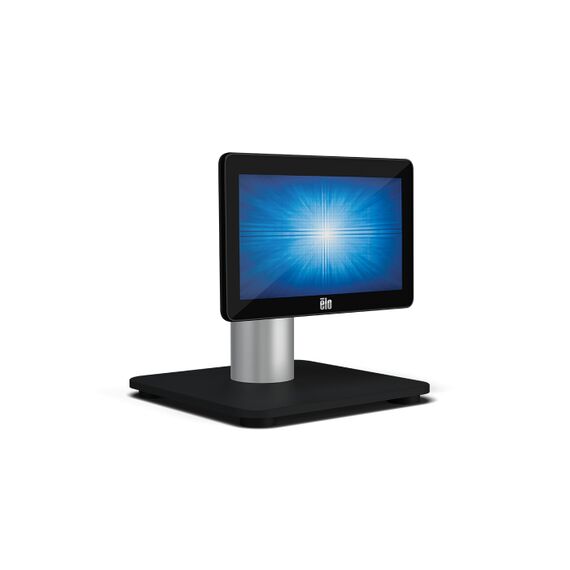

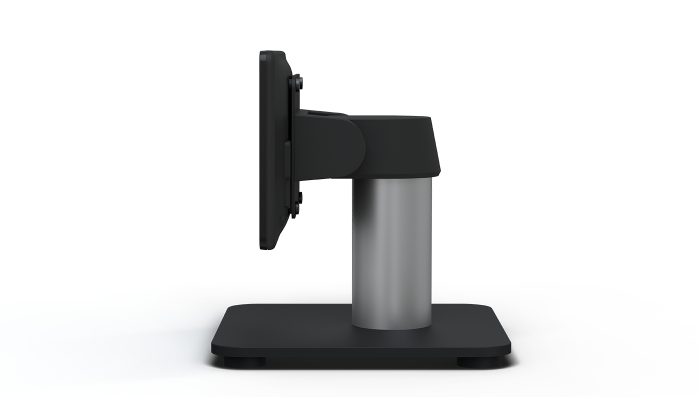

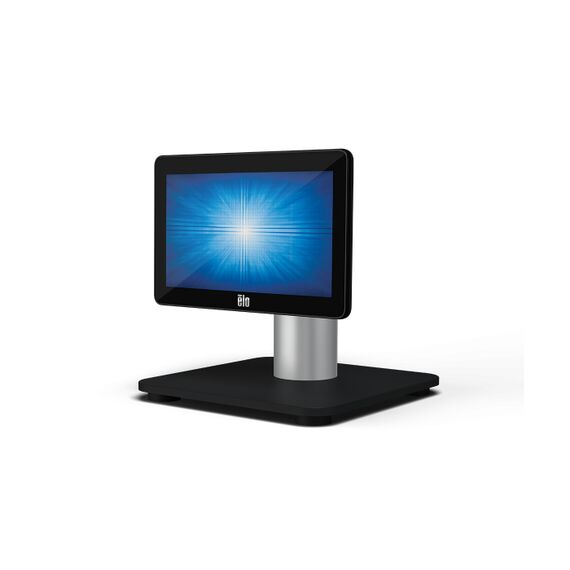

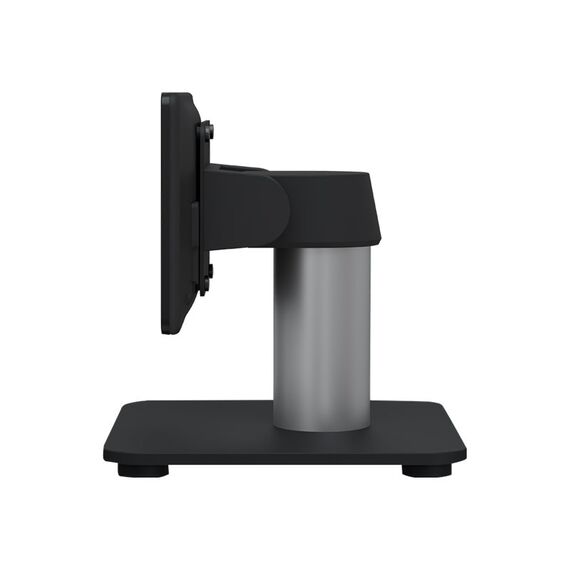

- Integrate with ease - from stands and pole mounts to shelf mounts, wall mounts and VESA mounts
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 7" |
| Aspect Ratio | 5:3 |
| Native Resolution | 800 x 480 at 60 Hz |
| Brightness | 430 cd/m² |
| Contrast Ratio | 500:1 |
| Colour Support | 16.2 million colours |
| Response Time | 25 ms |
| Vertical Refresh Rate | 60 Hz |
| Horizontal Refresh Rate | 31.5 kHz |
| Horizontal Viewing Angle | 150 |
| Vertical Viewing Angle | 120 |
| Backlight Technology | LED backlight |
| Features | Anti-glare, USB bus powered, Projected Capacitive Touch (P-CAP) technology |
| Colour | Black |

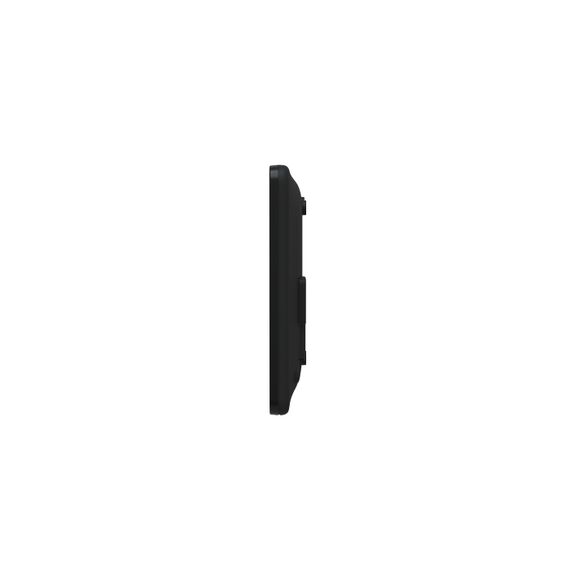

| Dimensions (WxDxH) | 18.058 cm x 1.77 cm x 11.722 cm - without stand |
| Weight | 350 g |
| Input | |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | |
| Interfaces | Micro-USB |
| Mechanical | |

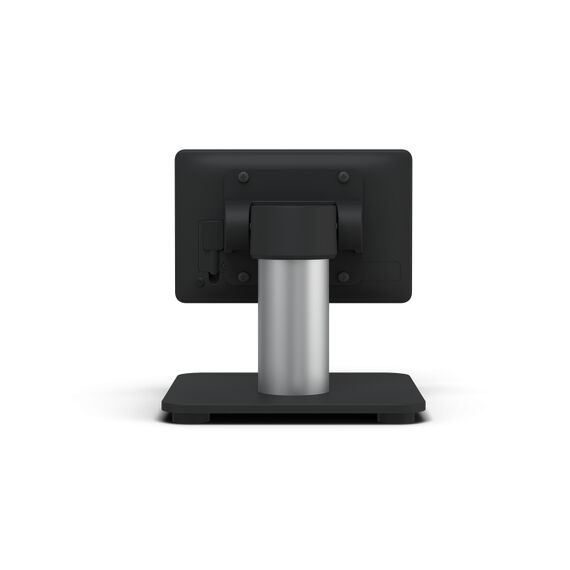

| VESA Mounting Interface | 75 x 75 mm |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Compliant Standards | UL, VCCI, BSMI, cUL, NOM, CB, CCC, IC, FCC, KCC, IP65, RCM, IK06 |
| Localisation | Worldwide |
| Power | |
| Input Voltage | DC 5 V |

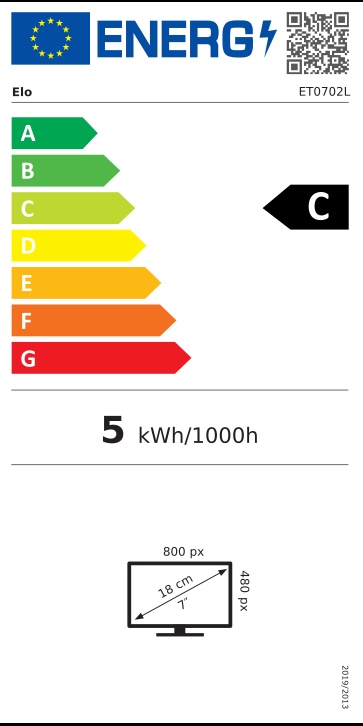

| Power Consumption (Typical) | 3.7 Watt |
| Power Consumption Sleep | 0.9 Watt |
| Power Consumption (Off Mode) | 1.9 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.2 cm |
| Shipping Depth | 9.5 cm |
| Shipping Height | 17 cm |
| Shipping Weight | 650 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
