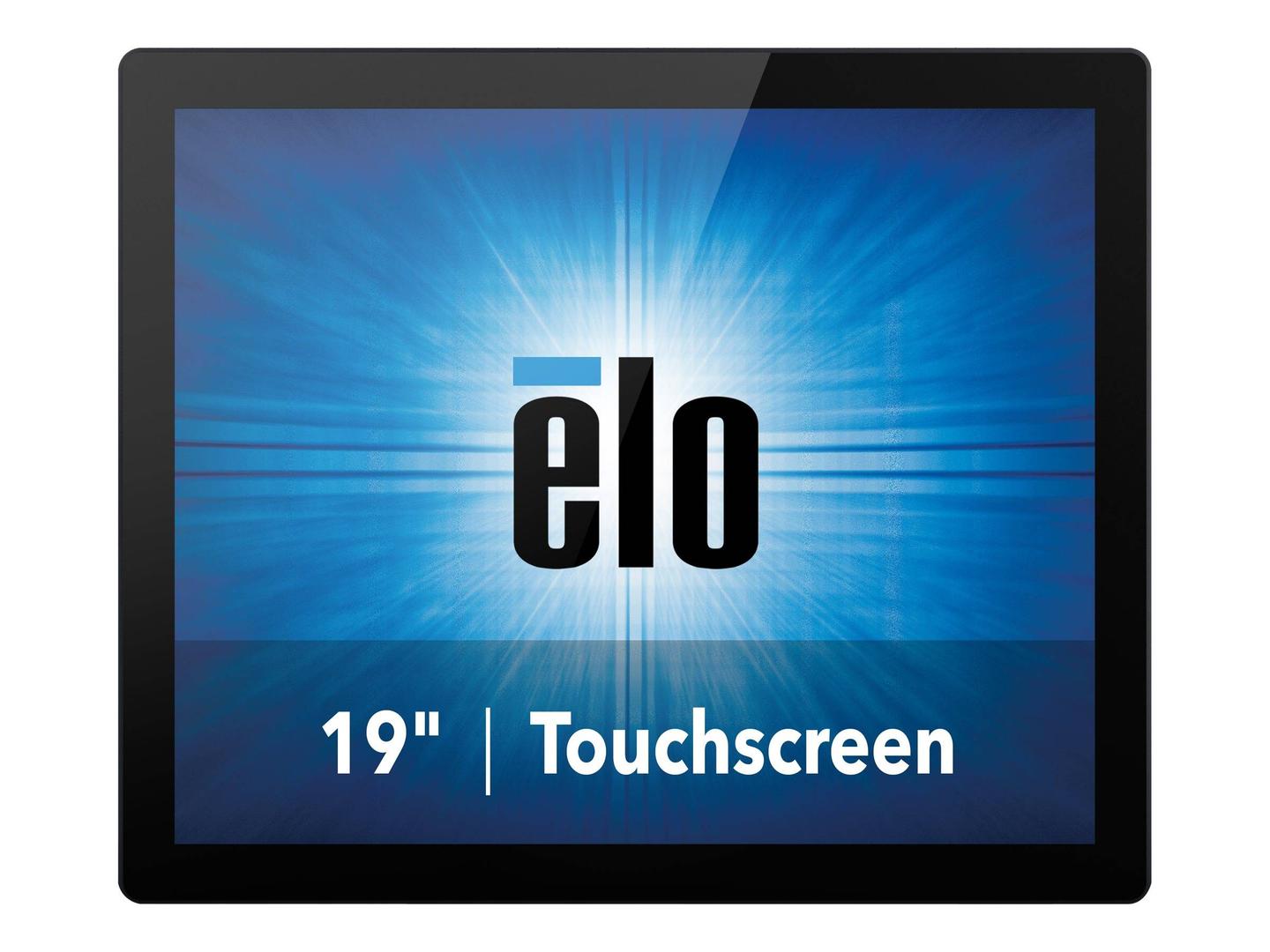

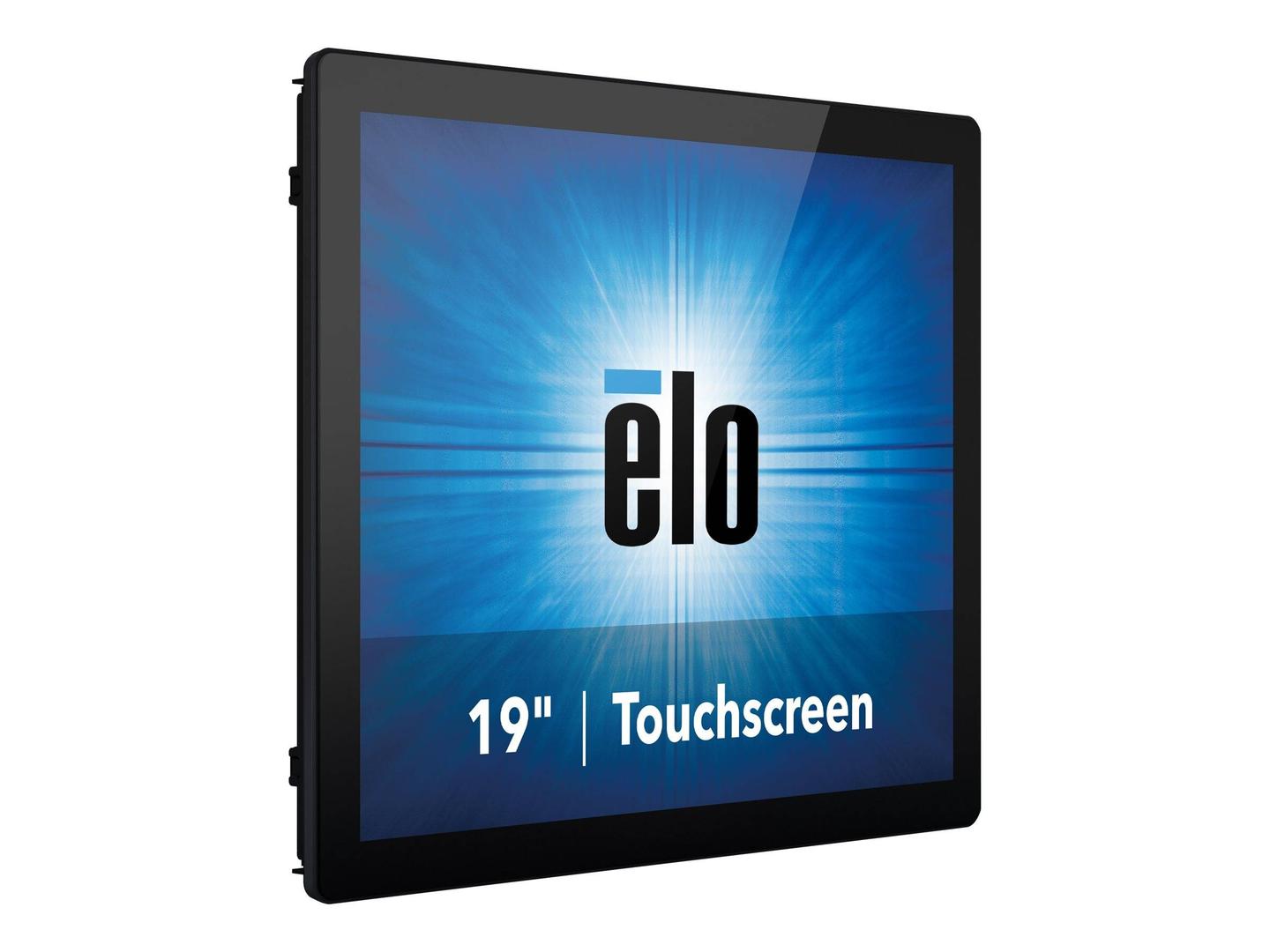

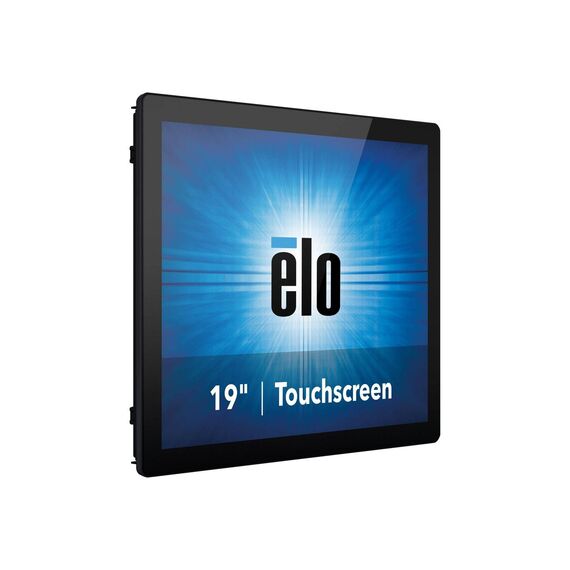

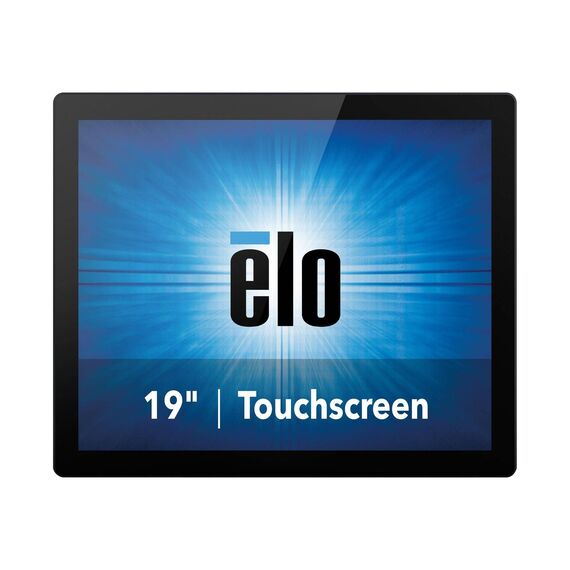

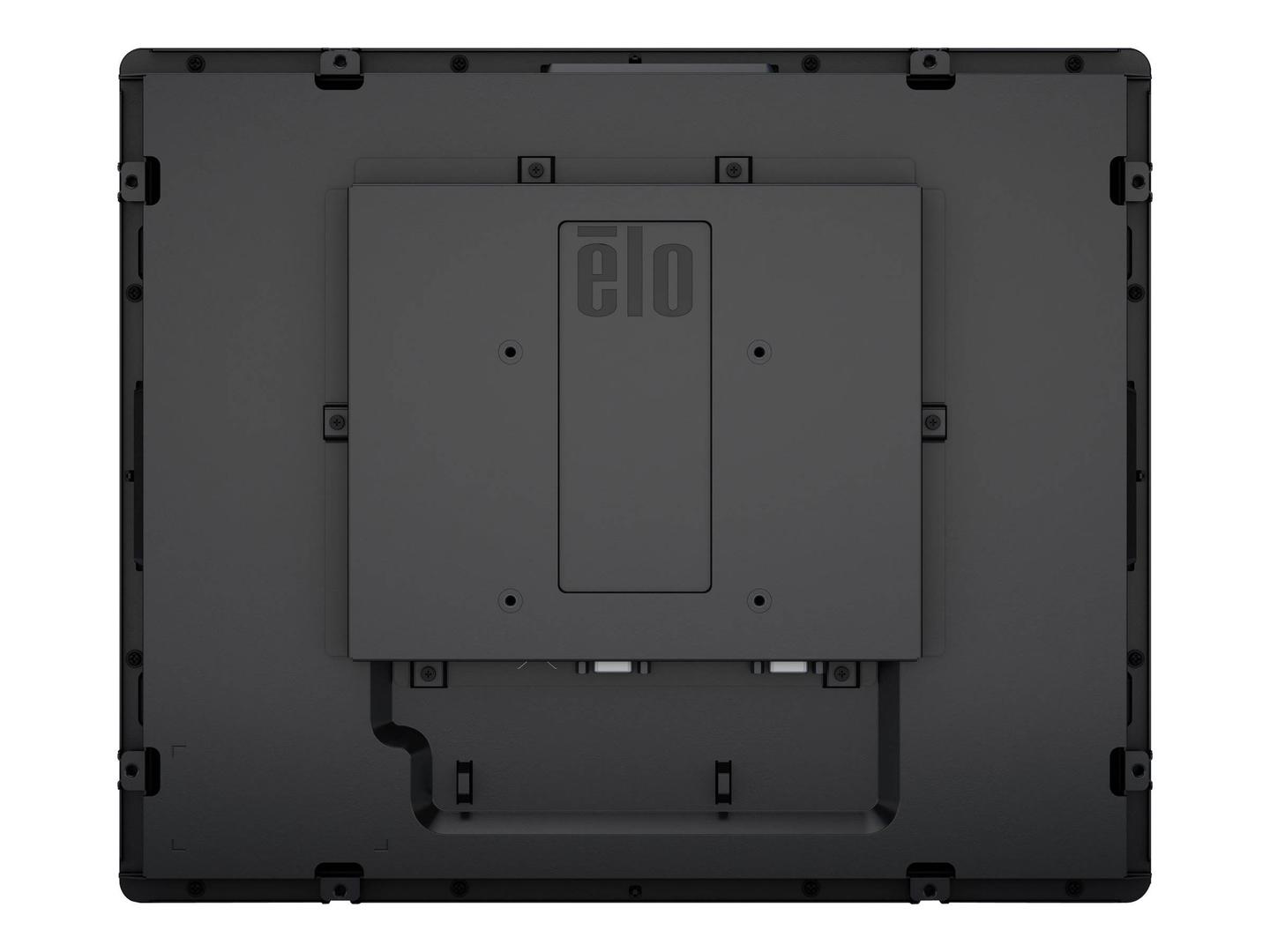

Elo 1991L / 90-Series / LED monitor / 19" / open frame / touchscreen / 1280 x 1024 @ 60 Hz / 250 cd/m² / 1000:1 / 14 ms / HDMI, VGA, DisplayPort / black | E331019
Please sign in so that we can notify you about a reply
Special Features
- Viewing angle of 178° x 178°, for sharp colors and graphics in both portrait and landscape modes
- Touchscreen sealed against dirt, dust and liquids
- PCAP 2GS (two glass solution) offers pristine optical clarity and touch durability
- 10 touch projected capacitive (PCAP) with Thru-glass capabilities
- Display Port and VGA video interfaces
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class A |
| Energy Consumption per Year | 28 kWh |
| Diagonal Size | 19" |
| Aspect Ratio | 5:4 |
| Native Resolution | 1280 x 1024 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 14 ms (tr - tf) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Remote OSD, Zero-Bezel Design, Projected Capacitive Touch (P-CAP) technology |
| Colour | Black |
| Dimensions (WxDxH) | 42.01 cm x 4.07 cm x 34.81 cm |
| Weight | 4.6 kg |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |
| Interfaces | USB (Type B) ¦ VGA ¦ DisplayPort ¦ Management (RJ-45) ¦ HDMI |
| Mechanical | Mechanical |

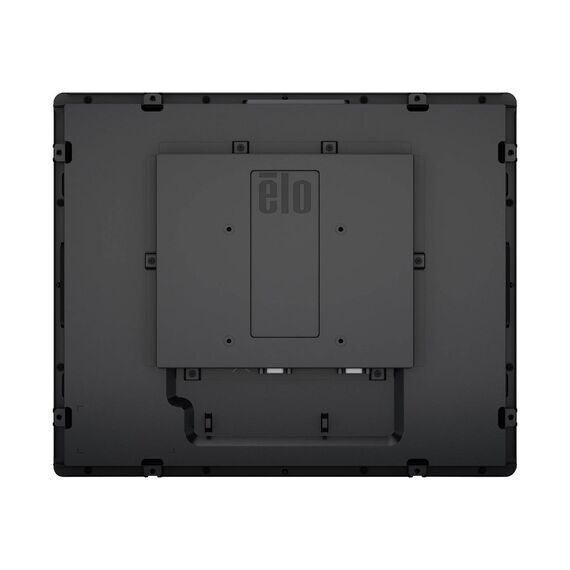

| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x VGA cable ¦ 1 x USB cable ¦ 1 x HDMI cable |
| Mounting Kit | Included |
| MTBF | 50,000 hours |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IMERC |
| Localisation | Worldwide |
| Power | Power |
| Power Consumption (On mode) | 19 W |
| Power Consumption Operational | 17 Watt |
| Power Consumption (Typical) | 17 Watt |
| Power Consumption Sleep | 1.5 Watt |
| Power Consumption (Off Mode) | 0.5 Watt |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E331019
More Details
Product Code
0V00632
EAN Code
0815335026003
Manufacturer
Elo
