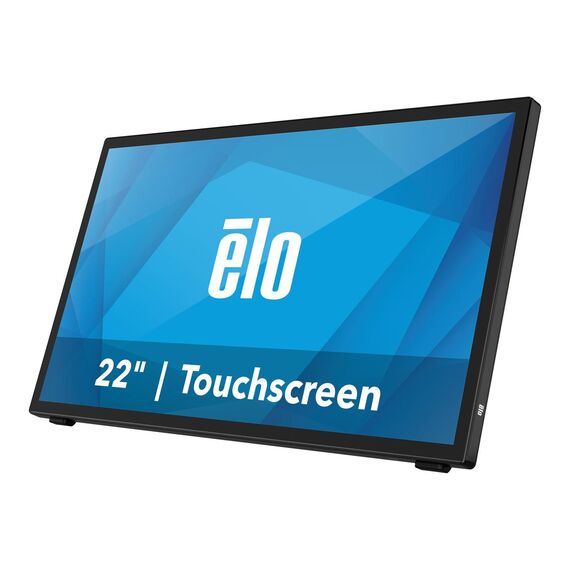

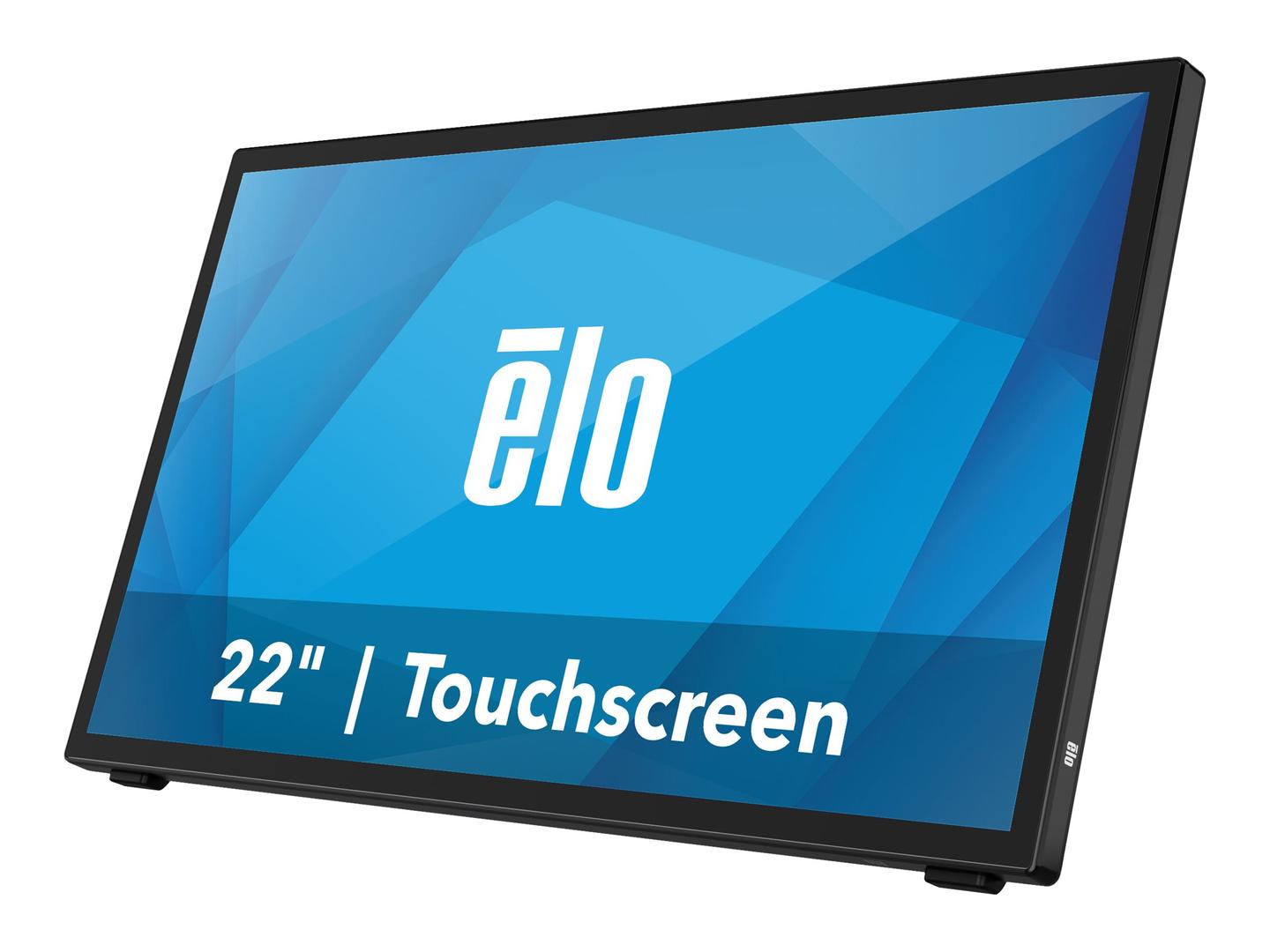

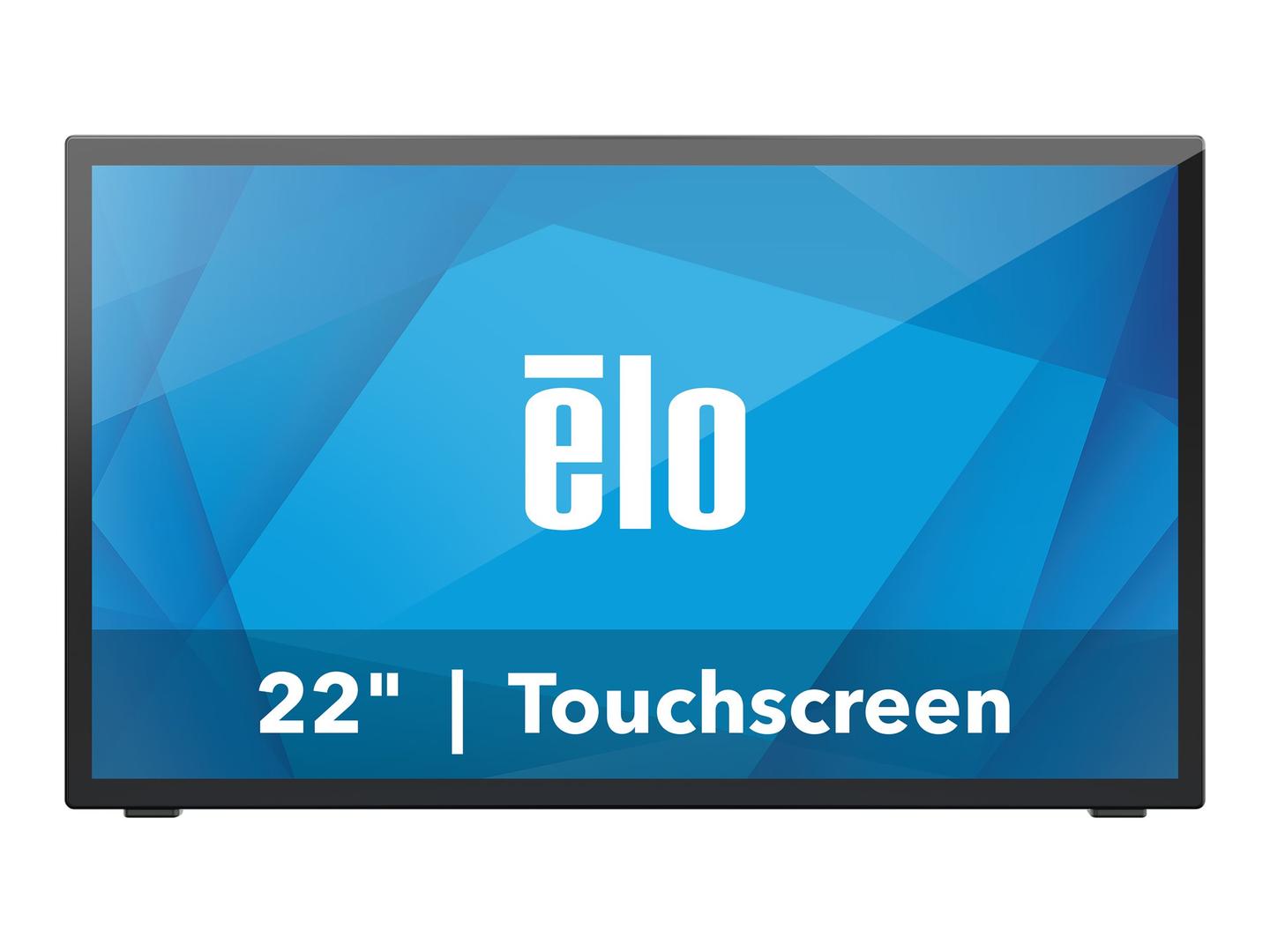

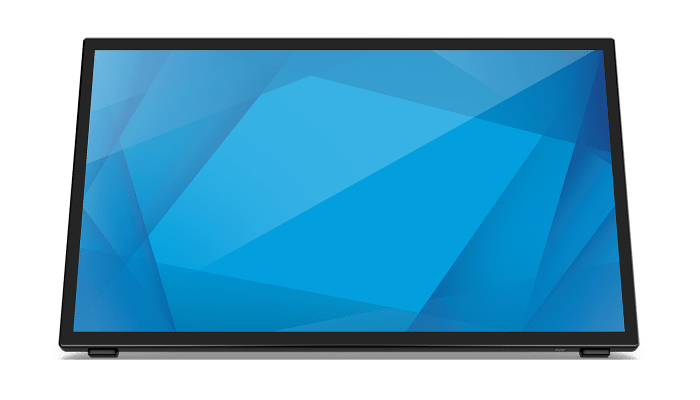

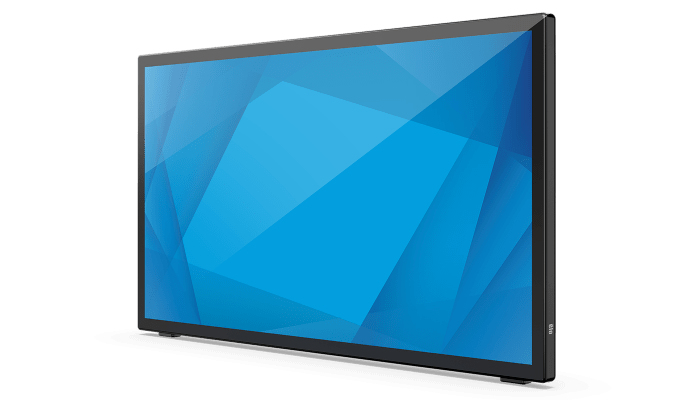

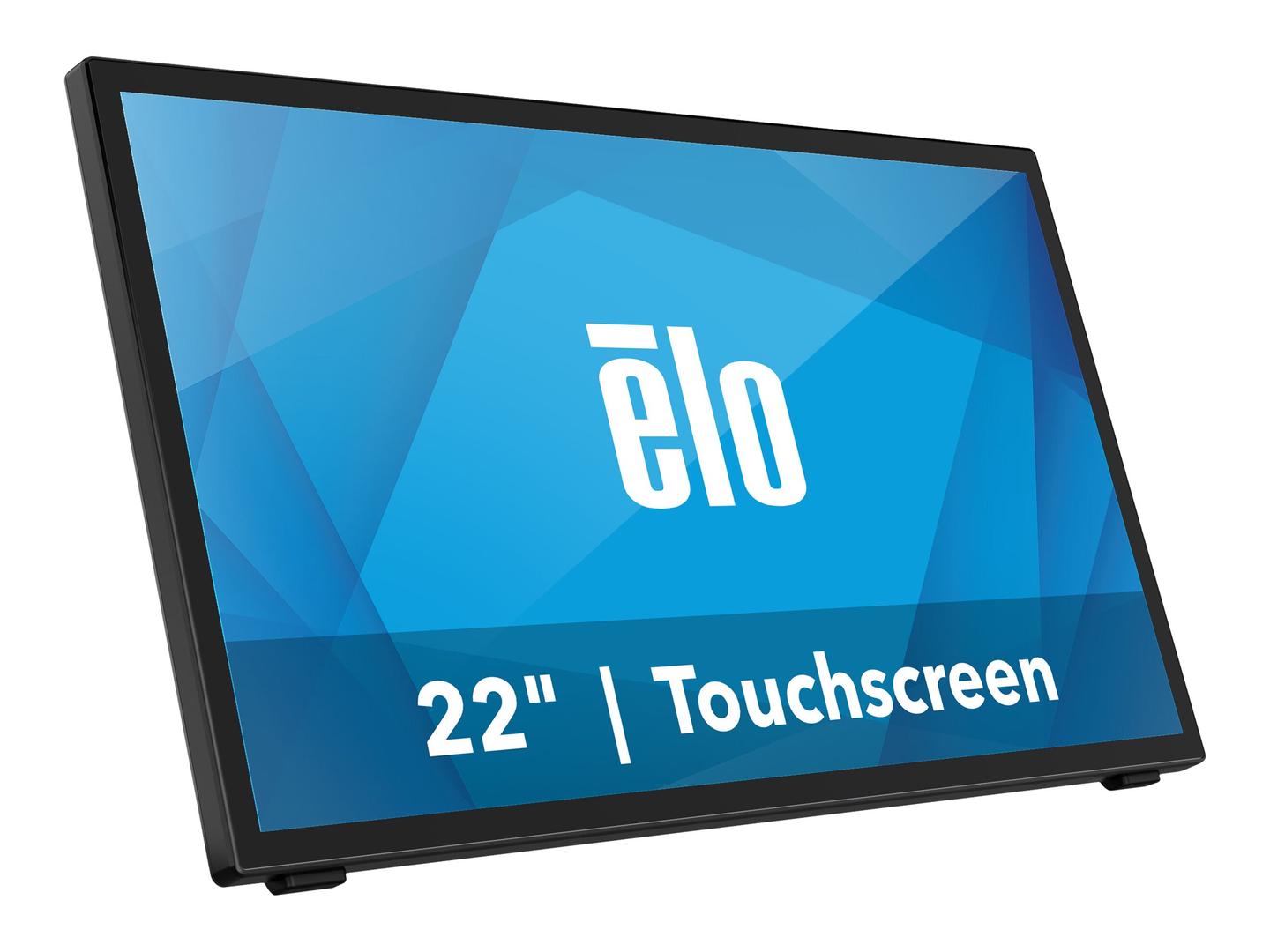

Elo 2270L - LCD monitor - 22" (21.5" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - 250 cd/m² - 1000:1 - 14 ms - HDMI, VGA, DisplayPort - speakers - black | E511214
Please sign in so that we can notify you about a reply
Product Features

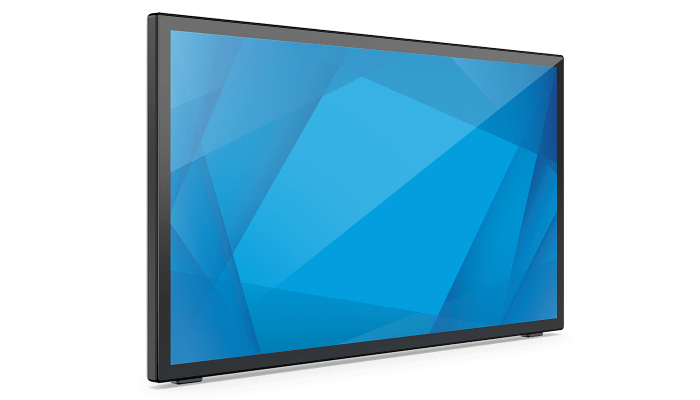

- The bezel just got smaller
The 2270L 22" touchscreen offers more reduction in the bezel. - Navigate the OSD directly on the touchscreen
It is easier to manage your On-Screen Display (OSD) controls - you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Special Fetures
- Minimalistic design to fit any space

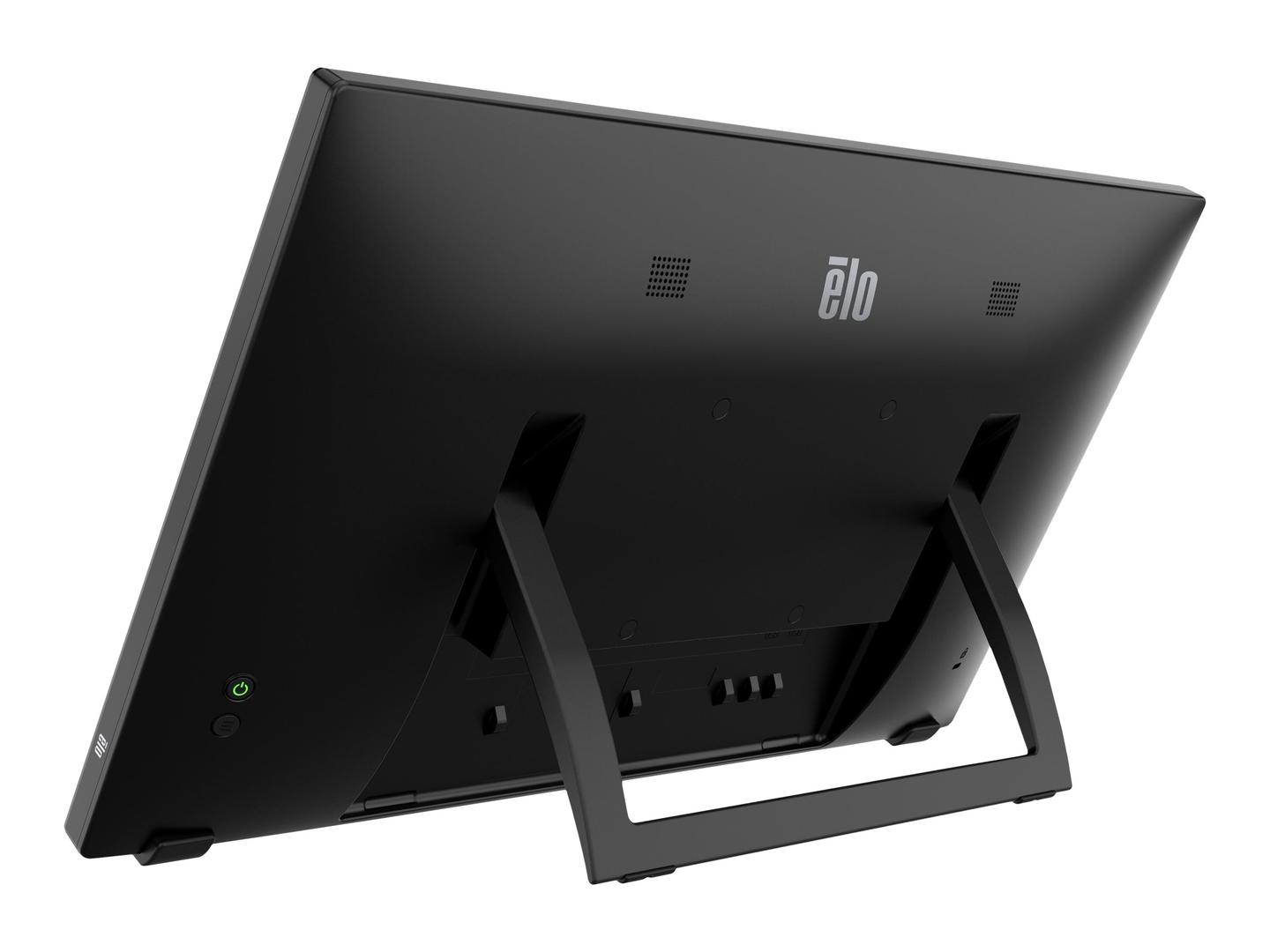

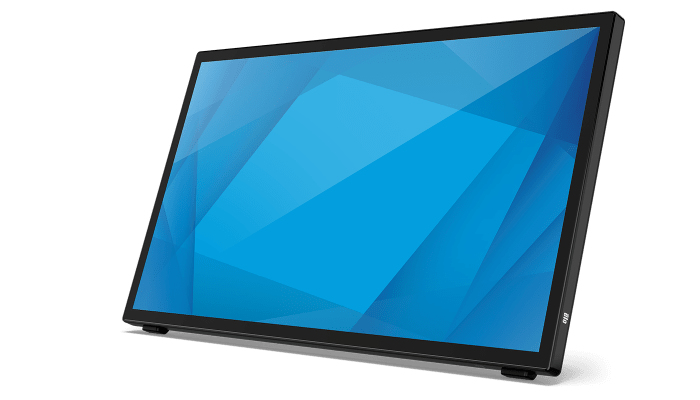

- From 20° to 70°, angle the display where you want it

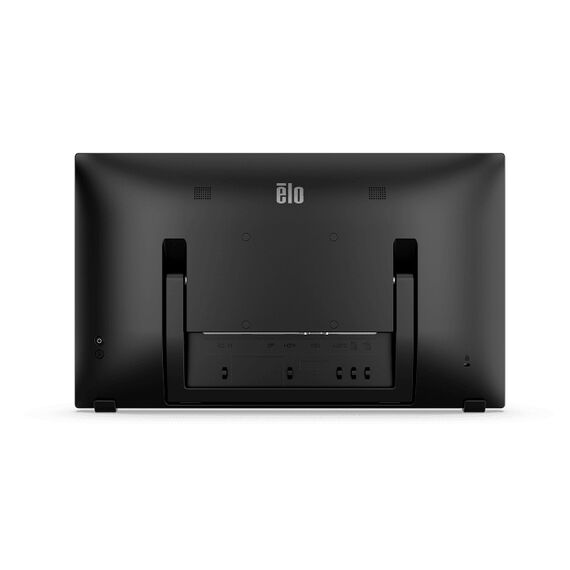

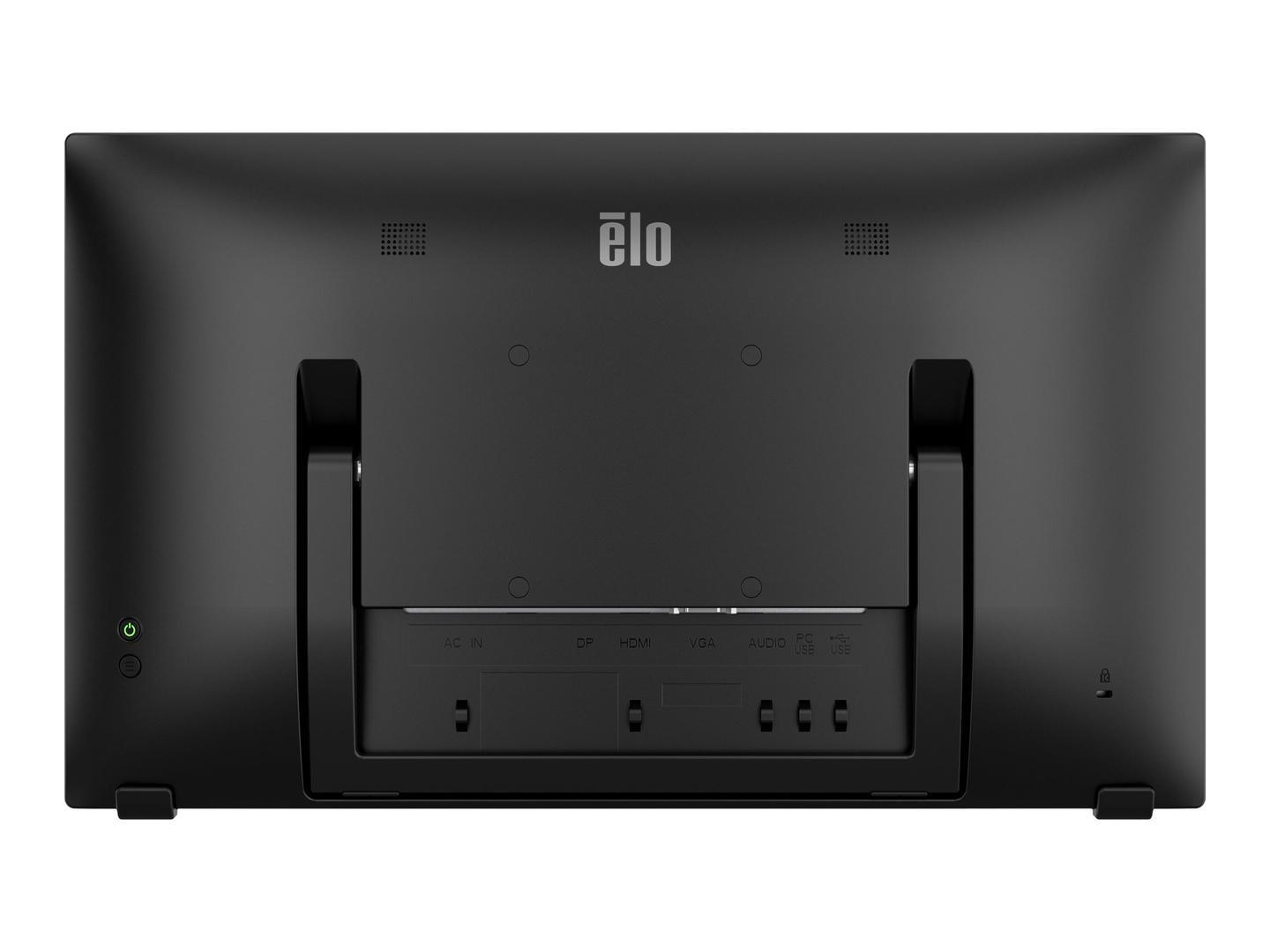

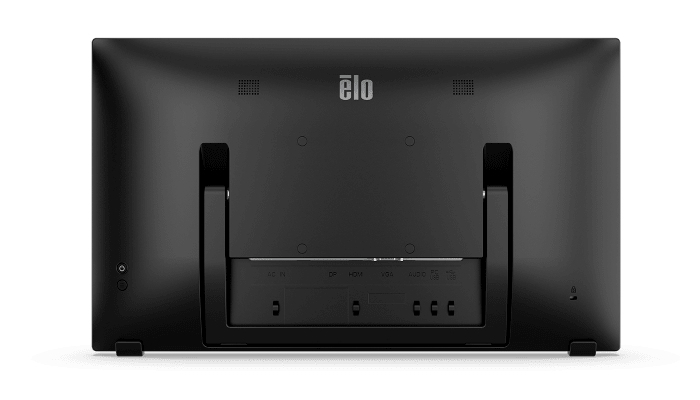

- Built-in speakers and integrated I/O
- Durable, energy-efficient touchscreen
- Scratch-resistant glass surface
- IK07 impact-resistant

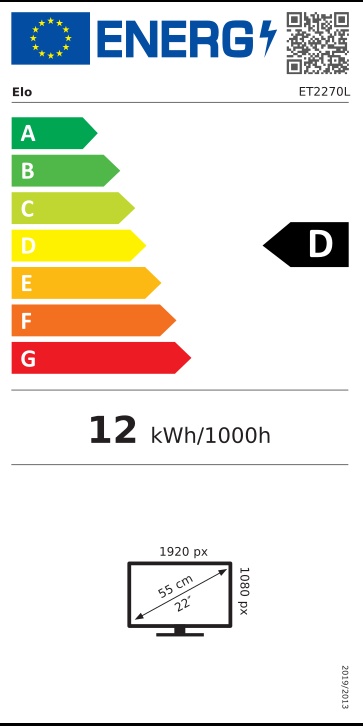

- ES8.0-certified for greater energy efficiency
- Increase viewing comfort with Low Blue Light and Flicker-Free features
Product Specification
| Display Type | LCD monitor / TFT active matrix |
| Diagonal Size | 22" |
| Viewable Size | 21.5" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 14 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Colour | Black |
| Dimensions (WxDxH) | 50.47 cm x 30.24 cm x 4.13 cm - without stand |
| Weight | 4.1 kg |
| Audio | |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Input | |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | |
| Interfaces | HDMI ¦ VGA ¦ Audio line-in/out ¦ DisplayPort ¦ 2 x USB 2.0 (Type A) ¦ USB 2.0 (Type B) |
| Mechanical | |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included | 1 x VGA cable ¦ 1 x HDMI cable ¦ 1 x USB cable |
| MTBF | 50,000 hours |
| Compliant Standards | UL, VCCI, BSMI, CCC, FCC, RoHS, KCC, WEEE, REACH |
| Power | |
| Power Consumption (Typical) | 13.8 Watt |
| Power Consumption Stand by | 12.2 Watt |
| Power Consumption Sleep | 0.5 Watt |
| Power Consumption (Off Mode) | 0.16 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 58.9 cm |
| Shipping Depth | 13.6 cm |
| Shipping Height | 39.5 cm |
| Shipping Weight | 6.4 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E511214
Resolution
1920 x XXXX
More Details
Product Code
CG19871
EAN Code
0843173131535
Manufacturer
Elo
