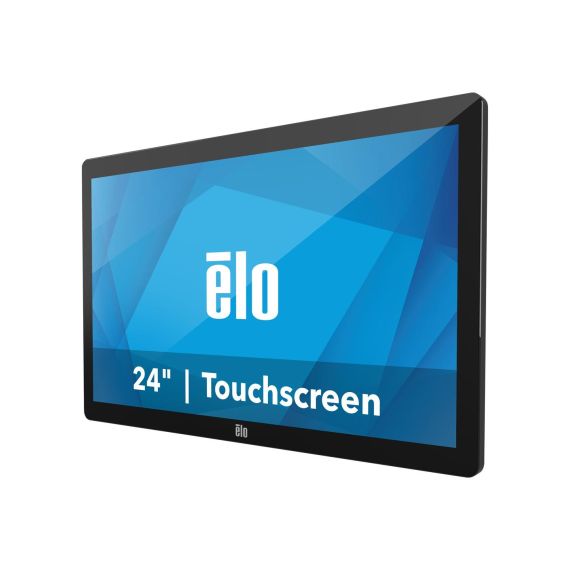

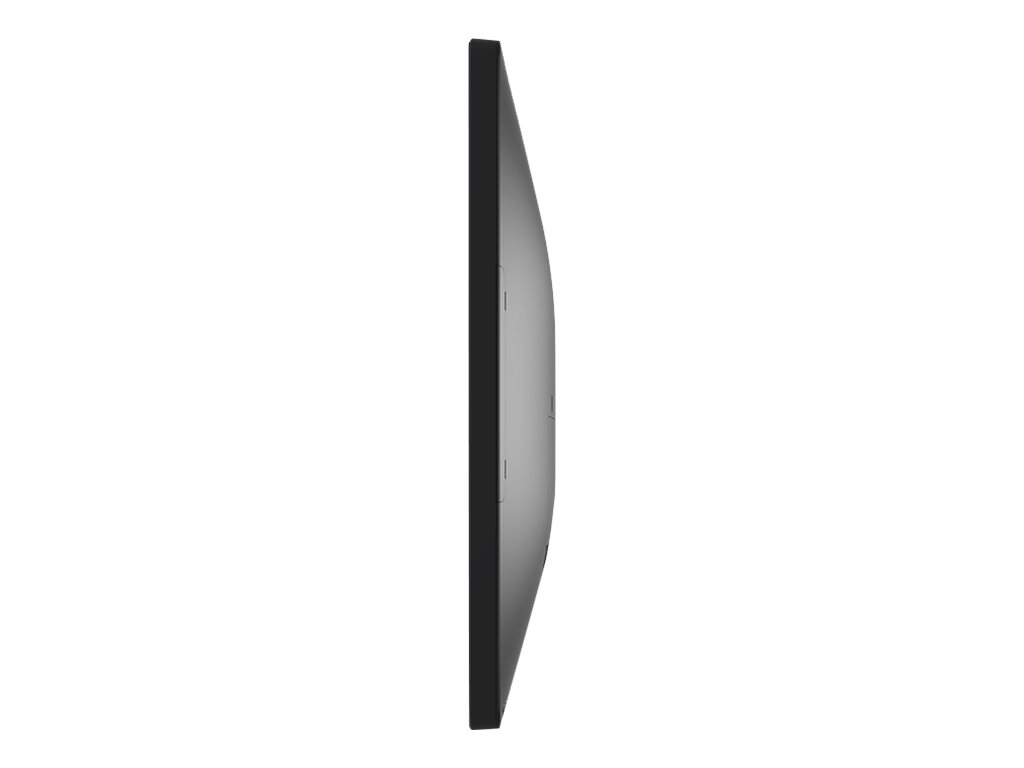

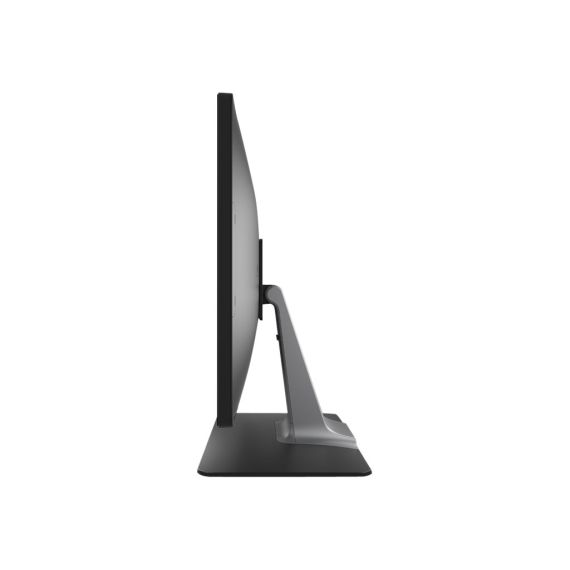

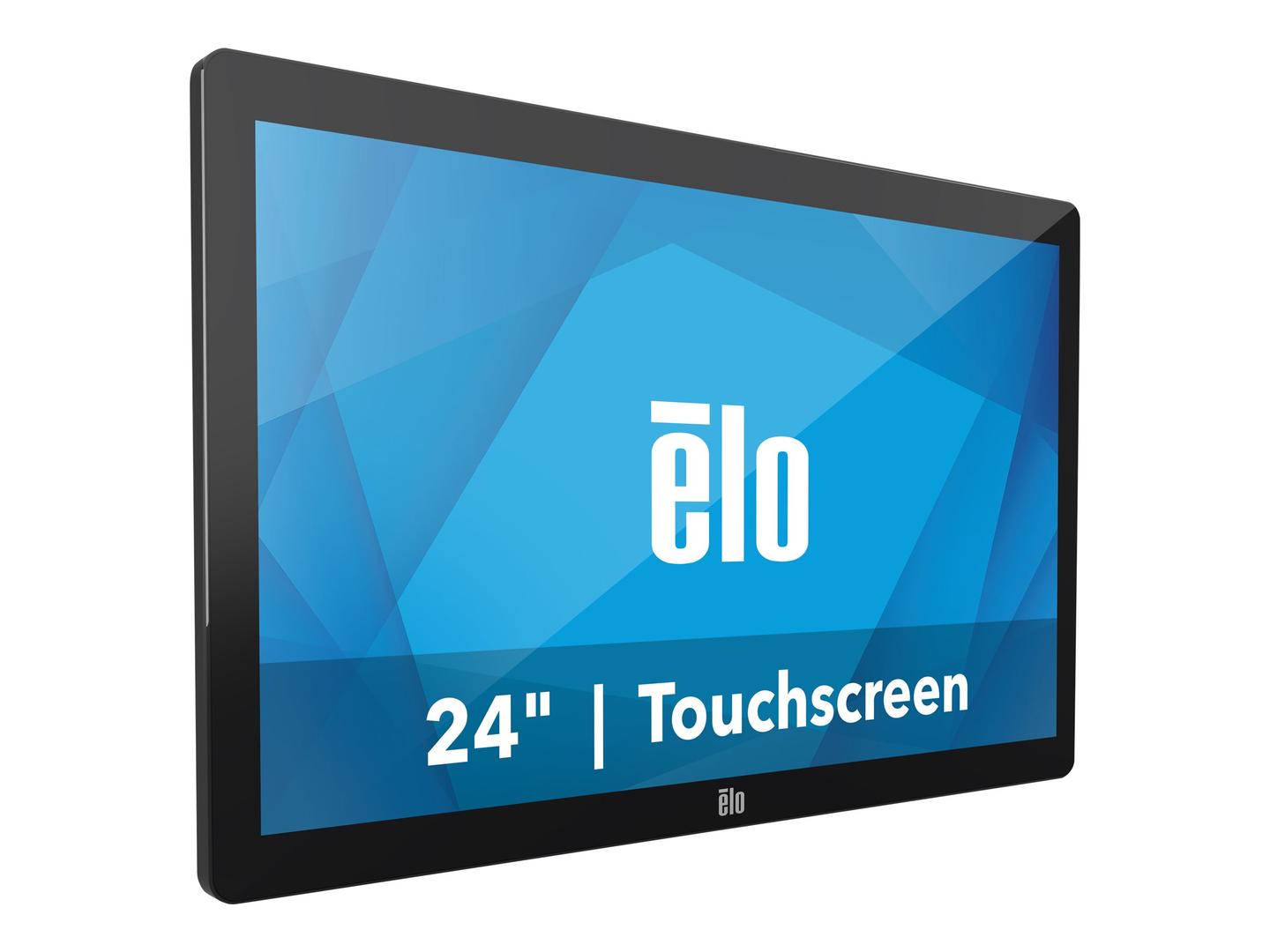

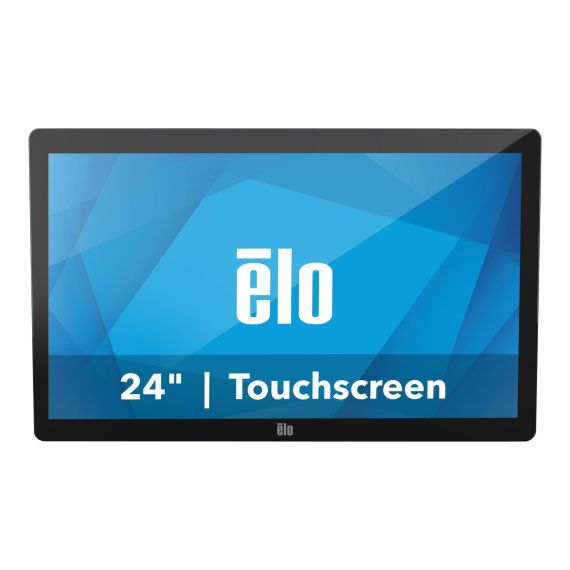

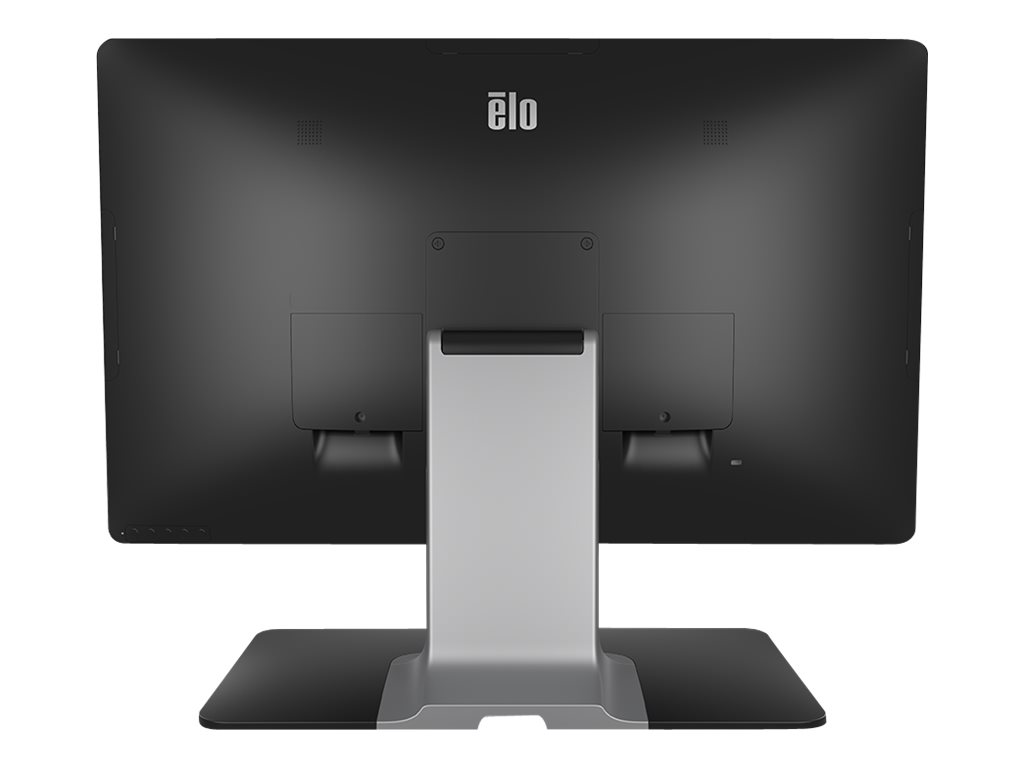

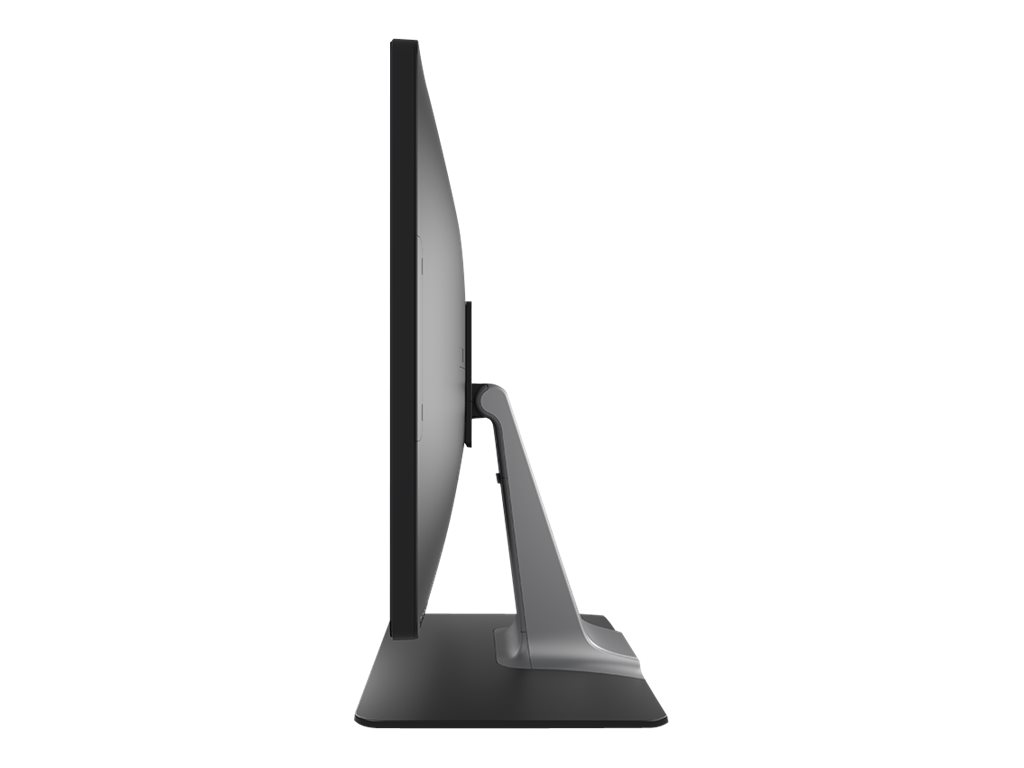

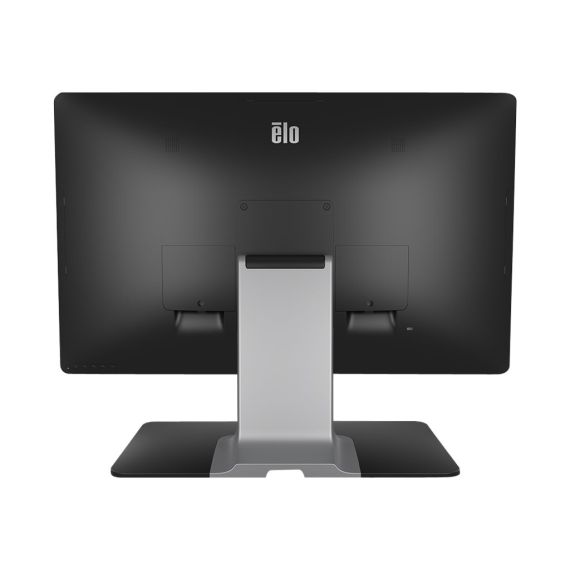

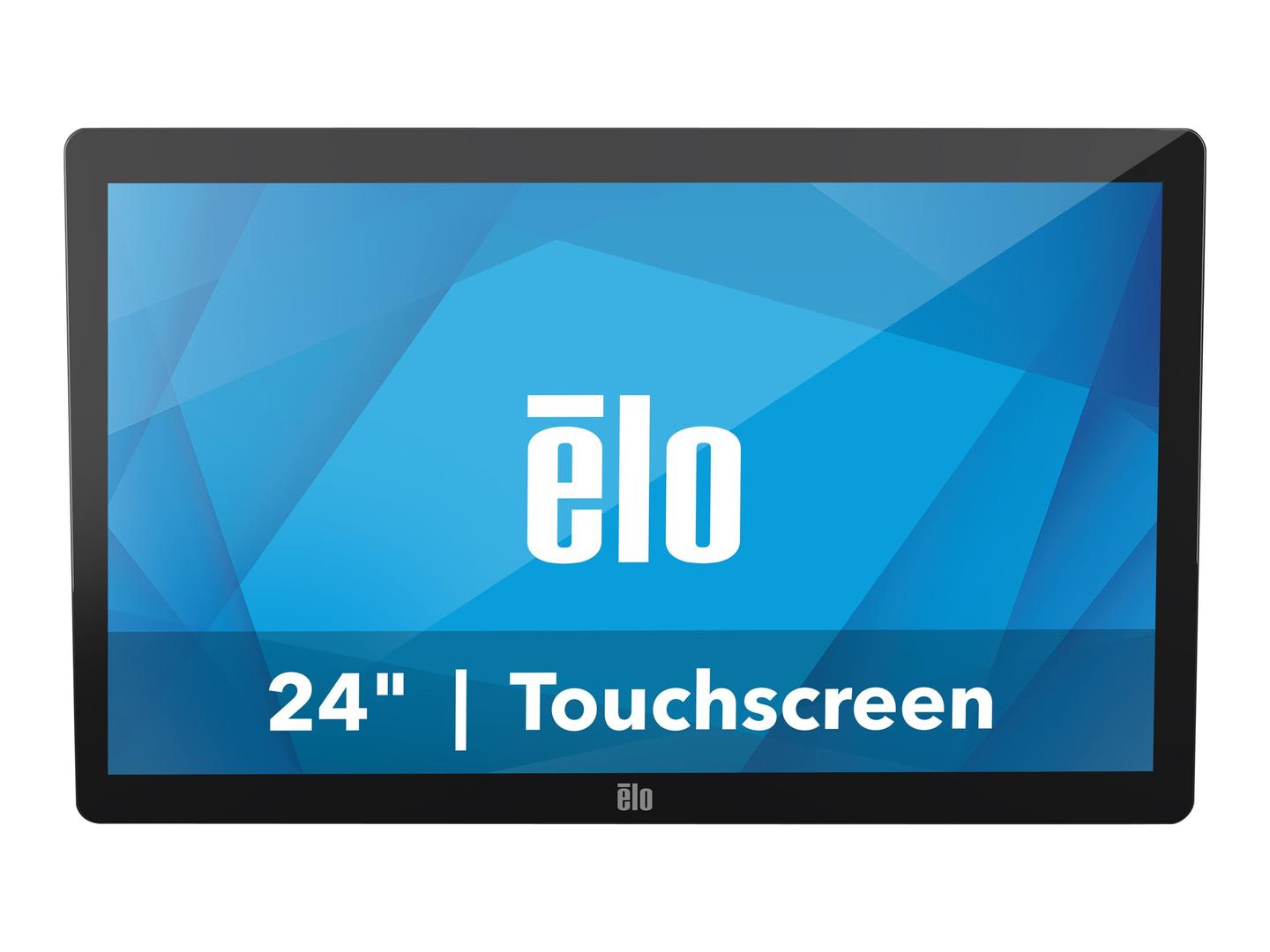

Elo 2403LM - Medical Grade - LED monitor - 24" (23.8" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - 250 cd/m² - 1000:1 - 15 ms - HDMI, VGA - speakers - black | E381251
Please sign in so that we can notify you about a reply
Product Features
- IP-54 rating
Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution. - IEC 60601
IEC 60601 compliant power supply included. - DICOM 14
Ensures accurate and uniform image reproduction for reliable review. - Integrated touch
TouchPro PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves. - Easy to clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays. - Designed for consistent image review
Get the image accuracy you need during clinical review with the 03-series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve. - Purpose-built for healthcare
The 03-series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Special Fetures
- IP-54 rating
- IEC 60601
- DICOM 14
- Integrated touch
- Easy to clean
- Designed for consistent image review
- Purpose-built for healthcare
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 24" |
| Viewable Size | 23.8" |
| Built-in Devices | USB Hub |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 15 ms (tr - tf) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Screen Coating | Anti-glare |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Russian, Spanish, Japanese, Korean |
| Features | TouchPro technology |
| Colour | Black |
| Dimensions (WxDxH) | 35.41 cm x 57.46 cm x 4.28 cm - without stand |
| Weight | 6.69 kg |
| Audio | |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Input | |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | |
| Interfaces | HDMI <br /> VGA <br /> Audio line-out (mini-jack) <br /> USB (Type B) <br /> USB 2.0 (Type A) <br /> 4 x Micro-USB |
| Mechanical | |

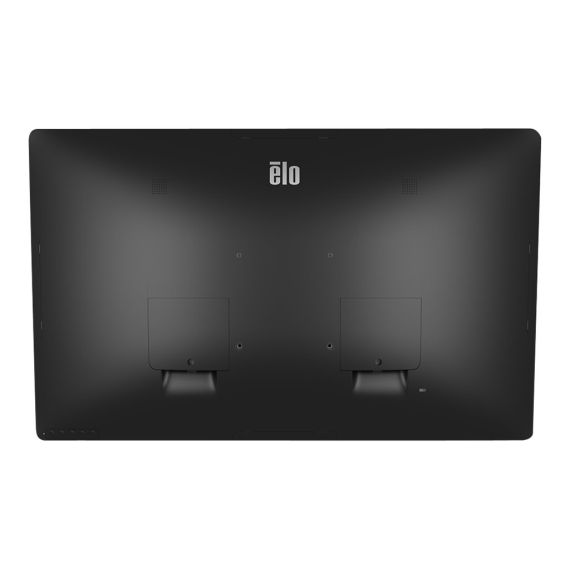

| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Included Accessories | 2 screws, 3 tie wraps |
| Cables Included | 1 x VGA cable <br /> 1 x HDMI cable <br /> 1 x USB cable <br /> 1 x audio cable |
| MTBF | 50,000 hours |
| Compliant Standards | VCCI, BSMI, cUL, CB, CCC, FCC, RoHS, KCC, WEEE, REACH, EAC, RCM, ANSI/AAMI ES60601-1, BIS, CoC, CAN/CSA C22.2 No. 60601-1:14, UKCA |
| Power | |
| Input Voltage | AC 100/240 V (50/60 Hz) |
| Power Consumption (Typical) | 17.33 Watt |
| Power Consumption Sleep | 1.09 Watt |
| Power Consumption (Off Mode) | 0.24 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 46 cm |
| Shipping Depth | 68 cm |
| Shipping Height | 16.9 cm |
| Shipping Weight | 8.22 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% |
Features - Elo - E381251
Resolution
1920 x XXXX
More Details
Product Code
CF89609
EAN Code
0843173150727
Manufacturer
Elo
