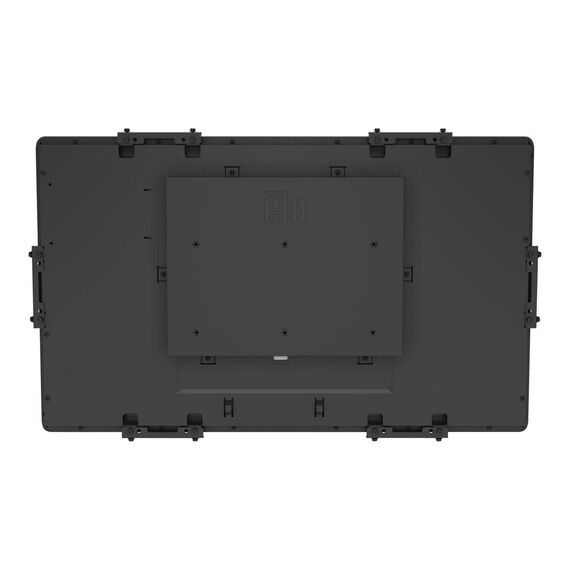

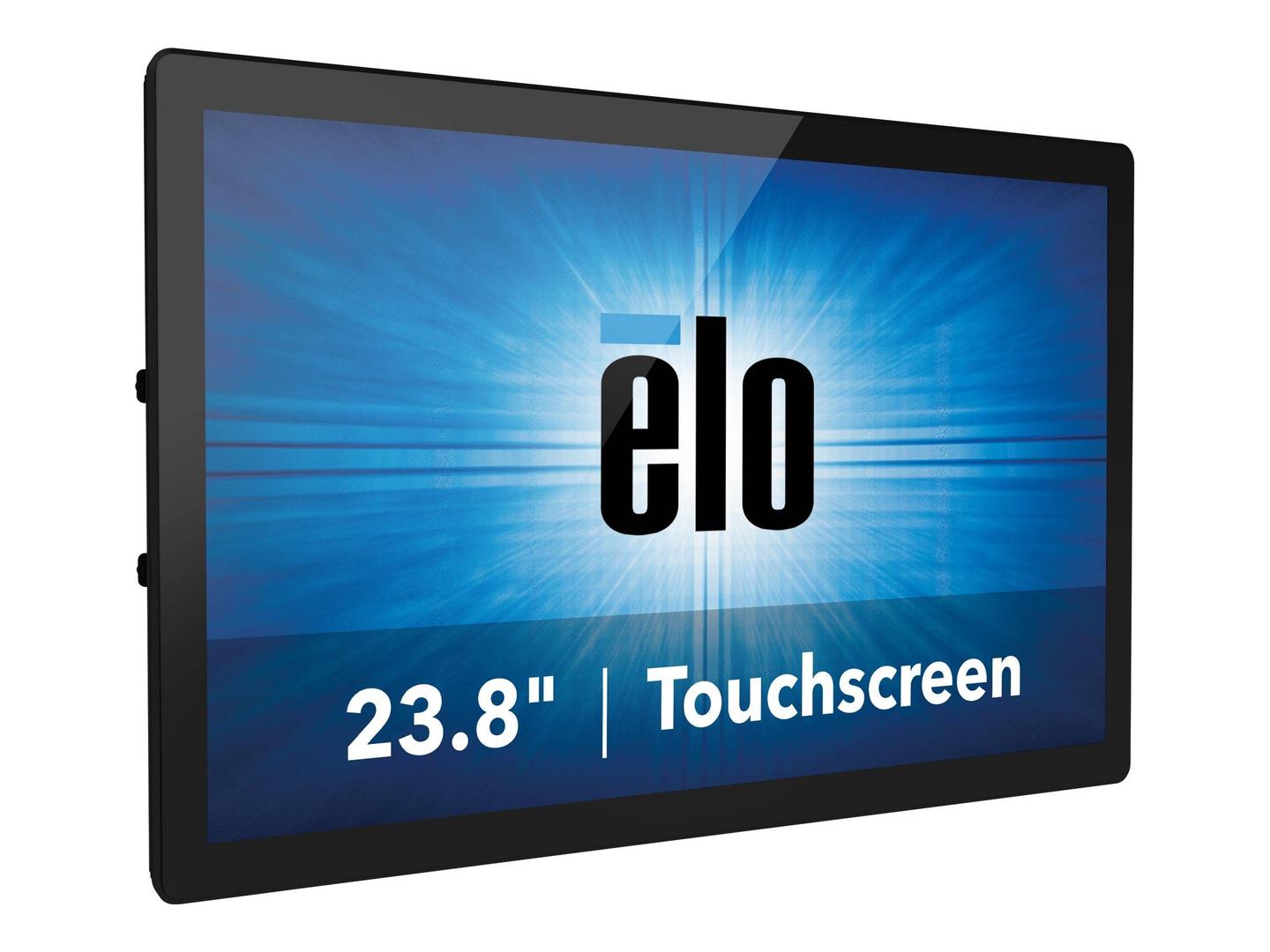

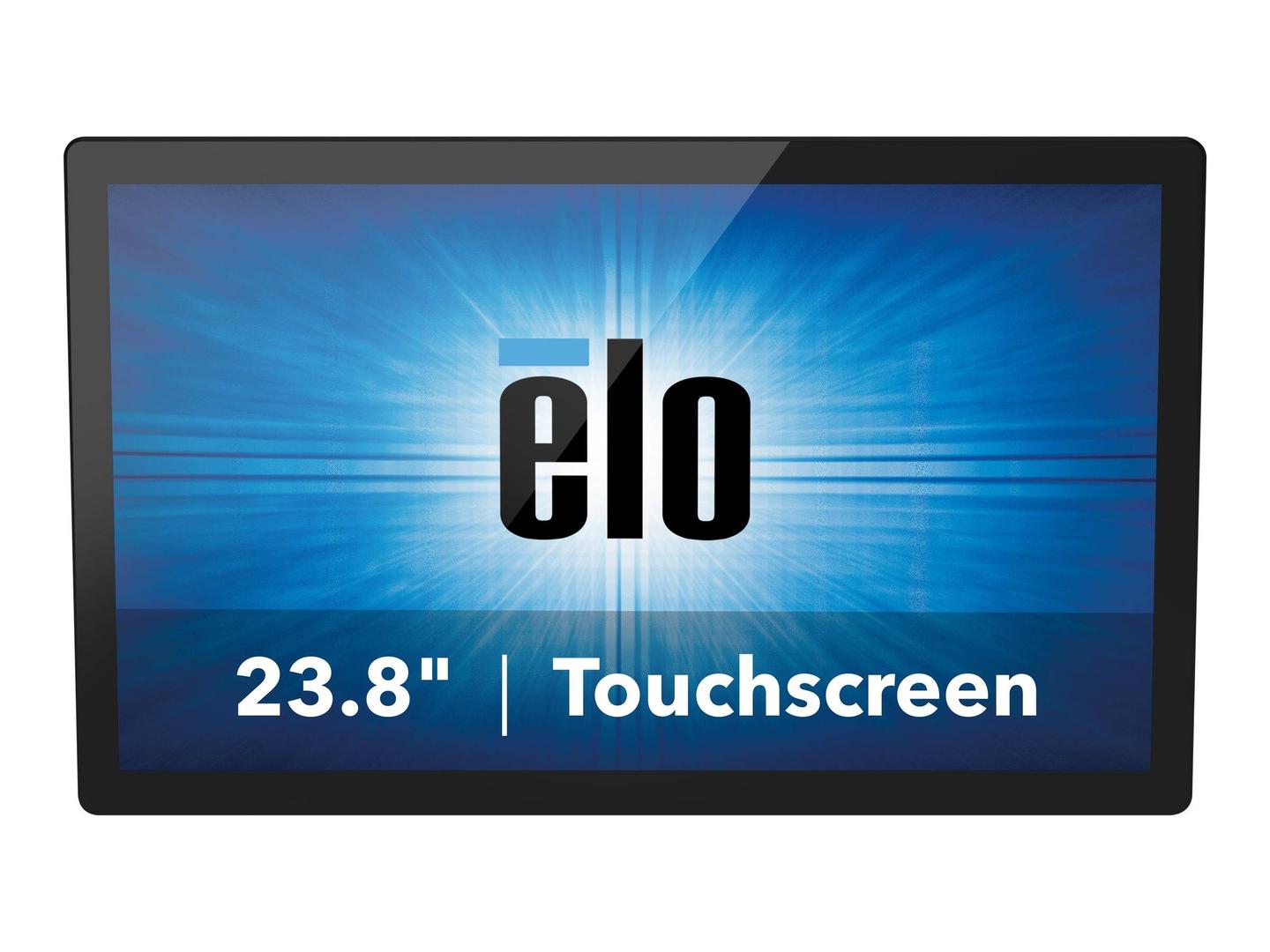

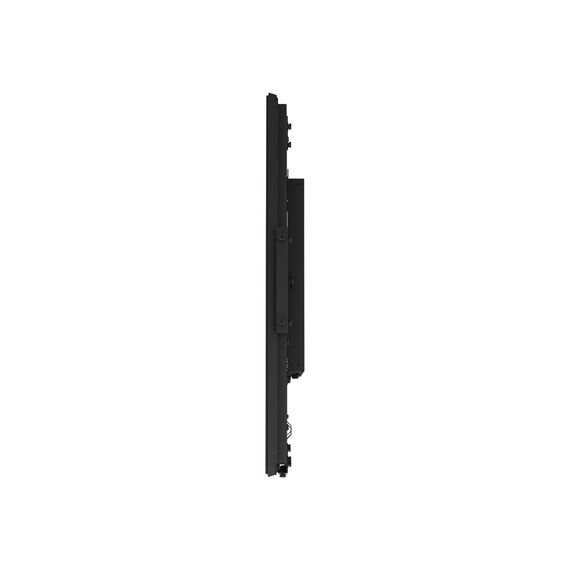

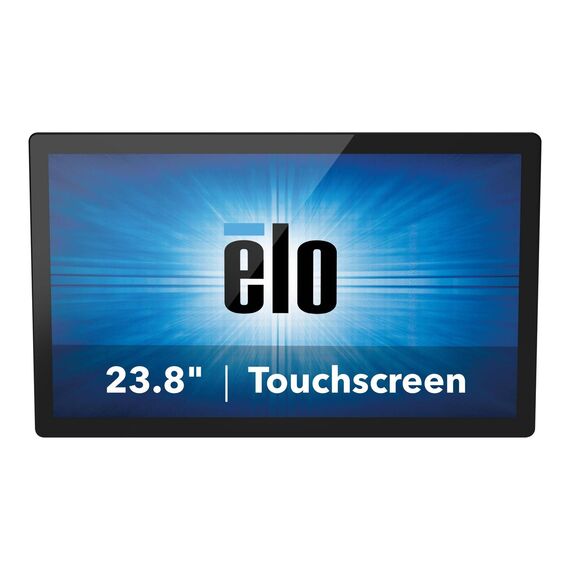

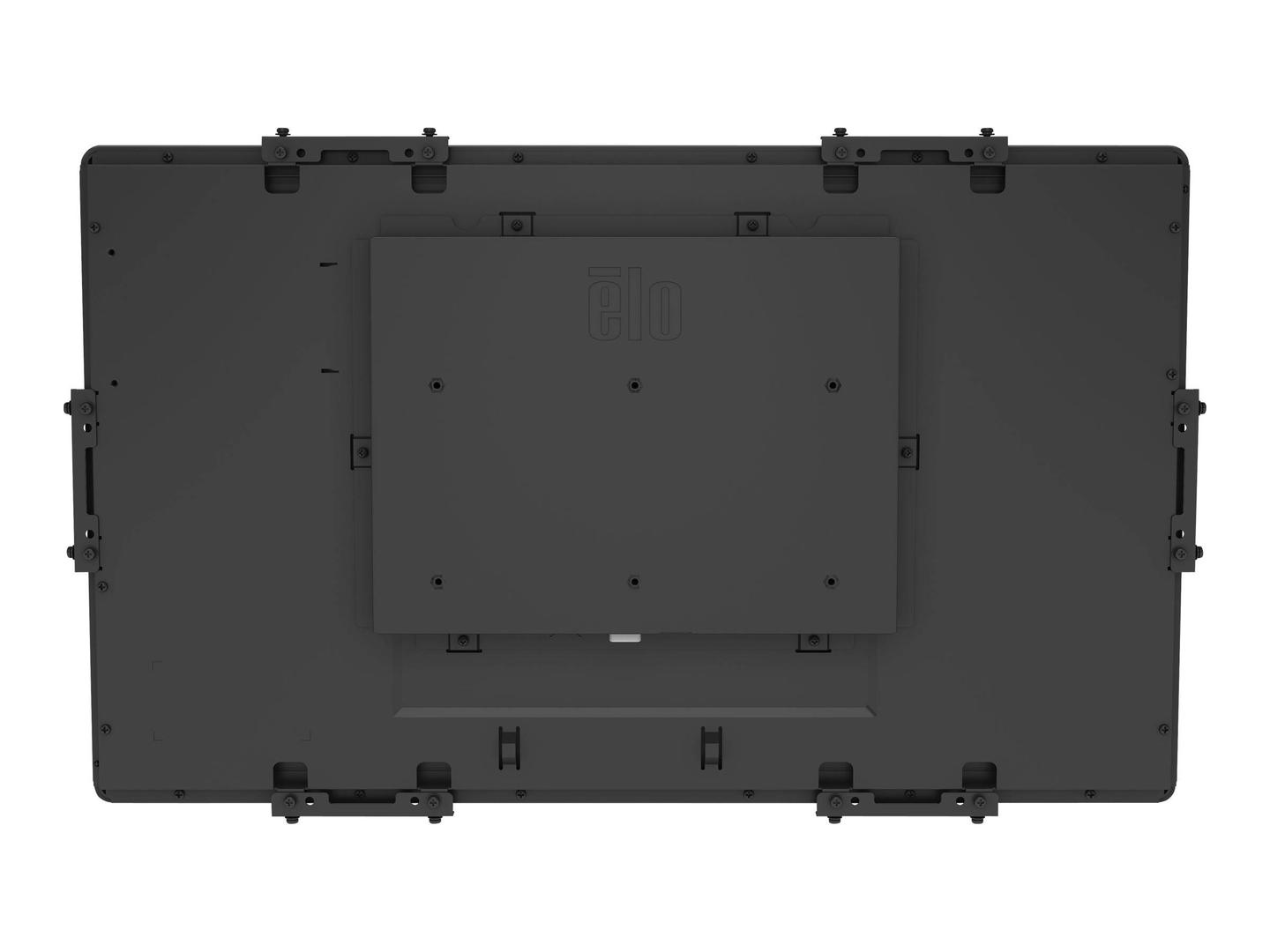

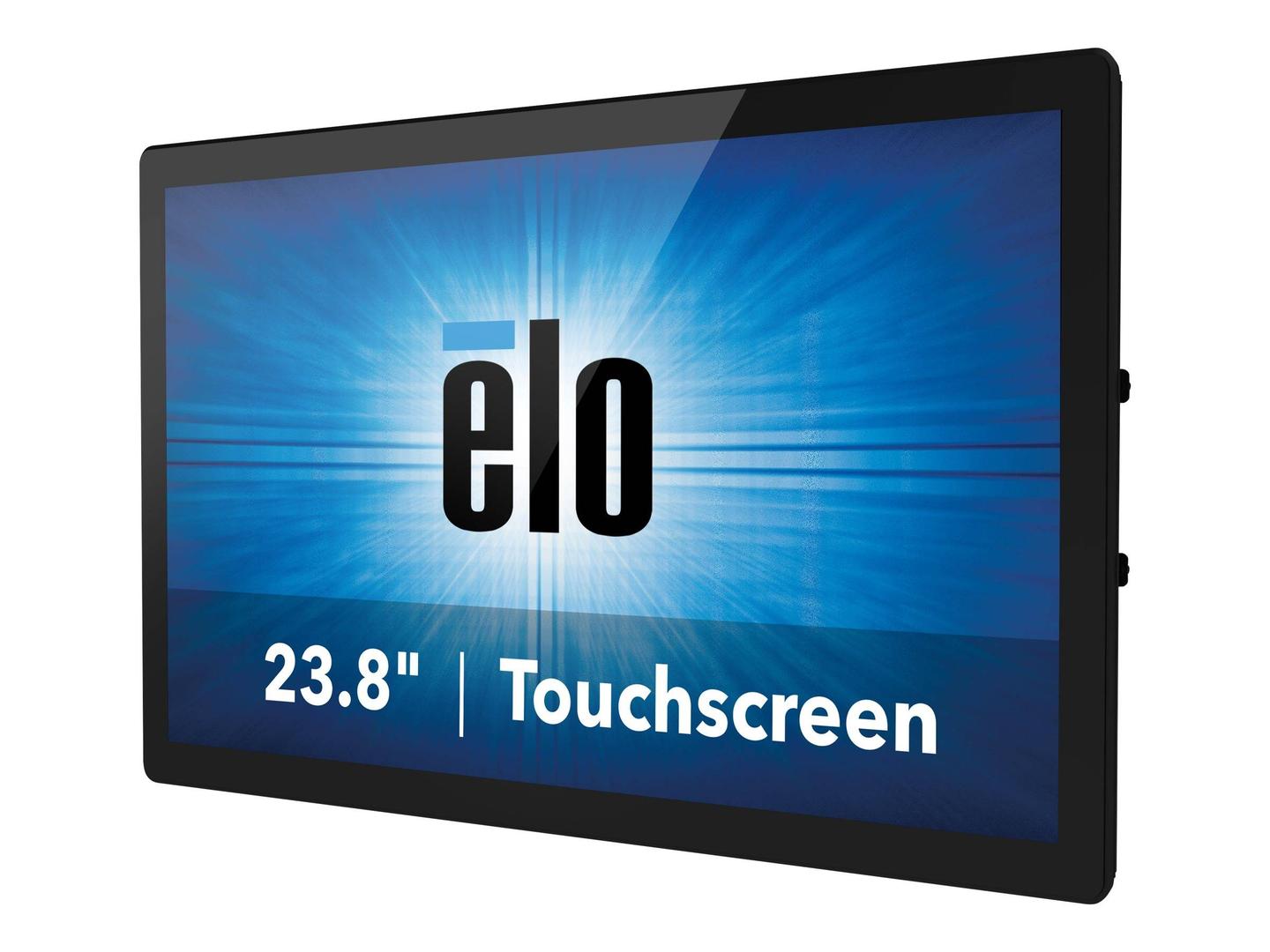

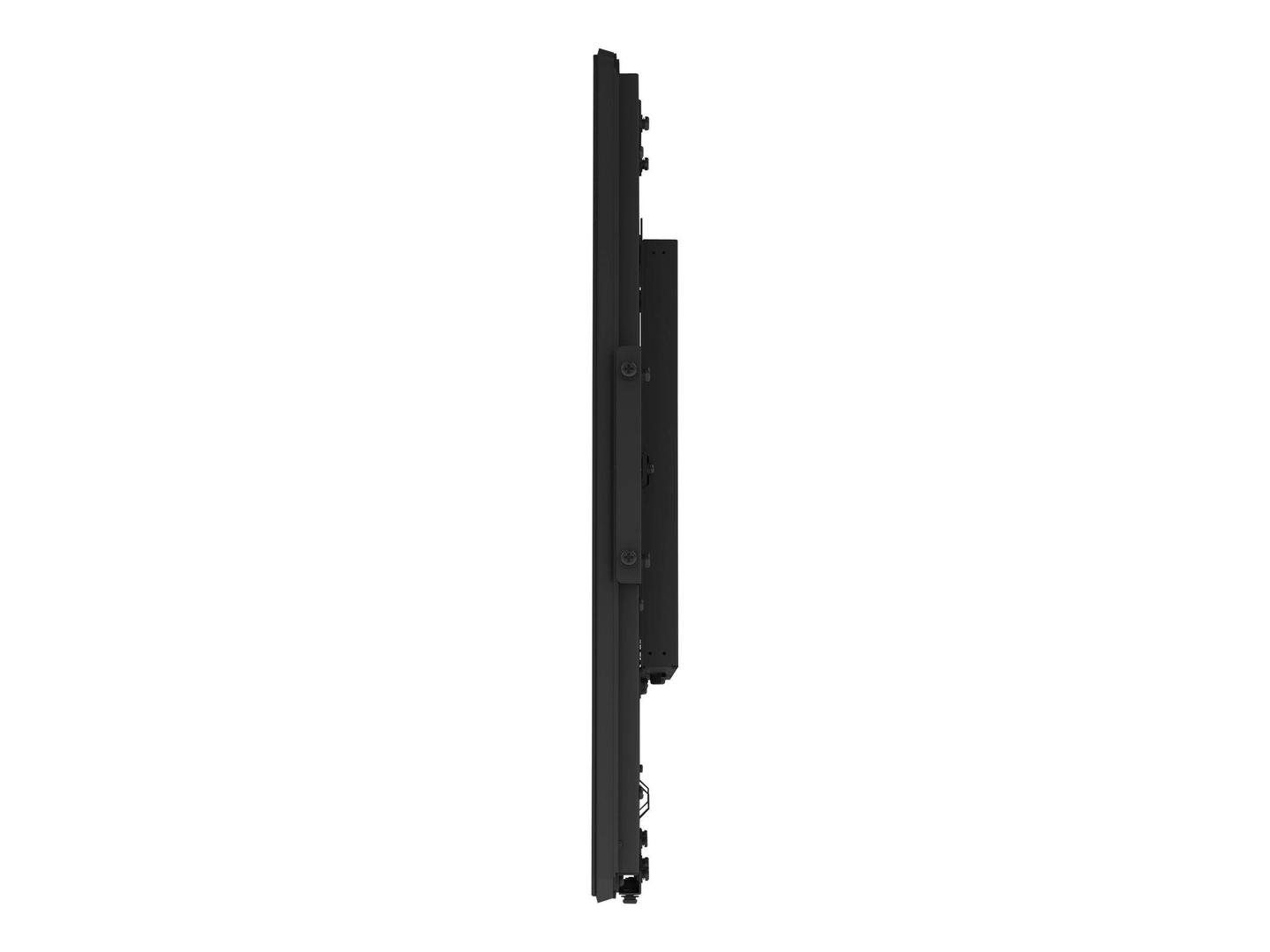

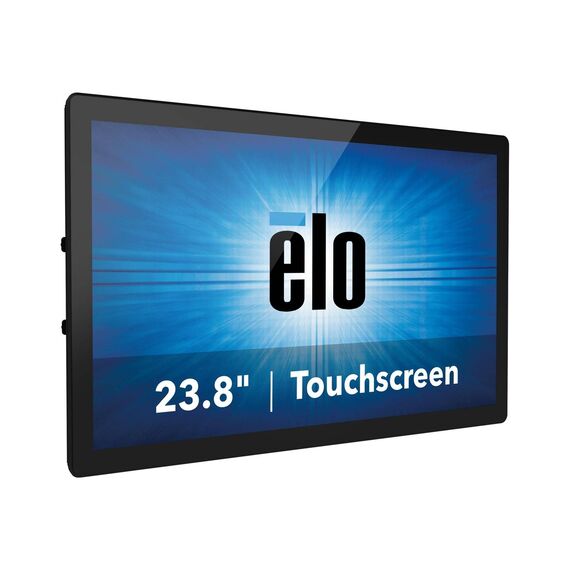

Elo 2494L / LED monitor / 23.8" / open frame / touchscreen / 1920 x 1080 Full HD (1080p) @ 60 Hz / 250 cd/m² / 3000:1 / 16 ms / HDMI, VGA, DisplayPort / black | E493782
Please sign in so that we can notify you about a reply
Special Features
- Viewing angle of 178°(h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- Touchscreen sealed against dirt, dust and liquids
- PCAP 2GS (two glass solution) offers pristine optical clarity and touch durability
- 10 touch projected capacitive (PCAP) with Thru-glass capabilities that passes UL-60950 & IK-07 Impact testing
- Display Port and VGA video interfaces
Product Specification
| Display Type | LED-backlit LCD monitor |
| Diagonal Size | 23.8" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 3000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 16 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Projected Capacitive Touch (P-CAP) technology |
| Colour | Black |
| Dimensions (WxDxH) | 56.92 cm x 3.8 cm x 34.11 cm |
| Weight | 6.17 kg |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |
| Interfaces | HDMI ¦ VGA ¦ DisplayPort ¦ USB 2.0 (Type B) ¦ Management (RJ-45) |
| Mechanical | Mechanical |
| VESA Mounting Interface | 200 x 100 mm |
| Miscellaneous | Miscellaneous |
| Included Accessories | Remote control |
| Cables Included | 1 x HDMI cable ¦ 1 x VGA cable ¦ 1 x USB cable |
| Mounting Kit | Included |
| MTBF | 50,000 hour(s) |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, UL 60950, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IK07, DisplayPort 1.1a |
| Power | Power |
| Power Consumption (Typical) | 17.46 Watt |
| Power Consumption Sleep | 1.07 Watt |
| Power Consumption (Off Mode) | 0.2 Watt |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 69.2 cm |
| Shipping Depth | 19 cm |
| Shipping Height | 45.2 cm |
| Shipping Weight | 8.07 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E493782
More Details
Product Code
CA86991
EAN Code
0843173131221
Manufacturer
Elo
