Elo 2794L / LED monitor / 27" / open frame / touchscreen / 1920 x 1080 Full HD (1080p) @ 60 Hz / 270 cd/m / 3000:1 / 12 ms / HDMI, VGA, DisplayPort / black | E707022
Description

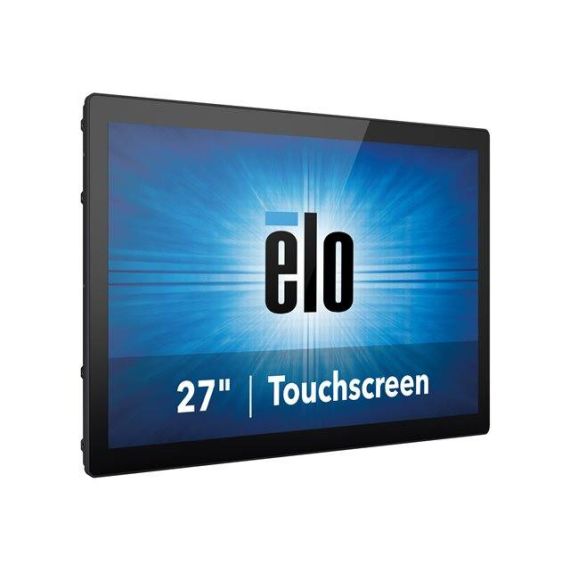

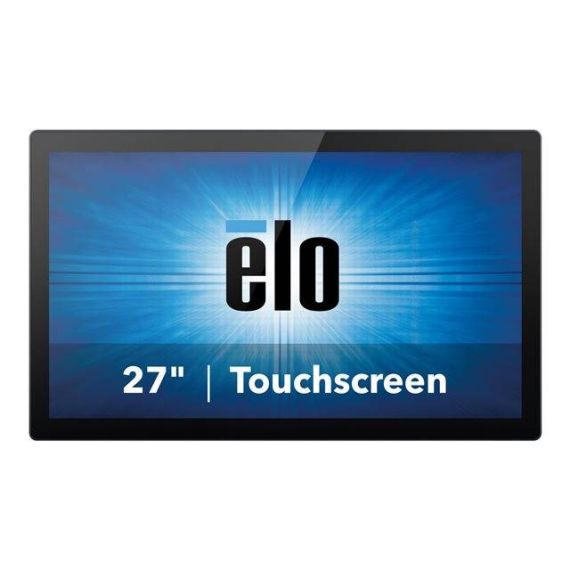

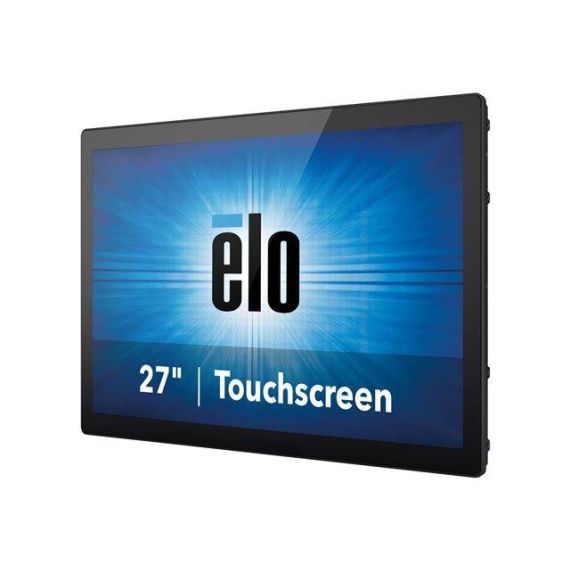

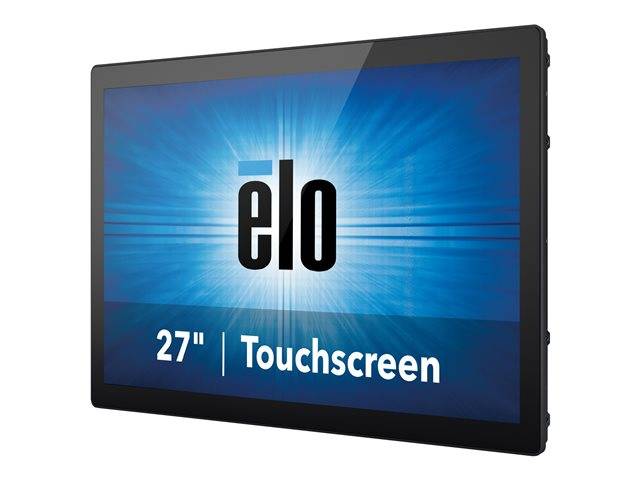

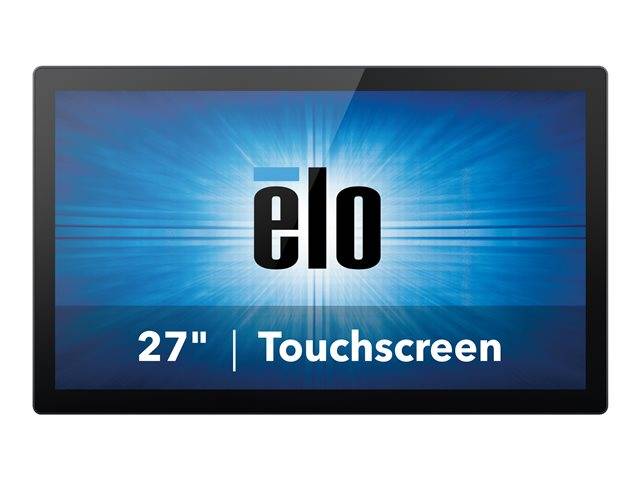

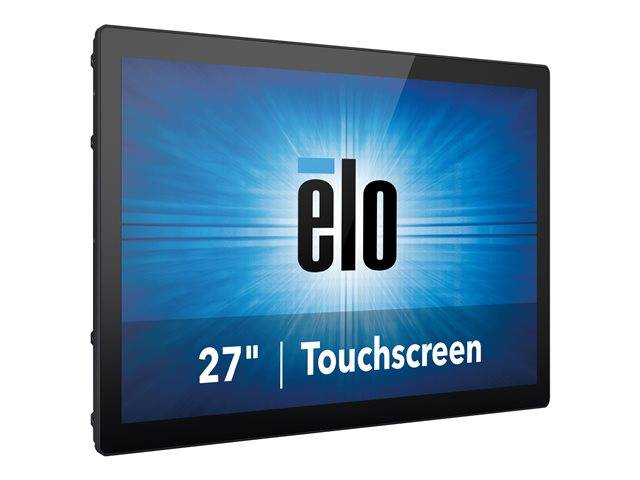

The Elo 2794L 27-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2794L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Elo 2794L / LED monitor | E707022
Special Features
- Viewing angle of 178° x 178°, for sharp colors and graphics in both portrait and landscape modes
- High definition LCD display offers ultimate HD interactivity, clarity and resolution
- PCAP 2GS (two glass solution) offers pristine optical clarity and touch durability
- 10 touch projected capacitive (PCAP) with Thru-glass capabilities
- Display Port and VGA video interfaces
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 27" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 270 cd/m² |
| Contrast Ratio | 3000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 12 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Zero-Bezel Design, Full HD wide-viewing angle (WVA), Projected Capacitive Touch (P-CAP) technology, Two Glass Solution |
| Colour | Black |
| Dimensions (WxDxH) | 64.42 cm x 3.96 cm x 38.84 cm |
| Weight | 7.3 kg |
| Type | Touch-screen, remote control - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Interfaces | USB 2.0 (Type B) ¦ VGA ¦ DisplayPort ¦ HDMI ¦ Management (RJ-45) |

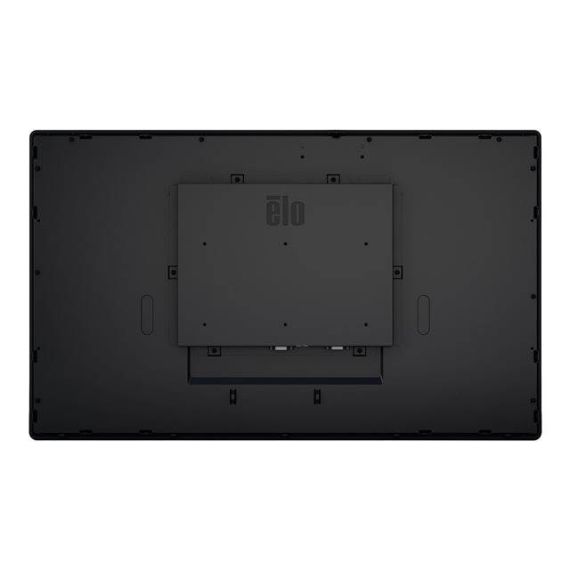

| VESA Mounting Interface | 200 x 100 mm |
| Cables Included | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit | Included |
| MTBF | 50,000 hours |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, UL 60950, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, IK07, DisplayPort 1.1a |
| Localisation | Worldwide |
| Power Consumption Operational | 27 Watt |
| Power Consumption Sleep | 1.5 Watt |
| Power Consumption (Off Mode) | 0.5 Watt |
| Shipping Width | 78.2 cm |
| Shipping Depth | 20 cm |
| Shipping Height | 53 cm |
| Shipping Weight | 10.2 kg |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E707022
More Details
Product Code
0V01032
EAN Code
0843173109794
Manufacturer
Elo
