Elo Computer Module ECMG4-i5 / Digital signage player / 8 GB RAM / Intel Core i5 / SSD / 256 GB / black | E227895
Please sign in so that we can notify you about a reply
Product Features
- Smaller form factor
With dimensions of 11.07x8.2x1.7 the new ECMG4 form factor is 47% smaller than the previous model, delivering a lower cost, lower energy consumption computer module that's easier to install and maintain. - Easy installation
The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector. - Collaboration ready
Pair the flexibility of Elo's 6553L Interactive Board with a seamless, bring-your-own-device, content sharing software to offer employees and corporations countless business benefits. Elo's ECMG4 comes conferencing ready with the DisplayNote Montage Software included. From increased efficiency to controlled costs - start connecting teams and information in real time to empower better, faster, more reliable decision making and improving the way collaboration works.
Special Features
- Smaller form factor
- Easy installation
- Collaboration ready
Product Specification
| Device Type | Digital signage player |
| Width | 28.11 cm |
| Depth | 20.82 cm |
| Height | 4.3 cm |
| Weight | 2.1 kg |
| Colour | Black |
| Interfaces | USB 2.0, Gigabit Ethernet, USB 3.0 |
| Key Features | Digital audio player, digital photo viewer, digital video player, Wi-Fi |
| Processor | Processor |
| Manufacturer | Intel |
| Type | Core i5 |
| Installed Qty | 1 |
| Processor Number | I5-7500T |
| Number of Cores | Quad-Core |
| Clock Speed | 3.3 GHz |
| RAM | RAM |
| Technology | DDR4 SDRAM |
| Installed Size | 8 GB |
| Max Supported Size | 64 GB |
| Slots Qty | 2 |
| Digital Storage | Digital Storage |
| Storage Drive Type | SSD |
| Capacity | 256 GB |
| Video Output | Video Output |
| Graphics Processor | Intel HD Graphics 630 |
| Memory / Storage | Memory / Storage |
| Storage Drive Capacity | 256 GB |
| Storage Drive Form Factor | M.2 |
| Connectivity | Connectivity |

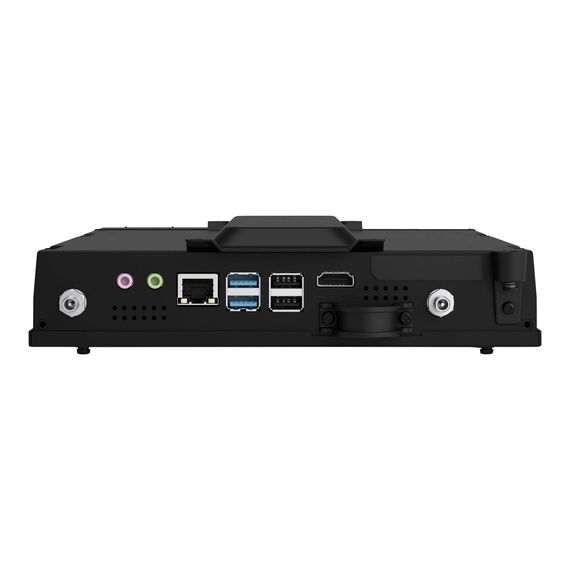

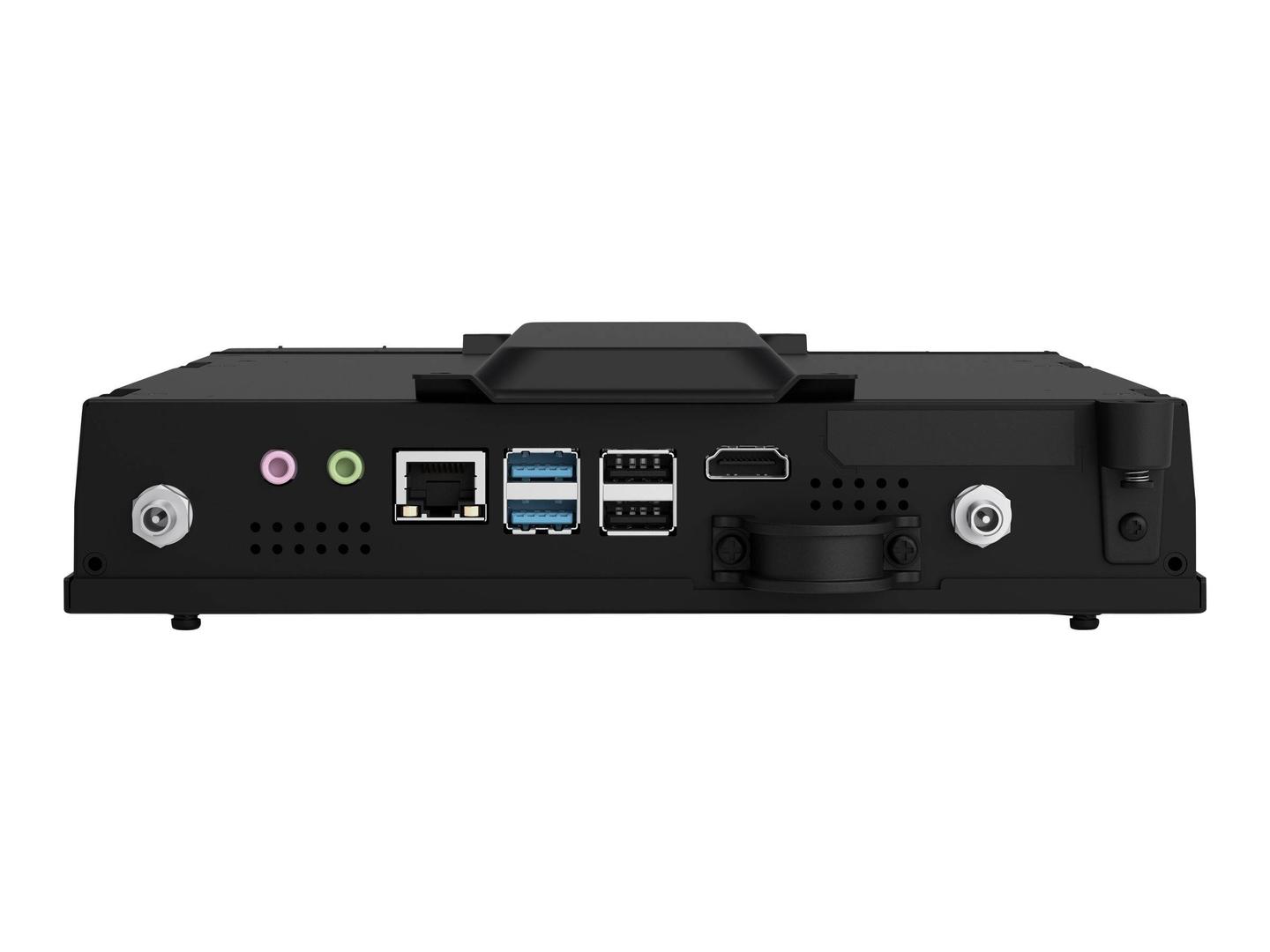

| Connections | HDMI output ¦ 2 x USB 3.0 ¦ 2 x USB 2.0 ¦ LAN (Gigabit Ethernet) ¦ Audio line-out - mini-jack ¦ Microphone - mini-jack ¦ 2 x aerial |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 x aerials |
| Compliant Standards | UL, VCCI, cUL, CB, FCC, AS/NZS |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 73 cm |
| Shipping Depth | 52 cm |
| Shipping Height | 32 cm |
| Shipping Weight | 3.3 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E227895
More Details
Product Code
0V01053
EAN Code
0843173102825
Manufacturer
Elo
