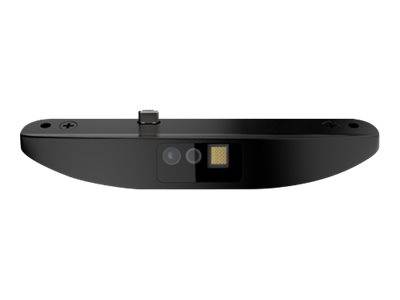

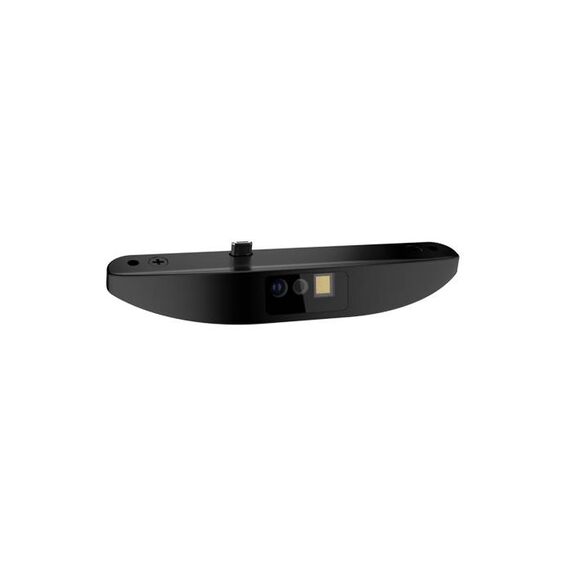

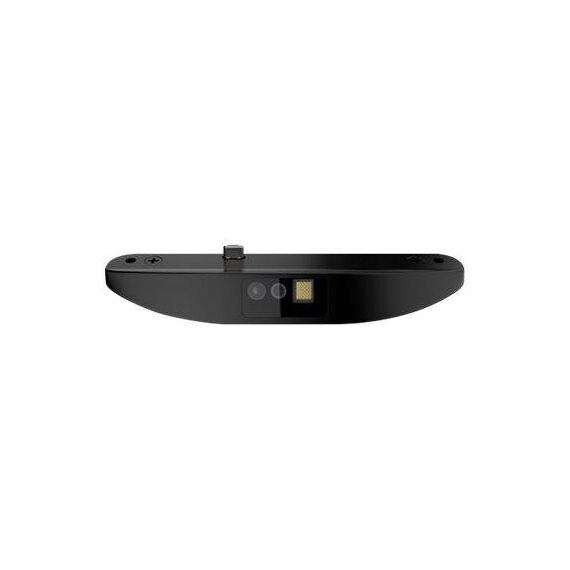

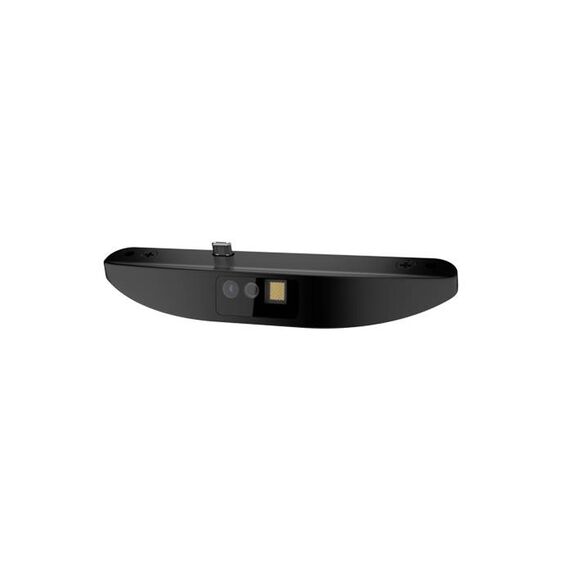

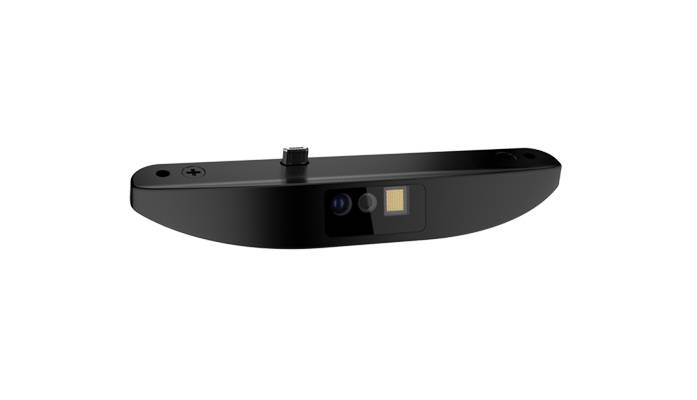

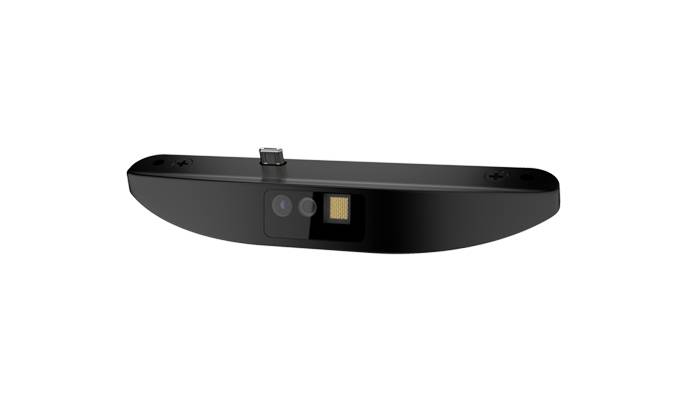

Elo Edge Connect 2D Barcode Scanner (4720-Performance) / Barcode scanner / plug-in module / USB | E384627
Product Features
- Easy installation
Built on the Elo Edge Connect platform, the 2D Barcode Scanner can be easily integrated with a variety of Elo touchscreens. Simply attach and get started. - Modular
The modular design provides the customers with the building blocks to configure a multitude of solutions - making it easy to deploy a variety of solutions from price checkers and self-checkout to visitor management. Start changing the way your customers and employees interact in-store and at work by deploying a generation of interactive technologies. - Next gen price checker
Elo's price-checking solutions deliver exactly what the customer wants, when they want it. By pairing Elo's 2D Barcode Scanner with an Elo interactive display, retailers can offer price checking plus in-depth product information, virtual customer service, endless aisle and related item recommendations, wayfinding, BOPIS, loyalty and assisted selling. - Simplify employee and visitor management
Streamline visitor management by allowing guests to scan barcodes and QR codes on their badges or personal devices to gain entry. From hospitals to corporate offices, secured, contactless entry solutions simplify employee and guest screening and automate access. With Elo's modular platform and wide range of Edge Connect accessories, organizations can easily configure a visitor management solution to meet their access control requirements. - Self-service checkout
Self-service allows customers to take control of their experience while limiting close interaction with employees. With Elo's 2D Barcode Scanner, customers can scan products and coupons to add to their cart as well as scan their personal device to add loyalty discounts and process secure payment with a mobile wallet. With Elo, it's easy to configure and deploy the self-checkout kiosks businesses need.
Special Features
- Easy installation
- Modular
- Next gen price checker
- Simplify employee and visitor management
- Self-service checkout
Product Specification
Type | Barcode scanner - plug-in module - stationary |
Colour | Black |
Barcode | Barcode |
Interface Type | USB |
Scan Element Type | CMOS |
Sensor Resolution | 1280 x 800 |
Scan Mode | Fixed projection |
Max Working Distance | 76.2 cm |
Skew (Degrees) | 48 |
Pitch (Degrees) | 30 |
Decode Capability | QR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, Australian Post, Japanese Post, MacroPDF417, Dutch Post, UK Post, Micro QR code, Grid Matrix Code, DotCode, Mail Mark, US Planet, US Postnet |
Connectivity Technology | Wired |
OK Notification | Beeper |
Features | Red LEDs illumination, Human Interface Device Profile (HID), presentation mode scanning, orange LED aimer |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x USB |
Miscellaneous | Miscellaneous |
Included Accessories | 2 mounting screws |
Power | Power |
Power Device | No power supply |
Dimensions & Weight | Dimensions & Weight |
Width | 11.85 cm |
Depth | 2.06 cm |
Height | 3.546 cm |
Weight | 32 g |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 17.5 cm |
Shipping Depth | 11.4 cm |
Shipping Height | 6.9 cm |
Shipping Weight | 132 g |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 2 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 10 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 20 - 80% (non-condensing) |
