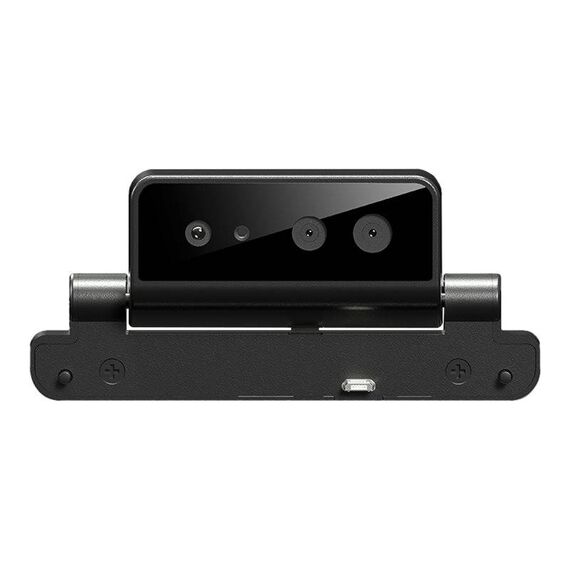

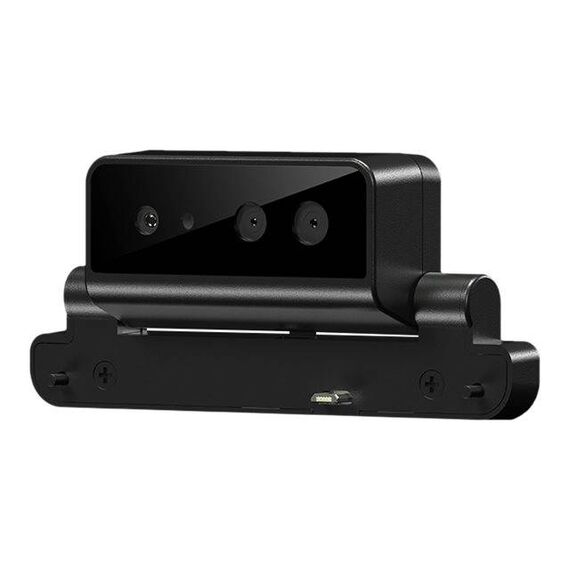

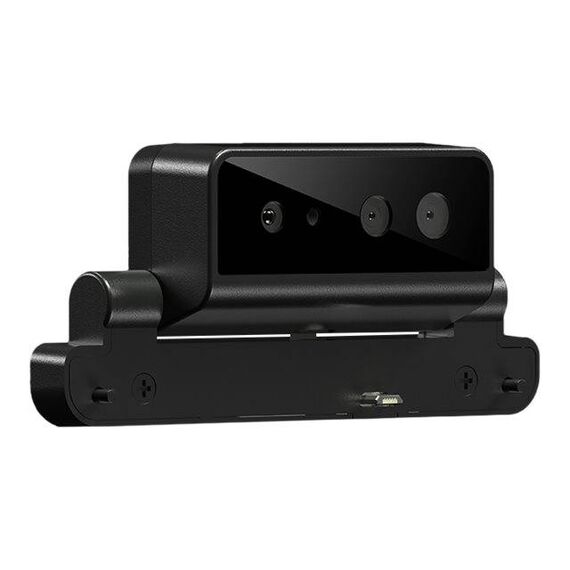

Elo Elo Edge Connect / 3D camera / 3D / colour / 1920 x 1080 / DC 5 V | E134699
Please sign in so that we can notify you about a reply
Special Features
- Easily and securely attached the camera to any side of the display via Elo Edge Connect technology
- Recognize a customer approaching a kiosk and authenticate known customers to curate personalized experiences
- Enabling VR/AR applications that allow customers to visualize items without physically wearing them
Product Specification
| Device Type | 3D camera |
| 3D Technology | Yes |
| Connectivity Technology | Wired |
| Width | 11.948 cm |
| Depth | 2.028 cm |
| Height | 5.345 cm |
| Weight | 90 g |
| Camera | Camera |
| Type | Colour - fixed |
| Max Digital Video Resolution | 1920 x 1080 |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 1280 x 800, 640 x 400 |
| Frame Rate (max) | 60 frames per second |
| Features | Face Recognition, 0.25 m to 1.5 m distance range |
| Lens Construction | Lens Construction |
| Horizontal Field of View (degree) | 67.9 - 71.5 |
| Vertical Field of View (degree) | 45.3 - 56.7 |
| Diagonal Field of View (degree) | 78 - 84 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Laser Class 1 |
| Colour | Black |
| Power | Power |
| Power Requirements | DC 5 V |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 17.5 cm |
| Shipping Depth | 6.9 cm |
| Shipping Height | 11.4 cm |
| Shipping Weight | 183 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 40 °C |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
Features - Elo - E134699
More Details
Product Code
CA63593
EAN Code
0843173124209
Manufacturer
Elo
