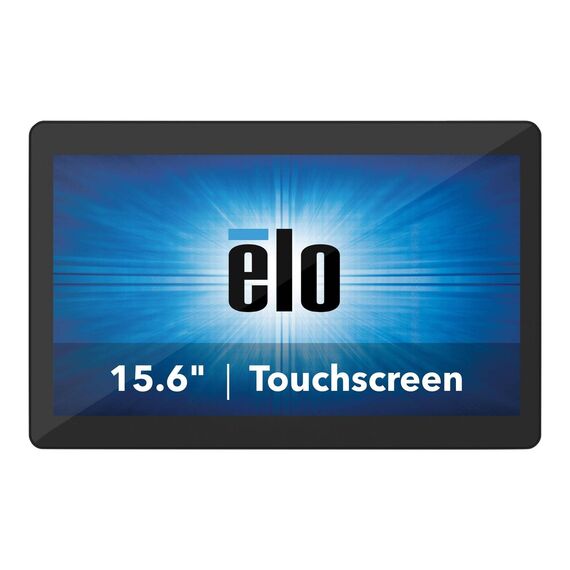

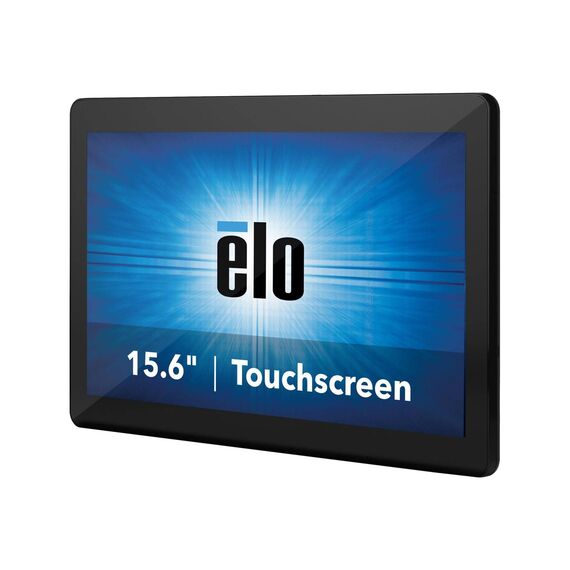

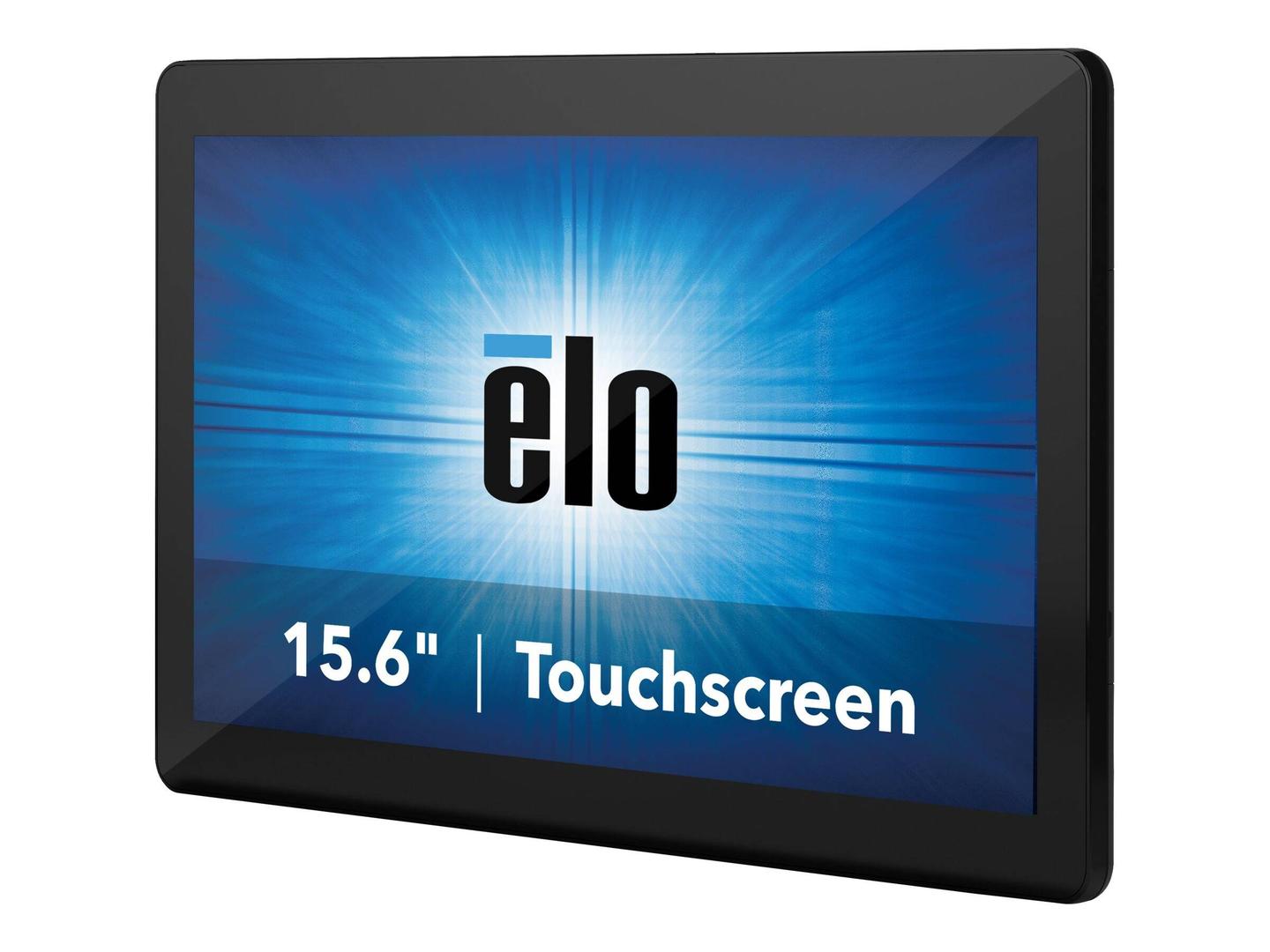

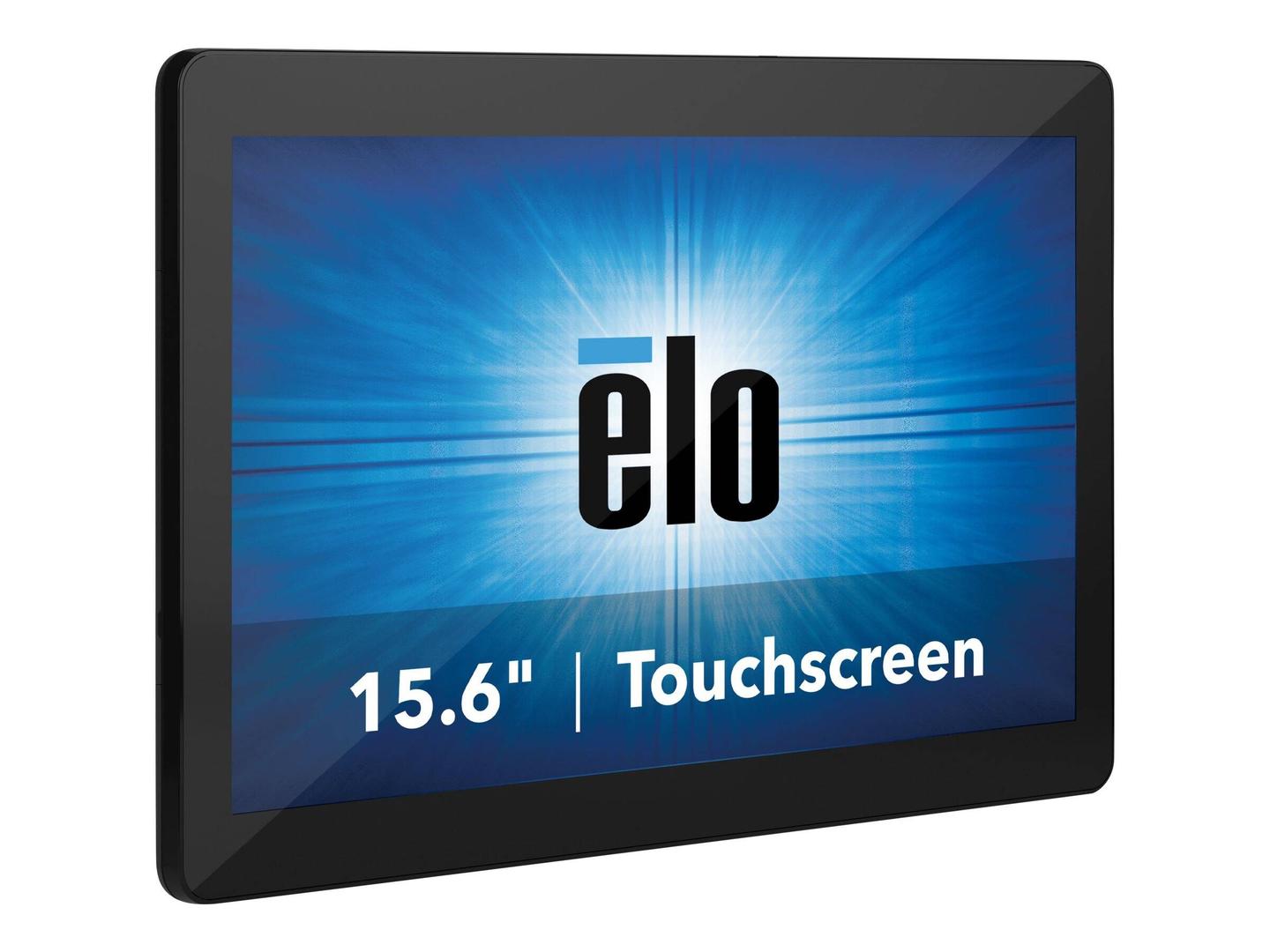

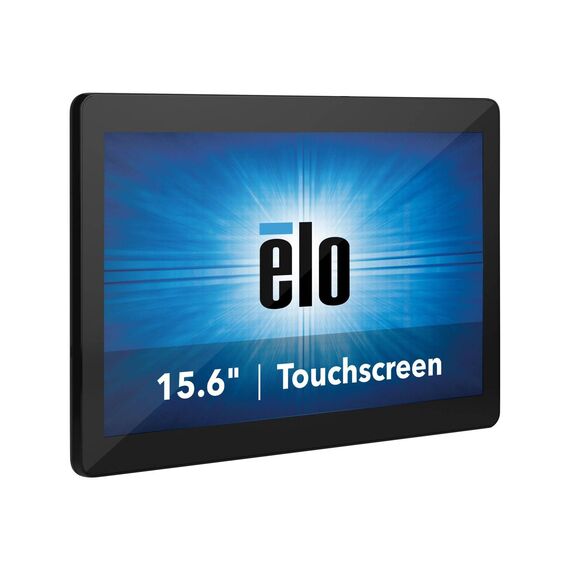

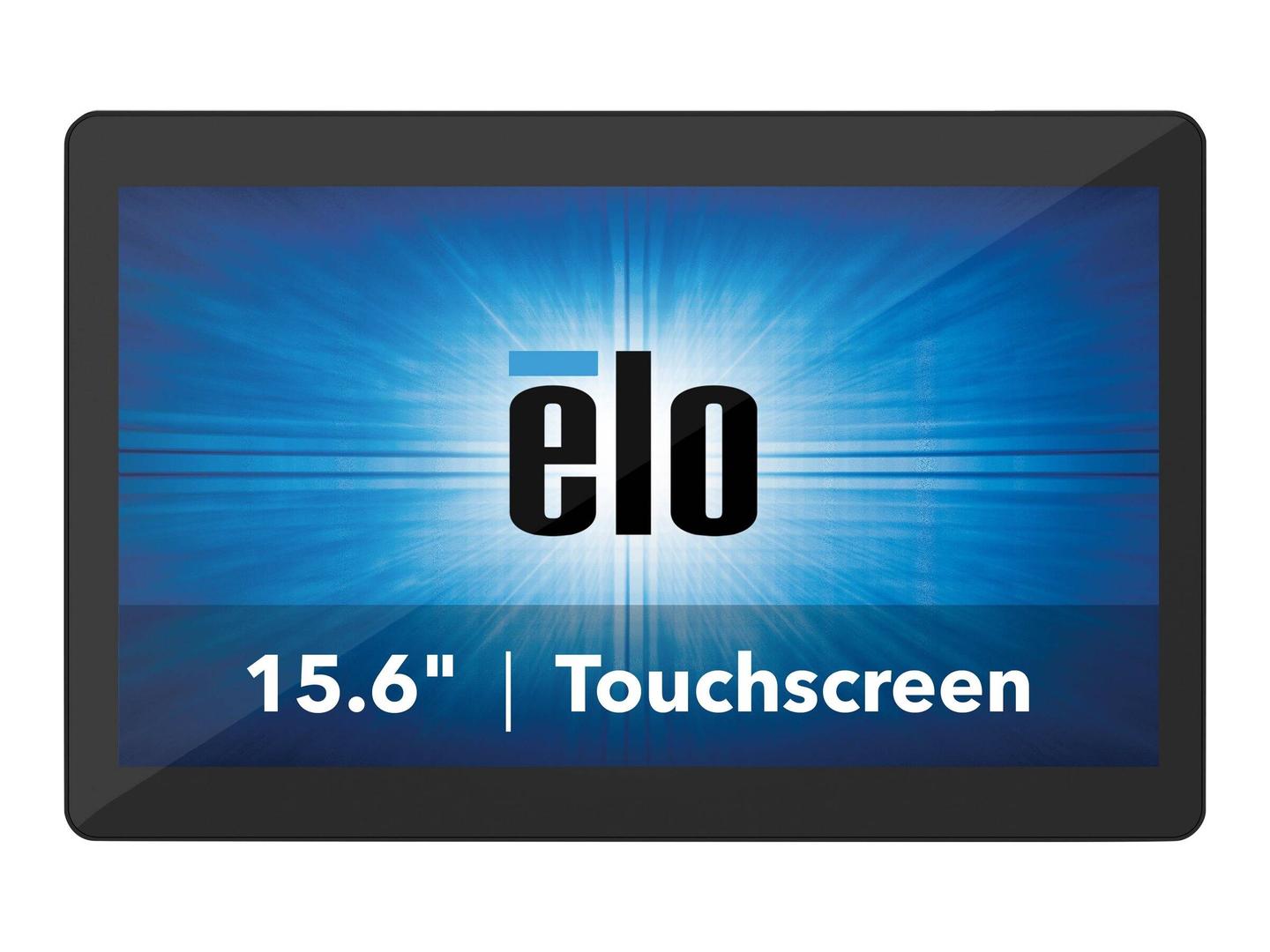

Elo I-Series 2.0 - All-in-one - Core i5 8500T / 2.1 GHz - vPro - RAM 8 GB - SSD 128 GB - UHD Graphics 630 - GigE - WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 - Windows 10 - monitor: LED 15.6" 1920 x 1080 (Full HD) touchscreen - black | E692244
Please sign in so that we can notify you about a reply
Product Specification
| Platform Technology | Intel vPro Platform |
| Type | Personal computer |
| Product Form Factor | All-in-one |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Localisation | Region: Worldwide |
| Processor / Chipset | |
| CPU | Intel Core i5 (8th Gen) 8500T |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 3.5 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel Q370 |
| Cache Memory | |
| Installed Size | 9 MB |
| Cache Per Processor | 9 MB |
| RAM | |
| Installed Size | 8 GB |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 0 (empty) |
| Configuration Features | 2 x 4 GB |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 128 GB |
| Interface Type | SATA |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 15.6" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | +80 / -80 |
| Vertical Viewing Angle | +80 / -80 |
| Response Time | 25 ms |
| Image Brightness | 270 cd/m² |
| Image Contrast Ratio | 700:1 |
| Monitor Features | TouchPro Pro Projected Capacitive (PCAP) technology |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 630 |
| Audio Output | |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Expansion / Connectivity | |
| Interfaces | 1 x headphones/microphone ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.0 ¦ 4 x USB - micro-USB |
| Miscellaneous | |
| Included Accessories | Cable cover |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |

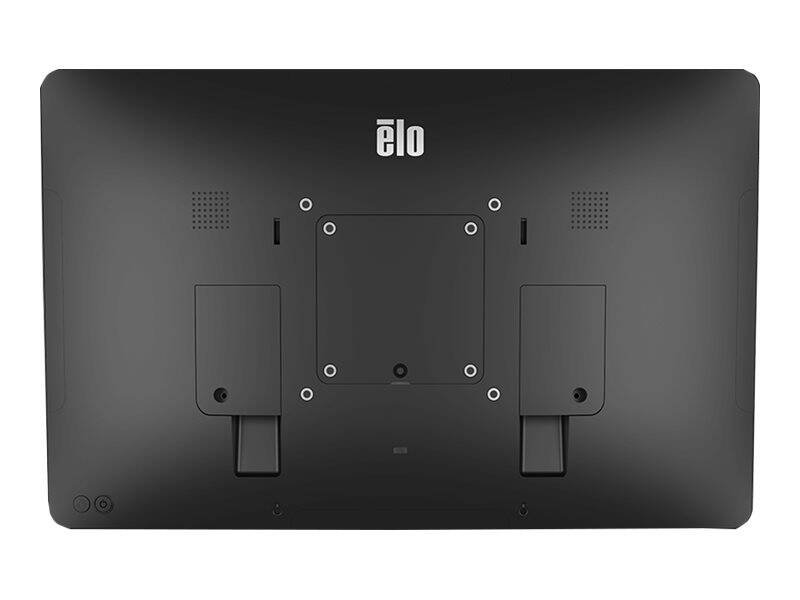

| VESA Mounting Interface | 75 mm |
| Compliant Standards | UL, TUV, VCCI, C-Tick, cUL, NOM, CB, CCC, FCC, RCM |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 100 Watt |
| Operating System / Software | |
| OS Provided | Windows 10 |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 7.1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width | 38.42 cm |
| Depth | 4.38 cm |
| Height | 24.64 cm |
| Weight | 2.2 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 46.2 cm |
| Shipping Depth | 21.6 cm |
| Shipping Height | 34.6 cm |
| Shipping Weight | 4.3 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% |
Features - Elo - E692244
CPU Type
- Intel Core i5
Capacity
128GB
More Details
Product Code
CA04333
EAN Code
0843173109442
Manufacturer
Elo
