Elo 1523L / LED monitor / 15" / touchscreen / 1024 x 768 / 250 cd/m2 / 700:1 / 25 ms / DVI-D, VGA / speakers / black | E738607
Elo 1523L / LED monitor / 15" / touchscreen / 1024 x 768 / 250 cd/m2 / 700:1 / 25 ms / DVI-D, VGA / speakers / black | E738607
|

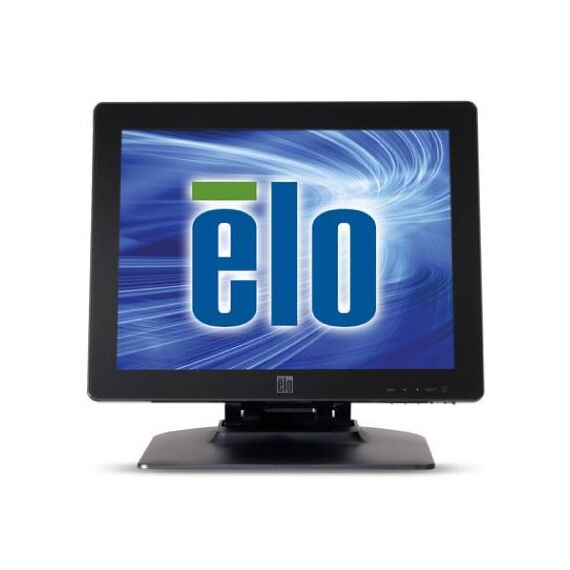

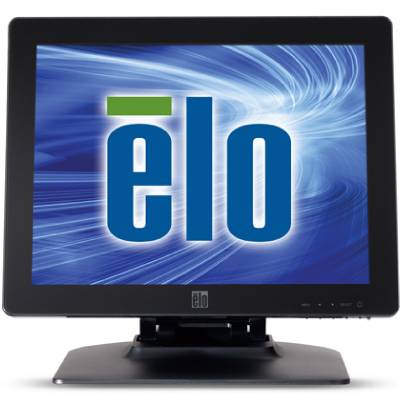

Description The Elo Touch Solutions 1523L 15-inch touch-monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.The 1523L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, connectivity incorporated within the monitor, and communication cables and side controls with lockout capability. Special Features
|
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 15" |
| Built-in Devices | USB Hub |
| Aspect Ratio | 4:3 |
| Native Resolution | 1024 x 768 at 75 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 215 cd/m² |
| Contrast Ratio | 700:1 |
| Colour Support | 16.2 million colours |
| Response Time | 25 ms |
| Vertical Refresh Rate | 56 - 75 Hz |
| Horizontal Refresh Rate | 31 - 80 KHz |
| Horizontal Viewing Angle | 160 |
| Vertical Viewing Angle | 140 |
| Backlight Technology | LED backlight |
| Controls & Adjustments | Mute, volume, brightness, contrast, H/V position, sharpness, colour temperature, phase, clock, aspect control |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Anti-glare, Projected Capacitive Touch (P-CAP) technology |
| Colour | Black |
| Dimensions (WxDxH) | 35.8 cm x 31.8 cm x 19.9 cm - with stand |
| Weight | 4.44 kg |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Interfaces | VGA ¦ DVI-D ¦ 2 x USB |
| Display Position Adjustments | Tilt |
| Flat Panel Mount Interface | 75 x 75 mm |
| Features | Security lock slot (cable lock sold separately) |
| MTBF | 50000 hour(s) |
| Compliant Standards | UL, VCCI, C-Tick, BSMI, cUL, VESA DPMS, CB, CCC, IC, FCC, RoHS, DDC, KCC, WEEE, E-Standby, China RoHS, CoC |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 12 Watt |
| Dimensions & Weight Details | Without stand - weight: 2.65 kg |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
