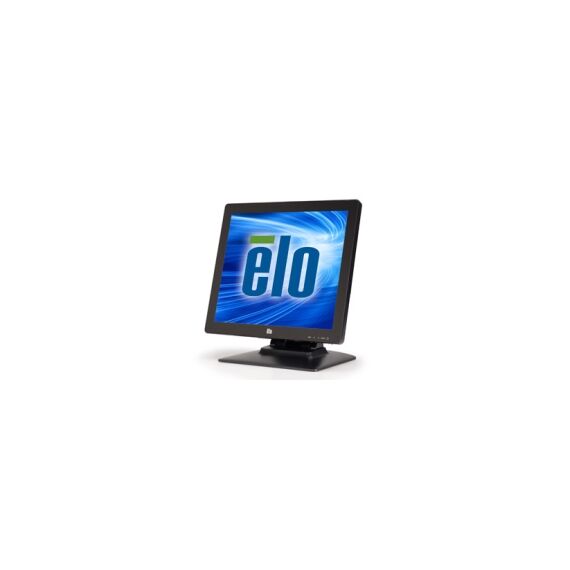

Elo 1723L / LED monitor / 17" / touchscreen / 1280 x 1024 / 250 cd/m2 / 800:1 / 30 ms / DVI, VGA / speakers / black | E683457
Elo 1723L / LED monitor / 17" / touchscreen / 1280 x 1024 / 250 cd/m2 / 800:1 / 30 ms / DVI, VGA / speakers / black | E683457
|
Description The Elo touch solutions 1723L 17-inch touch monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.The 1723L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor, and communication cables and side controls with lockout capability. Special Features
|
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 17" |
| Aspect Ratio | 5:4 |
| Native Resolution | 1280 x 1024 at 75 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 215 cd/m² |
| Contrast Ratio | 800:1 |
| Colour Support | 16.7 million colours |
| Response Time | 30 ms |
| Vertical Refresh Rate | 56 - 75 Hz |
| Horizontal Refresh Rate | 31 - 80 KHz |
| Horizontal Viewing Angle | 170 |
| Vertical Viewing Angle | 160 |
| Backlight Technology | LED backlight |
| Controls & Adjustments | Mute, volume, brightness, contrast, H/V position, sharpness, colour temperature, phase, clock, aspect control |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Anti-glare, IntelliTouch Pro |
| Colour | Black |
| Dimensions (WxDxH) | 39.19 cm x 20.94 cm x 36.07 cm - with stand |
| Weight | 5.21 kg |
| Type | Speakers - stereo |
| Output Power / Channel | 2 Watt |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Interfaces | VGA ¦ DVI-D ¦ 2 x USB ( Type A ) ¦ USB ( Type B ) |
| Display Position Adjustments | Height, tilt |
| Tilt Angle | -5/+90 |
| Flat Panel Mount Interface | 75 x 75 mm |
| Features | Security lock slot (cable lock sold separately) |
| MTBF | 50000 hour(s) |
| Compliant Standards | Plug and Play, UL, VCCI, C-Tick, BSMI, cUL, VESA DPMS, CB, CCC, IC, FCC, RoHS, DDC, KCC, WEEE, E-Standby, China RoHS, CoC |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 22 Watt |
| Power Consumption Sleep | 2 Watt |
| Dimensions & Weight Details | Without stand - width: 39.19 cm - depth: 4.95 cm - height: 32.72 cm - weight: 3.56 kg ¦ With stand - width: 39.19 cm - depth: 20.94 cm - height: 36.07 cm - weight: 5.21 kg |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
