Description

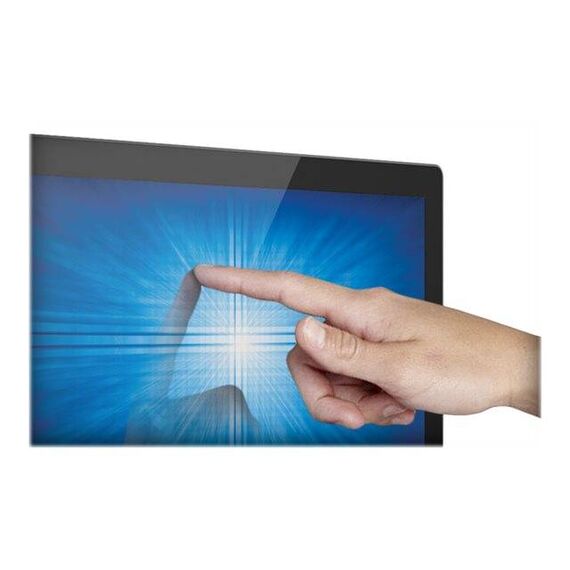

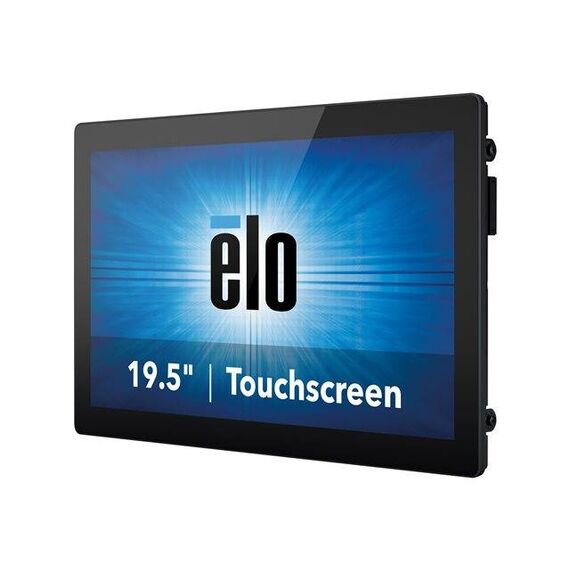

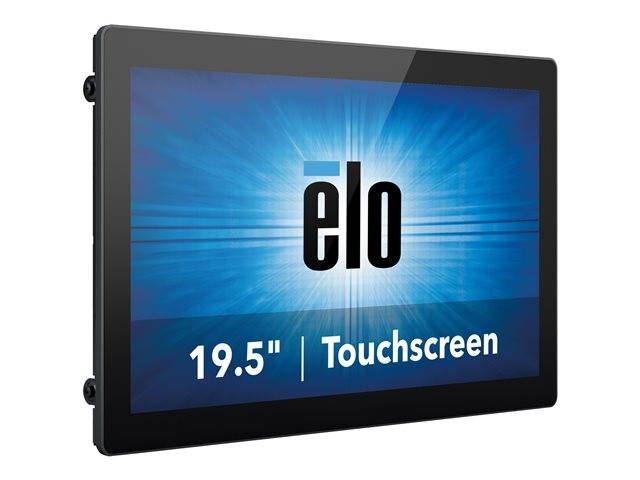

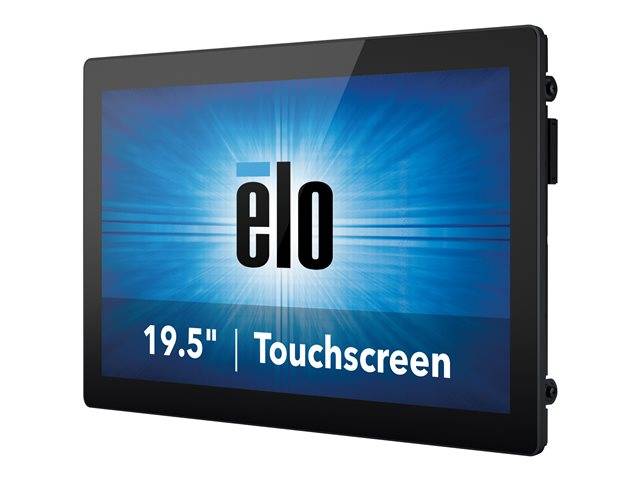

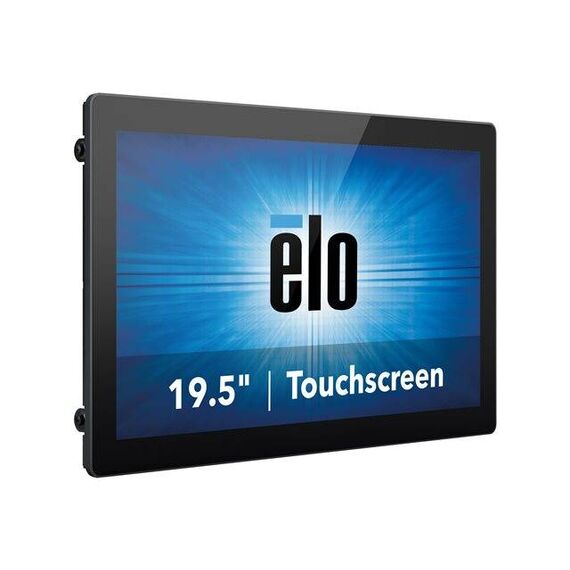

The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Elo 2094L / LED monitor | E331214
Special Features
- LED backlighting allows for state-of-the- art slim design while reducing power consumption
- Mounting options include rack and front-mount
- Viewing angle of 178° x 178°, for sharp colors and graphics in both portrait and landscape modes
- PCAP 2GS offers pristine optical clarity and touch durability
- 10 touch projected capacitive (PCAP) with Thru-glass capabilities
- Display port and VGA video interfaces
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class B |
| Energy Consumption per Year | 29 kWh |
| Power Consumption (On mode) | 20 W |
| Diagonal Size | 19.53" |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Contrast Ratio | 3000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 20 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Backlight Technology | LED backlight |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Features | Remote OSD, Projected Capacitive Touch (P-CAP) technology |
| Colour | Black |
| Dimensions (WxDxH) | 47.9 cm x 4.04 cm x 28.5 cm |
| Weight | 4.7 kg |
| Type | Touch-screen, remote control - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Interfaces | USB ¦ VGA ¦ DisplayPort ¦ HDMI |

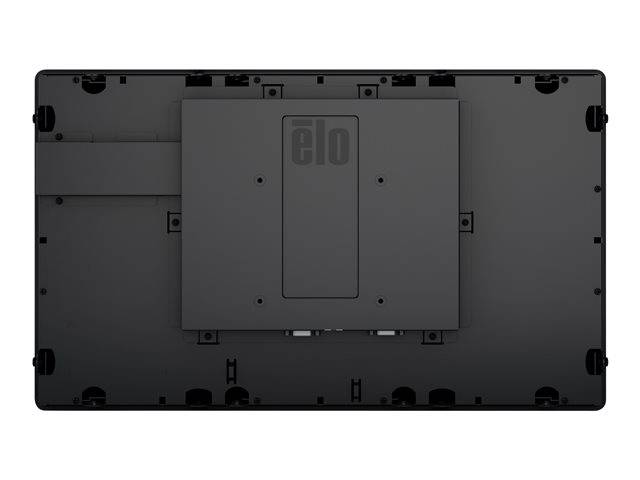

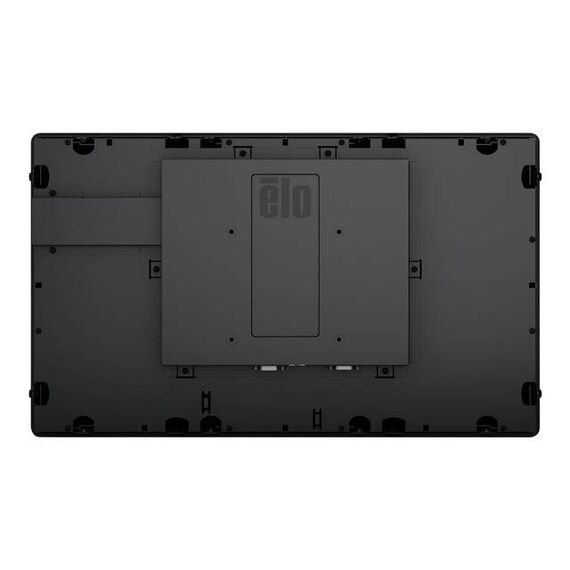

| Flat Panel Mount Interface | 100 x 100 mm |
| Cables Included | 1 x USB cable ¦ 1 x VGA cable ¦ 1 x HDMI cable |
| Mounting Kit | Included |
| MTBF | 50,000 hours |
| Compliant Standards | UL, TUV, VCCI, BSMI, cUL, CB, CCC, IC, FCC, RoHS, KCC, WEEE, China RoHS, RCM, CoC, DisplayPort 1.1a, IMERC |
| Power Consumption Operational | 17.6 Watt |
| Power Consumption Sleep | 1.5 Watt |
| Power Consumption (Off Mode) | 0.5 Watt |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E331214
More Details
Product Code
0V00636
EAN Code
0815335026010
Manufacturer
Elo
