EloPOS System i3 / All-in-one / 1 x Core i3 8100T / 3.1 GHz / RAM 4 GB / SSD 128 GB / UHD Graphics 630 / GigE, Bluetooth 5.0 / WLAN, Bluetooth 5.0 / Win10 IoT Enterprise LTSB 64-bit / monitor: LED 15.6" 1366 x 768 (HD) touchscreen | E441193
Please sign in so that we can notify you about a reply
EloPOS System i3 / All-in-one / 1 x Core i3 8100T / 3.1 GHz / RAM 4 GB / SSD 128 GB / UHD Graphics 630 / GigE, Bluetooth 5.0 / WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 / Win 10 IoT Enterprise LTSB 64-bit / monitor: LED 15.6" 1366 x 768 (HD) touchscreen | E441193
Description

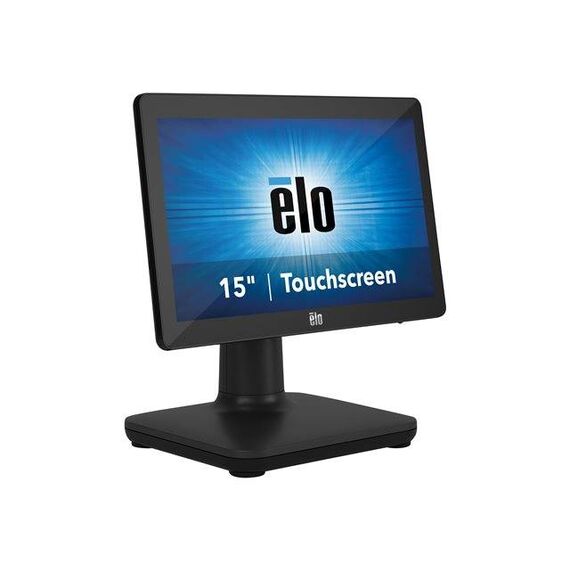

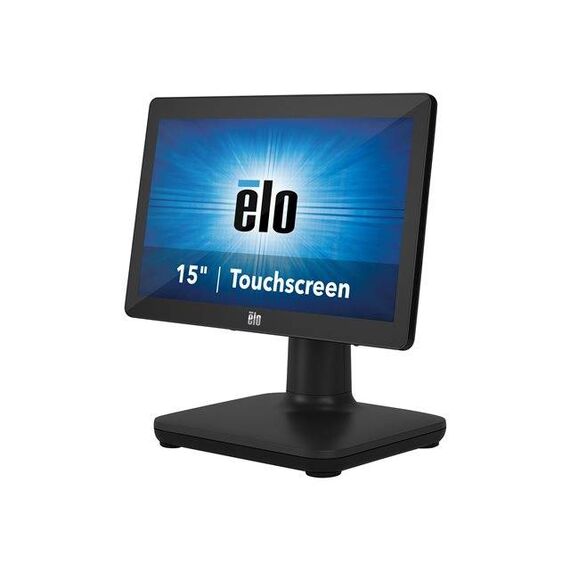

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15.6" 10-touch display, choice of Intel's 8th generation processors and an integrated expansion hub to connect the accessories you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use.
EloPOS System i3 / All-in-one | E441193
Special Features
- Connections
- Configure your solution
- Add a customer-facing display with ease
- Elo Edge Connect lets you do more
Product features
- Connections
The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations. - Configure your solution
EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system, and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact. - Add a customer-facing display with ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze. - Elo Edge Connect lets you do more
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Product Specification
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| CPU | Intel Core i3 (8th Gen) 8100T / 3.1 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Chipset Type | Intel H310 |
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
| Installed Size | 4 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2400 MHz |
| Memory Specification Compliance | PC4-19200 |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 1 (empty) |
| Configuration Features | 1 x 4 GB |
| Type | SSD - 2.5" |
| Capacity | 1 x 128 GB |
| Interface Type | SATA 6Gb/s |
| Features | 72 TBW |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Type | No optical drive |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 15.6" |
| Native Resolution | 1366 x 768 (HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 90 |
| Vertical Viewing Angle | 50 |
| Response Time | 10 ms |
| Image Brightness | 220 cd/m² |
| Image Contrast Ratio | 400:1 |
| Monitor Features | Anti-glare, TouchPro technology |
| Graphics Processor | Intel UHD Graphics 630 |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Interfaces | 3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer ¦ 1 x headphones ¦ 2 x serial - RJ-45 ¦ 1 x USB-C (27 Watt charging) |
| Cables Included | RJ-45 to DB-9 cable ¦ Power cable (2 pcs.) |
| VESA Mounting Interface | 75 mm |
| Compliant Standards | UL, TUV, VCCI, cUL, NOM, CB, CCC, FCC, S Mark, RCM, CE/EMC |
| Device Type | Power adapter |
| Installed Qty | 1 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 180 Watt |
| Power Consumption Operational | 65 Watt |
| OS Provided | Windows 10 IoT Enterprise LTSB 64-bit Edition |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight Details | 38.62 cm - 22.12 cm - 36.93 cm - 4.9 kg - with stand ¦ 38.62 cm - 7.33 cm - 24.89 cm - 2.9 kg - without stand |
| Width | 38.62 cm |
| Depth | 22.12 cm |
| Height | 36.93 cm |
| Weight | 4.9 kg |
| Shipping Width | 46.2 cm |
| Shipping Depth | 29.9 cm |
| Shipping Height | 47 cm |
| Shipping Weight | 7.3 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Elo - E441193
CPU Type
- Intel Core i3
More Details
Product Code
0V01011
EAN Code
0843173105208
Manufacturer
Elo
