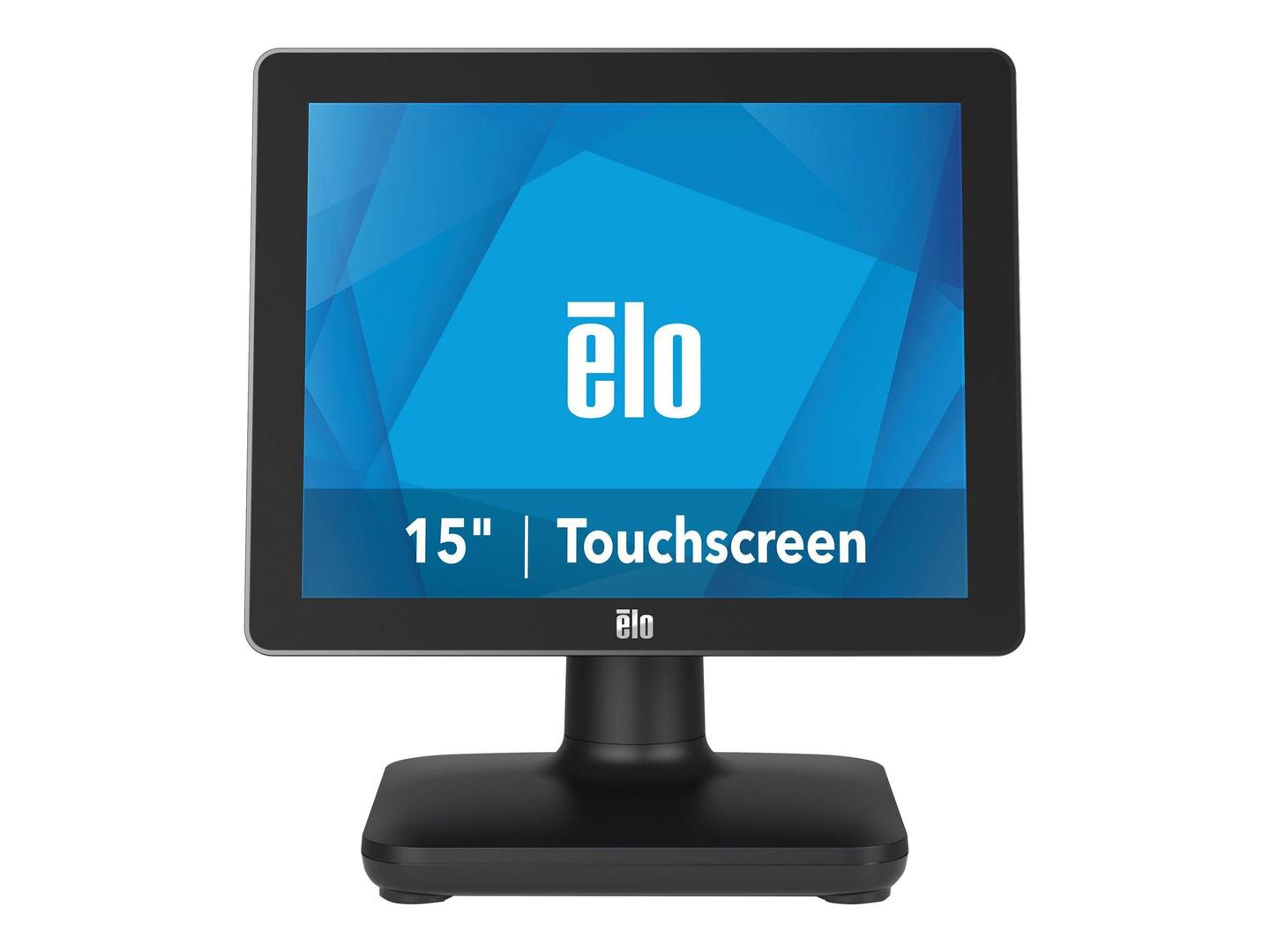

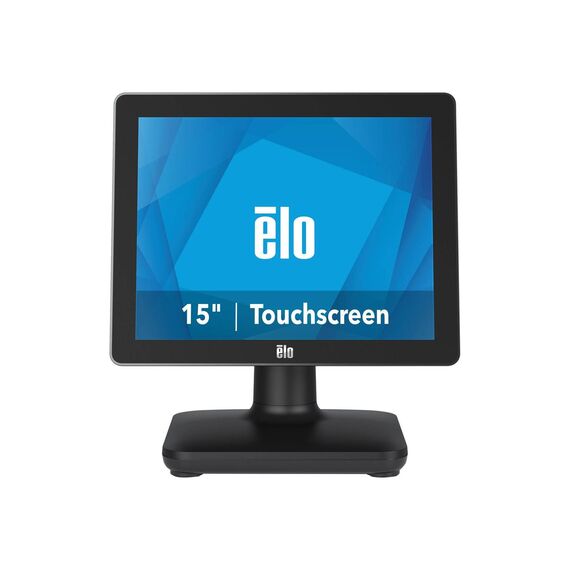

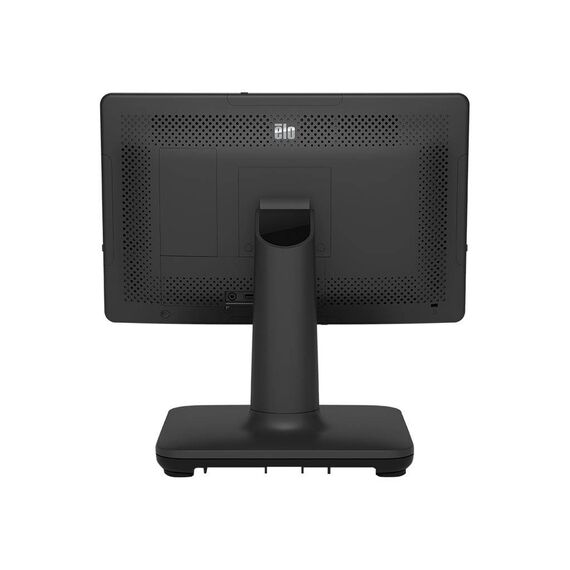

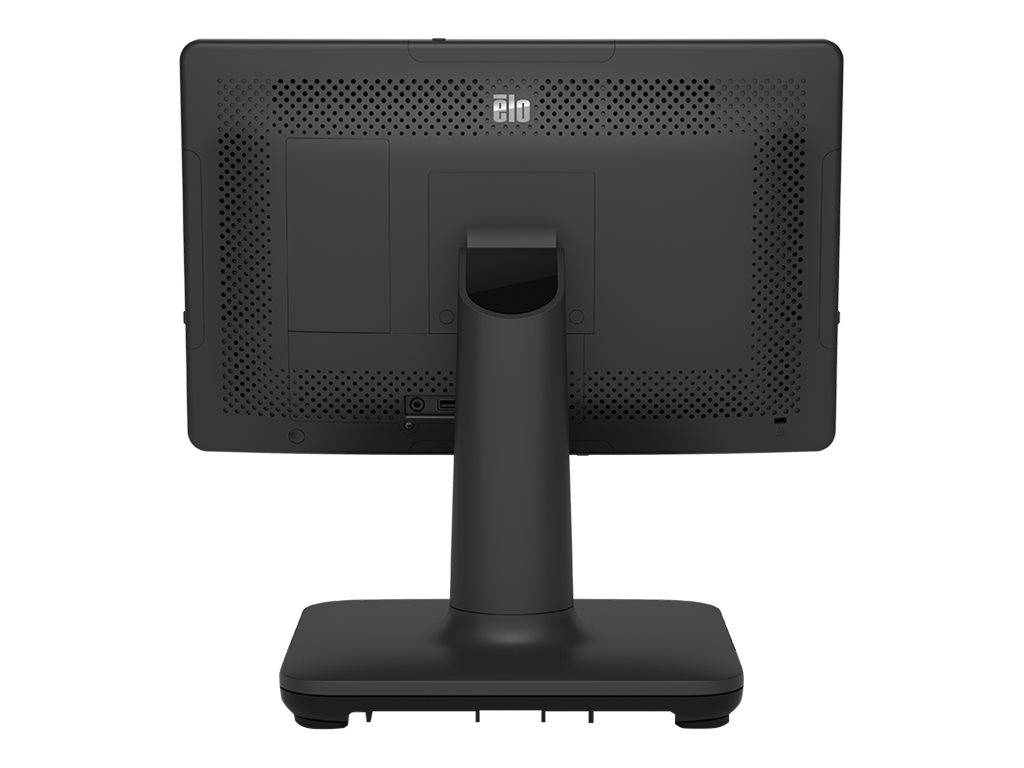

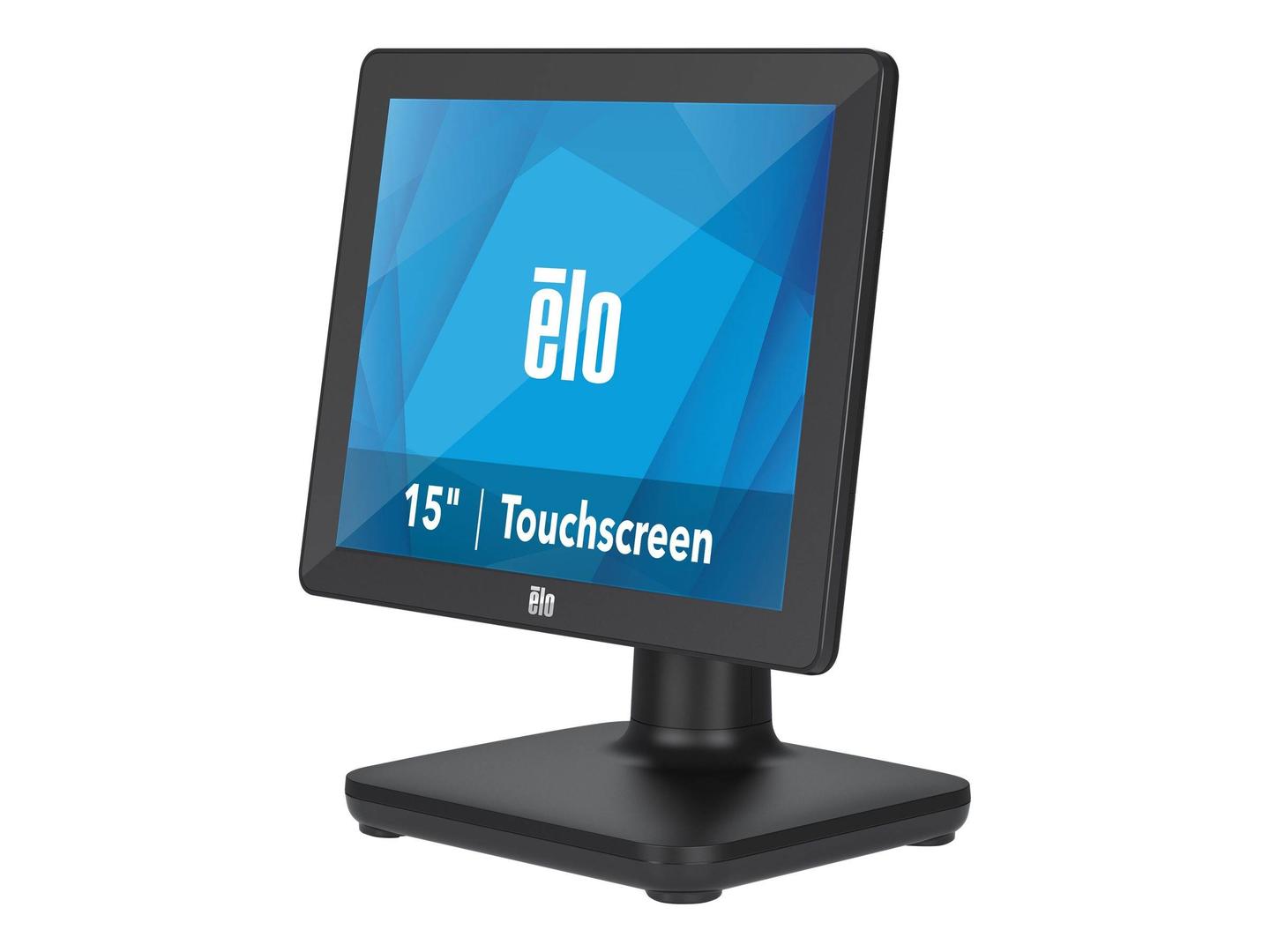

EloPOS System i5 / With I/O Hub Stand / all-in-one / 1 x Core i5 8500T / 2.1 GHz / vPro / RAM 8 GB / SSD 128 GB / UHD Graphics 630 / GigE / WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 / Win 10 IoT Enterprise LTSB 64-bit / monitor: LED 15" 1024 x 768 | E932274
Please sign in so that we can notify you about a reply
Product Features
- Connections
The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations. - Configure your solution
EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system, and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact. - Add a customer-facing display with ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze. - Elo Edge Connect lets you do more
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Special Features
- Connections
- Configure your solution
- Add a customer-facing display with ease
- Elo Edge Connect lets you do more
Product Specification
| Platform Technology | Intel vPro Platform |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i5 (8th Gen) 8500T |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 3.5 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel Q370 |
| Cache Memory | Cache Memory |
| Installed Size | 9 MB |
| Cache Per Processor | 9 MB |
| RAM | RAM |
| Installed Size | 8 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 1 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 8 GB |
| Hard Drive | Hard Drive |
| Type | SSD - M.2 |
| Capacity | 1 x 128 GB |
| Interface Type | SATA 6Gb/s |
| SSD Endurance | 72 TB |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 15" |
| Native Resolution | 1024 x 768 (XGA) |
| Widescreen Display | No |
| Image Aspect Ratio | 4:3 |
| Horizontal Viewing Angle | 160 |
| Vertical Viewing Angle | 160 |
| Response Time | 23 ms |
| Image Brightness | 340 cd/m² |
| Image Contrast Ratio | 800:1 |
| Monitor Features | Anti-glare, Zero-Bezel Design, TouchPro Pro Projected Capacitive (PCAP) technology |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics 630 |
| Audio Output | Audio Output |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Networking | Networking |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Features | Intel Active Management Technology (AMT) 11 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer ¦ 1 x headphones ¦ 2 x serial - RJ-45 ¦ 1 x USB-C (27 Watt charging) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cable cover locking screw |
| Cables Included | RJ-45 to DB-9 cable |
| VESA Mounting Interface | 75 mm |
| Compliant Standards | UL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, RCM, Mexico NOM |
| Power | Power |
| Device Type | Power adapter |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 180 Watt |
| Power Consumption Operational | 80 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | Windows 10 IoT Enterprise LTSB 64-bit Edition |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | Dimensions & Weight |
| Dimensions & Weight Details | 35.97 cm - 22.13 cm - 39.04 cm - 5.3 kg - with stand |
| Width | 35.97 cm |
| Depth | 22.13 cm |
| Height | 39.04 cm |
| Weight | 5.3 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 45.5 cm |
| Shipping Depth | 37.2 cm |
| Shipping Height | 50.9 cm |
| Shipping Weight | 8.2 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% |
Features - Elo - E932274
More Details
Product Code
CA05167
EAN Code
0843173115900
Manufacturer
Elo
