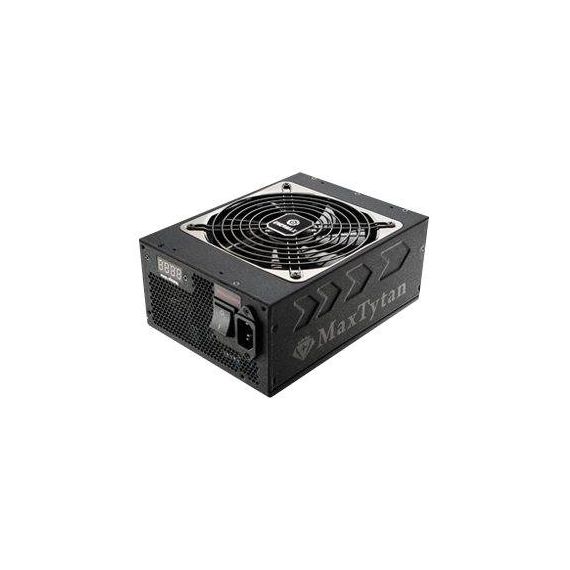

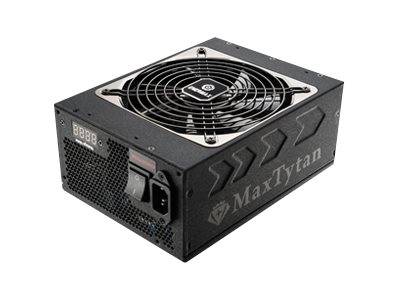

Enermax MaxTytan EDT1250EWT / Power supply (internal) / ATX12V / 80 PLUS Titanium / AC 100-240 V / 1250 Watt / active PFC | EDT1250EWT
Enermax MaxTytan EDT1250EWT / Power supply (internal) / ATX12V / 80 PLUS Titanium / AC 100-240 V / 1250 Watt / active PFC | EDT1250EWT
Description MaxTytan 1050W & 1250W, the flagship lineup of Enermax power supplies, is 80 PLUS Titanium certified. The fully modular PSUs are engineered with Wattage Meter, the digital panel allowing users to instantly identify the real-time system power consumption. This series incorporates the ultra-silent Twister Bearing fan with Dust Free Rotation technology that helps decrease dust build-up on fan grill and blades. In addition, the PSU is designed with a semi-fanless control to deliver 0 dBA silence before it reaches 60%~70% operating load. Moreover, MaxTytan 1050W & 1250W come with an exclusive accessory, Coolergenie, the intelligent 2-in-1 fan controller that provides system fans with semi-fanless control and fan-delay function. MaxTytan 1050W & 1250W are surely a perfect solution for high-end gaming systems, heavy-duty multi-GPU workstations, or even power-hungry mining rigs. Enermax MaxTytan EDT1250EWT / Power supply 1250Watt / active PFC | EDT1250EWTSpecial Features
Product features
|
Product Specification
Device Type | Power supply - active Power Factor Correction (PFC) - internal |
Specification Compliance | ATX12V |
Input Voltage | AC 100-240 V |
Frequency Required | 47 - 63 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 16 x 15 pin Serial ATA power ¦ 8 x 4 PIN internal power ¦ 1 x power 8 pin +12V ¦ 1 x 4 PIN mini-power connector |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 1250 Watt |
Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 104 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
Power Factor (PF) | 0.99 |
80 PLUS Certification | 80 PLUS Titanium |
Included Accessories | COOLERGENIE fan controller |
Cooling System | 139mm fan |
Features | Sleeved cables, overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, surge & inrush protection, energy metre, SafeGuard, Twister Bearing cooling fan, Dust Free Rotation technology, SLEEMAX cable design |
Compliant Standards | CCC, FCC, RoHS, Energy-Related Products (ErP) Lot 6, EAC, ErP 2013, ErP 2014, TUV Rheinland, Energy-Related Products (ErP) Lot 3 |
Width | 15 cm |
Depth | 20 cm |
Height | 8.6 cm |
Shipping Width | 26.3 cm |
Shipping Depth | 35.1 cm |
Shipping Height | 15.8 cm |
Shipping Weight | 5.2 kg |
