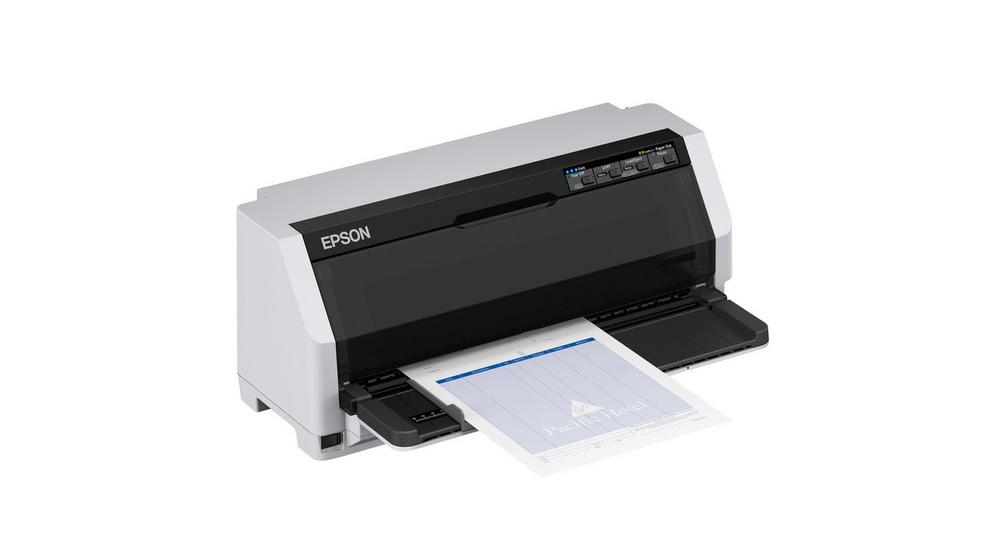

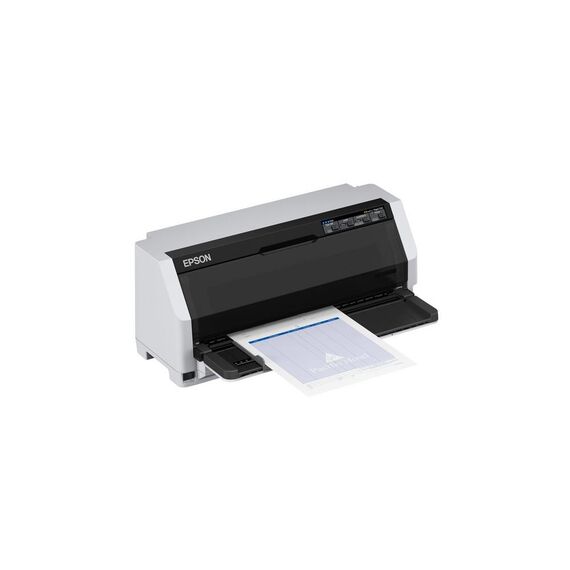

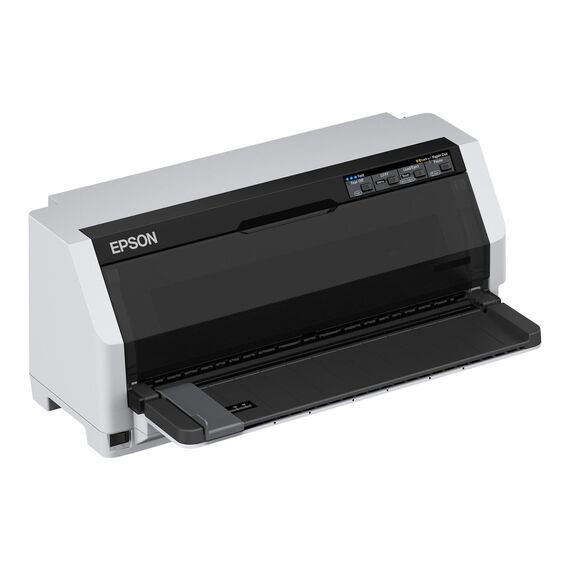

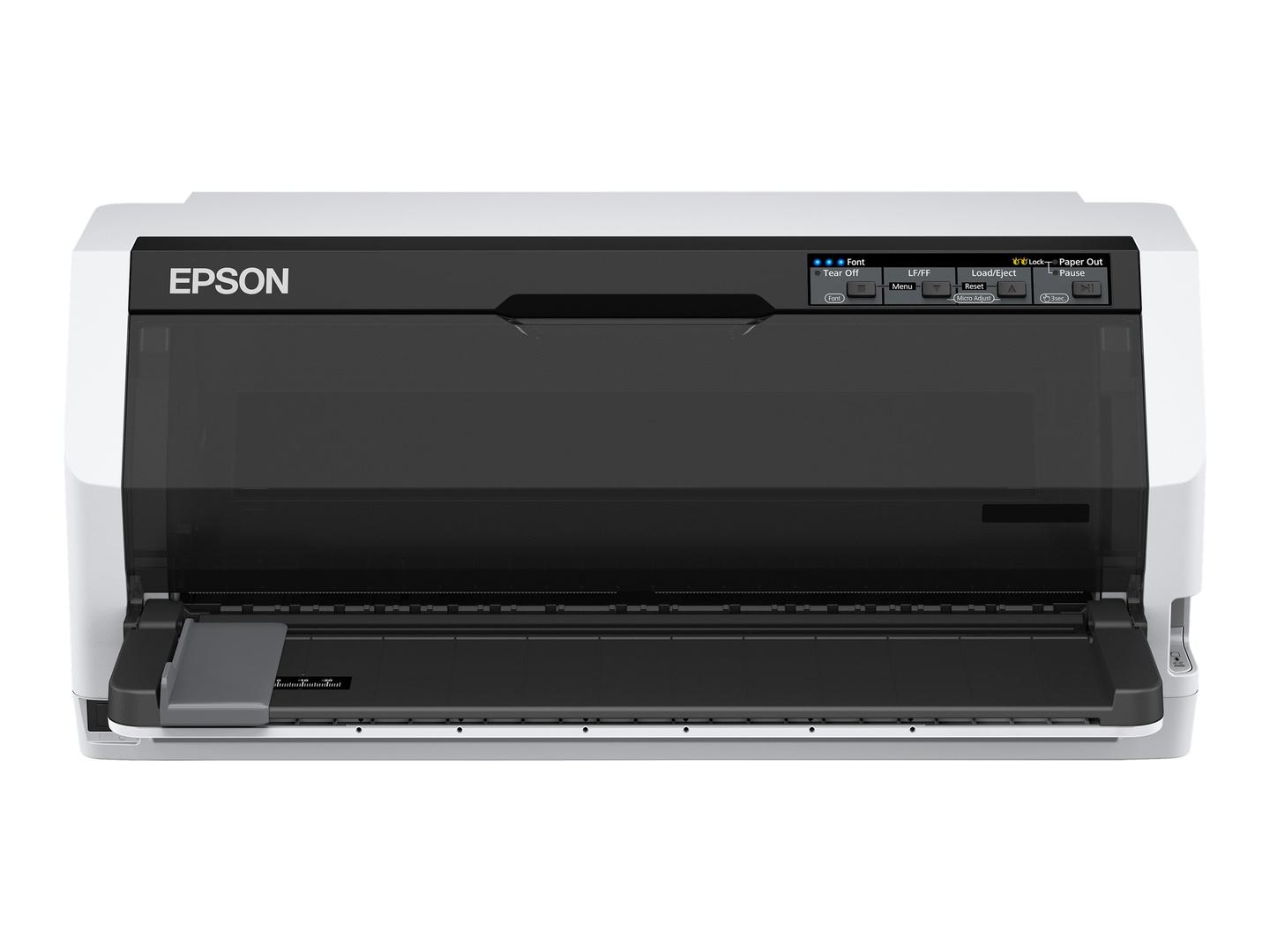

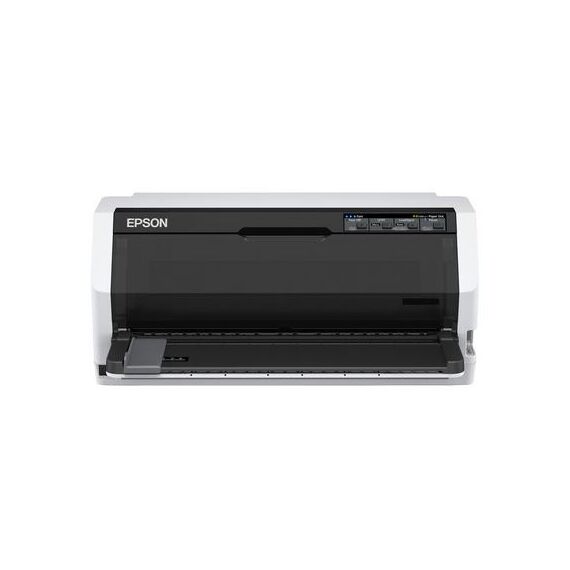

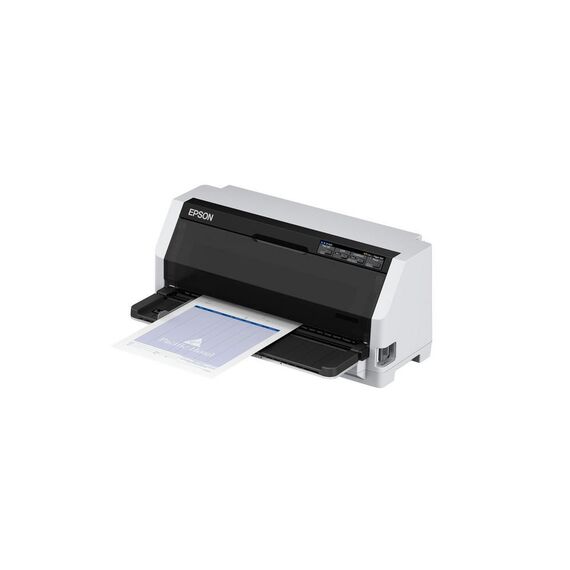

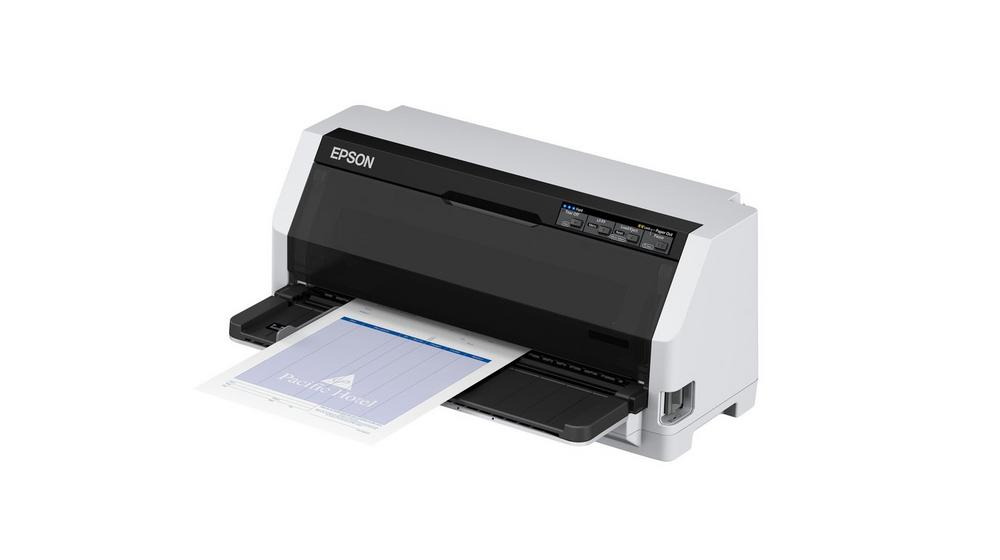

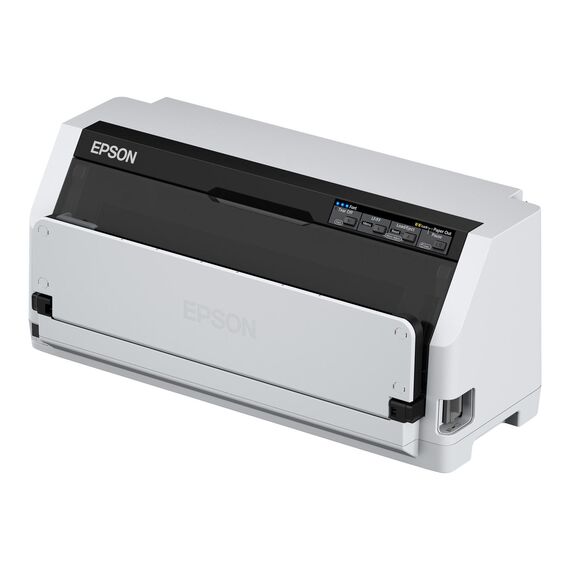

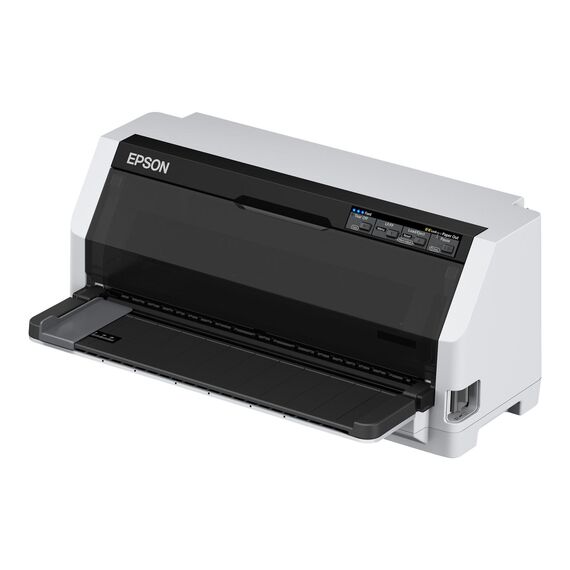

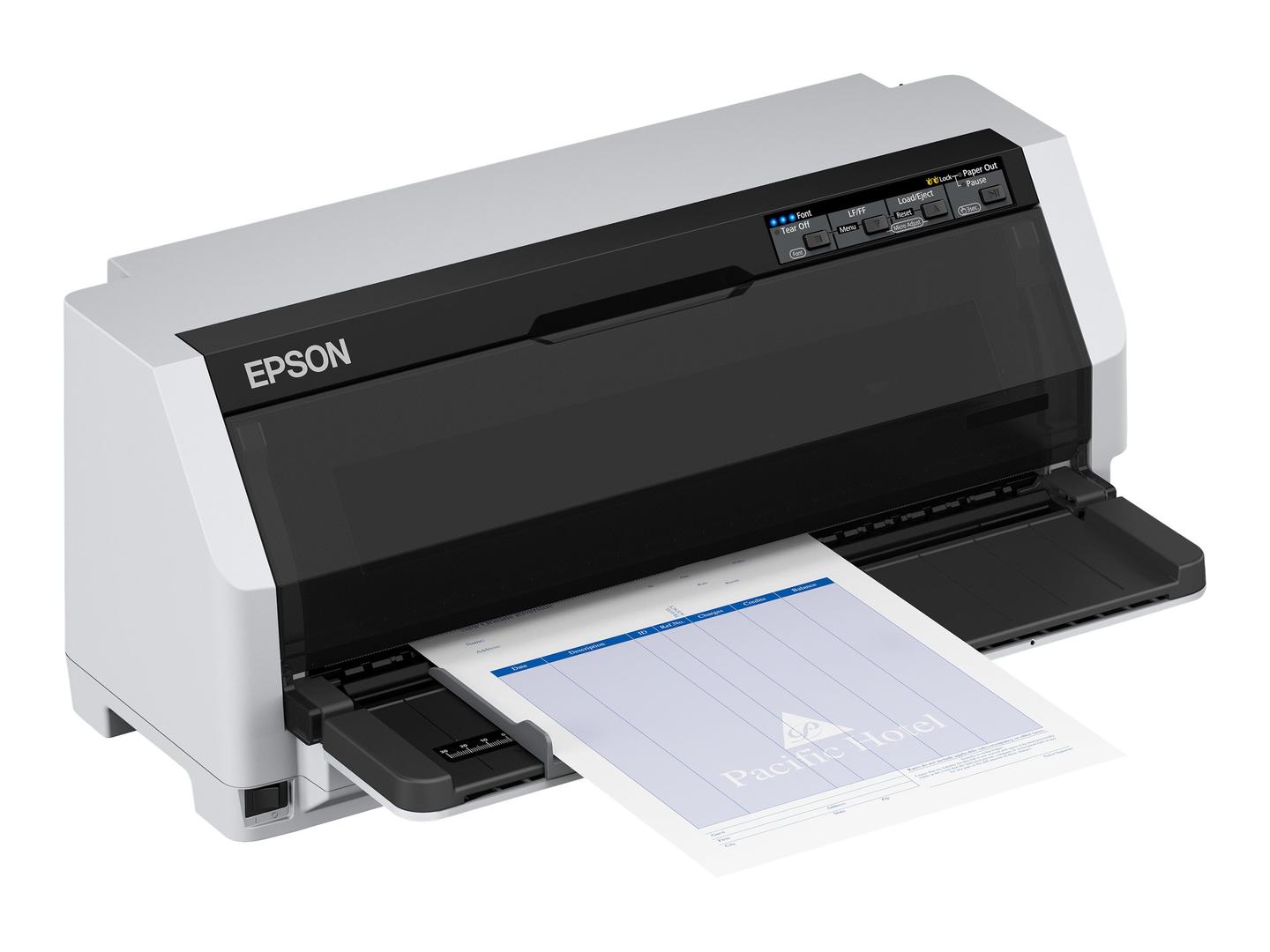

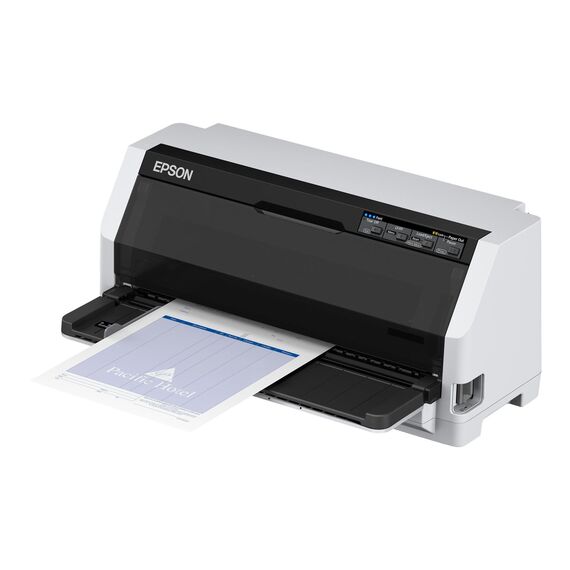

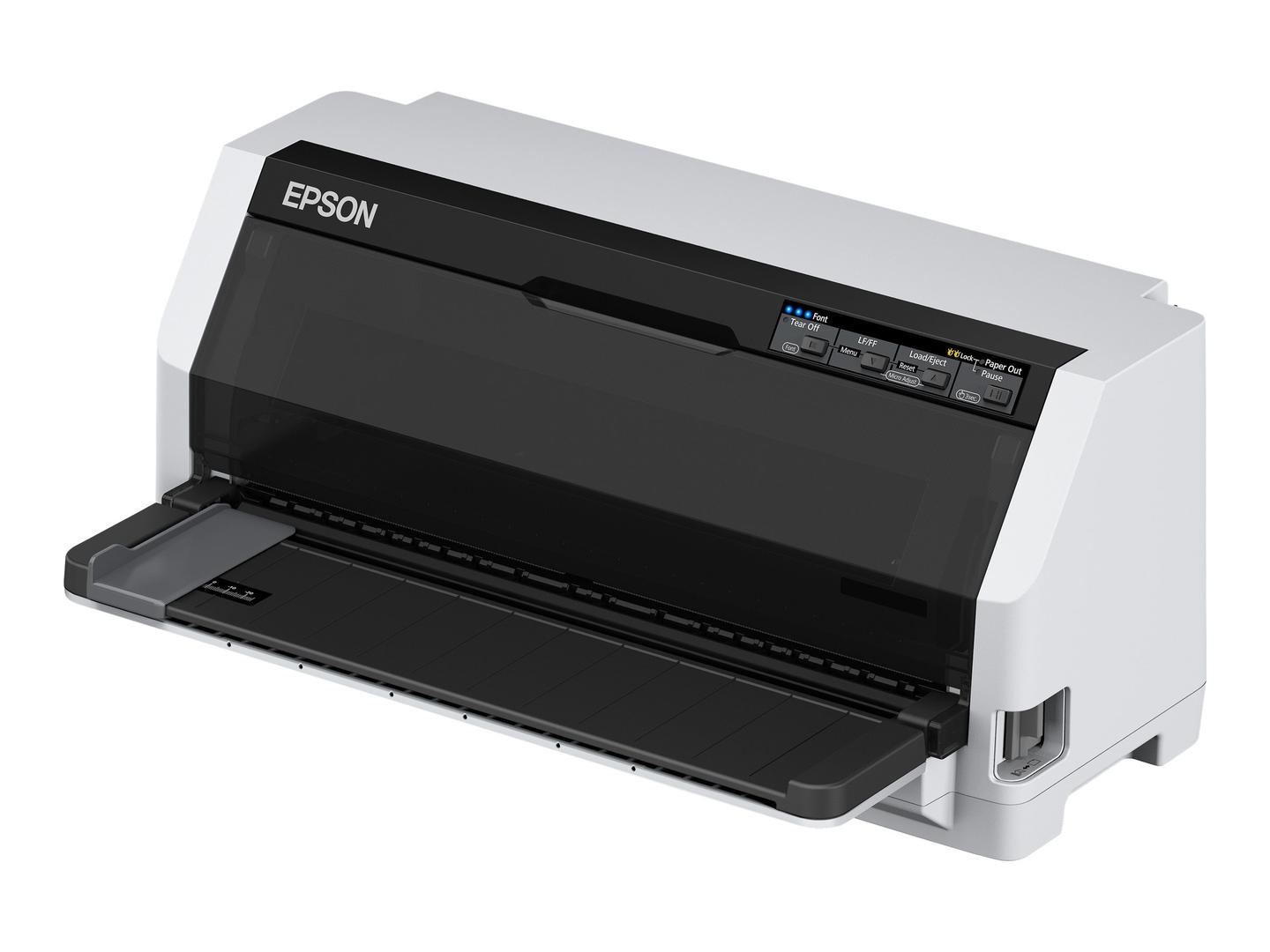

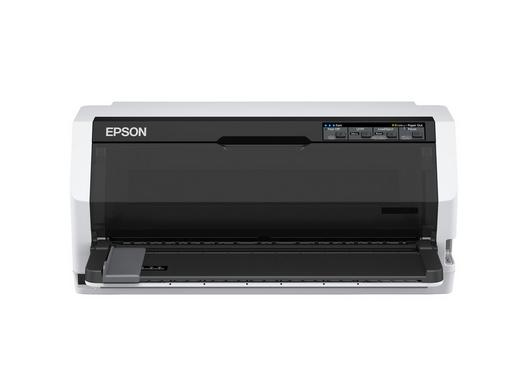

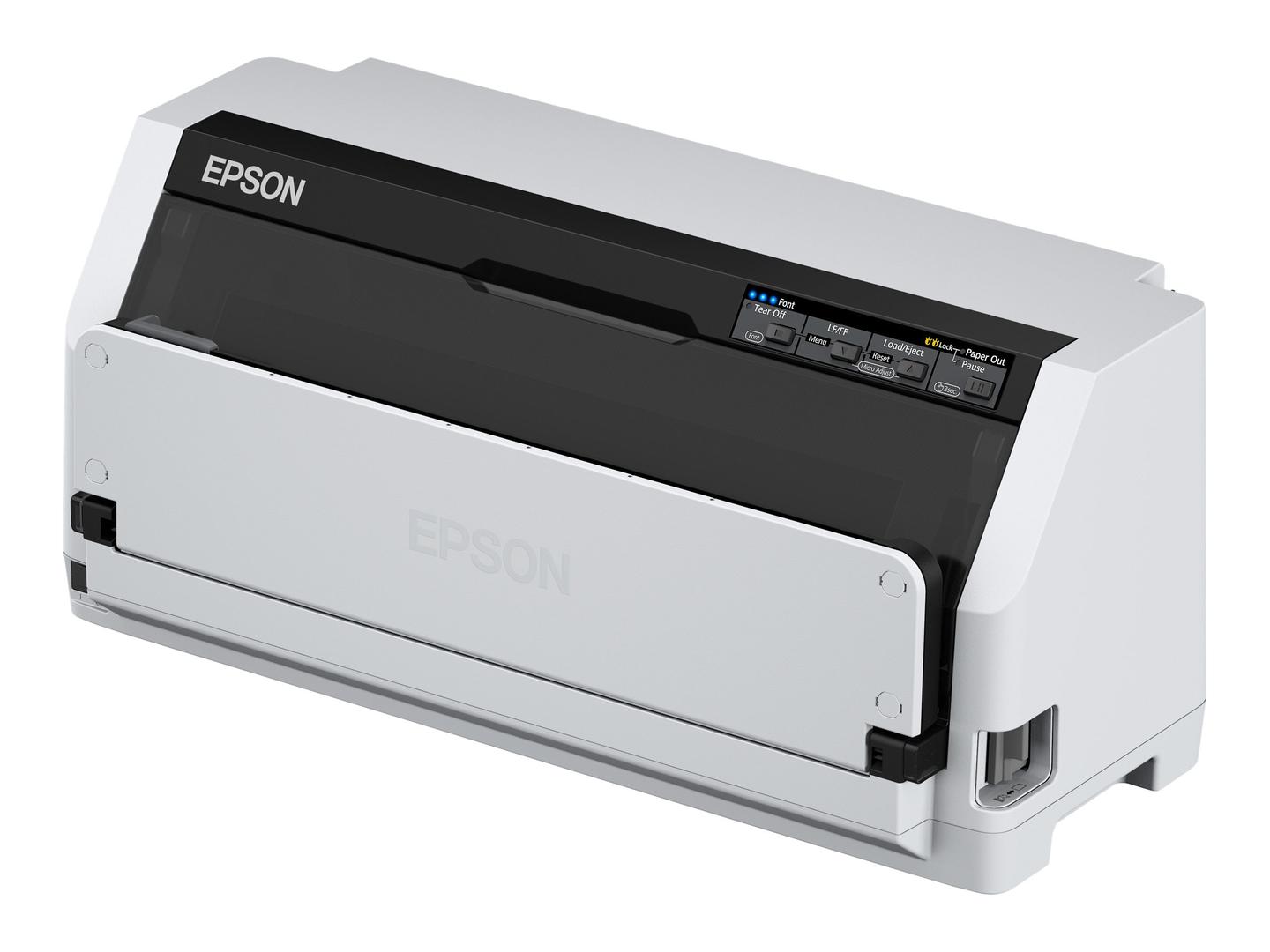

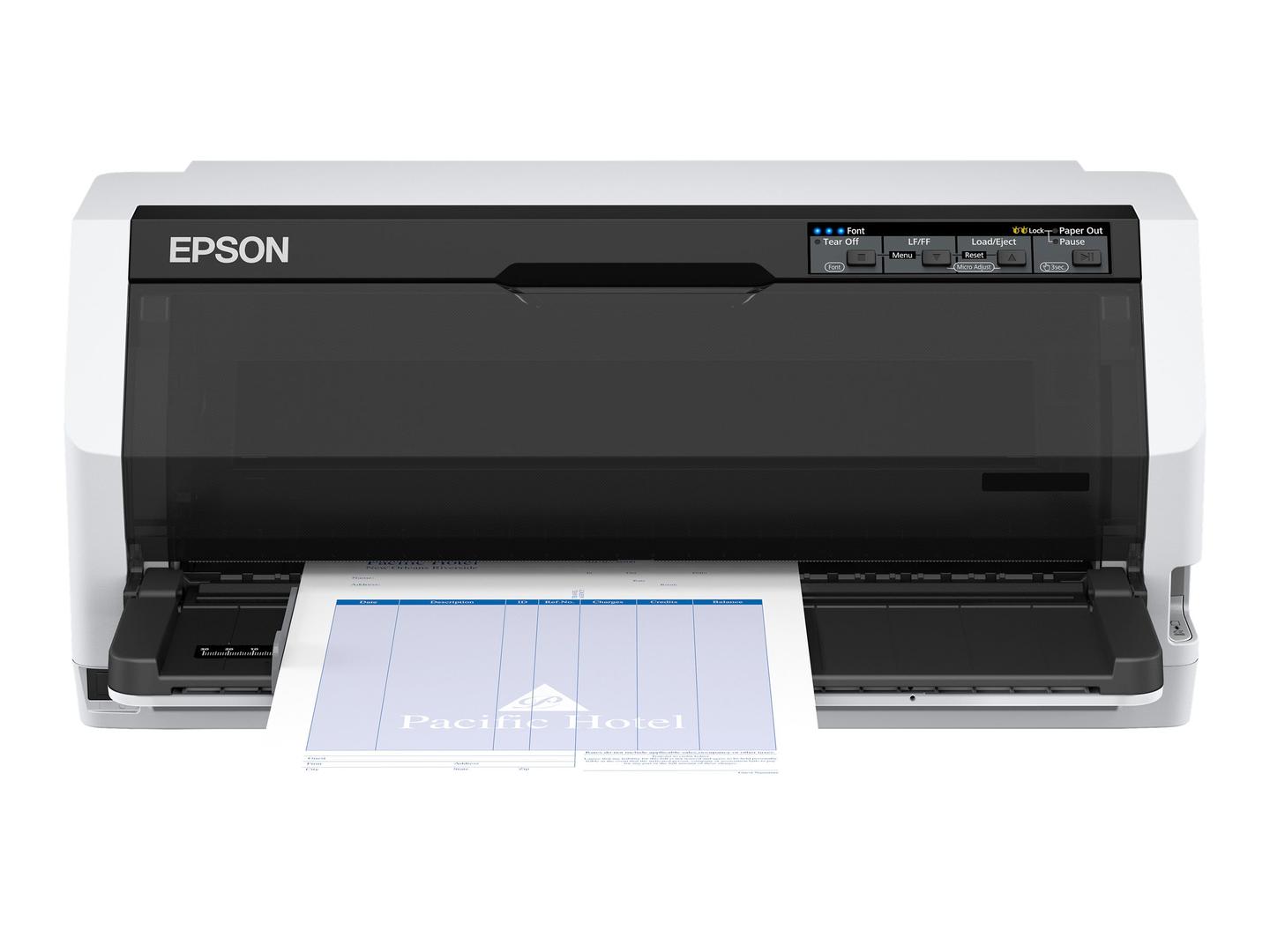

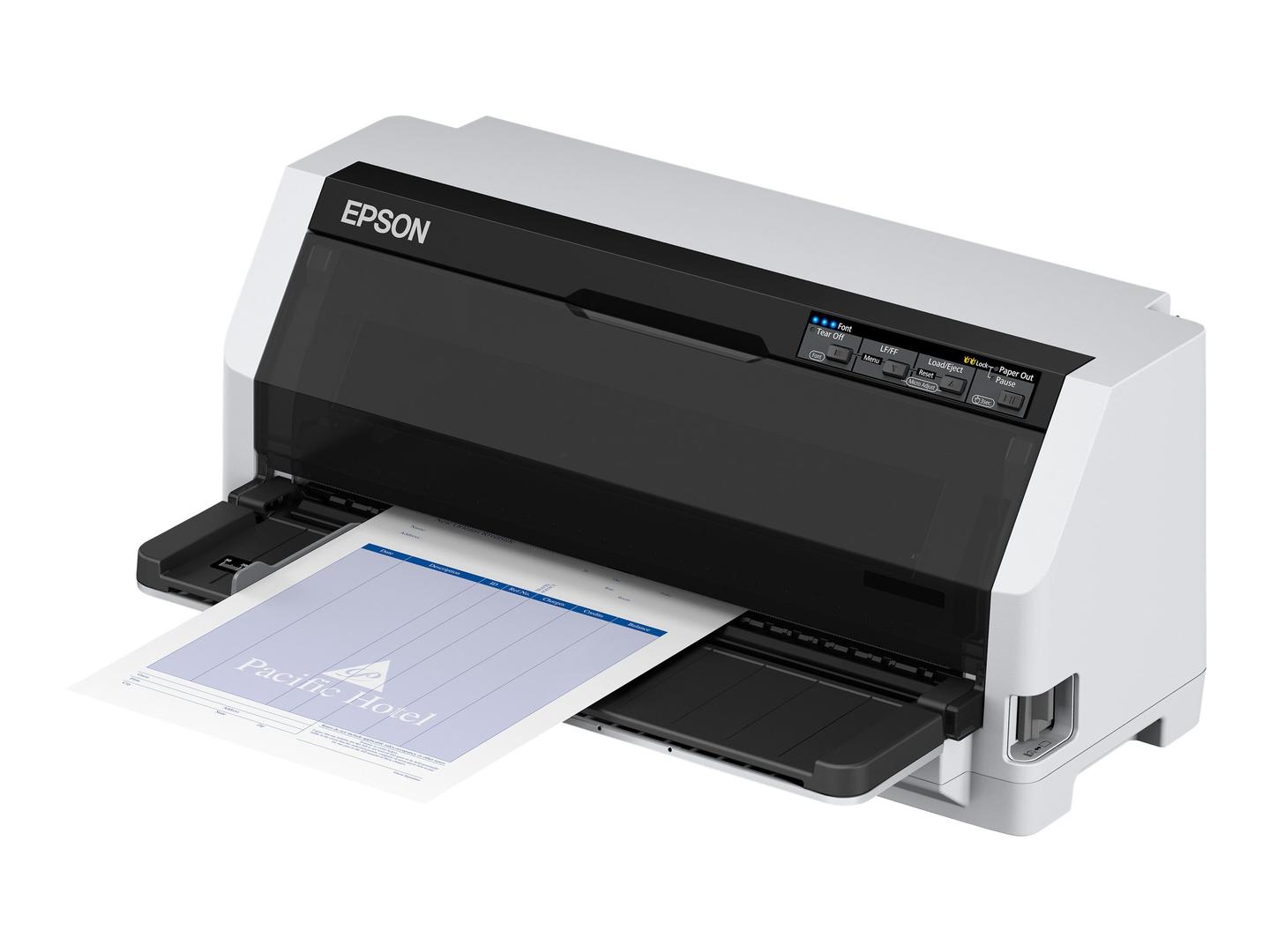

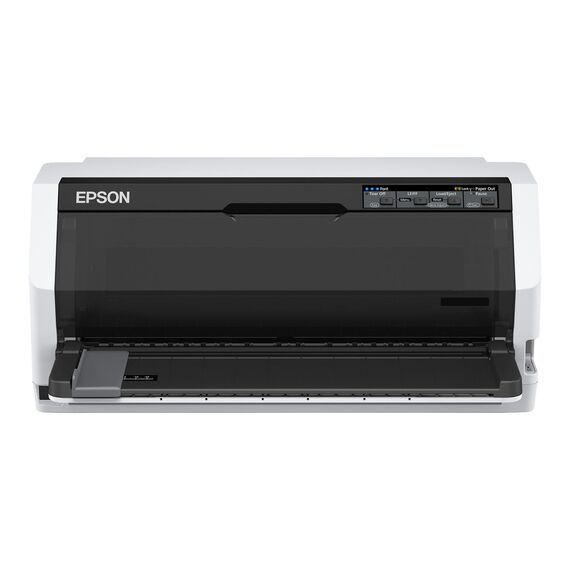

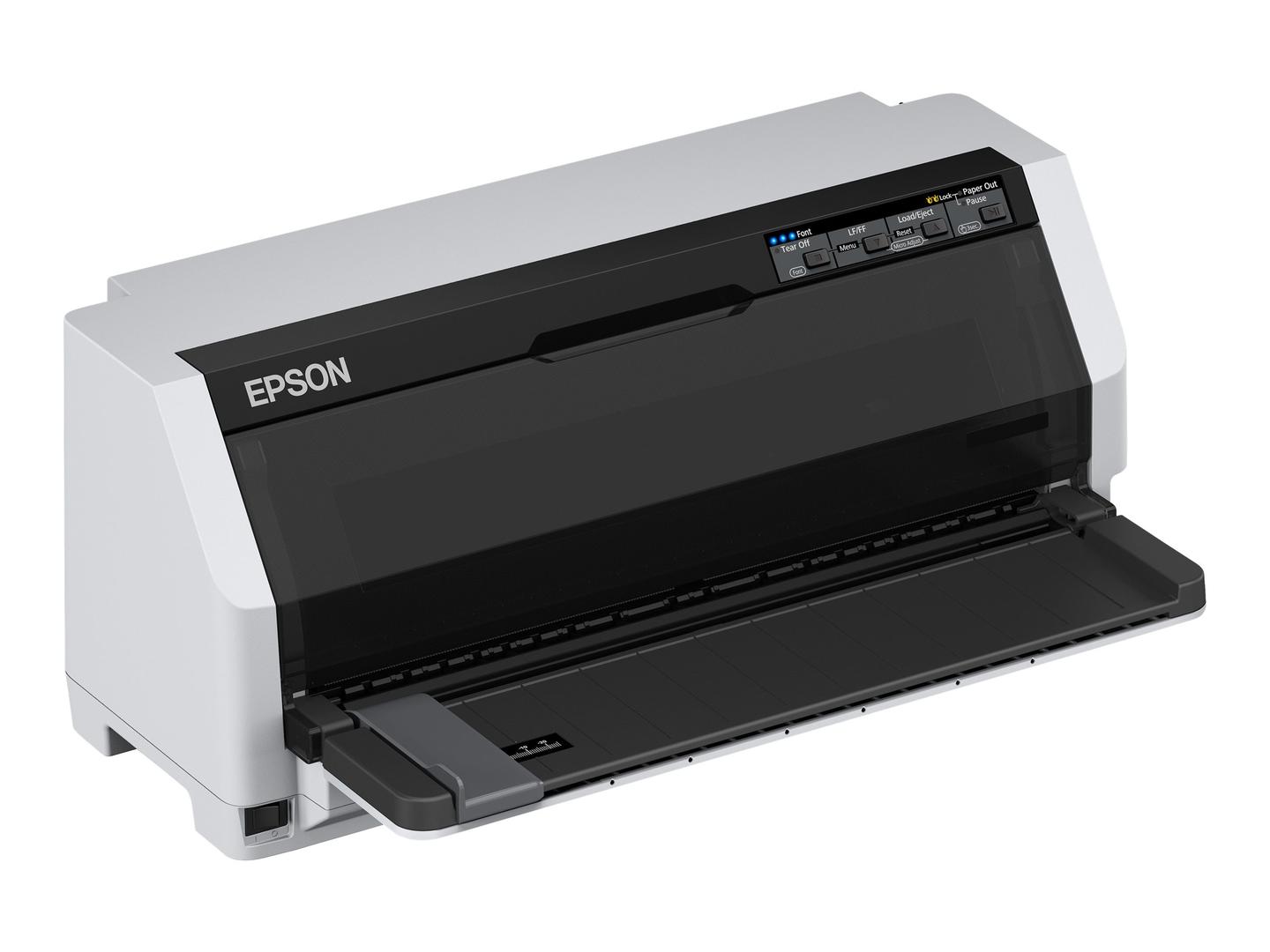

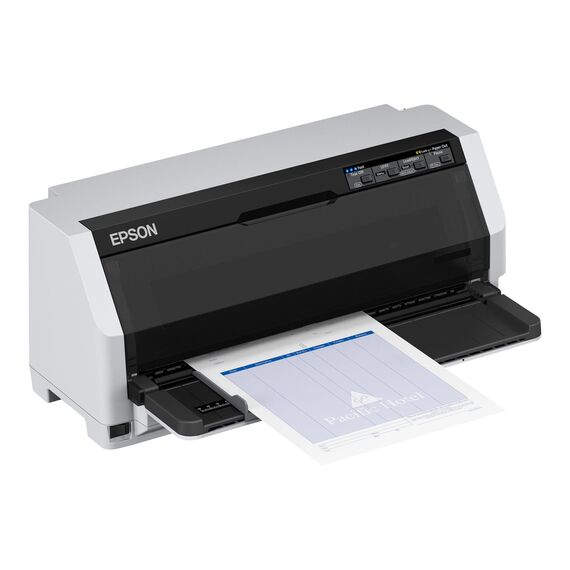

Epson LQ 690II - Printer - B/W - dot-matrix - 360 x 180 dpi - 24 pin - USB 2.0, parallel | C11CJ82401
Please sign in so that we can notify you about a reply
Product Features
- Fast printing
Print faster and more productively. The LQ-690II prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts. - High ribbon yield
In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-690II as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership. In addition, the ribbon is transferrable, which means that you can use ribbons from your current printer in the new printer, resulting in less cost and waste. - Dependable
Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, which makes the LQ-690II ideal for any work environment. This results in greater productivity and less maintenance from down time - essential when producing large amounts of documents and data. - Smart design
This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.
Special Fetures
- High speed - impressive print speed of 487 cps (10cpi) with 1+6 copies
- Quality - the 106 column capacity with 24 pins means greater quality
- Reliable - combined power of print head life and MTBF of very long hours
- Modern design - the black and white casing blends comfortably into any work environment
Product Specification
| Printer Type | Workgroup printer - dot-matrix - 24 pin - monochrome |
| Printer | |
| Print Speed | Up to 487 char/sec - high speed - 10 cpi <br /> Up to 529 char/sec - 12 cpi <br /> Up to 366 char/sec - draft - 10 cpi <br /> Up to 396 char/sec - 12 cpi <br /> Up to 121 char/sec - LQ - 10 cpi <br /> Up to 132 char/sec - 12 cpi |
| Connectivity Technology | Wired |
| Interface | USB 2.0, parallel |
| Max Resolution (B&W) | 360 x 180 dpi |
| Max Resolution Class (B&W) | 360 x 180 dpi |
| Language Simulation | EPSON ESC/P 2, IBM PPDS |
| Fonts | PC437, PC850, PC858 |
| Columns | 106 |
| Fonts Included | 10 x bitmapped <br /> 4 x scalable <br /> 11 x barcode |
| Barcodes | Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Postnet, UPC-A, UPC-E, NW-7 |
| RAM | |
| RAM Installed (Max) | 128 KB |
| Media Handling | |
| Media Type | Continuous paper, labels, envelopes, cardboard |
| Max Sheets in Multi-Part Form | 6 |
| Expansion / Connectivity | |

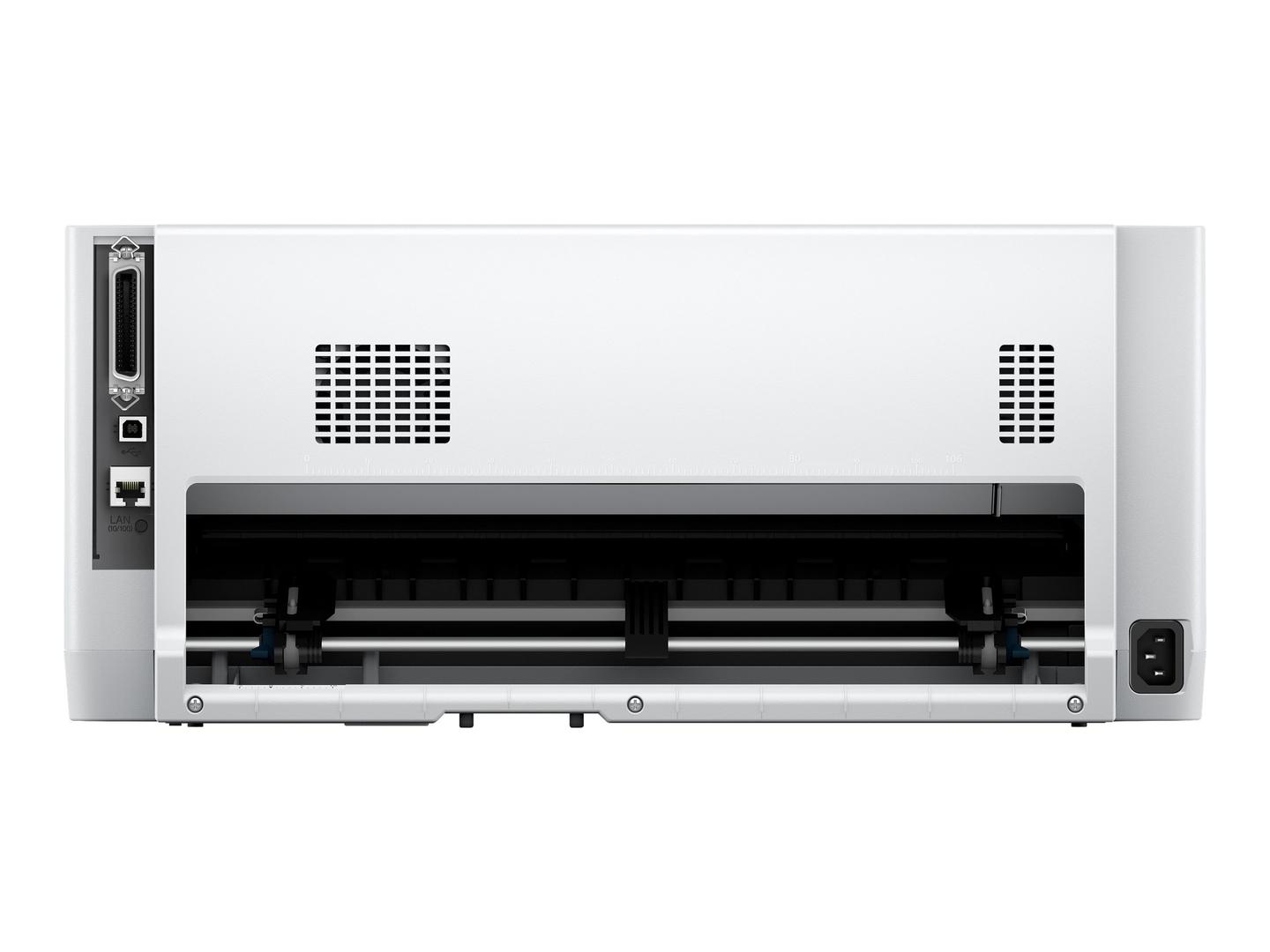

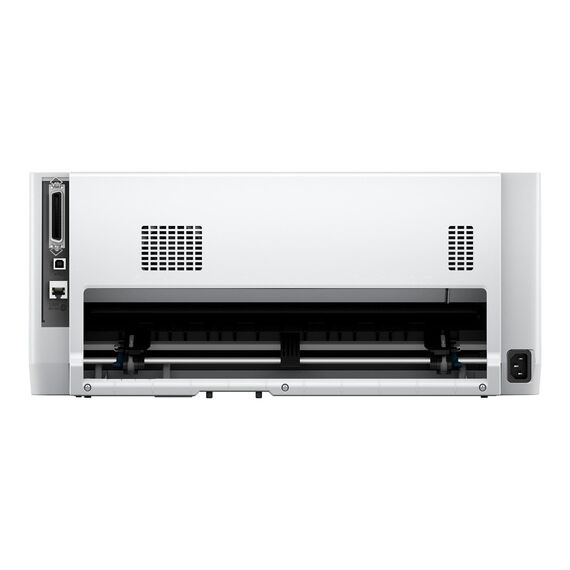

| Connections | 1 x parallel - 36 PIN Centronics <br /> 1 x USB 2.0 - 4 pin USB Type B |
| Miscellaneous | |
| Consumables Included | 1 x ribbon (black) - up to 10 million characters |
| MTBF | 40,000 hours |
| Features | 400 million strokes/wire printhead life |
| Power | |
| Power Device | Power supply - internal |
| Power Consumption Operational | 38 Watt |
| Power Consumption Stand by | 3 Watt |
| Software / System Requirements | |
| Software Included | EPSON Status Monitor |
| OS Required | Microsoft Windows 2000, Microsoft Windows 7, Windows 8, Microsoft Windows 98, Microsoft Windows Vista, Microsoft Windows XP, Microsoft Windows XP SP3 (32 bit) or later, Microsoft Windows Server 2003 SP2 or later, Windows 11, Windows 10 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - carry-in |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 80% |
| Sound Emission (Operating) | 59 dBA |
| Sound Emission (Quiet Mode) | 54 dBA |
| Dimensions & Weight | |
| Width | 48 cm |
| Depth | 30.1 cm |
| Height | 21.1 cm |
| Weight | 6.8 kg |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 33.3 cm |
| Depth (Shipping) | 59.6 cm |
| Height (Shipping) | 34.9 cm |
| Weight (Shipping) | 8.37 kg |
Features - Epson - C11CJ82401
More Details
Product Code
04:477949
EAN Code
8715946695969
Manufacturer
Epson
