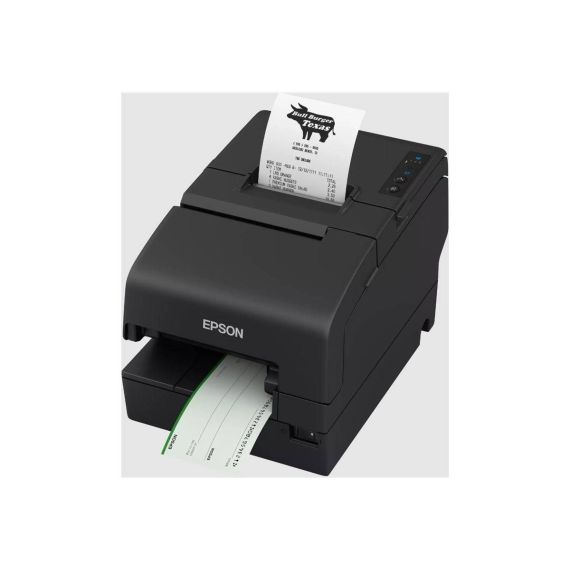

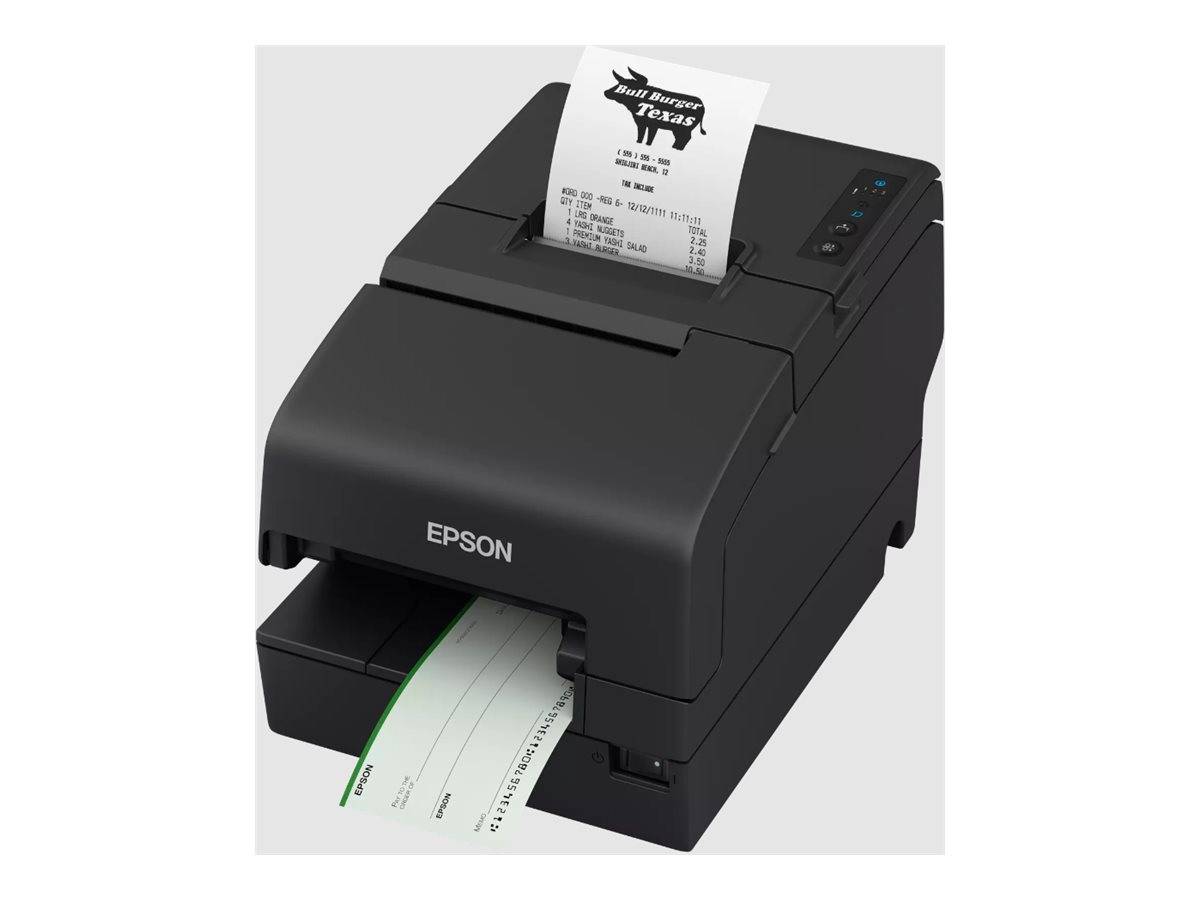

Epson TM H6000VI-102 / Receipt printer / thermal line / dot-matrix / 230 x 297 mm, Roll (7.95 cm) / 180 x 180 dpi / 9 pin / up to 500 mm/sec / serial, USB 2.0, LAN, USB 2.0 host / cutter / partial-cut cutter / black | C31CL25102
Please sign in so that we can notify you about a reply
Product Specification
| Printer Type | Receipt printer - thermal line / dot-matrix - 9 pin - monochrome |
| Enclosure Colour | Black |
| Printer | Printer |
| Print Speed | Up to 500 ppm - max speed Up to 5.7 lines/sec |
| Connectivity Technology | Wired |
| Interface | Serial, USB 2.0, LAN, USB 2.0 host |
| Max Resolution (B&W) | 180 x 180 dpi |
| Max Resolution Class (B&W) | 180 x 180 dpi |
| Character Sizes (mm) | 1.41 x 3.39 mm, 0.99 x 2.4 mm, 1.56 x 3.11 mm, 1.24 x 3.11 mm, 3.39 x 3.39 mm, 2.67 x 2.94 mm |
| Columns | 42, 56 |
| Features | Partial-cut cutter, paper near end sensor |
| Auto Cutter | Yes |
| Barcodes | UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, Code 39, ITF, Codabar, NW-7, Code 93, Code 128, EAN-128, GS1-128, GS1 DataBar, QR code, PDF417, MaxiCode, Data Matrix, Aztec code, Composite |
| Media Handling | Media Handling |
| Media Type | Plain paper, thermal paper |
| Max Media Size | 230 x 297 mm, Roll (7.95 cm) |
| Media Sizes | Roll (7.95 cm), 68 x 68 mm, 230 x 297 mm |
| Roll Maximum Outer Diameter | 83 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (7.95 cm) 1 x manual - 1 sheet - 230 x 297 mm |
| Networking | Networking |
| Networking | Print server |
| Expansion / Connectivity | Expansion / Connectivity |
| Connections | 1 x USB 2.0 - 4 pin USB Type B 1 x USB 2.0 host - 4 pin USB Type A 1 x serial - RS-232 1 x LAN |
| Miscellaneous | Miscellaneous |
| Included Accessories | Power switch cover, connector cover |
| Media Included | 1 thermal roll paper |
| MTBF | 360,000 hours |
| Power | Power |
| Power Device | Power adapter |
| Software / System Requirements | Software / System Requirements |
| Software Included | Epson Server Direct Print, ePOS-Print, ePOS-Display |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% RH |
| Dimensions & Weight | Dimensions & Weight |
| Width | 18.6 cm |
| Depth | 27.8 cm |
| Height | 18.1 cm |
| Weight | 4.4 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Width (Shipping) | 29.5 cm |
| Depth (Shipping) | 38.5 cm |
| Height (Shipping) | 29.5 cm |
| Weight (Shipping) | 6.07 kg |
Features - Epson - C31CL25102
More Details
Product Code
CL31648
EAN Code
8715946733807
Manufacturer
Epson
