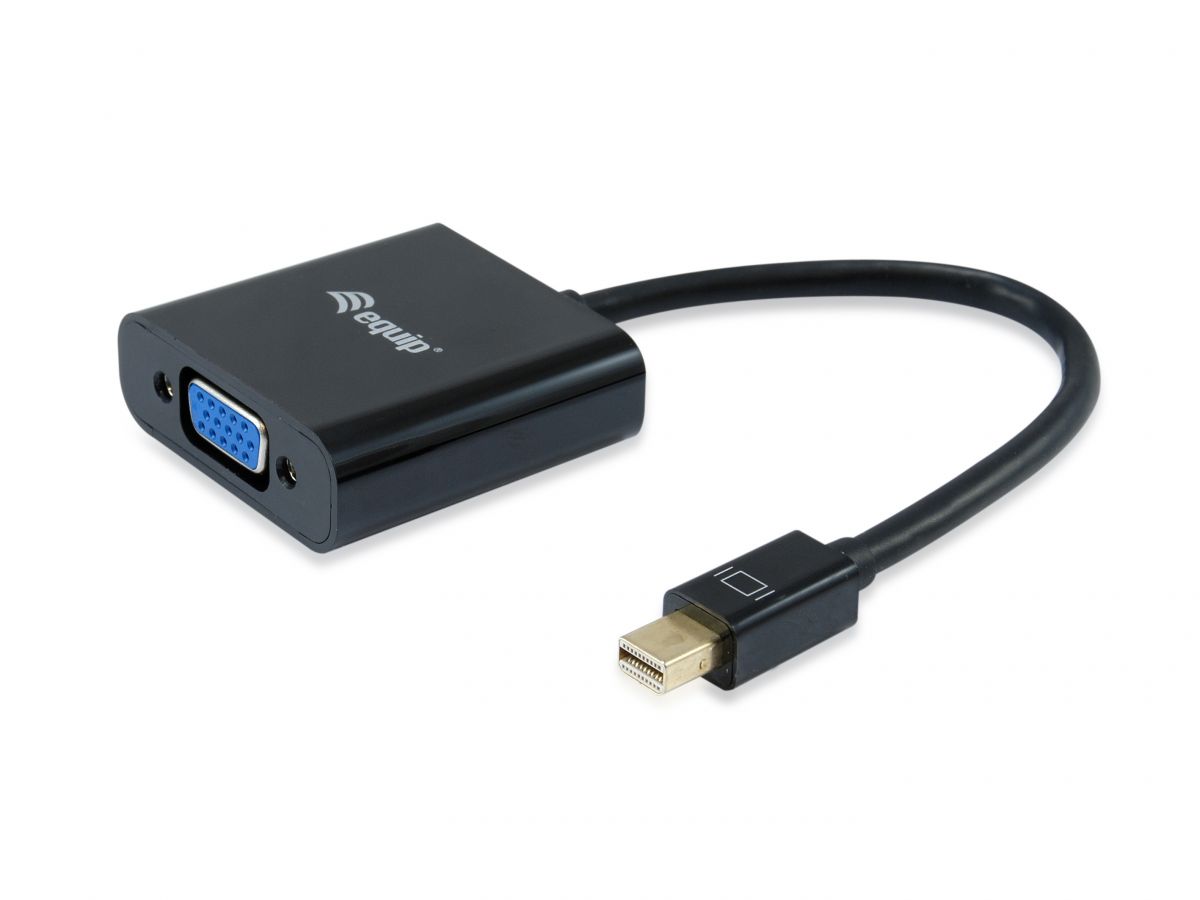

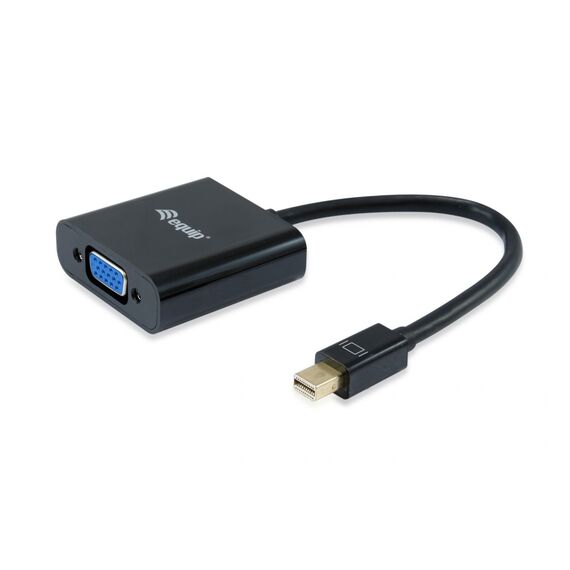

equip / Display adapter / Mini DisplayPort (M) to HD-15 (VGA) (F) | 133432
Please sign in so that we can notify you about a reply
Special Features
- Mini DisplayPort 1.2 compliant with 5.4Gbps bandwidth
- Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal output
- RGB output with 0 to 700mV range
- Supports up to 1080p, 1920 x 1200 reduced blanking video resolution
- Automatic sink detection
- Low power standby mode operation initiated
- Based on sync detection status
- Low power operation-active 400mW, standby mode 15mW
Product Specification
| Type | Display adapter |
| Connectivity | Connectivity |
| Connector | Mini DisplayPort - male |
| Connector (Second End) | 15 pin HD D-Sub (HD-15) - female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | DisplayPort 1.2 |
Features - Equip - 133432
Type
- Mini DisplayPort - VGA
More Details
Product Code
04:245889
EAN Code
4015867157282
Manufacturer
Equip
