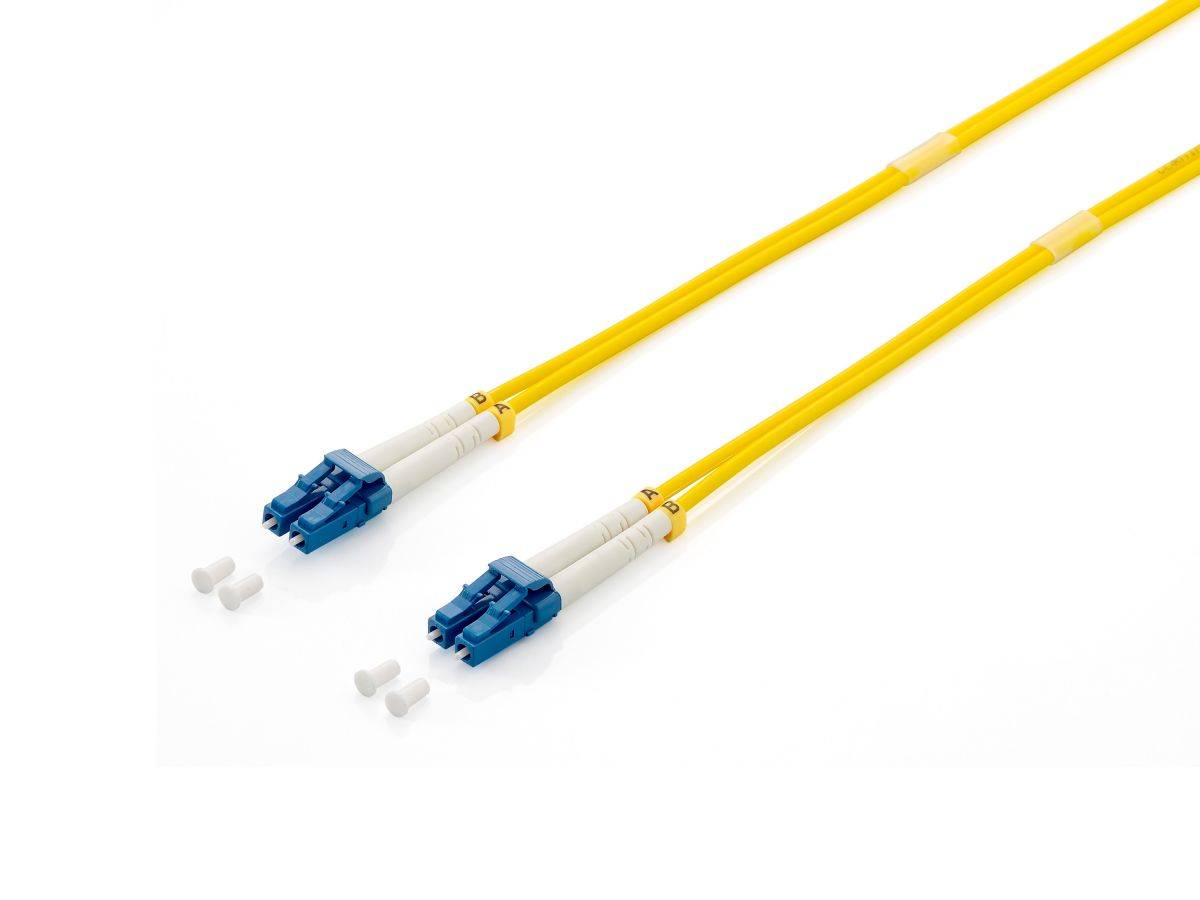

equip / Patch cable / LC single-mode (M) to LC single-mode (M) / 3 m / fibre optic / duplex / 9 / 125 micron / OS2 / booted / yellow | 254433
Please sign in so that we can notify you about a reply
The equip® Optical Fiber Patch Cord is made of superior materials to ensure an end-face geometry connection with lower return loss and insertion loss. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
- Duplex single-mode fiber optic cable
- Connector: Ceramic Ferrule
- Core diameter: 9/125μm
- Cable Spec: I-VH 2 x 1E
- Low Smoke Zero Halogen (LSZH/LSOH)
- Cable jacket color: Yellow
Special Features
- Singlemode
- Ceramic ferrule
- Low smoke and zero halogen
Product Specification
| Network Cable Type | Patch cable - OS2 |
| Technology | Duplex fibre optic |
| Type of Fibre Optics | Singlemode |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Core / Cladding Diameter | 9 / 125 micron |
| Features | Booted, ceramic ferrule |
| Length | 3 m |
| Colour | Yellow |
| Connectivity | Connectivity |
| Connector | 2 x LC single-mode - male |
| Connector (Second End) | 2 x LC single-mode - male |
| Miscellaneous | Miscellaneous |
| Compliant Standards | RoHS, WEEE, REACH |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | 5-year warranty |
Features - Equip - 254433
Length
3m
More Details
Product Code
04:246295
EAN Code
4015867175033
Manufacturer
Equip
