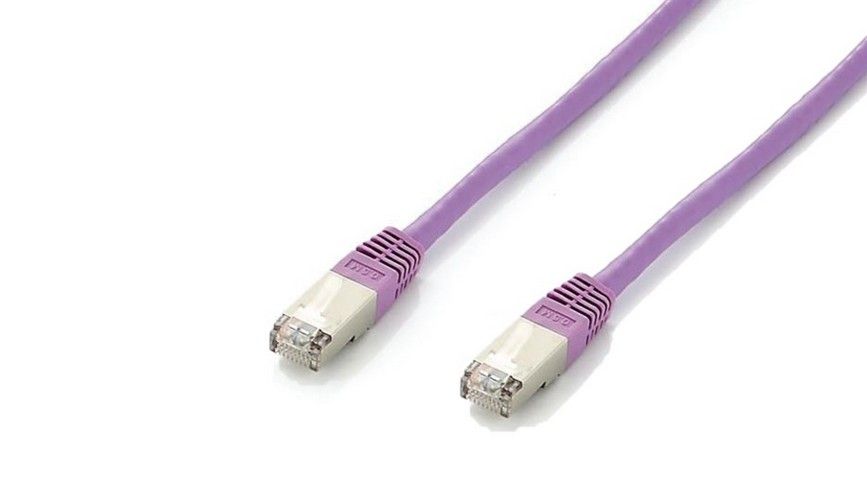

equip / Patch cable / Cat6A Platinum S/FTP Patch Cable, 15m , Purple | 605658
605658
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Stranded 26 AWG patch cord with 500 MHz performance
- PIMF (pairs in metal foil)
- Low Smoke Zero Halogen (LSZH) cable
- ISO/IEC 11801, EN50288 and TIA/EIA 568-B.2
- Molded boot
- UL/CUL, TIA/EIA, 3P certified
- Cable length printed on plug
- Gold plating pin provides the highest interconnect reliability
Product Specification
| Network Cable Type | Patch cable - CAT 6a - IEEE 802.5 |
| Technology | Shielded foiled twisted pair (SFTP) |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 26 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Plated Connector | Gold |
| Features | Molded, stranded |
| Length | 15 m |
| Colour | Purple |
| Image Colour Disclaimer | The displayed product image may be a different colour |
| Connectivity | Connectivity |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | Miscellaneous |
| Compliant Standards | UL, cUL, ISO/IEC 11801, TIA/EIA-568-B.2, 3P, EN 50288 - up to 500 MHz |
Features - Equip - 605658
Colour
purple
Length
15m
General
CAT6a
More Details
Product Code
04:232278
EAN Code
4015867163238
Manufacturer
Equip
