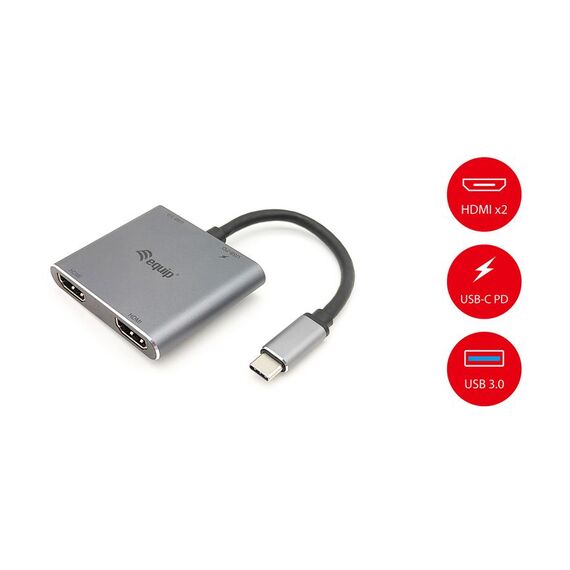

Equip USB-C 4 in 1 Dual HDMI Adapter, USB 3.0, 100W USB PD | 133484
Please sign in so that we can notify you about a reply
The equip MST hub lets you connect two HDMI monitors to your USB-C computer. MST works on any Windows® device that supports DP Alt Mode over USB-C. The USB-C HDMI hub is powered by the USB-C port, so you don't require an additional power adapter.
**Note: Mac OS does not support two different screens. Windows operating system supports both SST and MST mode. If you are not sure how to make the settings, please contact us. USB-C port must support DP alternate mode (Alt) or DisplayPort In this case, the DP logo next to the port is usually displayed, and not all USB-C ports/systems support alternate mode.
- Supports HDMI resolution up to 4K*2K 30Hz
- USB-C Male (Thunderbolt 3/4 compatible)
- USB-C to HDMI x 2 Ports Adapter
- MST Supported (for Windows)
- USB 3.0 super speed (5Gb/s) x 1
- Supports display modes : extended, mirror
- USB-C charging port compliant with USB Power Delivery (PD) 3.0
- technology
- Power Delivery: 100W Max.
- Aluminum casing for heat dissipation
- USB-C port with DisplayPort Alternate Mode (DP Alt Mode) is needed
Product Specification
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Hub interfaces | HDMI |
| Data transfer rate | 5000 Mbit/s |
| Maximum refresh rate | 30 Hz |
| Product colour | Silver |
| Width | 56 mm |
| Depth | 10 mm |
| Height | 180 mm |
| Quantity per pack | 1 pc(s) |
Features - Equip - 133484
Type
- USB Type-C - HDMI
More Details
Product Code
04:365407
EAN Code
4015867225684
Manufacturer
Equip
