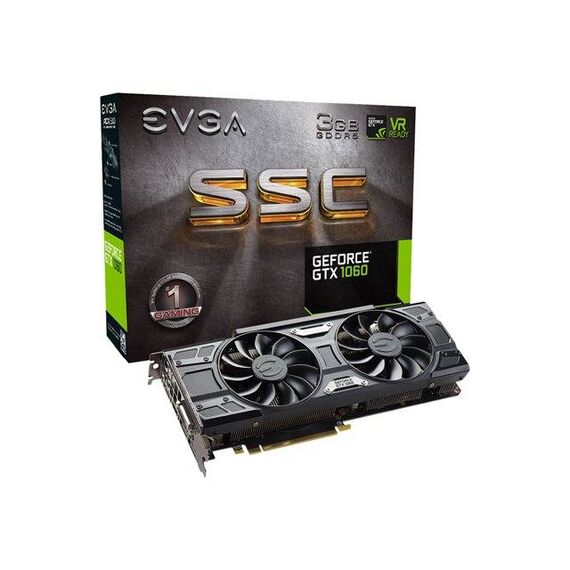

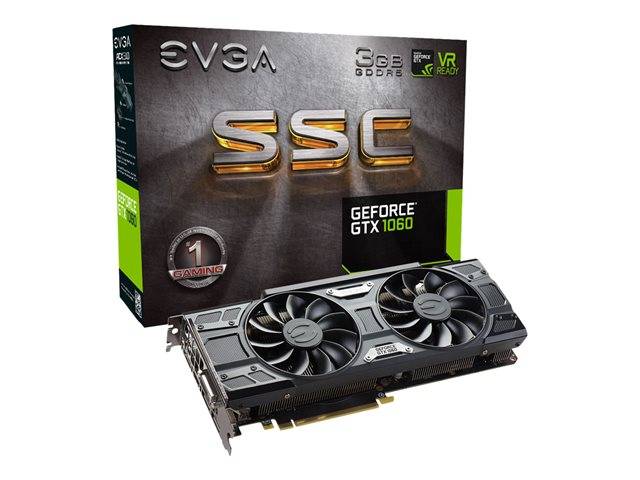

EVGA GeForce GTX 1060 SSC Gaming ACX 3.0 / Graphics card / GF GTX 1060 / 3 GB GDDR5 / PCIe 3.0 x16 / DVI, HDMI, 3 x DisplayPort | 03G-P4-6167-KR
EVGA GeForce GTX 1060 SSC Gaming ACX 3.0 / Graphics card / GF GTX 1060 / 3 GB GDDR5 / PCIe 3.0 x16 / DVI, HDMI, 3 x DisplayPort | 03G-P4-6167-KR
|

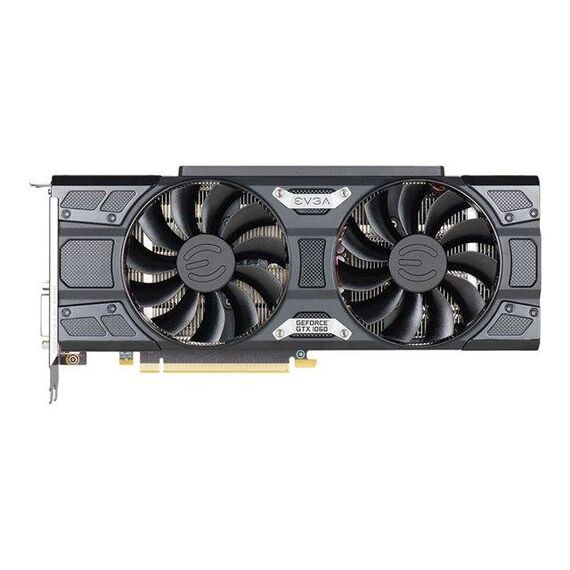

Description The EVGA GeForce GTX 1060 graphics card is loaded with innovative gaming technologies, making it the perfect choice for the high-definition games. Powered by NVIDIA Pascal, the advanced GPU architecture, the GeForce GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond. These cards also feature EVGA ACX 3.0 cooling technology. EVGA ACX 3.0 once again brings exciting features to the EVGA ACX cooling technology. SHP gives increased heatpipes and copper contact area for cooler operation, and optimized fan curve for even quieter gaming. Of course, ACX 3.0 coolers also feature optimized swept fan blades, double ball bearings and an extreme low power motor, delivering more air flow with less power, unlocking additional power for the GPU. Special Features
|
Product Specification
| Device Type | Graphics card |
| Bus Type | PCI Express 3.0 x16 |
| Graphics Engine | NVIDIA GeForce GTX 1060 |
| Core Clock | 1607 MHz |
| Boost Clock | 1835 MHz |
| Max Resolution | 7680 x 4320 at 60 Hz |
| Max Monitors Supported | 4 |

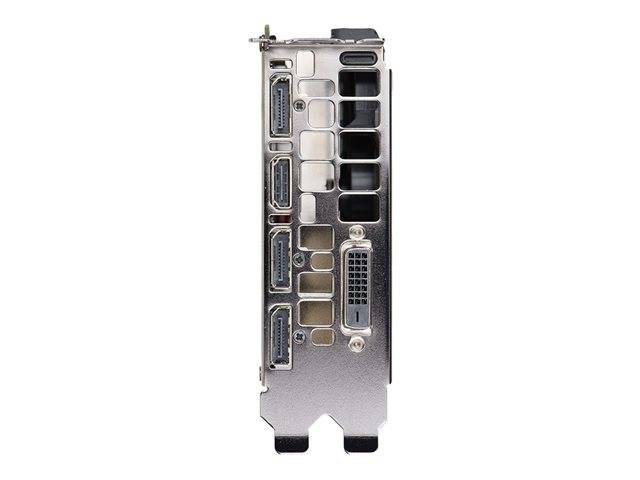

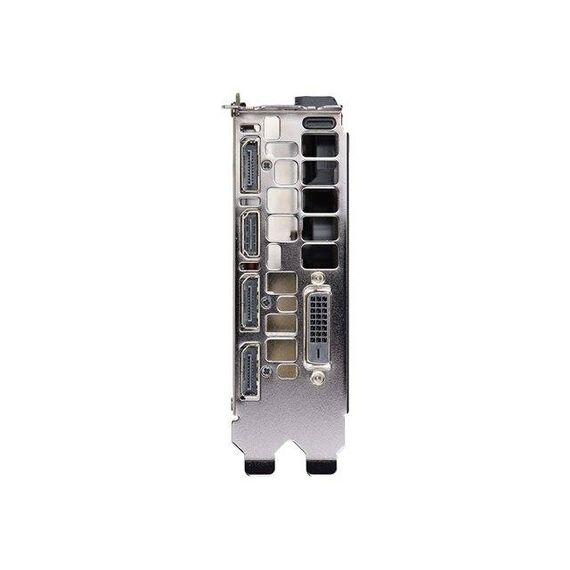

| Interfaces | 3 x DisplayPort ¦ DVI-D (dual link) ¦ HDMI |
| API Supported | DirectX 12, OpenGL 4.5, Vulkan |
| Features | NVIDIA G-Sync ready, NVIDIA GameStream, NVIDIA GPU Boost 3.0, 4+1 Phase Power Design, eVGA Active Cooling Xtreme (ACX) 3.0, simultaneous multi-projection, NVIDIA Ansel, NVIDIA Pascal GPU technology, Nvidia VR Ready |
| Size | 3 GB |
| Technology | GDDR5 SDRAM |
| Effective Clock Speed | 8.008 GHz |
| Bus Width | 192-bit |
| Bandwidth | 192 GBps |
| OS Required | Microsoft Windows 7 / 8 / 10 (32/64 bits) |
| Required Power Supply | 400 W |
| Additional Requirements | Dual-width x16 graphics slot, 6 pin PCI Express power connector |
| Power Consumption Operational | 120 Watt |
| Software Included | EVGA Precision X OC |
| Depth | 26.67 cm |
| Height | 11.115 cm |
| Service & Support | Limited warranty - 3 years |
