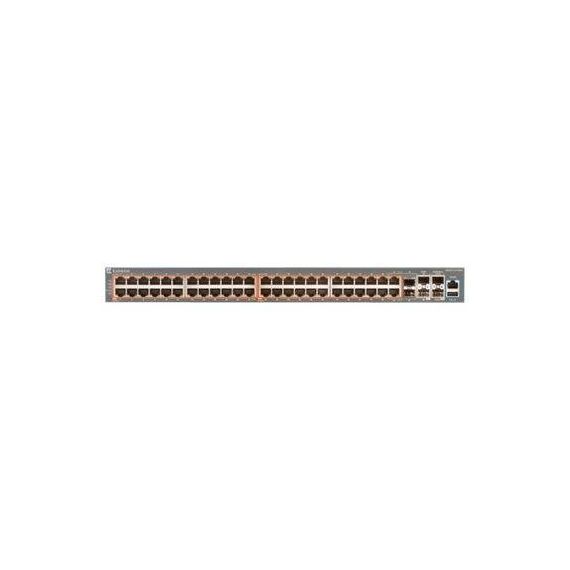

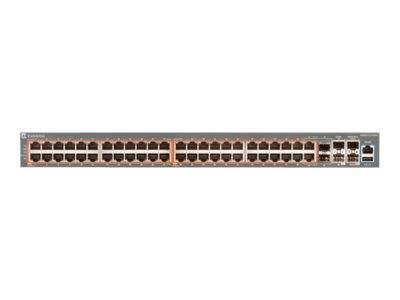

Extreme Networks Ethernet Routing Switch 3600 3650GTS-PWR+ / Switch / L3 / Managed / 48 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP + 2 x 10 Gigabit SFP+ (uplink) + 2 x 10 Gigabit SFP+ (uplink / stacking) / rack-mountable / PoE+ (720 W) / | AL3600A16-E6
Please sign in so that we can notify you about a reply
Product Features
- Always-on
Stackable Chassis delivers high-availability solution, featuring hot-swappable unit replacement and integrated power and cooling redundancy. - Convergence-ready
Flexible support for PoE/ PoE+, Universal PoE optimized for high-definition video surveillance, true plug-and-play capabilities for communications, collaboration, and engagement deployments, and advanced QoS capabilities. - Powerful
Wire-speed performance, truly scalable virtual backplane capabilities, delivering up to 672Gbps of throughput to support large-scale deployments. - Highly secure
Standards-based 802.1X Network Access Control can also be integrated with Extreme Management Center for centralized, policy-based authenticated network access. The ERS 5900 now also supports MACsec for link layer encryption on both Access and Uplink ports. - Flexibility and agility
Great pay-as-you-grow scalability, versatile PoE/PoE+/Universal PoE support, multiple 1/10 Gigabit network uplinks and flexible airflow. - Fabric-enabled
Supporting Extreme's Fabric Connect technologies to empower a seamless transition to an agile, software-defined virtualized networking solution. - Energy efficient
Focusing on end-to-end energy efficiency, dynamic Energy Saver further reduces power consumption for both the Ethernet Switch and IP Phones without impacting service availability.
Special Features
- High-performance Wiring Closet Switches
- Delivers Enabled Edge
- Static and Dynamic IP Routing
- Non-blocking, wire-speed switching performance
- High-capacity Stackable Chassis architecture
- 2 dual-use ports of 10 Gigabit for Stackable Chassis or Network Uplink connectivity
- Ethernet Switches that are simple to operate
- Auto Set-Up for Unified Communications
- Intelligent Stacking delivers Enterprise-class scalability
Product Specification
| Device Type | Switch - 50 ports - L3 - Managed - stackable |
| Bundled Services | 90 days Post-Purchase Advanced Technical Support |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP + 2 x 10 Gigabit SFP+ (uplink) + 2 x 10 Gigabit SFP+ (uplink / stacking) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 720 W |
| Performance | Switching fabric bandwidth (full-duplex): 188 Gbps ¦ Forwarding performance: 130 Mpps ¦ Latency (64-byte packets): 3.5 µs ¦ Jitter (64-byte packets): 0.84 µs |
| Capacity | MLT/LACP groups: 6 ¦ Virtual interfaces (VLANs): 256 ¦ Multiple Spanning Tree Protocol instances: 8 ¦ Links per MLT/LACP group: 4 ¦ DHCP snooping entries: 512 ¦ 802.1X clients: 32 ¦ LLDP neighbors: 816 ¦ ARP entries: 512 ¦ Static ARP entries: 256 ¦ IP interfaces: 64 ¦ IP route policies: 64 ¦ IPv4 routes: 256 ¦ IPv4 routes (static): 32 ¦ RIP interfaces: 16 ¦ RIP routes: 256 ¦ IGMP enabled VLANs: 256 ¦ RMON entries per port: 4 groups ¦ IP multicast groups: 248 ¦ QoS precedences: 8 ¦ QoS filters per switch per precedence: 256 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | RMON |
| Features | ARP support, trunking, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), MLD snooping, LACP support, LLDP support, Neighbor Discovery Protocol (NDP), non blocking ports, IP source guard, RA guard, First Hop Security (FHS), support Fabric Attach, DHCPv6 guard |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x Gigabit LAN SFP ¦ 48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x console RJ-45 management ¦ 1 x USB ¦ 2 x 10Gbit LAN SFP+ uplink ¦ 2 x 10Gbit LAN SFP+ uplink/stacking |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Miscellaneous | Miscellaneous |
| MTBF | 140,827 hours |
| Compliant Standards | VCCI, BSMI, CISPR 24, NOM, IEC 60950, EN55024, CISPR 22, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, EN 60950-1, ANATEL, FCC Part 15 B Class A, KC, EMI, EAC, CNS 13438, CSA 22.2 No. 60950-1, EN 55022 Class A, CNS 14336-1, ACMA RCM |
| Software / System Requirements | Software / System Requirements |
| Software Included | Base Software License |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 28 cm |
| Height | 4.4 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime - response time: next business day ¦ New releases update - software - lifetime ¦ Technical support - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 95% (non-condensing) |
Features - extreme networks - AL3600A16-E6
More Details
Product Code
3G23200
EAN Code
0644728038268
Manufacturer
extreme networks
