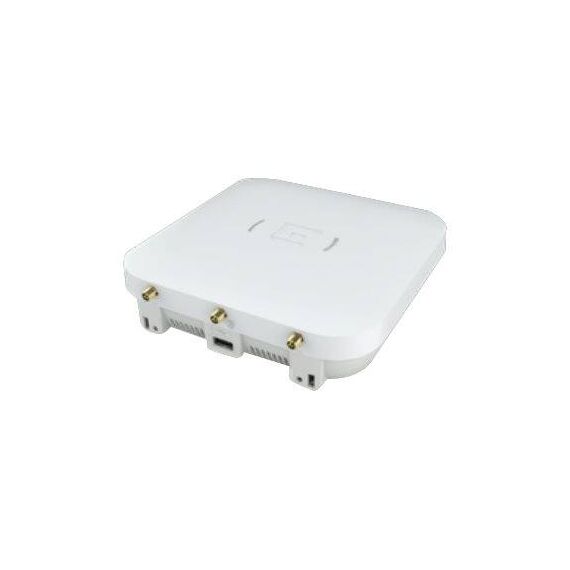

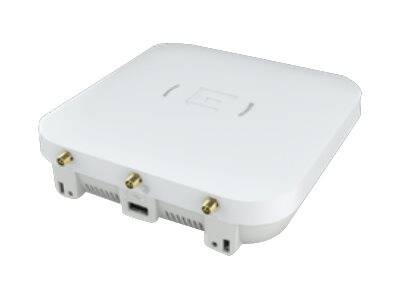

Extreme Networks ExtremeWireless AP310E - Radio access point - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz | AP310E-WR
Product Features
- Security
The AP310e delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for context based access security. - Wi-Fi 6 technology
Prior generations of 802.11n, 802.11ac wave 1 and 2, can be considered generational improvements with an emphasis on faster speed. 802.11ax technology instead enhances Wi-Fi efficiency as well as speed, taking Wi-Fi networks to an entirely new level. - Management analytics
In conjunction with management system, cloud or on-premises, the AP310e provides a very rich set of data displayed via context driven widgets, representing historical data or a combination of historical and current data. This provides context specific granularity with perspective views for locations, network, APs, individual client devices, as well as policy roles. In each context, administrators can adjust dashboards from widget library. - RF monitoring
Network managers will appreciate a powerful choice of RF management for their Wi-Fi networks, with Adaptive RF management with AI/ML-like functionality. Adaptive RF algorithms provide intelligent selection of the best channels and transmit power for unimpaired dual 5 GHz operation. Load balancing, band steering and many other attributes of the RF can all be automated. - Programmable radios
Extreme launched the Industry's first software defined 802.11ax access point supporting not only a dual 5GHz capability but also three software programmable modes to optimally manage radios to provide the highest level of client performance. The AP310e intelligent monitoring of the software configurable radios enables network managers configure network RF topology based on user environment and configure the access points in different modes as required. - Integrated BLE and Zigbee
To support both IoT and Guest Engagement services the AP310e integrates Bluetooth to connect with IoT devices with Thread wireless or engage loyalty customers with Apple iBeacon. Enterprises can use Google Eddystone to send advertisements directly to shoppers, guests, and conference attendees. This makes it ideal for businesses to advertise their app download pages, captive portals, or site-specific information.
Special Fetures
- Security
- Wi-Fi 6 technology
- Management analytics
- RF monitoring
- Programmable radios
- Integrated BLE and Zigbee
Product Specification
Device Type | Radio access point |
Ruggedized Design | Indoor |
Width | 16.5 cm |
Depth | 16.5 cm |
Height | 4.5 cm |
Weight | 700 g |
Localisation | EMEA, Rest of World |
Networking | |
Form Factor | External |
Connectivity Technology | Wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6) |
Spread Spectrum Method | OFDM, DSSS |
Frequency Band | 2.4 GHz, 5 GHz |
Features | Direct Sequence Spread Spectrum (DSSS), WPA encryption, packet aggregation A-MPDU, packet aggregation A-MSDU, dual band, Orthogonal Frequency Division Multiplexing (OFDM), 2x2:2 MU-MIMO technology, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), Cellular Coexistence Filter (CCF) |
Encryption Algorithm | WPA3 |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.15.4, IEEE 802.11ac Wave 2, IEEE 802.11ax |
Aerial | |
Antenna | External detachable |
Internet of Things (IoT) | |
Communications Technology | Bluetooth Low Energy (LE), Zigbee |
Expansion / Connectivity | |
Interfaces | 2 x 1000Base-T (PoE) - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 5 x aerial - RP-SMA |
Miscellaneous | |
Compliant Standards | IEC 60601-1-2, ICES-003 Class B, UL 2043, IEC 60950-1, EN 60950-1, AS/NZS 4268, EN 60601-1-2, EN 50581:2012, EN 62479:2010, RoHS 2011/65/EU, EN 50385, EN 61000-3-3:2013, EN 62311:2008, EN 61000-3-2:2014, FCC CFR47 Part 15 B Class B, RSS-247, EN 55024:2010+A1:2015, EN 55011:2009+A1:2010, CISPR 32, FCC Subpart C 15.247, FCC Subpart E 15.407, EN 60601-1-2:2015, EN 300 328 V2.1.1, EN 55032:2015 Class B, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 301 489-3 V2.1.1, EN 300 440 V2.1.1, IEC 62368, EN 62368, AN/NZS 60950.1, EN 301 893 V2.1.1, Intertek |
Power | |
Power Over Ethernet (PoE) Supported | PoE |
Power Consumption Operational | 14 Watt |
Manufacturer Warranty | |
Service & Support | Limited warranty - lifetime |
Environmental Parameters | |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 55 °C |
