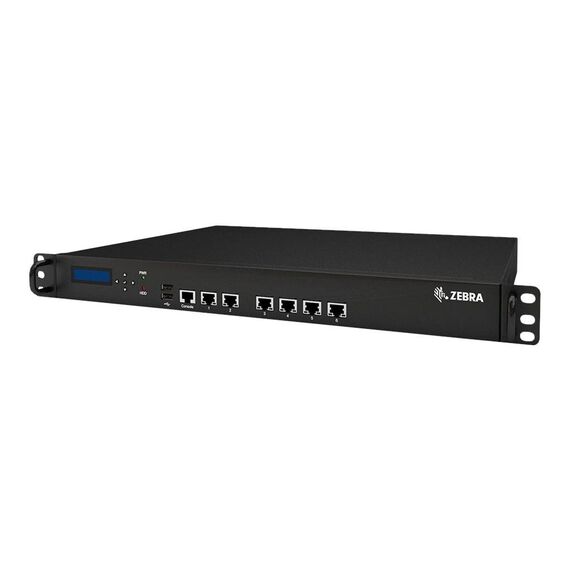

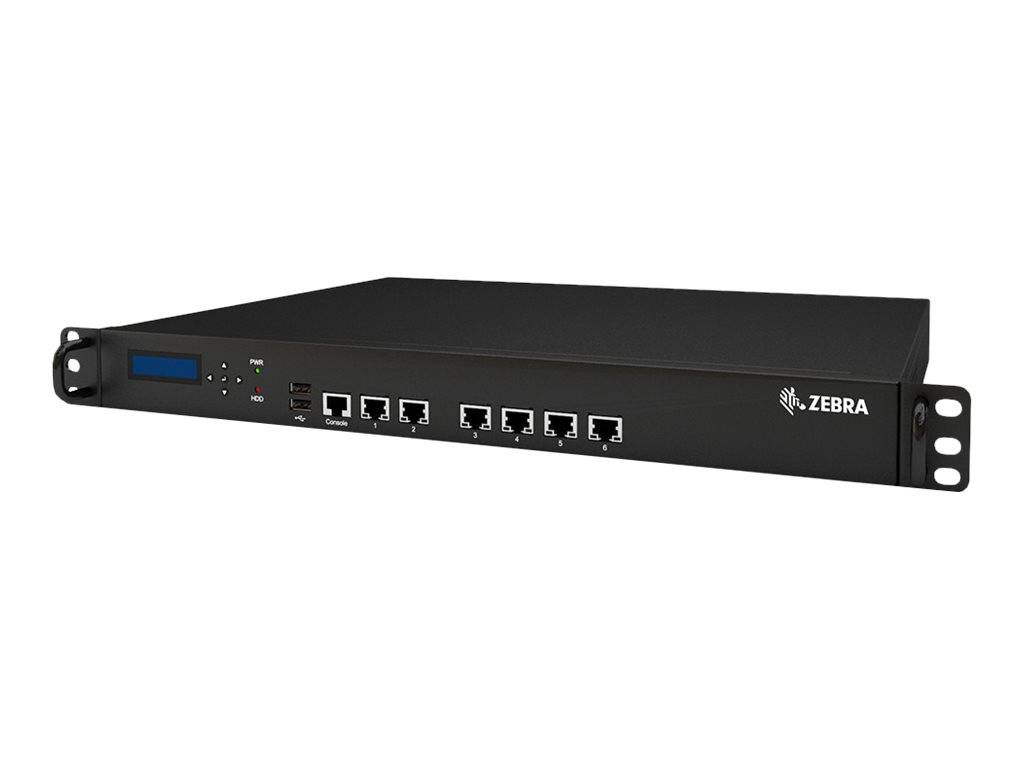

Extreme Networks NX-5500 / Network management device / GigE / 1U / rack-mountable | NX-5500-100R0-WR
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Width | 43 cm |
| Depth | 32.07 cm |
| Height | 4.42 cm |
| Weight | 4.5 kg |
| Processor / Memory / Storage | Processor / Memory / Storage |
| RAM | 4 GB |
| Hard Drive | SSD 32 GB x 1 |
| Networking | Networking |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Data throughput: 6 Gbps ¦ Encryption throughput: 2 Gbps |
| Capacity | Maximum number of access points: 512 ¦ RF domains: 512 ¦ Wireless LANs: 256 ¦ Wireless clients: 16000 |
| Features | Firewall protection, hardware encryption, VPN support, RADIUS support, DHCP server, DNS server, Wireless Intrusion Prevention System (WIPS) |
| Authentication Method | RADIUS |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 6 x 1000Base-T - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 1 x RS-232 - RJ-45 |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 30 Watt |
| Power Provided | 100 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Provided | WiNG 5 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 85% |
Features - extreme networks - NX-5500-100R0-WR
More Details
Product Code
3G20224
EAN Code
0644728012589
Manufacturer
extreme networks
