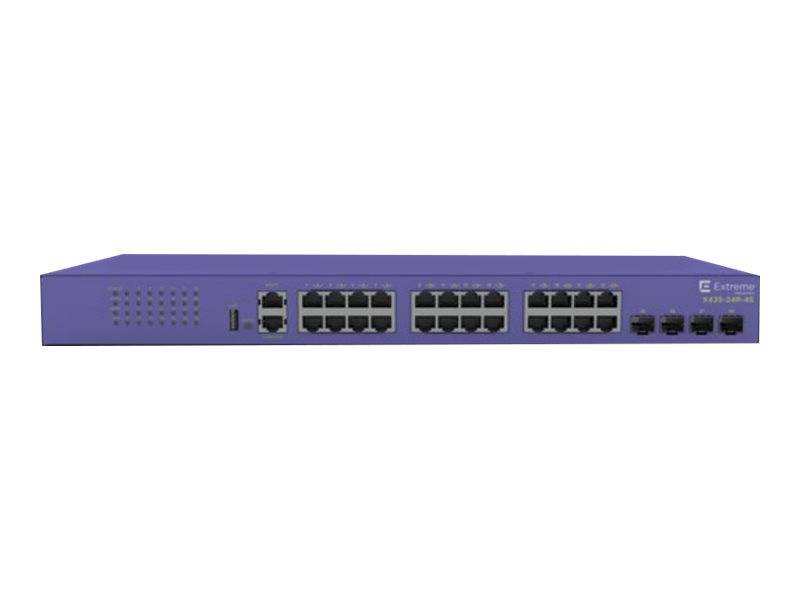

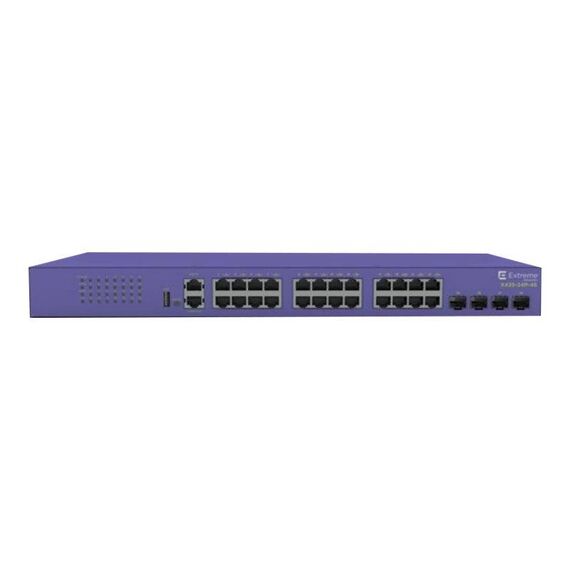

Extreme Networks ExtremeSwitching X435-24P-4S / Switch / Managed / 24 x 10/100/1000 (PoE+) + 4 x SFP (mini-GBIC) (uplink) / rack-mountable / PoE+ (370 W) | X435-24P-4S
Please sign in so that we can notify you about a reply
Product Features
- Flexible PoE
The X435 Series provides standards-based IEEE 802.3at 30W access ports. PoE eliminates the need for additional electrical cabling and circuits otherwise needed to power edge devices, such as IP phones or wireless APs. - Fabric Attach
Fabric Attach on the X435 can be used to automate the connection to Extreme's campus-based Fabric Connect solution. Fabric Attach provides zero-touch edge provisioning and allows the X435 to take advantage of the virtualized services and inherent security capabilities of the Extreme Fabric Connect infrastructure. - Role-based policy
The X435 supports role-based policies centrally administered through the ExtremeControl policy manager. This policy framework empowers network administrators to define distinct roles or profiles to represent specific operational groups that may exist in an enterprise.
Special Features
- Cost-effective standalone switch for edge, branch and small site deployments
- 24-port Gigabit Ethernet connectivity
- System can draw power from an upstream PoE switch - eliminating need for a separate PSU
- Non-blocking, wire-speed design
Product Specification
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x SFP (mini-GBIC) (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Aggregate switching bandwidth: 68 Gbps ¦ Forwarding rate: 50.6 Mpps |
| Capacity | VLANs supported: 4096 ¦ Longest prefix match (LPM) entries (IPv4): 32 ¦ IPv4 hosts: 3100 ¦ Longest prefix match (LPM) entries (IPv6): 16 ¦ IPv6 hosts: 500 ¦ IP multicast groups: 64 ¦ IP multicast entries: 1500 ¦ Port queues: 8 ¦ ACL entries (ingress): 1000 ¦ Policy profiles: 63 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Features | Layer 2 switching, half duplex mode, full duplex mode, fanless, Energy Efficient Ethernet |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt |
| Processor | 1 x ARM A9 |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1/2.5GBase-X SFP ¦ 1 x serial (console) RJ-45 ¦ 1 x USB Type A ¦ 1 x management (Gigabit LAN) RJ-45 |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Stand by | 449.8 Watt |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| Compliant Standards | BSMI, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, SABS, EN55024, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, CDRH, VCCI Class A, EAC, GB 9254, EN 300 386 V1.6.1, RoHS 2011/65/EU, EN 6100-4-2, EN 55011 class A, CISPR 11 class A, WEEE 2012/19/EU, EMC 2014/30/EU, FCC CFR47 Part 15 B Class A, LVD 2014/35/EU, GB 4943.1-2011, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, NRCS, EN/ETSI 300 753, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, EN 6100-3-3:2013, China RoHS SJ/T 11363-2006, RoHS CNS 15663, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, FCC CFR21 Part 1040.10, EN 6100-3-2:2014, AS/NZS CISPR 32 |
| Software / System Requirements | Software / System Requirements |
| Software Included | ExtremeXOS Value Edge |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44.1 cm |
| Depth | 25.4 cm |
| Height | 4.35 cm |
| Weight | 7.67 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 95% (non-condensing) |
Features - extreme networks - X435-24P-4S
More Details
Product Code
3G28741
EAN Code
0644728046089
Manufacturer
extreme networks
