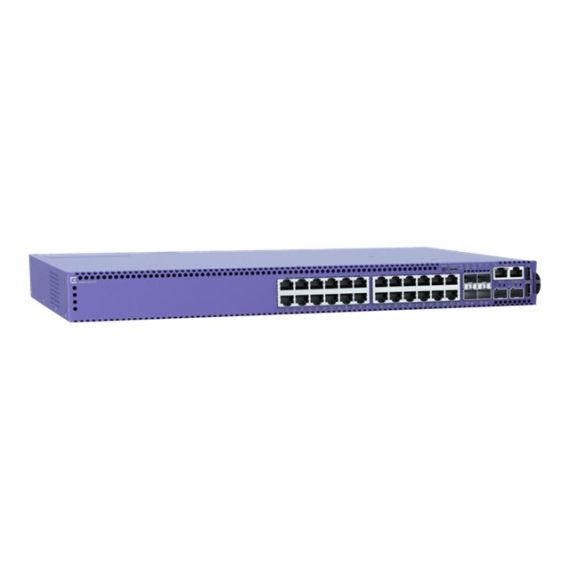

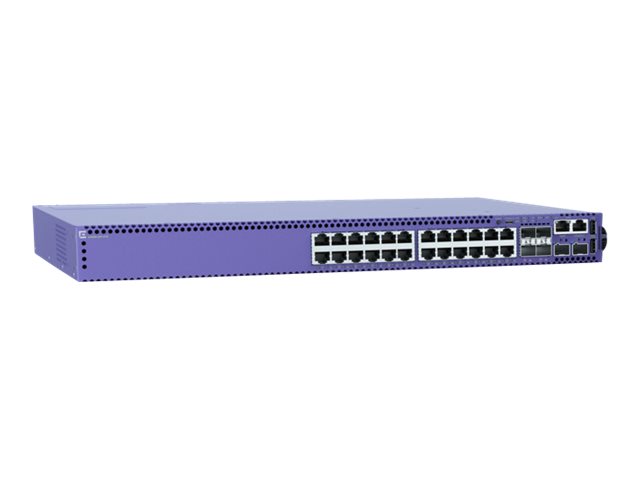

Extreme Networks ExtremeSwitching 5420M - Switch - L3 - Managed - 24 x 10/100/1000 + 4 x 1/10/25 Gigabit SFP28 + 2 x SFP-DD (stackable) - rack-mountable | 5420M-24T-4YE
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 4 x 1/10/25 Gigabit SFP28 + 2 x SFP-DD (stackable) |
| Performance | Aggregate bandwidth: 328 Gbps <br /> Frame rate: 244 Mpps |
| MAC Address Table Size | 64K entries |
| Max Units In A Stack | 8 |
| Remote Management Protocol | CLI |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| Features | Auto-sensing per device, half duplex mode, full duplex mode, MACsec support |
| Compliant Standards | IEEE 802.1ae |
| Expansion / Connectivity | |
| Interfaces | 24 x 10/100/1000 Base-T RJ-45 <br /> 4 x 1/10/25GBase-X SFP28 <br /> 2 x network stack device SFP-DD <br /> 1 x serial (console) RJ-45 <br /> 1 x management (Gigabit LAN) RJ-45 <br /> 2 x USB <br /> 1 x console (micro-USB) |
| Power | |
| Power Device | Internal power supply |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Software / System Requirements | |
| Software Included | Base Software License, ExtremeCloud IQ Pilot (1 year) |
| Dimensions & Weight | |
| Width | 44.1 cm |
| Depth | 33 cm |
| Height | 4.4 cm |
| Weight | 4.18 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
Features - extreme networks - 5420M-24T-4YE
General
24-Port
More Details
Product Code
CA83432
EAN Code
0644728051885
Manufacturer
extreme networks
