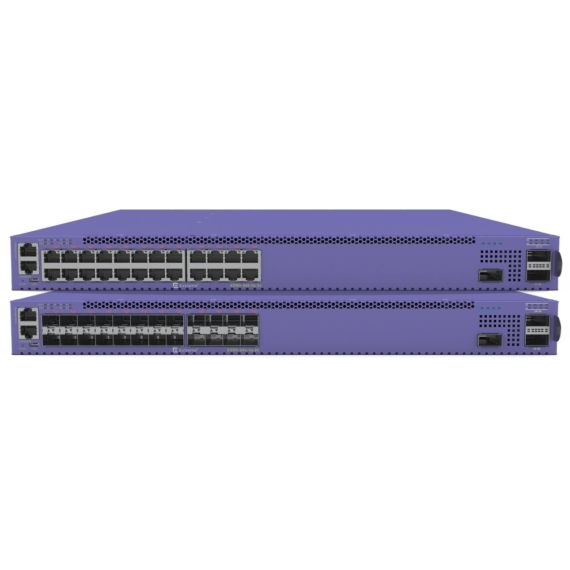

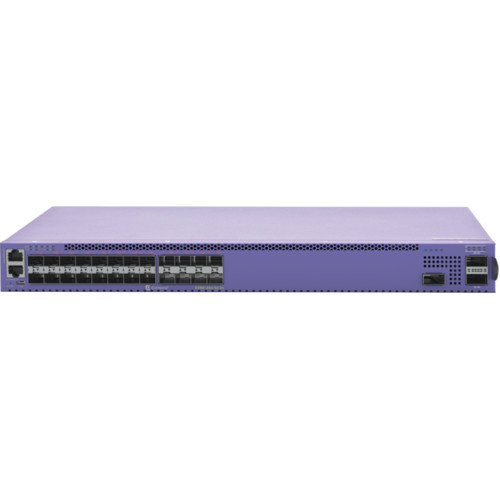

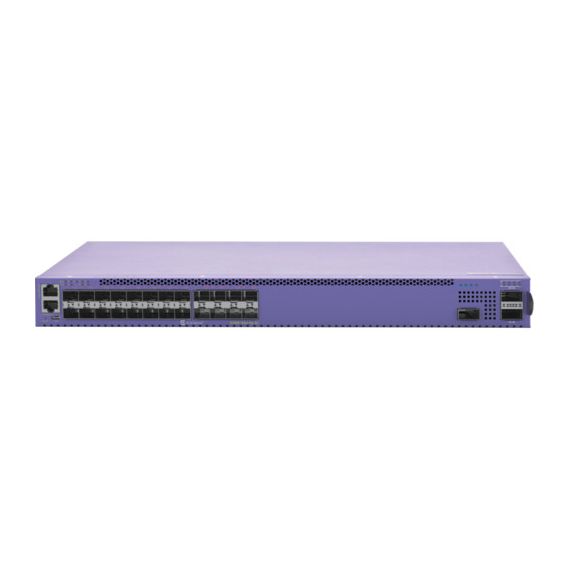

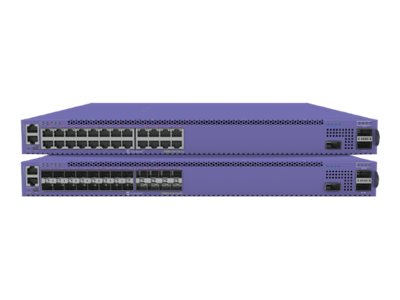

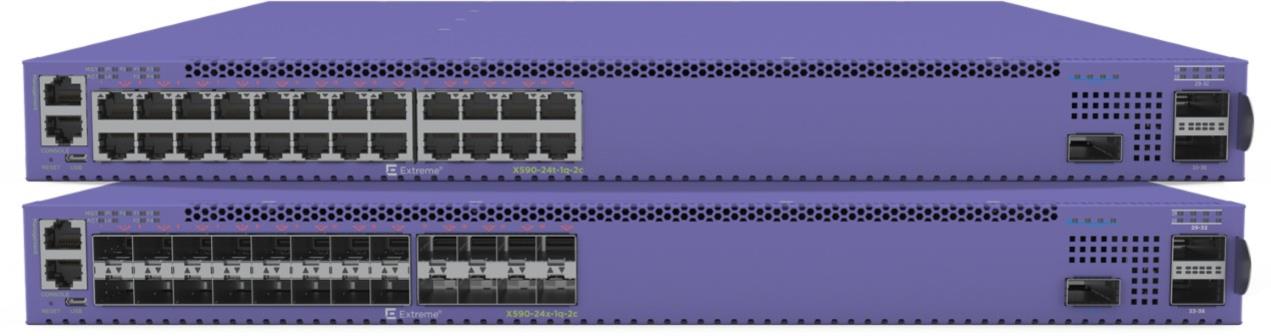

Extreme Networks ExtremeSwitching X590 X590-24x-1q-2c - Base - switch - Managed - 24 x 10 Gigabit SFP+ + 1 x 40 Gigabit QSFP+ + 2 x 100 Gigabit QSFP28 - rack-mountable | 16790
16790
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- Flexible deployment options
The X590 can handle a range of high bandwidth applications, including high-density 10 Gb top of rack aggregation, as well as spine/ leaf deployment s as an edge leaf switch. It can also flexibly support uplinks at 25Gb, 40 Gb, 50 Gb or even 10 0 Gb rates. A range of SFP+ and QSFP+ optical transceivers are available to support 1Gb, 10 Gb and 40 Gb Ethernet, while QSFP28 optical transceivers can be used to support 25Gb, 50 Gb and 10 0 Gb Ethernet applications. - ExtremeXOS intelligent L2/ L3 switching
The X590 simplifies network operation with the ExtremeXOS modular operating system, which is used across a wide range of ExtremeSwitching networking products. The high availability ExtremeXOS operating system reduces operational overhead through the use of a single OS across the network. - Extended Edge Switching
The X590 supports Extreme Extended Edge Switching, an innovative solution that simplifies the deployment and operation of edge switches. - Comprehensive network management
Extreme Networks has developed tools that simplify and help in efficiently managing your network. The Extreme Management Center application suite provides centralized visibility and granular control of enterprise network resources end to end.
Special Fetures
- Full featured ExtremeXOS operating system with advanced features supporting switching, routing, and VXLAN
- Controlling aggregation switch for V40 0 edge devices with Extreme's Extended Edge Switching
- High-density 10 Gb aggregation applications
- Non-blocking 880 Gbps switching capacity per system
- Enterprise Extreme Management Center application support
- Advanced command line interface
- Zero Touch Provisioning (ZTP+)
- Integrated web based management application
- Wide range of port speeds
- Hot-swappable modular power and fans
Product Specification
| Device Type | Switch - 24 ports - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 24 x 10 Gigabit SFP+ + 1 x 40 Gigabit QSFP+ + 2 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 880 Gbps |
| Capacity | Longest prefix match (LPM) entries (IPv4): 256000 <br /> Longest prefix match (LPM) entries (IPv6): 128000 <br /> IPv6 hosts: 32000 <br /> IP multicast groups: 4000 <br /> IP multicast entries: 130000 <br /> User-created VLAN/VMANs: 4092 <br /> Queues per port: 8 <br /> ACL entries (ingress): 8000 <br /> ACL entries (ingress): 1000 <br /> Authenticated policy users: 24576 <br /> Policy profiles: 63 <br /> Permit/deny rules: 1976 <br /> MAC rules: 512 <br /> IPv4 rules: 512 <br /> IPv6 rules: 512 <br /> L2 rules: 440 |
| MAC Address Table Size | 272K entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 8 |
| Features | Switching, routing, store and forward, sFlow, DCBX support, 12MB packet buffer, cut-through, hot swappable power supply, VTEP support, PFC, ZTP, flexible UFT, hot swap fan tray, ETS, 4 fan tray slots |
| Compliant Standards | IEEE 802.3, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bm |
| Processor | 1: 2.4 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Flash Memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 24 x 10Gbit LAN SFP+ <br /> 1 x 40Gbit LAN QSFP+ stacking <br /> 2 x 100Gbit LAN QSFP28 <br /> 1 x console RJ-45 <br /> 1 x micro-USB output Type A storage |
| Power | |
| Installed Qty | 0 |
| Max Supported Qty | 2 |
| Miscellaneous | |
| MTBF | 435,074 hours |
| Compliant Standards | EN 61000-3-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EN 61000-3-3, EN55024, CB, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-6, CCC, EMC, ICES-003 Class A, EN 61000-4-5, UL 60950-1 Second Edition, KCC, CDRH, CSA C22.2 No. 60950-1 Second Edition, VCCI Class A, EN 61000-4-2:2009, EN 300 386 V1.6.1, RoHS 2011/65/EU, IEC 61000-4-2:2008, IEC 60825-1 Class 1, EN 61000-4-3:2006+A1:2008+A2:2010, WEEE 2012/19/EU, EMC 2014/30/EU, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, LVD 2014/35/EU, IEC/EN 61000-4-11, EN 55032 Class A, EN/ETSI 300 753, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 Second Edition, CISPR 24:2010 Class A, IEC 61000-4-3:2010, ACMA RCM, CISPR 32 Class A, China RoHS SJ/T 11363-2006, RoHS CNS 15663, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, FCC CFR21 Part 1040.10, AS/NZS CISPR 32 |
| Software / System Requirements | |
| OS Required | ExtremeXOS Advanced Edge |
| Dimensions & Weight | |
| Width | 44.1 cm |
| Depth | 48.8 cm |
| Height | 4.3 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 95% (non-condensing) |
General
24-Port
Χαρακτηριστικά
Product Code
3G27138
EAN Code
0644728167906
Manufacturer
Extreme Networks
