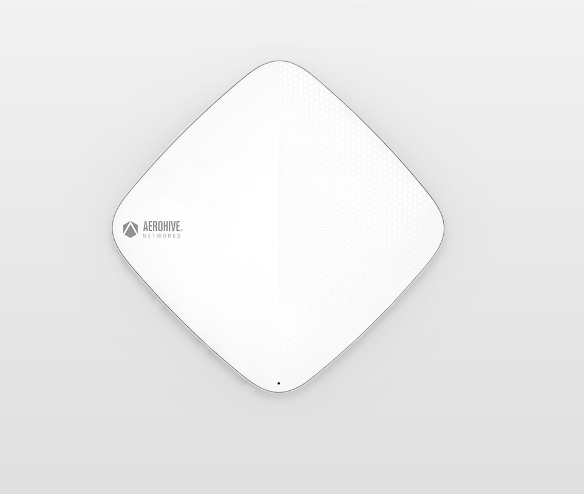

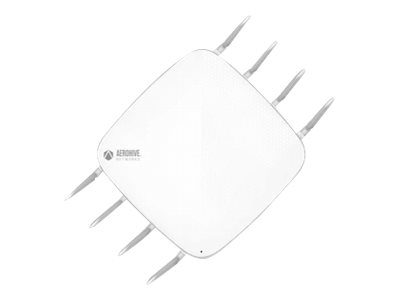

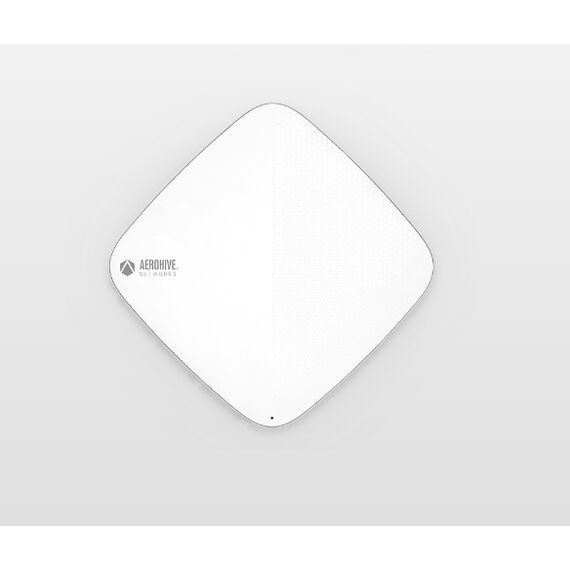

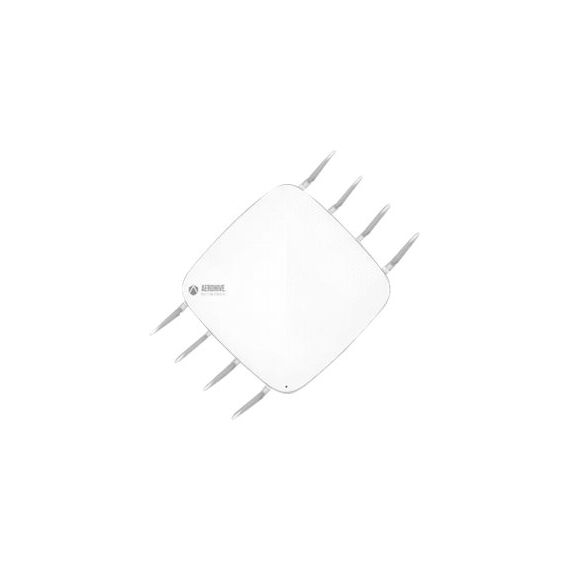

Extreme Networks ExtremeWireless AP510CX - Radio access point - Bluetooth 4.2 - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz | AP510CX-WW
Please sign in so that we can notify you about a reply
Product Features
- Management analytics
This access point provides a very rich set of data displayed via context driven widgets, representing historical data or a combination of historical and current data. This provides context-specific granularity with perspective views for locations, network, APs, individual client devices as well as policy roles. In each context, administrators can adjust dashboards from widget library. - RF monitoring
Network managers will appreciate a powerful choice of RF management for their Wi-Fi networks, with SmartRF, a robust RF management system with AI/ML like functionality. SmartRF algorithms manage channels, radios, load balancing, band steering and many other attributes of the RF. - Smart sensor
A tri-radio 802.11ax access point with smart sensor capability to optimally manage radios to provide the highest level of client performance while simultaneously providing continuous RF monitoring for security threats.
Special Fetures
- Management analytics
- RF monitoring
- Smart sensor
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Built-in Devices | Light sensor, power sensor |
| Width | 22.5 cm |
| Depth | 22.5 cm |
| Height | 3.75 cm |
| Weight | 1.27 kg |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 4.8 Gbps |
| Line Coding Format | 1024 QAM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6) |
| Network / Transport Protocol | IPSec, CSMA/CA |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | Trusted Platform Module (TPM), Direct Sequence Spread Spectrum (DSSS), security lock slot (cable lock sold separately), quad-stream (4x4) |
| Encryption Algorithm | AES, SSL, WPA, WPA2, IKEv2, WPA3 |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.3at, IEEE 802.3az, IEEE 802.11w, IEEE 802.11r, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | |
| Antenna | External detachable |
| Antenna Qty | 8 |
| Internet of Things (IoT) | |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T (PoE) - RJ-45 <br /> 1 x 1/2.5GBase-T (PoE) - RJ-45 <br /> 1 x console - RJ-45 <br /> 8 x aerial - RP-SMA |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| MTBF | 347,530 hour(s) |
| Compliant Standards | Plug and Play, ICES-003 Class B, AS/NZS 60950-1, UL 2043, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, CAN/CSA C22.2 No. 60950-1-03, EN 300 328, RSS-247, EN 62368-1, EN 301 893, FCC Subpart C 15.247, FCC Subpart E 15.407, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, AS/NZS 62368-1 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 95% |
Features - extreme networks - AP510CX-WW
More Details
Product Code
CE44587
EAN Code
0644728053469
Manufacturer
extreme networks
