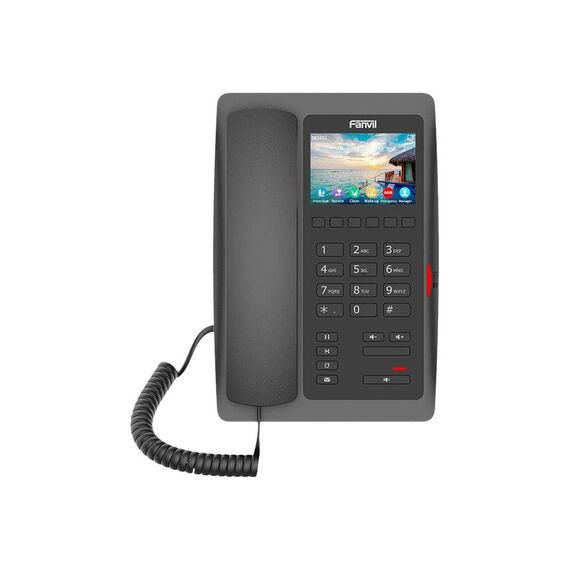

Fanvil H5W / VoIP phone with caller ID / SIP, RTCP, RTP, SRTP, SIP v2 over TLS, SIP v2 over UDP, SIP v2 over TCP / 2 lines / black | H5W-Black
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | VoIP phone |
| Compatible Platforms | Broadsoft Broadworks, Metaswitch, Asterisk, 3CX, Elastix, Avaya |
| Body Colour | Black |
| Phone Features | Phone Features |
| Call Services | Call Transfer, Call Hold |
| Caller ID Type | Caller ID |
| Dialer Location | Base |
| Speakerphone | Yes |
| Volume Control | Yes |
| Indicators | New message indicator |
| Additional Functions | Speed dial memory, redial, mute, customised sound system (equaliser), hotline |
| IP Telephony | IP Telephony |
| Main Features | Multiple VoIP protocol support, integrated Ethernet switch |
| VoIP | Yes |
| VoIP Protocols | SIP, RTCP, RTP, SRTP, SIP v2 over TLS, SIP v2 over UDP, SIP v2 over TCP |
| Voice Codecs | G.722, G.729ab, iLBC, Opus, G.711A/µ |
| Lines Supported | 2 lines |
| Quality of Service | IEEE 802.1Q (VLAN), Diffserv per device (QoS) |
| IP Address Assignment | DHCP, static, PPPoE |
| Security | IEEE 802.1X, TLS |
| Power Over Ethernet (PoE) Support | Yes |
| Network Protocols | IP, TFTP, HTTP, HTTPS, SRTP, TR-069, RTCP, RTP, SNTP, RTCP-XR, VQ-RTCPXR, STUN, L2TP, FTP, IPv6, IPv4 |
| Network Ports Qty | 1 x Ethernet 10/100Base-TX |
| Voice Features | Comfort noise generation (CNG), voice activity detection (VAD), HD Voice, acoustic echo cancellation (AEC), packet loss concealment (PLC), adaptive jitter buffer (AJB), Voice Quality Monitor (VQM), Background Noise Estimation (BNE), Noise Reduction (NR) |
| Phone Memory | Phone Memory |
| Phone Directory Capacity | 600 names & numbers |
| Display | Display |
| Type | LCD display - colour |
| Diagonal Size | 3.5" |
| Display Resolution | 480 x 320 pixels |
| Backlit | Yes |
| Miscellaneous | Miscellaneous |
| Connections | Handset jack / RJ-9 USB / 4 PIN USB Type A Network / RJ-45 PC port / RJ-45 |
| Placing / Mounting | Desktop stand |
| Cables Included | Ethernet cable - 1.5 m |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15.17 cm |
| Depth | 19.32 cm |
| Height | 13.17 cm |
Features - Fanvil - H5W-BLACK
More Details
Product Code
04:367105
EAN Code
6937295602548
Manufacturer
Fanvil
