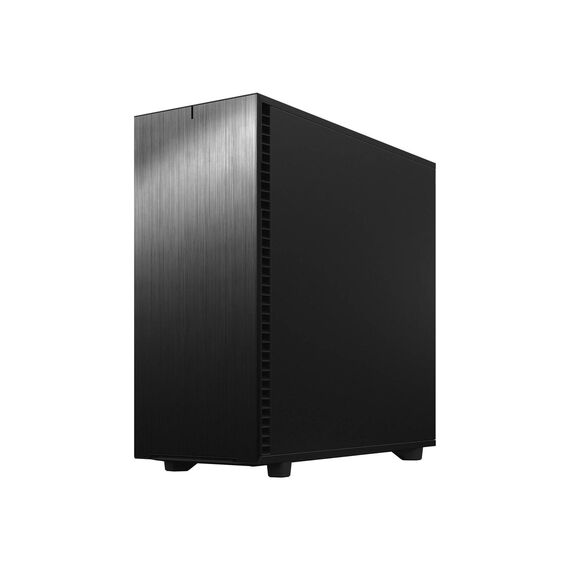

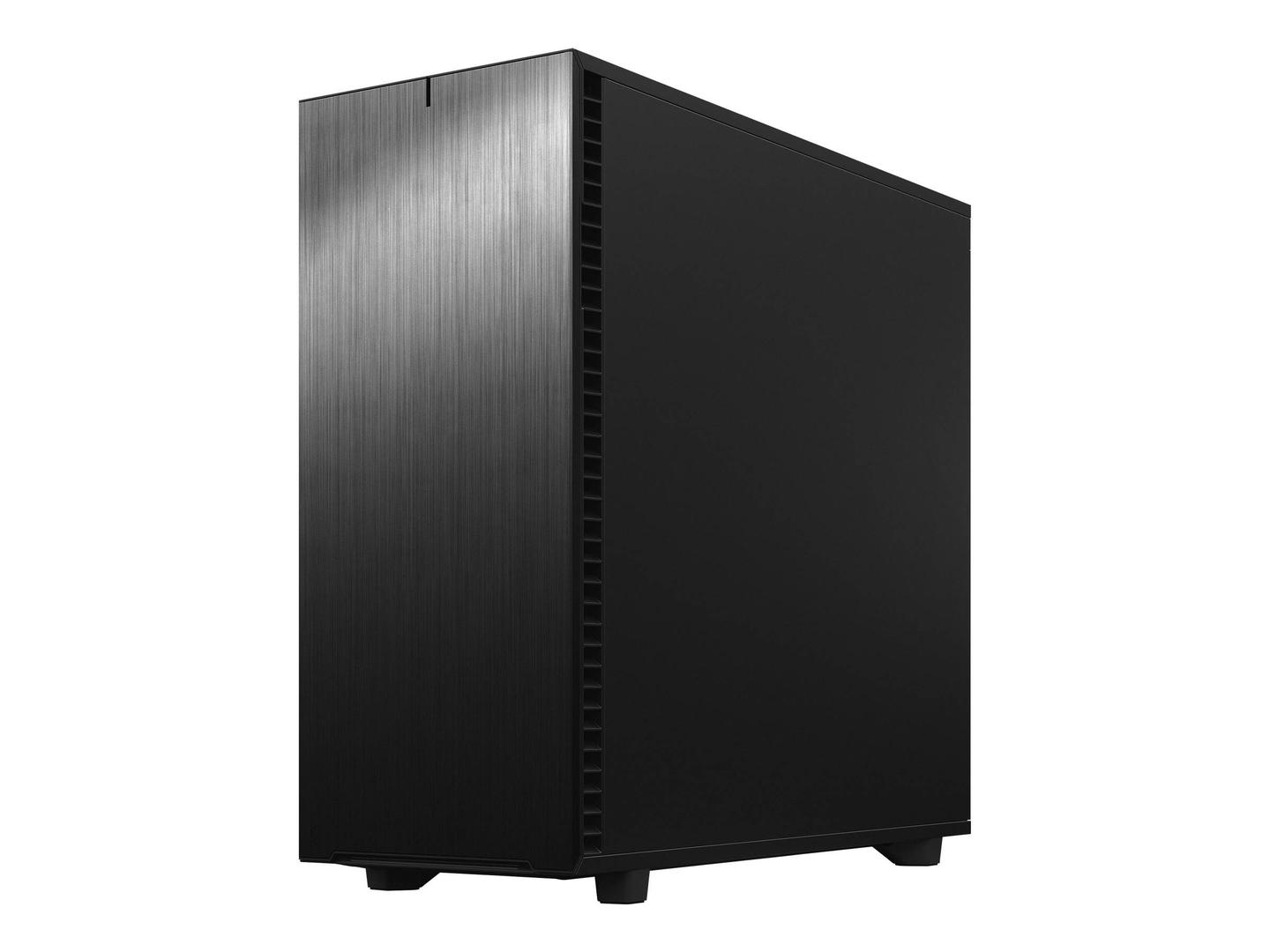

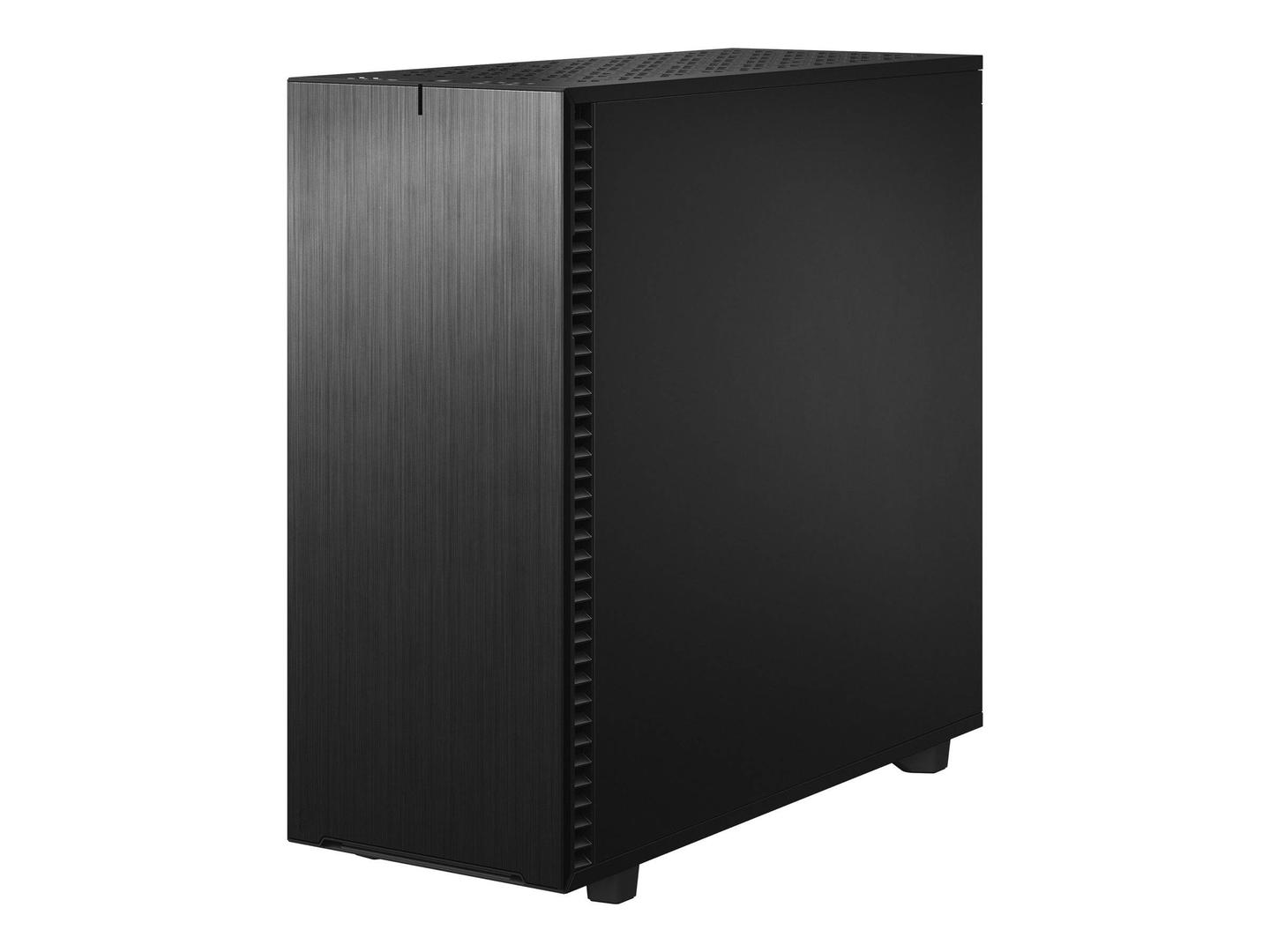

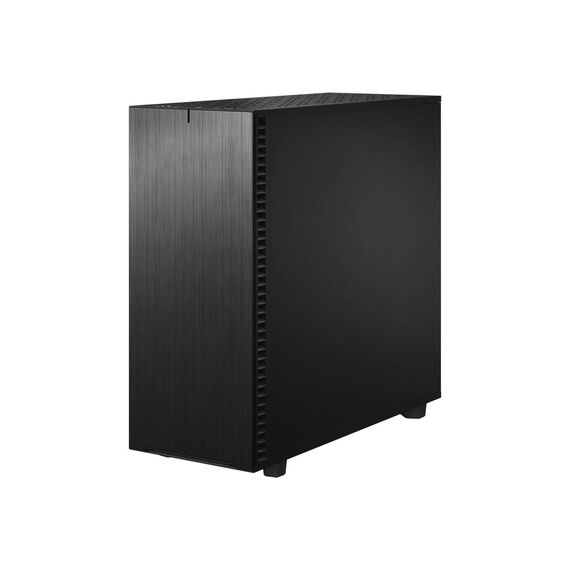

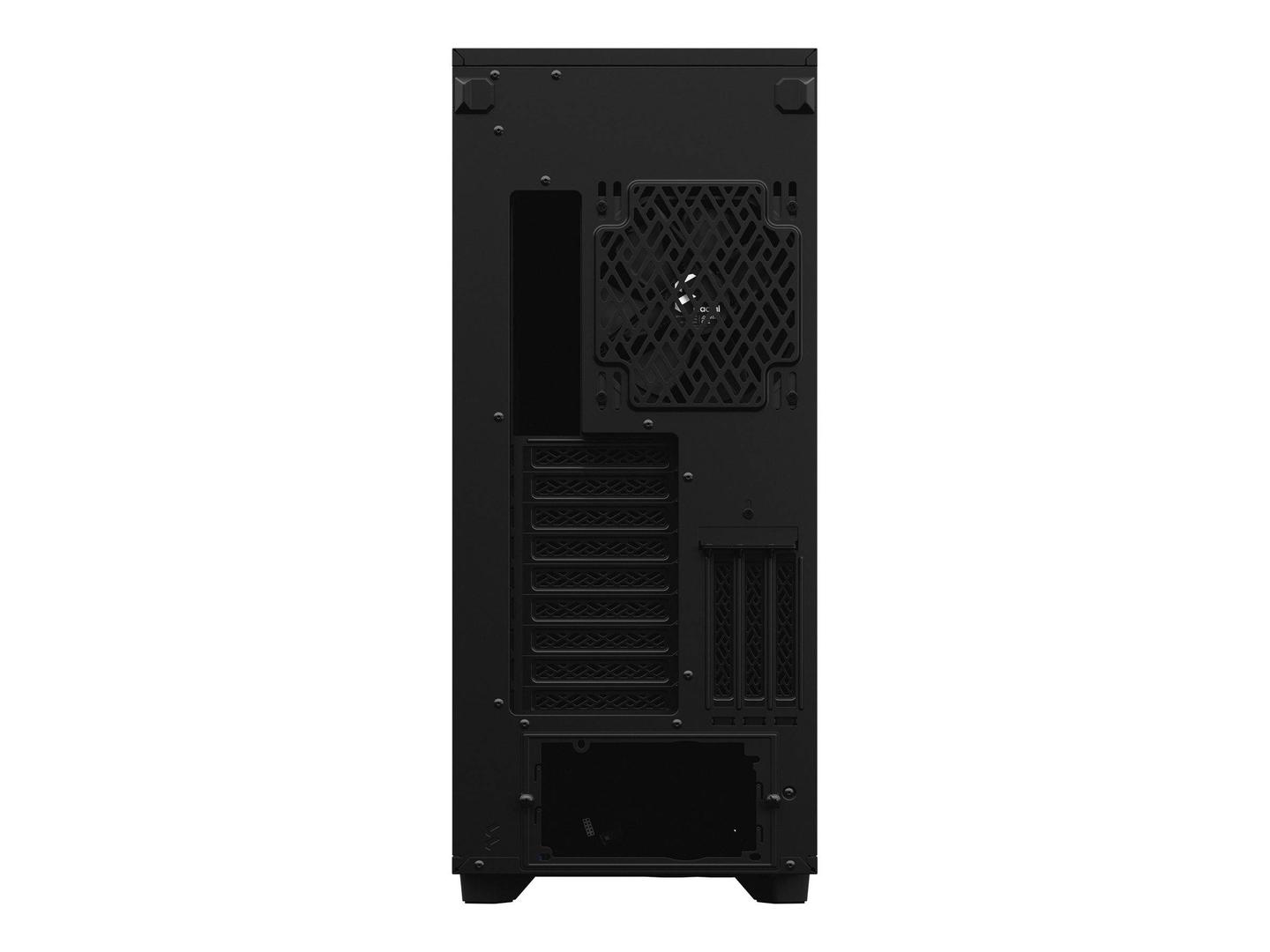

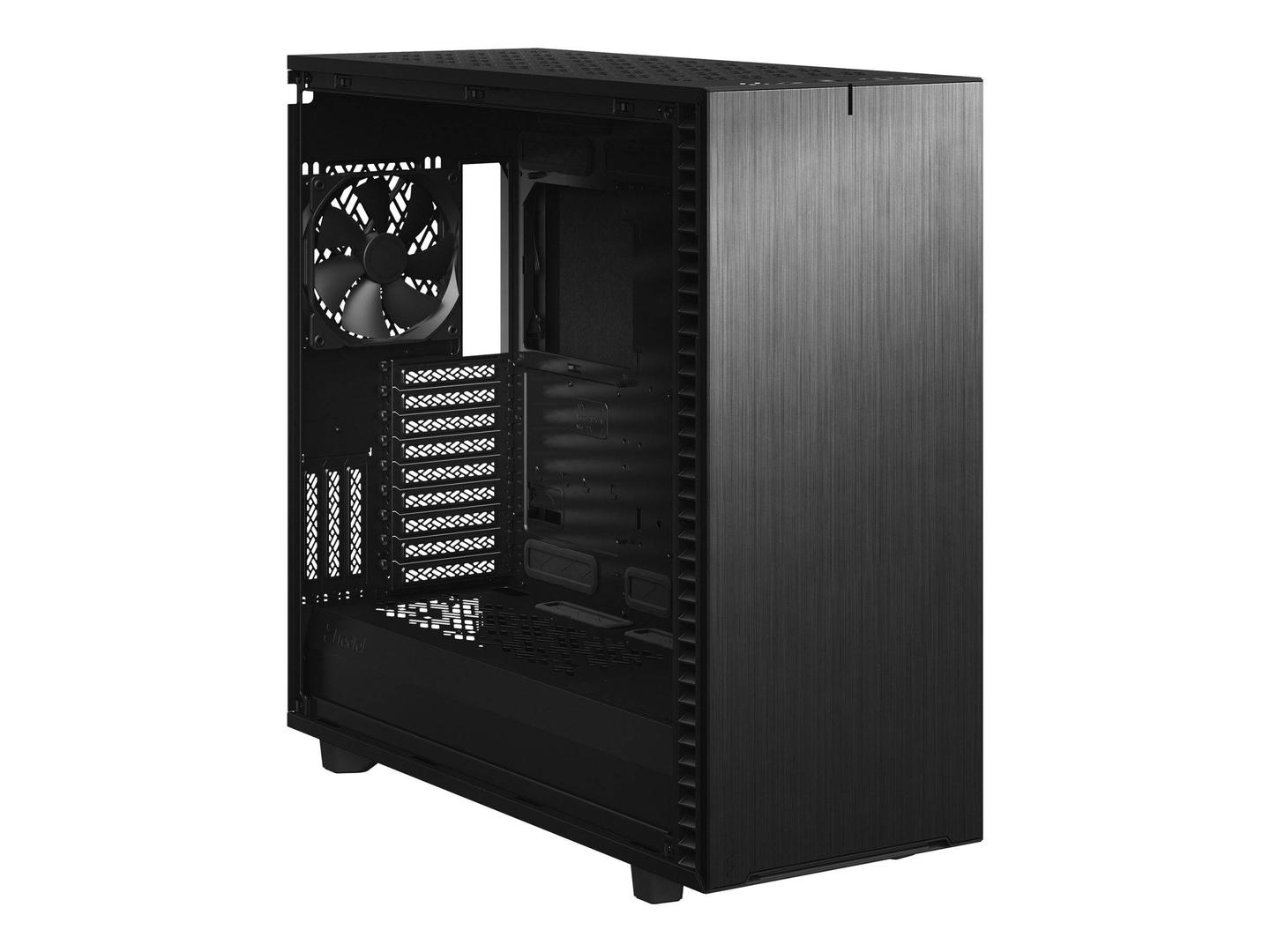

Fractal Design Define 7 XL / Tower / extended ATX / SSI EEB / no power supply (ATX) / black / USB/Audio | FD-C-DEF7X-01
Please sign in so that we can notify you about a reply
Special Features

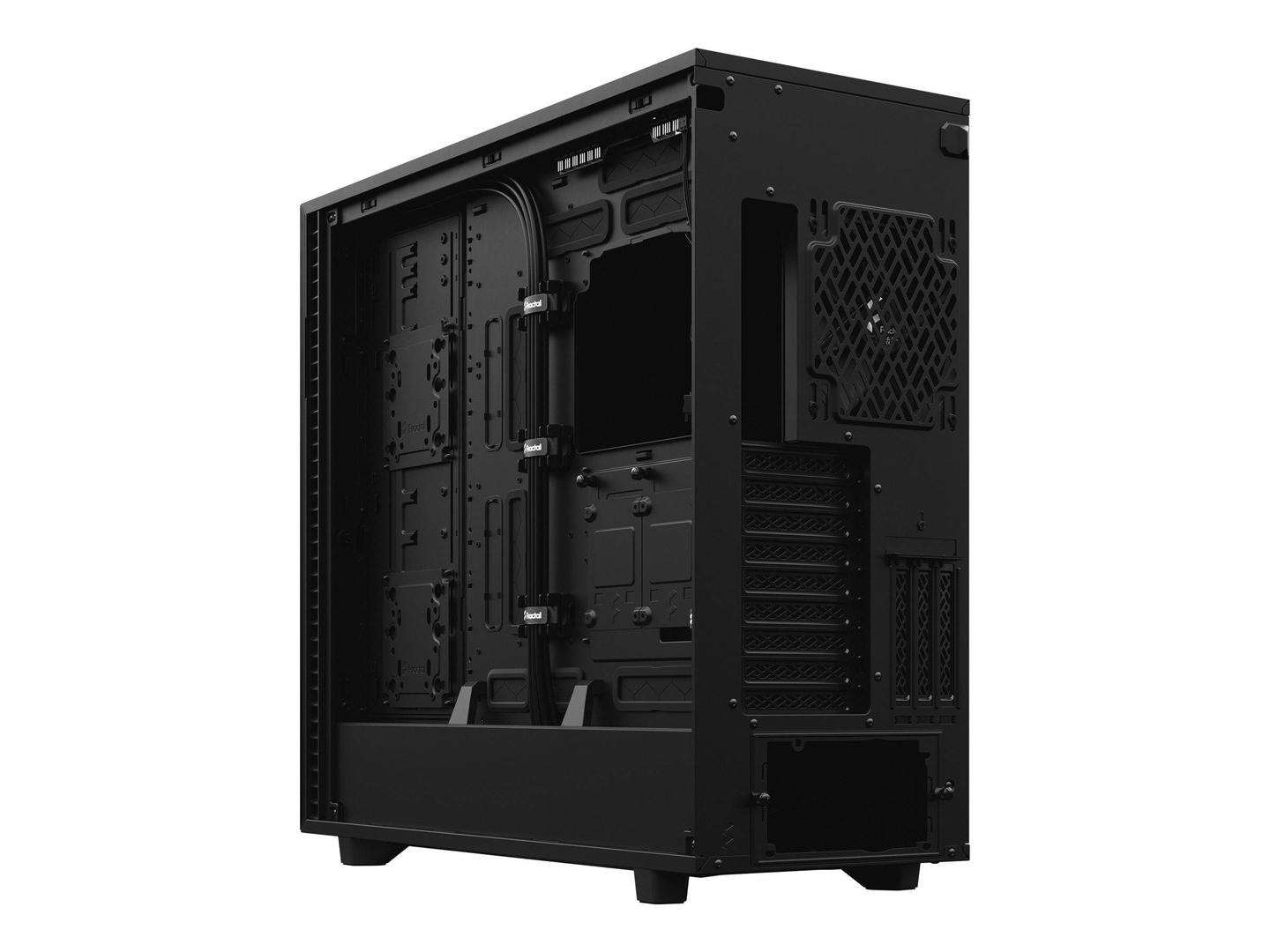

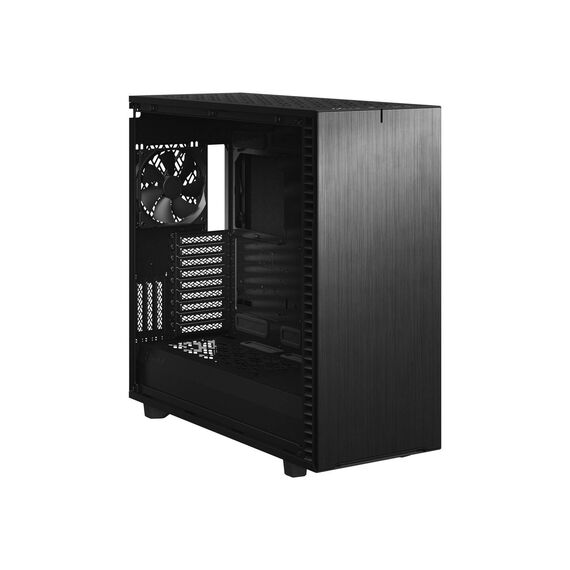

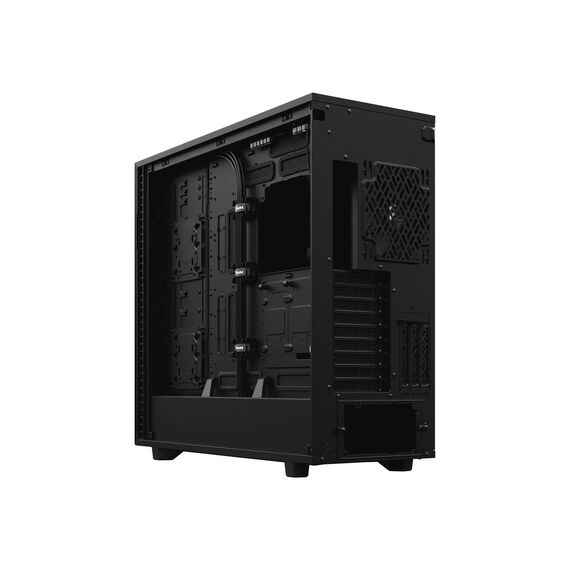

- New chassis design opens up to fully expose the case interior
- Anodized aluminum front panel with reversible dual-handed hinges
- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout
Product Specification
| Form Factor | Tower |
| Max Mainboard Size | Extended ATX / SSI EEB |
| Supported Motherboards | ATX, microATX, Mini-ITX, Extended ATX, SSI CEB, SSI EEB, enhanced extended ATX |
| Internal Bays Qty | 10 |
| Front Accessible Bays Qty | 2 |
| Built-in Devices | 3 x Fractal Design Dynamic X2 GP-14, Ultra-slim Nexus+ fan hub |
| Product Material | Sound-dampened steel |
| Colour | Black |
| Cooling System | Front: 140 mm fan x 2 / 4 x 120 mm or 3 x 140 mm fan supported ¦ Rear: 140 mm fan x 1 / 1 x 120/140 mm fan supported ¦ Bottom: 120/140 mm fan mount x 2 ¦ Top: fan mount / 4 x 120 mm or 3 x 140 mm fan supported |
| CPU Cooler Max Height | 185 mm |
| Video Card Max Length | 549 mm |
| Power Supply Max Length | 250 mm |
| System Cabinet Features | Top panel dust filter, front dust filter, cable management system, supports 120 mm radiator in rear, supports 240/280 mm radiator in bottom, supports 420/480 mm radiator in front panel, bottom + PSU dust filter, supports 420/480 mm radiator in top panel |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 8 (total) / 8 (free) x internal - 2.5" / 3.5" shared ¦ 2 (total) / 2 (free) x internal - 2.5" ¦ 2 (total) / 2 (free) 5.25" |

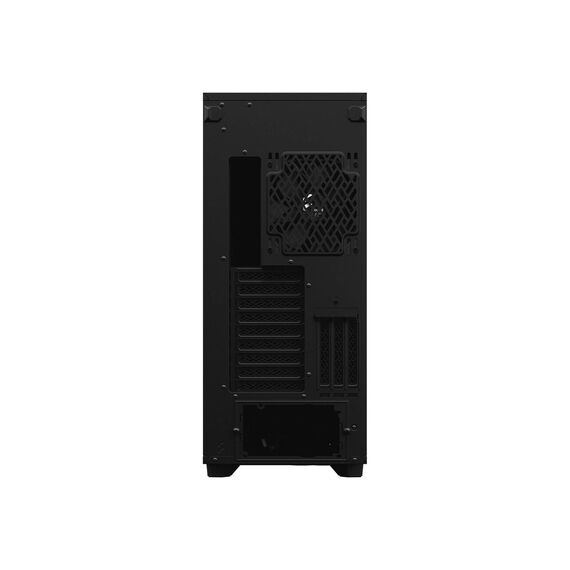

| Expansion Slots | 9 ¦ 3 x vertical |
| Interfaces | 2 x USB 2.0 ¦ 2 x USB 3.0 ¦ 1 x headphones - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB 3.1 Gen 2 - USB-C |
| Miscellaneous | Miscellaneous |
| Included Accessories | Accessory box, ODD cover, 2 x 2.5" SSD brackets, ODD bracket |
| Power | Power |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Dimensions & Weight | Dimensions & Weight |
| Width | 24 cm |
| Depth | 60.4 cm |
| Height | 56.6 cm |
| Weight | 16.64 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 35.7 cm |
| Shipping Depth | 64.6 cm |
| Shipping Height | 70.8 cm |
| Shipping Weight | 18.84 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
Features - Fractal Design - FD-C-DEF7X-01
More Details
Product Code
07:127815
EAN Code
7340172702047
Manufacturer
Fractal Design
