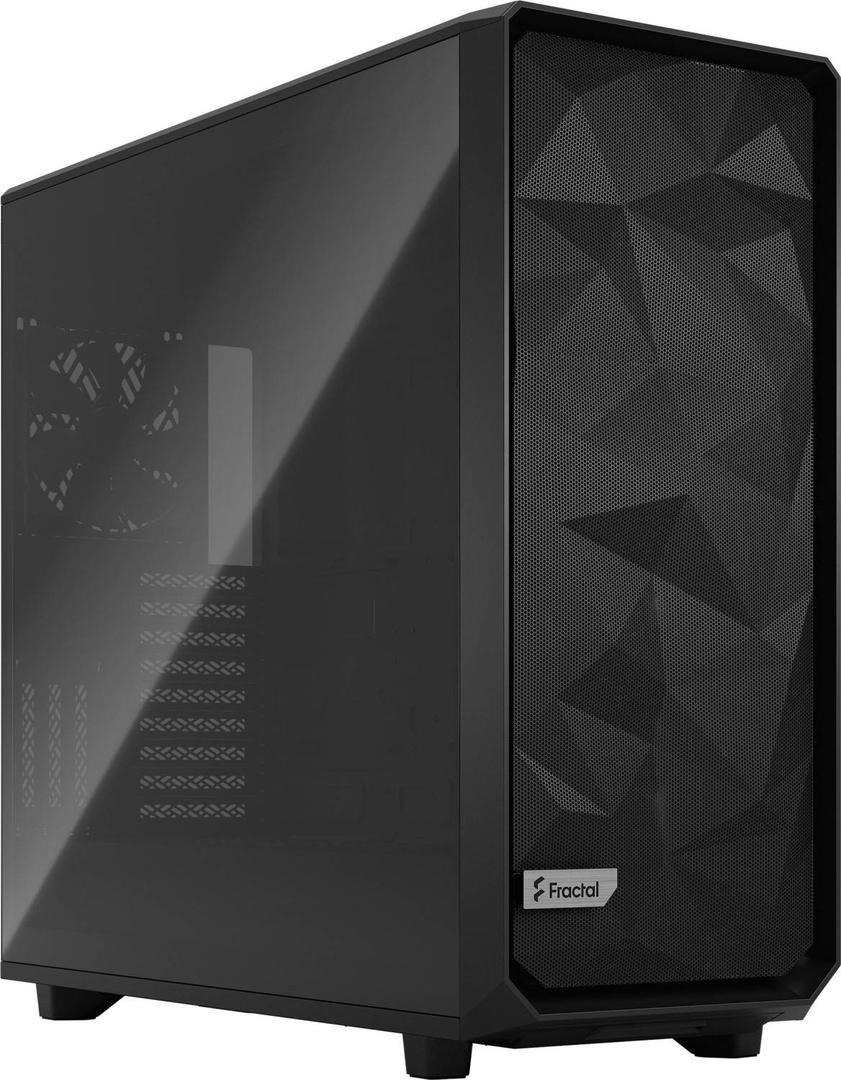

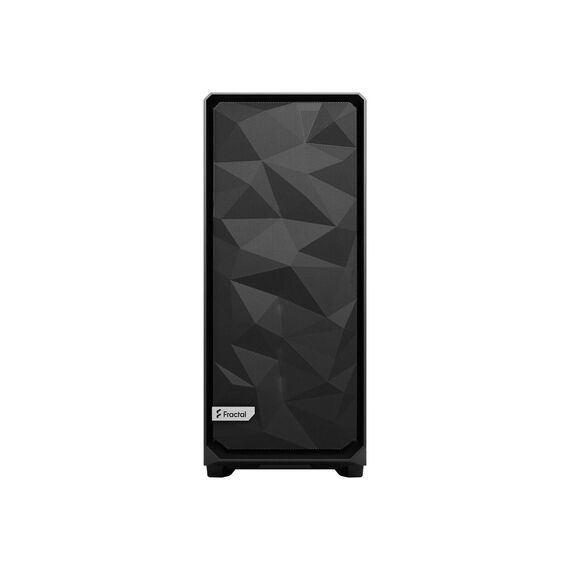

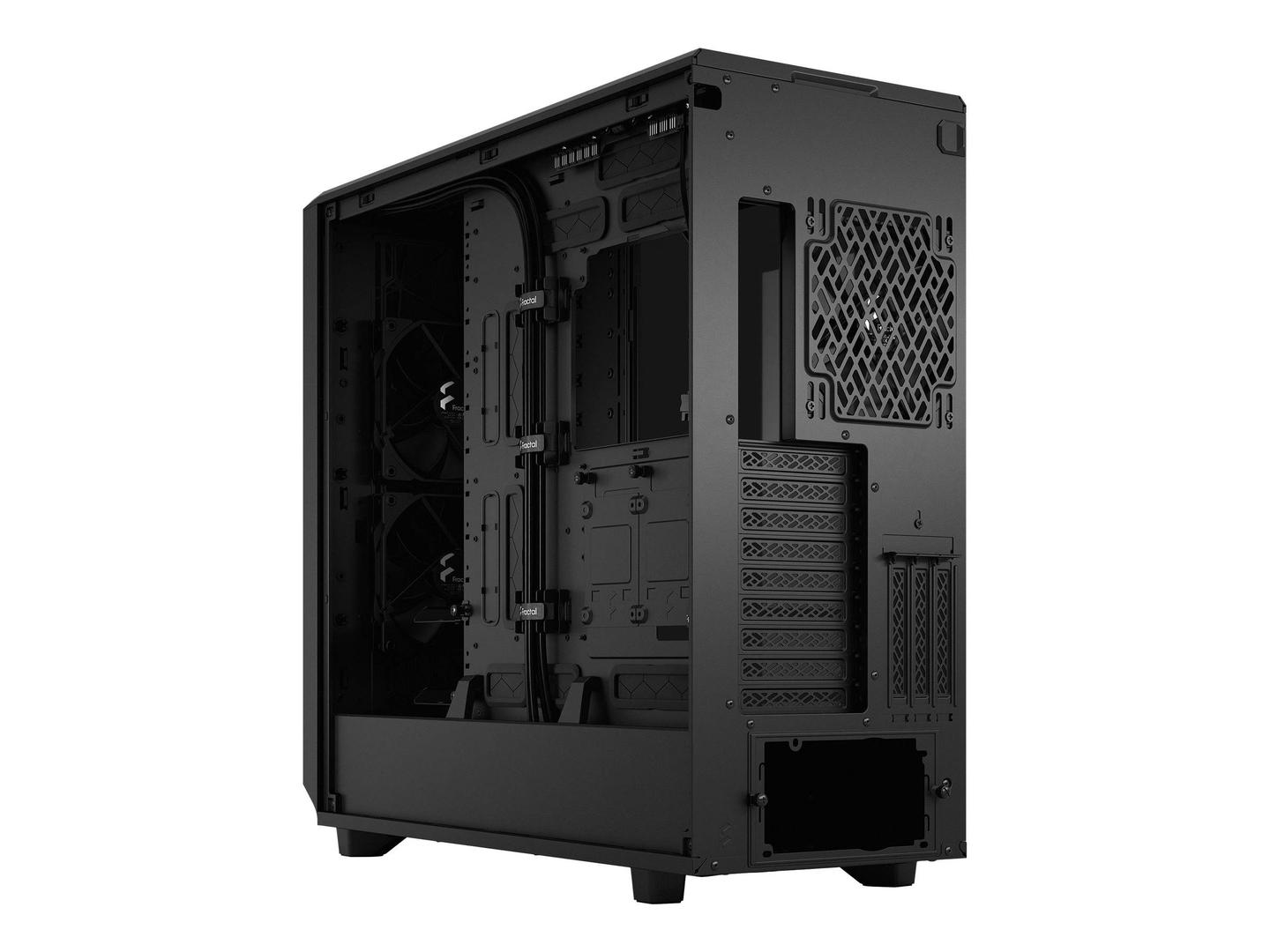

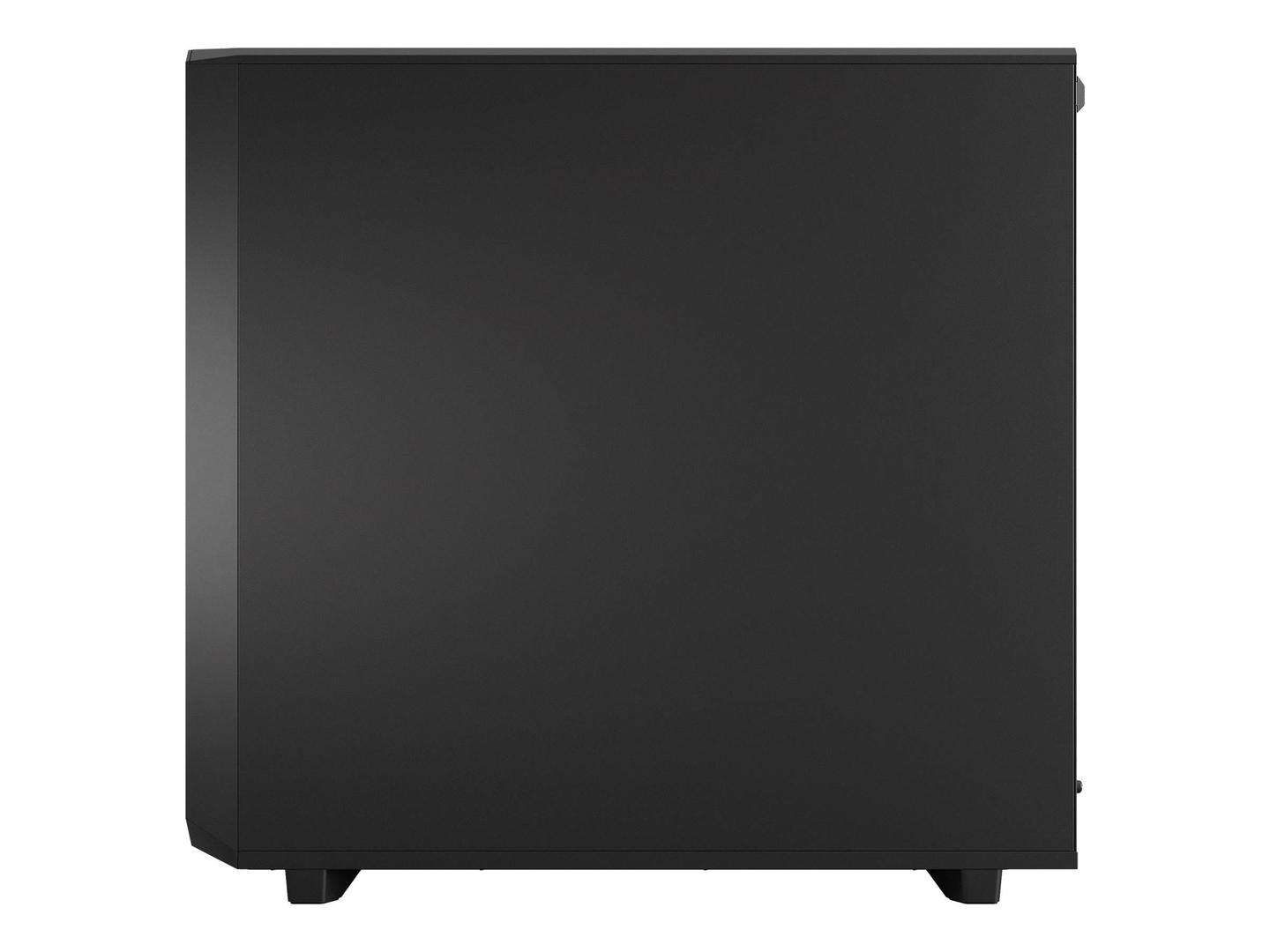

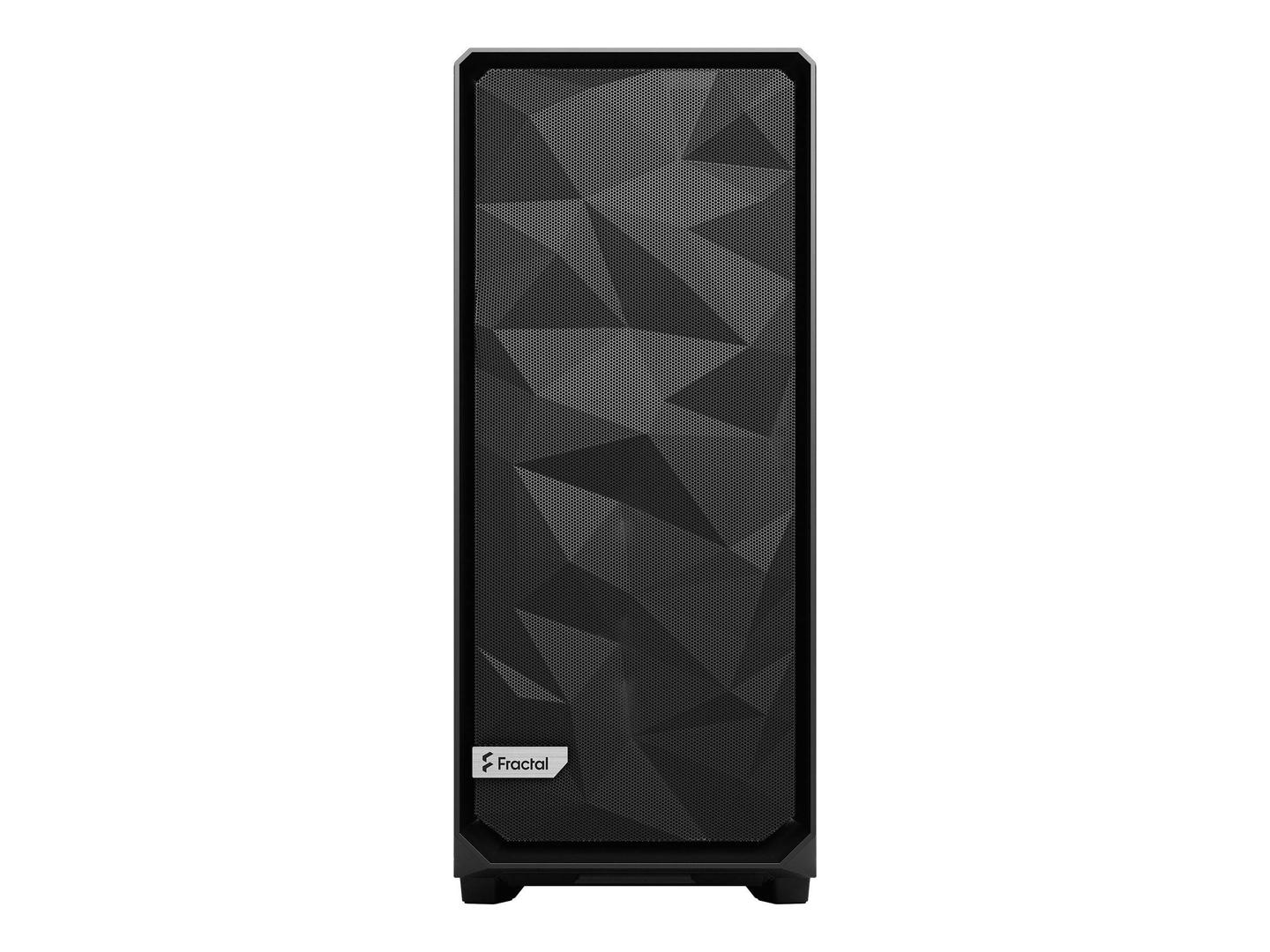

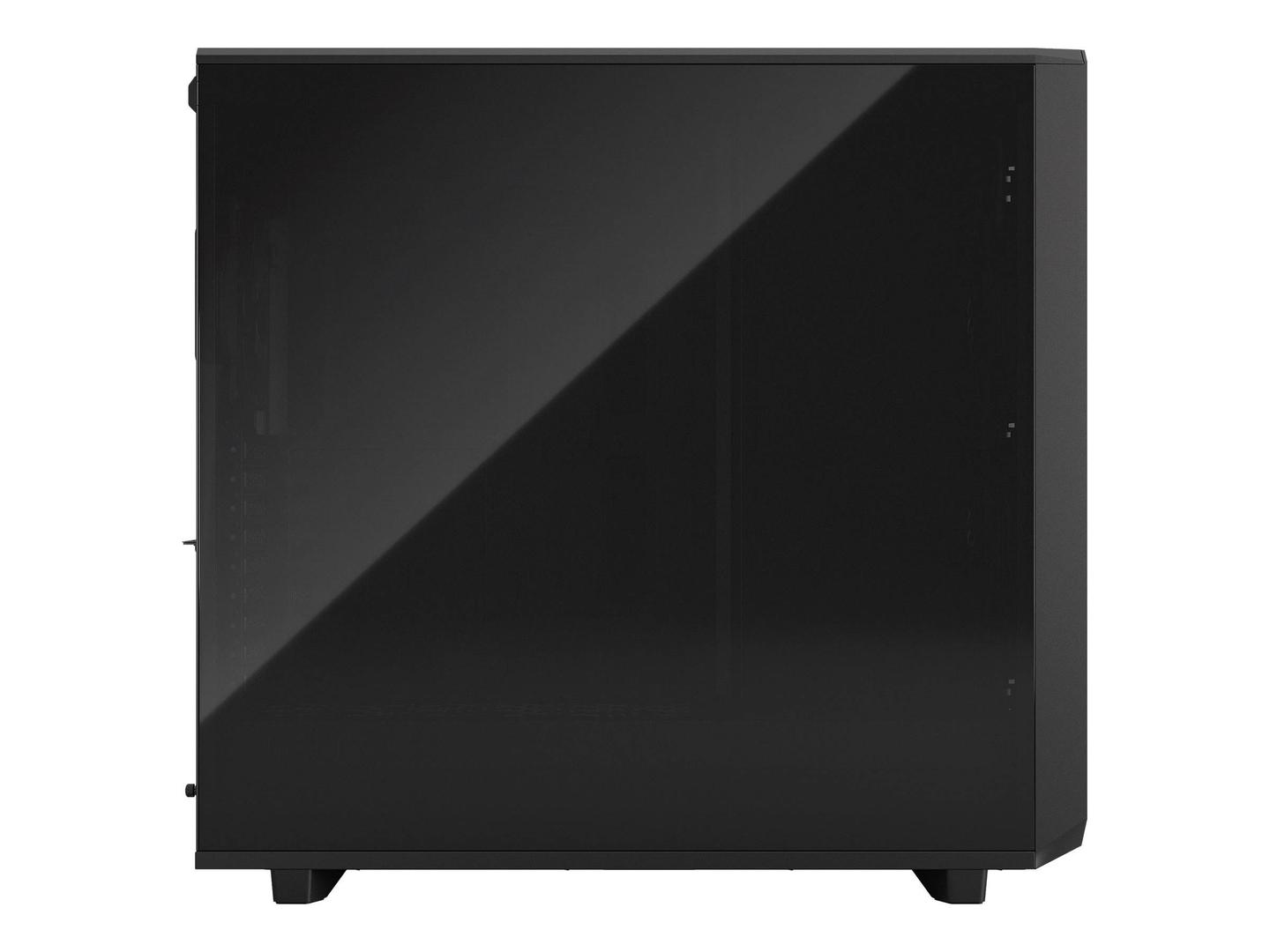

Fractal Design Meshify 2 XL / Tower / enhanced extended ATX / windowed side panel (tempered glass) / no power supply (ATX) / black / USB/Audio | FD-C-MES2X-02
FD-C-MES2X-02
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Detachable front filter
The nylon filter is easily removed from the hinged mesh panel for increased airflow. Tether-free bezel for easier access to front fan mounts. Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm). - Superlative storage
Optional accessories allow expansion up to 18 HDDs and 5 SSDs in storage layout. The included multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts. Tool-less, top-latching panels allow quick access while preventing accidental drops. - Flexible dual-layout design
Convert to open layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm. Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base). An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB. - Open and interchangeable
Remove the entire top to build and route with zero hindrance. - Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10Gbps. - Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects 3x PWM fans and 6x 3-pin fans. - Versatile multibrackets
The included Multibrackets lets you convert unused fan positions to HDD, SSD or pump mounts. - Easy cable management
Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board.
Special Features
- Iconic mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Spacious and extensively adaptable dual-layout interior
- Easily accommodates large motherboards up to and including E-ATX and SSI-EEB
- Open layout supports radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
- Detachable front filter
- Superlative storage
- Flexible dual-layout design
- Open and interchangeable
- Type-C interface
- Nexus+ 2 fan hub
- Versatile multibrackets
- Easy cable management
Product Specification
| Form Factor | Tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | Enhanced extended ATX |
| Supported Motherboards | ATX, microATX, Mini-ITX, Extended ATX, SSI CEB, SSI EEB, enhanced extended ATX |
| Internal Bays Qty | 8 |
| Product Material | Steel |
| Colour | Black |
| Cooling System | Front: 140 mm fan x 2 / 4 x 120 mm or 3 x 140 mm fan or 420/480mm radiator supported ¦ Rear: 140 mm fan x 1 / 1 x 120/140 mm fan or 120mm radiator supported ¦ Top: 120/140 mm fan mount / 4 x 120 mm or 3 x 140 mm fan or 420/480mm radiator supported ¦ Bottom: 120/140 mm fan mount x 2 / 240/280mm radiator supported |
| CPU Cooler Max Height | 185 mm |
| Video Card Max Length | 549 mm |
| Power Supply Max Length | 250 mm |
| System Cabinet Features | Top panel dust filter, front dust filter, cable management system, bottom dust filter, tool-less side panels (push-to-lock), light tint tempered glass left side panel, tool-less top panels (push-to-lock), tool-less front panels (push-to-lock) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 6 (total) / 6 (free) x internal - 2.5" / 3.5" shared ¦ 2 (total) / 2 (free) x internal - 2.5" |
| Expansion Slots | 12 |
| Interfaces | 2 x USB 3.0 ¦ USB 3.1 Gen 2 - USB-C ¦ 1 x microphone - mini-jack ¦ 1 x headphones - mini-jack |
| Miscellaneous | Miscellaneous |
| Included Accessories | Accessory box |
| Power | Power |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Dimensions & Weight | Dimensions & Weight |
| Width | 24 cm |
| Depth | 60 cm |
| Height | 56.6 cm |
| Weight | 14.1 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 33 cm |
| Shipping Depth | 65.1 cm |
| Shipping Height | 68.4 cm |
| Shipping Weight | 16.4 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
