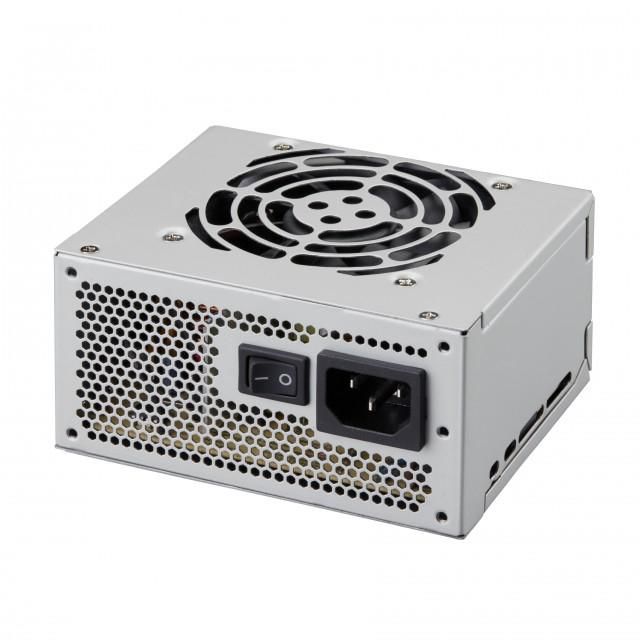

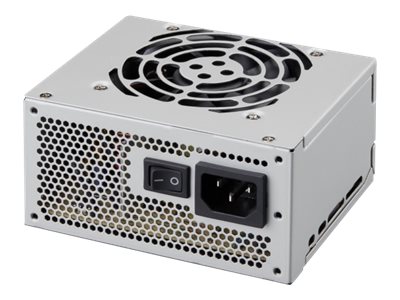

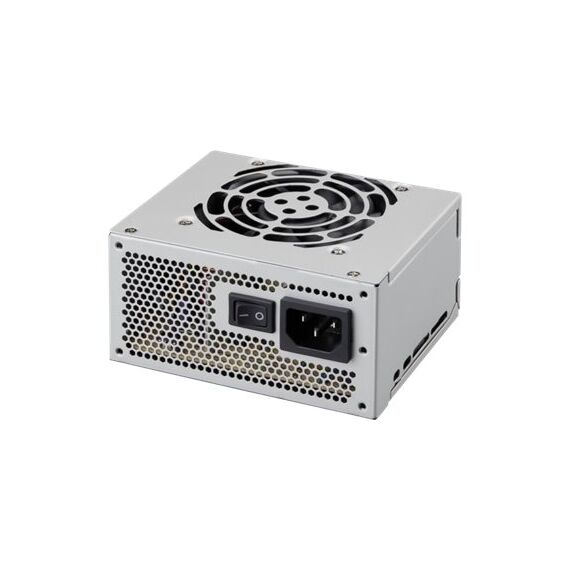

FSP FSP350-50SAC - Power supply (internal) - SFX12V 3.42 - 80 PLUS Bronze - AC 115/230 V - 350 Watt - active PFC | 9PA350CY03
Please sign in so that we can notify you about a reply
Special Fetures
- 80 PLUS Bronze certification
- Worldwide input voltage 100VAC-240VAC
- Single 12V rails fulfill all system demand
- Active PFC within 0.99 Power Factor Correction
- DC to DC design for better system compatibility
- Smart fan speed control provides ultra-silent working environment
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | SFX12V 3.42 |
| PSU Form Factor | SFX |
| Power Device | |
| Input Voltage | AC 115/230 V |
| Input Voltage Range | AC 90 - 264 V |
| Frequency Required | 50 - 60 Hz |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 350 Watt |
| Output Current | +3.3V - 20 A / 0 A ¦ +5V - 20 A / 0 A ¦ +12V - 29.2 A / 0.1 A ¦ -12V - 0.3 A / 0 A ¦ +5VSB - 2.5 A / 0 A |
| Power Factor (PF) | 0.99 |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Features | On/off switch, cooling fan, DC-DC technology |
| Compliant Standards | UL, cUL, FCC, IEC 62368, CB 60950, CB 62368 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 12.5 cm |
| Depth | 10 cm |
| Height | 6.35 cm |
Features - Fortron-Source - 9PA350CY03
More Details
Product Code
04:348576
EAN Code
4713224523434
Manufacturer
Fortron-Source
