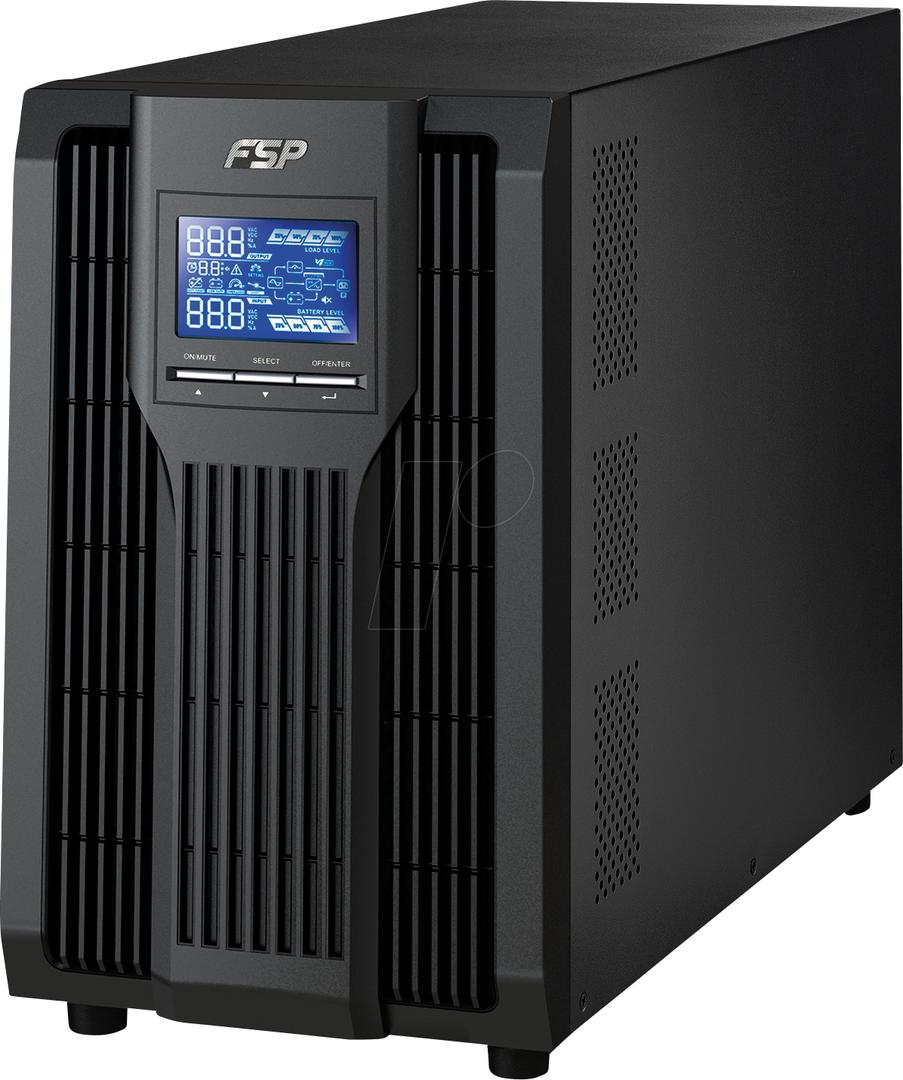

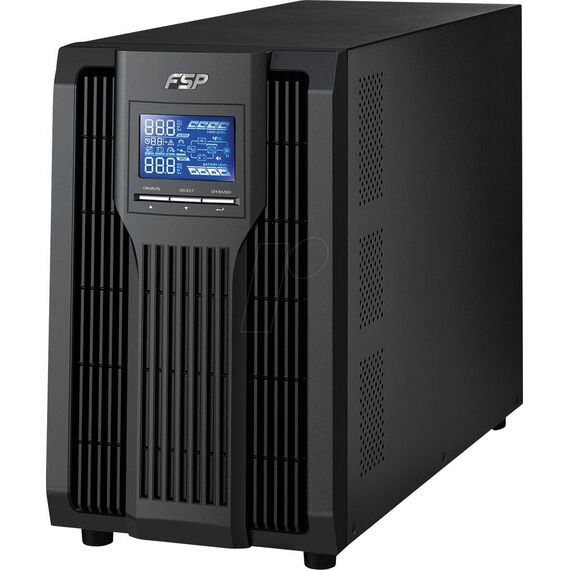

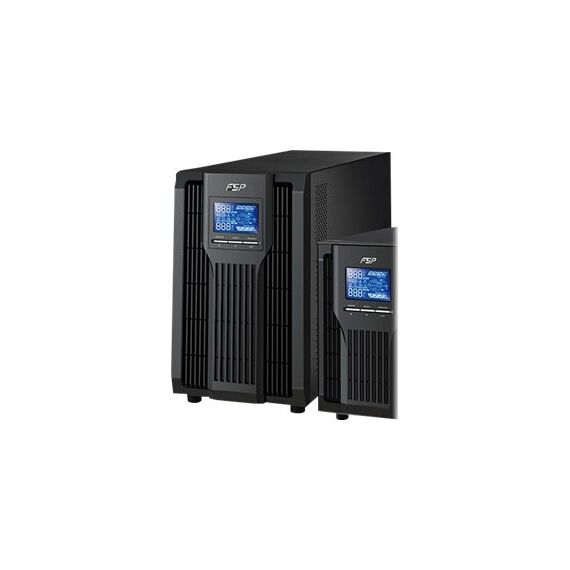

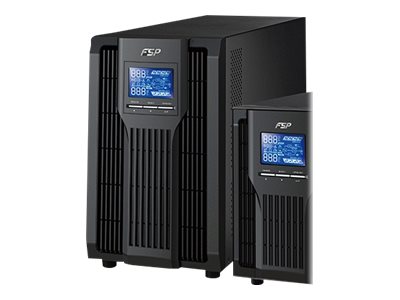

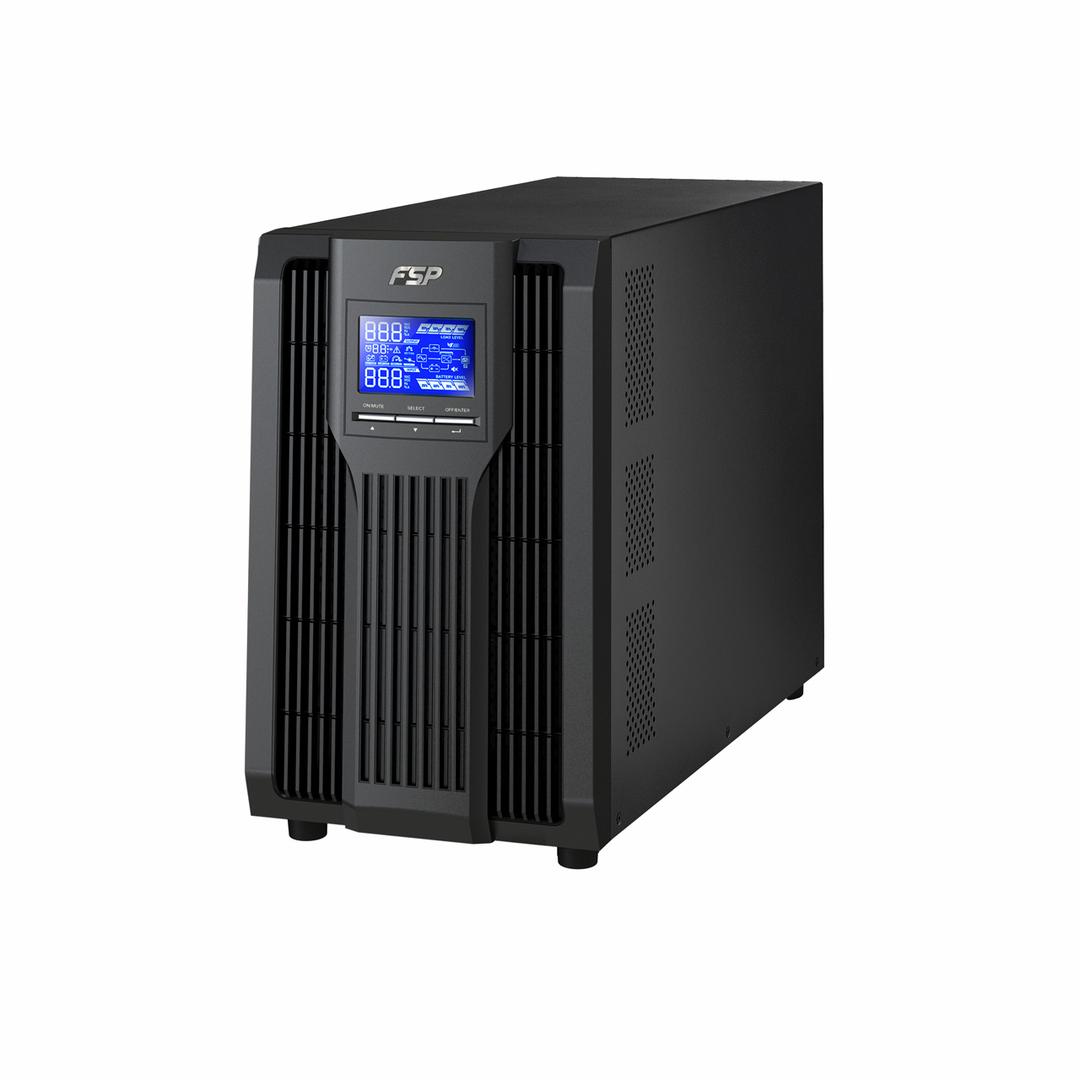

FSP Champ 3K - UPS - AC 200/208/220/230/240 V - 2700 Watt - 3000 VA 9 Ah - RS-232, USB | PPF24A1807
Please sign in so that we can notify you about a reply
Special Fetures
- True double-conversion
- Microprocessor control optimizes reliability
- Input power factor correction
- ECO mode for energy saving
- Generator compatible
- Smart SNMP works well with either USB or RS-232 together

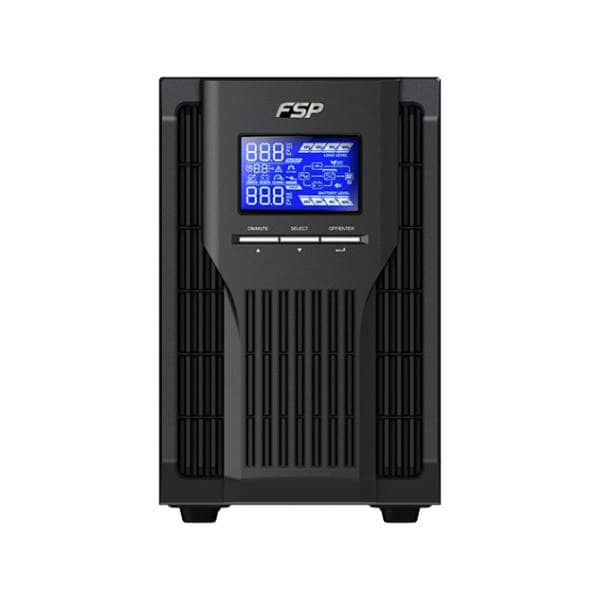

- Comprehensive display allows easy monitoring and access of UPS status
Product Specification
| Device Type | UPS - external |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 200/208/220/230/240 V |
| Frequency Provided | 50/60 Hz ± 0.5% |
| Input Voltage Margin | ± 5% |
| Frequency Required | 40 - 70 Hz |
| Output Voltage | AC 200/208/220/230/240 V ± 1% - 50/60 Hz |
| Power Capacity | 2700 Watt / 3000 VA |
| Output Waveform | Sinewave |
| Battery | |
| Quantity | 6 |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Transfer Time | 0 ms |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |

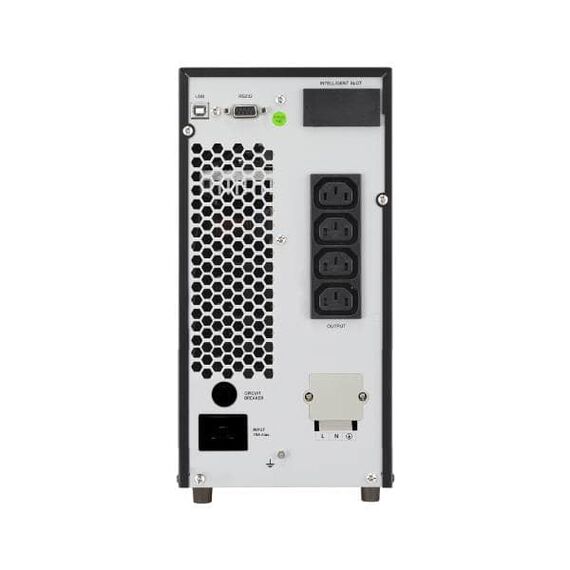

| Interfaces | 1 x management (RS-232) ¦ 1 x management (USB) - 4 pin USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
| Miscellaneous | |
| Features | Audible alarm, LCD display, Eco-Mode, generator compatible, converter mode |
| Software / System Requirements | |
| OS Required | Apple MacOS, Linux, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows 98/2000/XP/Vista/7/8 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Sound Emission | 50 dBA |
| Dimensions & Weight | |
| Width | 19 cm |
| Depth | 42.1 cm |
| Height | 31.8 cm |
| Weight | 27.6 kg |
Features - Fortron-Source - PPF24A1807
More Details
Product Code
07:213074
EAN Code
4711140487618
Manufacturer
Fortron-Source
