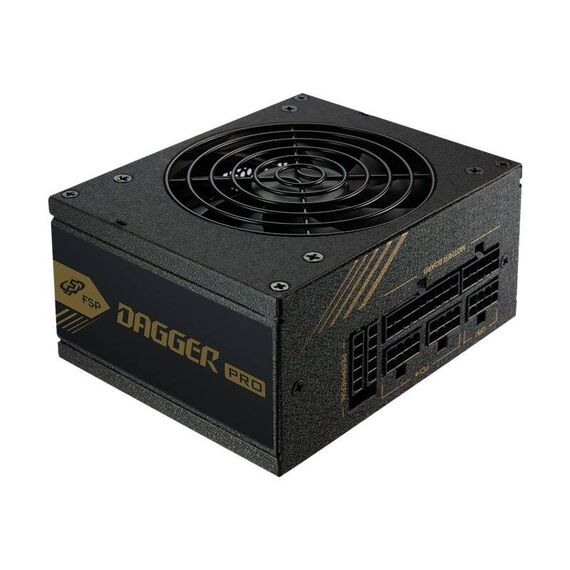

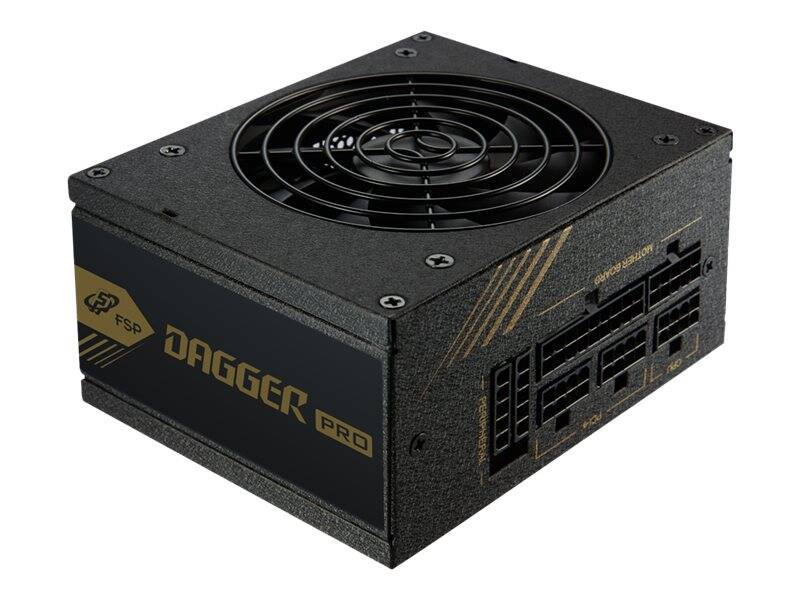

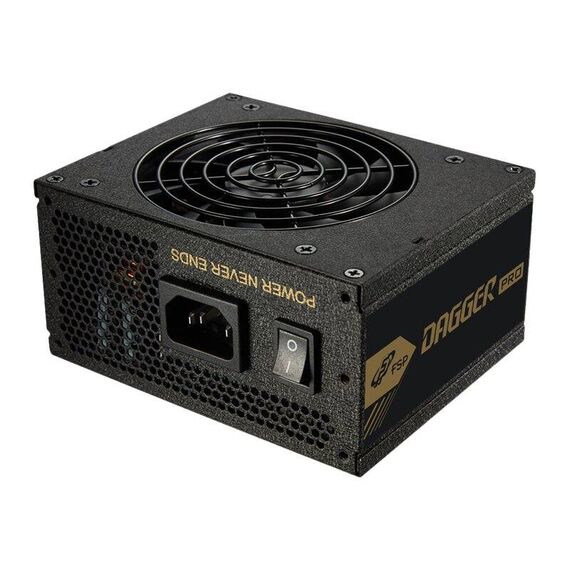

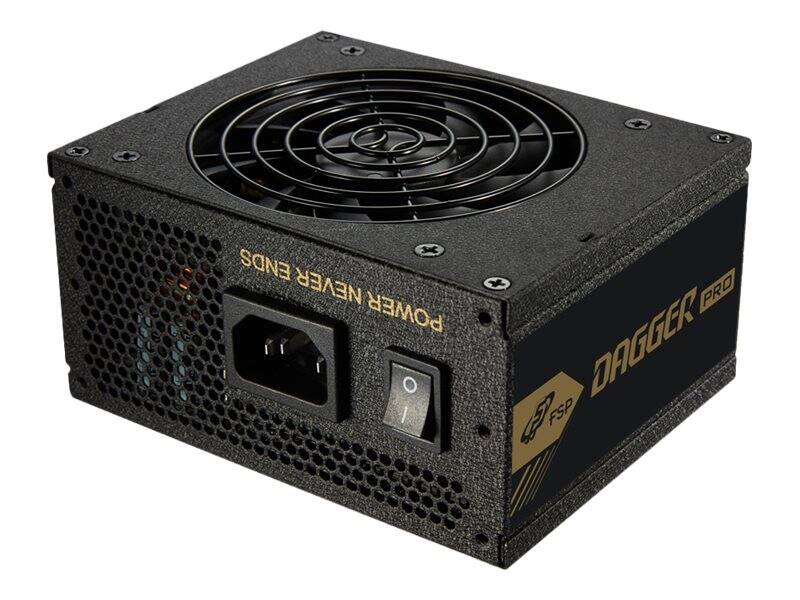

FSP Dagger Pro SDA2-650 - Power supply (internal) - SFX12V 3.3 - 80 PLUS Gold - AC 100-240 V - 650 Watt - active PFC | PPA6504801
Please sign in so that we can notify you about a reply
Product Features

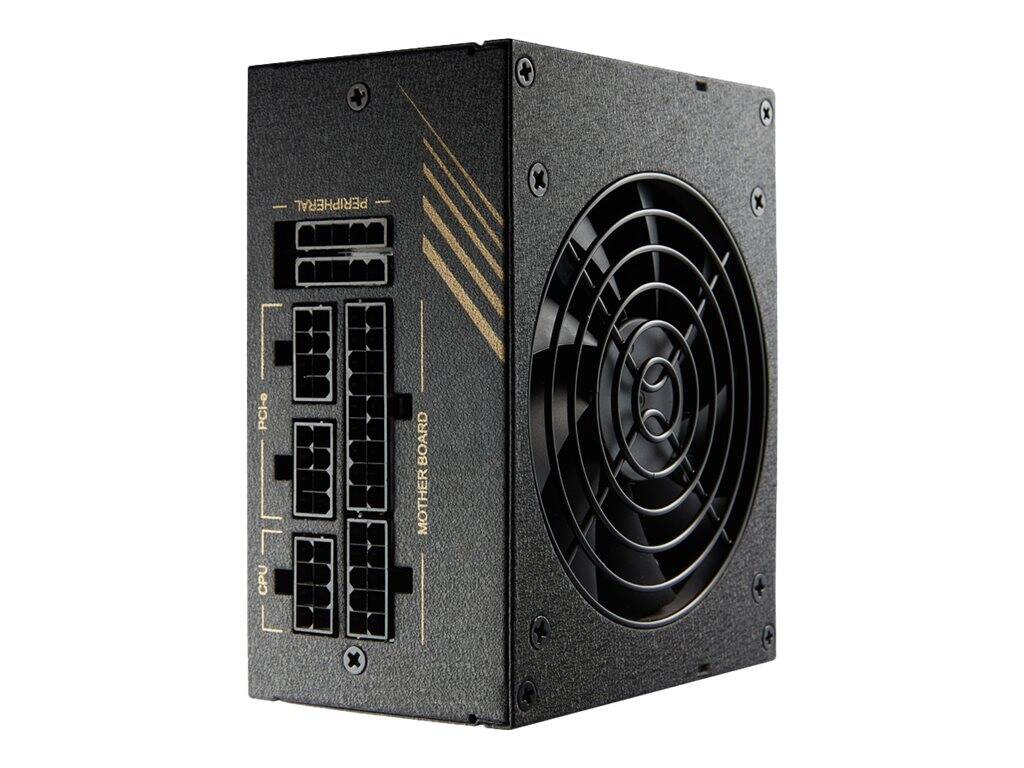

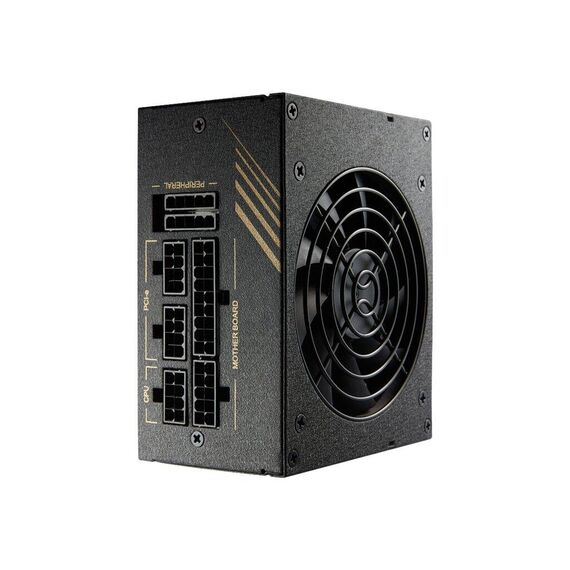

- Advance cable management and flat ribbon cables
Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management. - Optimized fan for low-noise operation

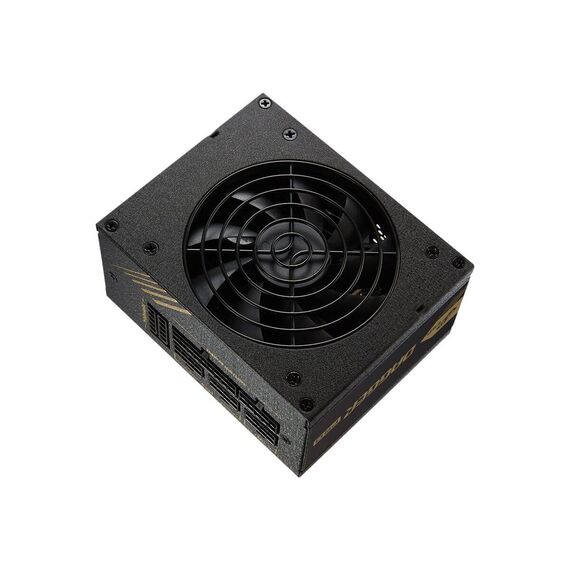

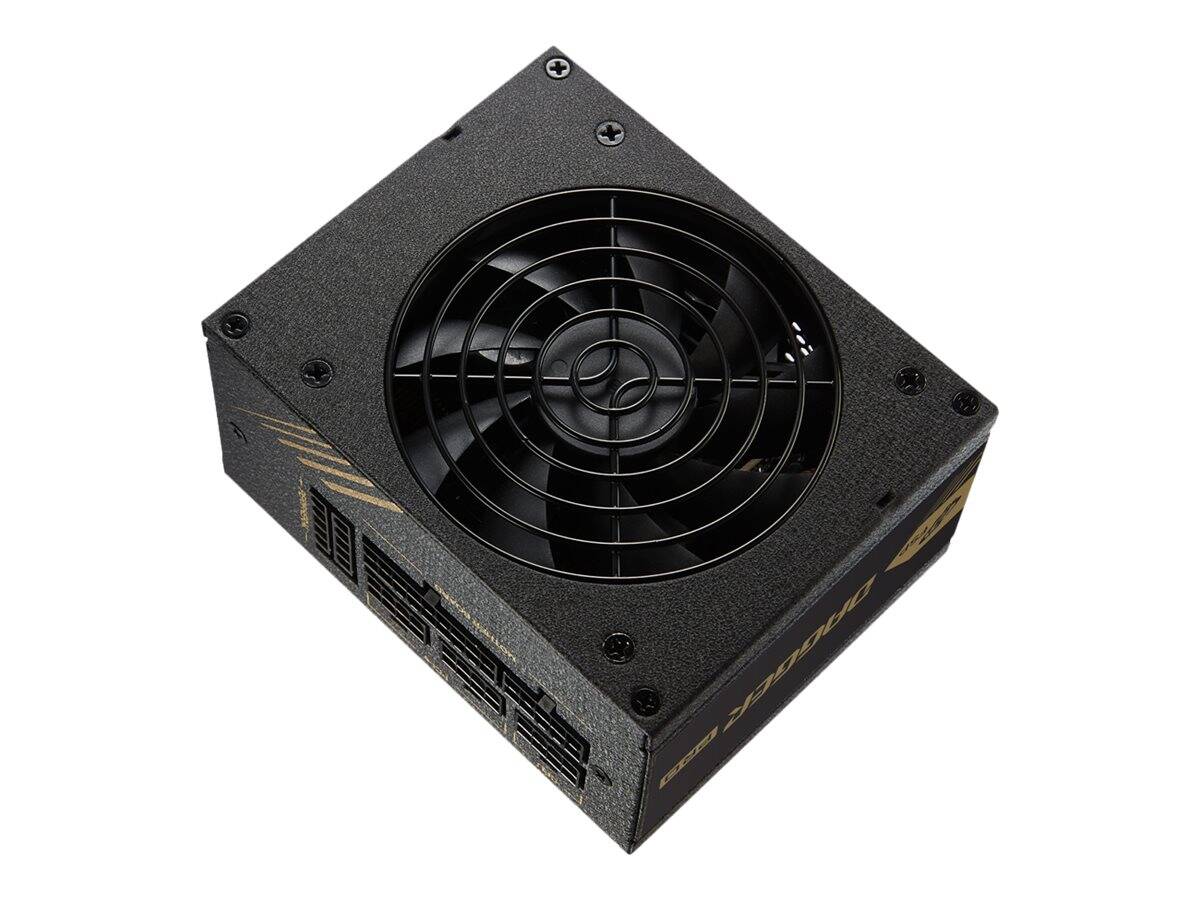

Dagger Pro features an advanced semi-fanless design to keep your system silent and reduce noise level under maximum operation. - Powerful +12V single rail for your VGA
VGA card is a component which requires stable power. The compact-size Dagger Pro features a single +12V rail design that offers VGA cards full power individually and avoids any overloading conditions. - Supports high-end motherboard
The Dagger Pro is equipped with integrated power solution to ensure solid power delivery to your system. - Compatible to PS2 case
Not only does it fit into cases with the SFX form factor, but it can also be installed simply into regular ATX, Micro-ATX or Mini-ITX cases.
Special Fetures
- MIA IC (Multiple Intelligence Ability) chip set inside
- Semi-fanless design for silent operation
- Quiet and long-lasting ball bearing fan
- Ribbon cables
- Powerful single +12V rail design
- Intel CPU ready
- Full protections OCP, OVP, SCP, OPP, OTP
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | SFX12V 3.3 |
| PSU Form Factor | SFX |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 4 PIN mini-power connector ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x power 8 pin EPS12V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 650 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 22 A ¦ +12V - 54 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |

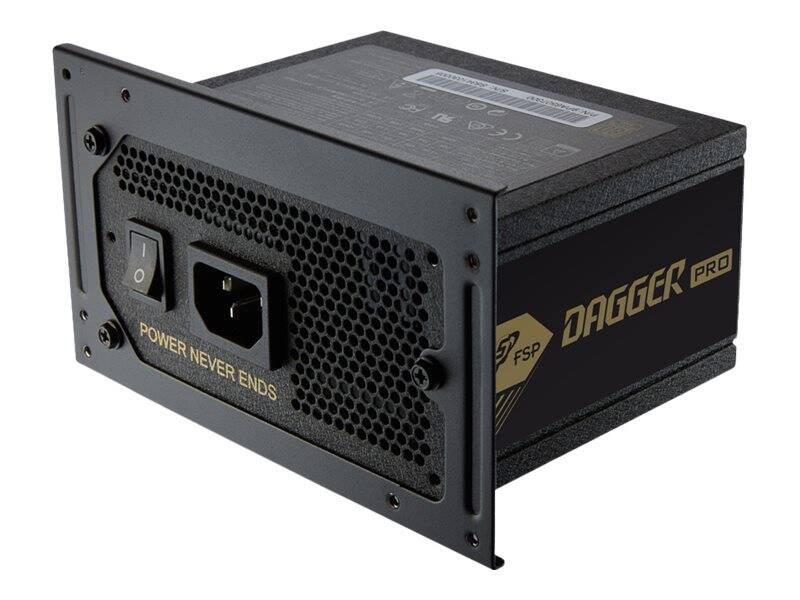

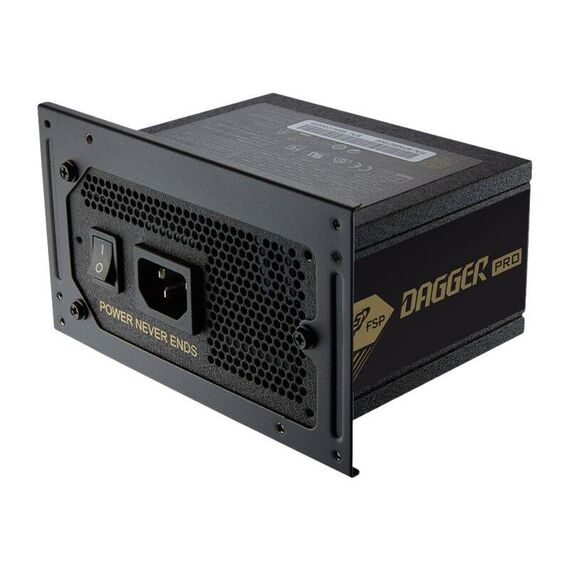

| Included Accessories | SFX to ATX bracket |
| Cooling System | 92 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail, ball bearing cooling fan, MIA IC Technology, fully modular, semi-fanless |
| Dimensions & Weight | |
| Width | 12.5 cm |
| Depth | 10 cm |
| Height | 6.35 cm |
Features - Fortron-Source - PPA6504801
More Details
Product Code
04:323969
EAN Code
4713224522055
Manufacturer
Fortron-Source
