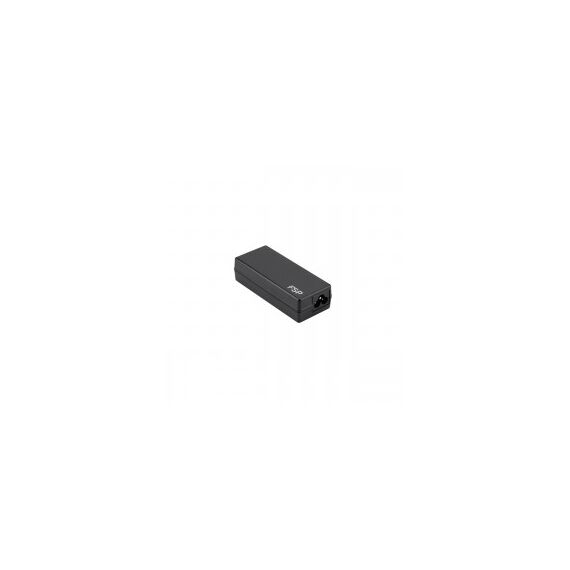

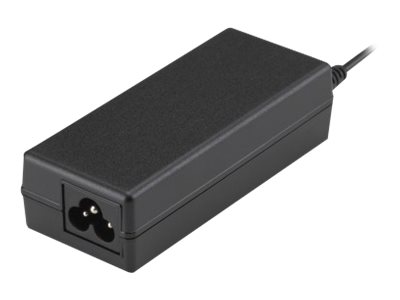

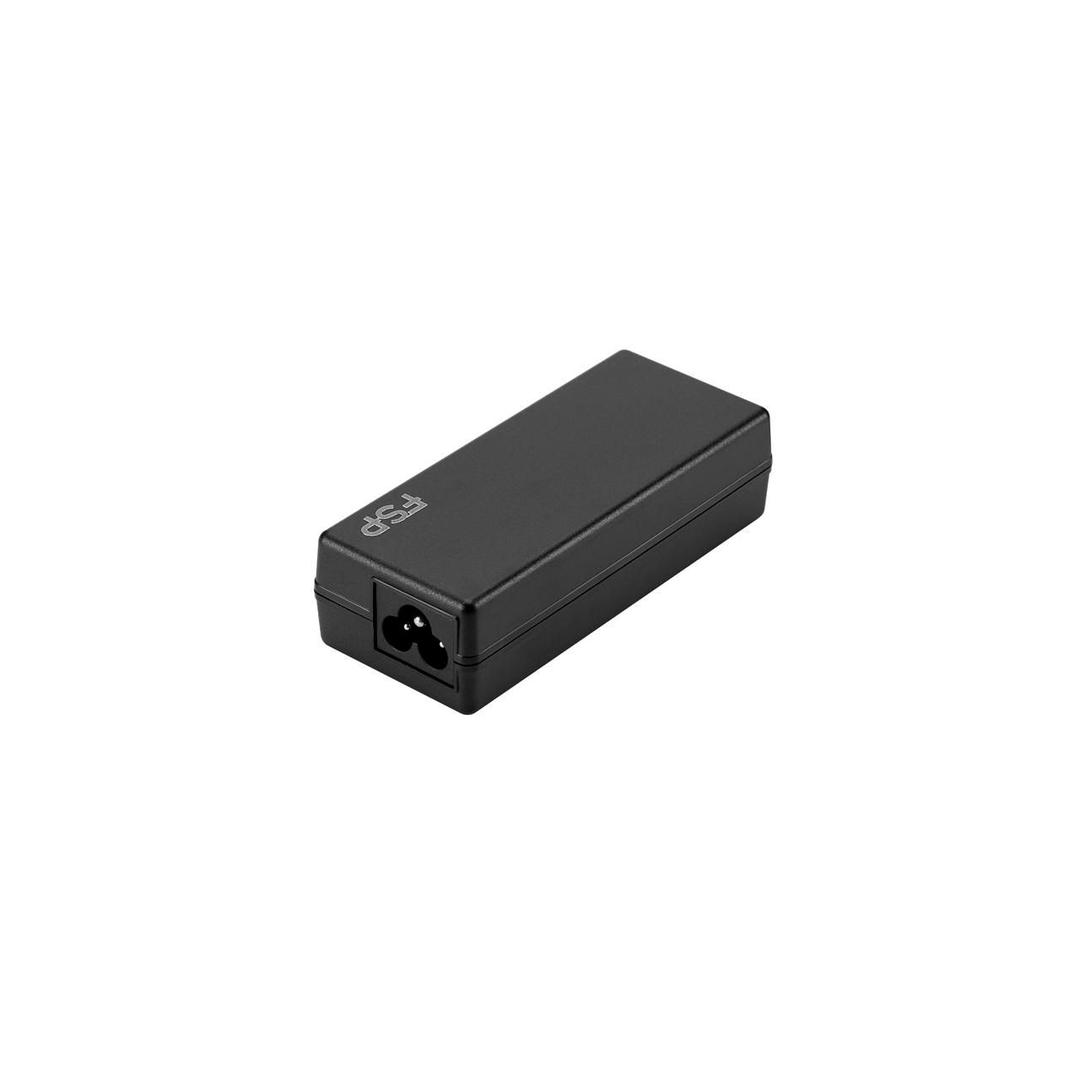

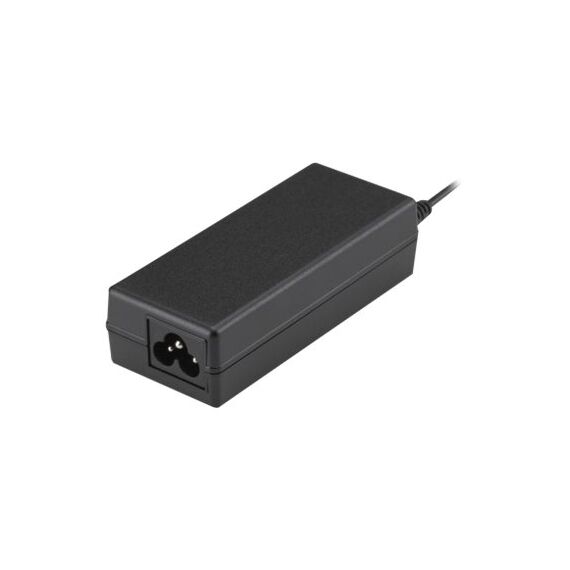

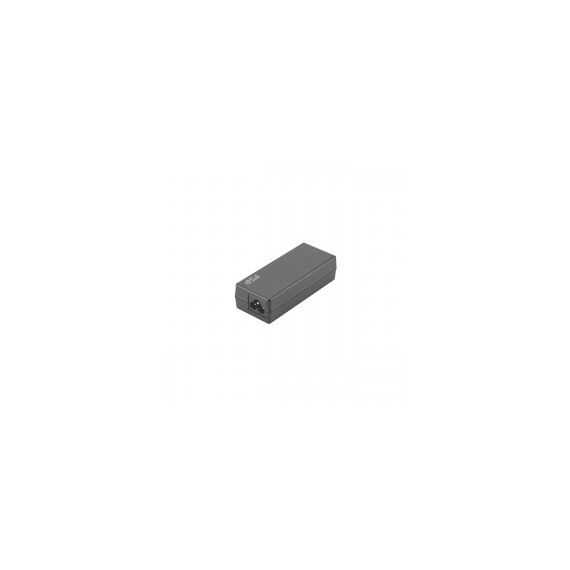

FSP FSP065-RBBN3 - Power adapter - AC 90-264 V - 65 Watt | PNA0652501
Please sign in so that we can notify you about a reply
Special Fetures
- High reliability
- Overcurrent, over-temperature, overvoltage protection
Product Specification
| Device Type | Power adapter - external |
| Power Device | |
| Input Voltage | AC 90-264 V |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | Power IEC 60320 C6 |
| Output Voltage | 19 V |
| Max Electric Current | 3.42 A |
| Power Capacity | 65 Watt |
| Efficiency | 88% DOE Level VI, 89% CoC Tier 2 |
| Miscellaneous | |
| MTBF | 300,000 hours |
| Features | Overheat protection, over current protection, over voltage protection |
| Compliant Standards | UL, TUV GS, EN55022 Class B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, EN 61000-4-5, EN55024 Class B, EN 61000-4-11, cULus, VCCI Class B, FCC Part 15 Class B, CISPR32/EN55032, EN 55032 Class B, IEC 62368-1, DoE Level VI, CB 60950-1, UL 62368 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 10.83 cm |
| Depth | 4.63 cm |
| Height | 3 cm |
Features - Fortron-Source - PNA0652501
More Details
Product Code
07:131457
EAN Code
4713224522482
Manufacturer
Fortron-Source
