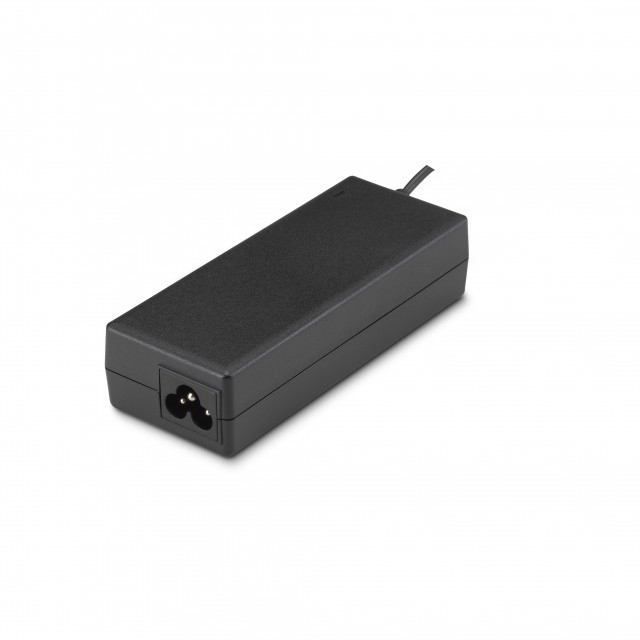

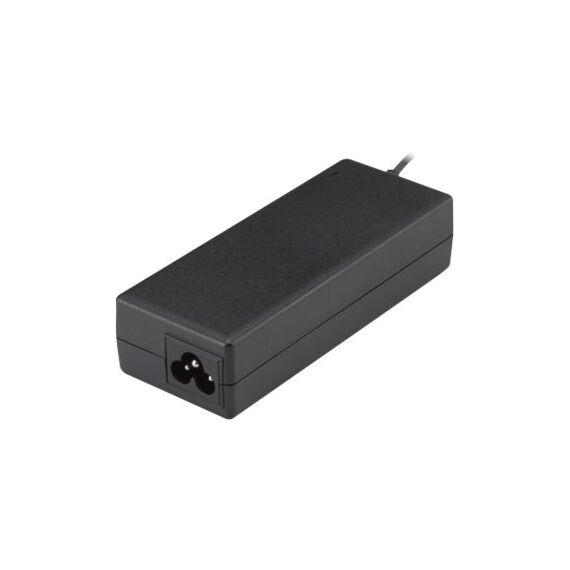

FSP FSP090-DBBN3 - Power adapter - AC 90-264 V - 90 Watt - PFC - black | FSP090-DBBN3
Please sign in so that we can notify you about a reply
Special Fetures
- Meet IEC 62368 and IEC 60950
- Meet Code of Conduct Version 5 Tier 2
- High reliability
- EMC standard: EN55032/EN55024 Class B
- Over current protection
- Over temperature protection
- Over voltage protection
- With PFC circuit
Product Specification
| Device Type | Power adapter - Power Factor Correction (PFC) - external |
| Colour | Black |
| Power Device | |
| Input Voltage | AC 90-264 V |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power IEC 60320 C6 |
| Power Output Connectors Details | 1 x power DC jack |
| Output Voltage | 19 V |
| Max Electric Current | 4.74 A |
| Power Capacity | 90 Watt |
| Efficiency | 89%+ CoC Tier 2, 88%+ DOE Level VI, 89%+ Erp Tier 2 |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 1.5 m |
| MTBF | 300,000 hours |
| Features | Overheat protection, over current protection, over voltage protection, short-circuit protection |
| Compliant Standards | VCCI, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, IEC 60950-1, FCC Part 15 Class B, IEC 62368-1, EN 55032 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 5.1 cm |
| Depth | 12.9 cm |
| Height | 3.09 cm |
Features - Fortron-Source - PNA0902201
More Details
Product Code
07:131458
EAN Code
4713224522499
Manufacturer
Fortron-Source
