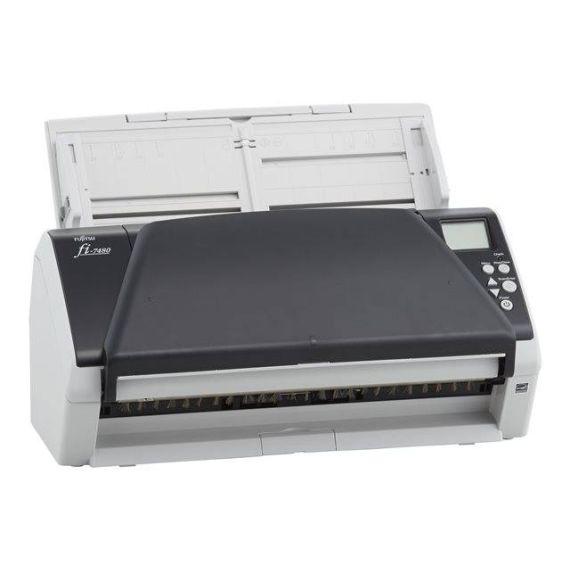

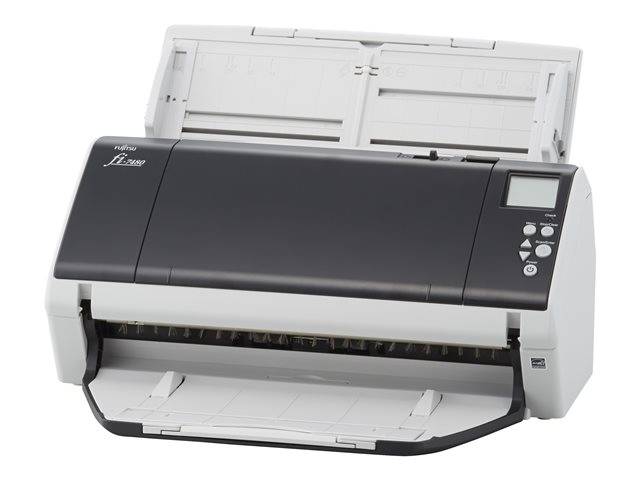

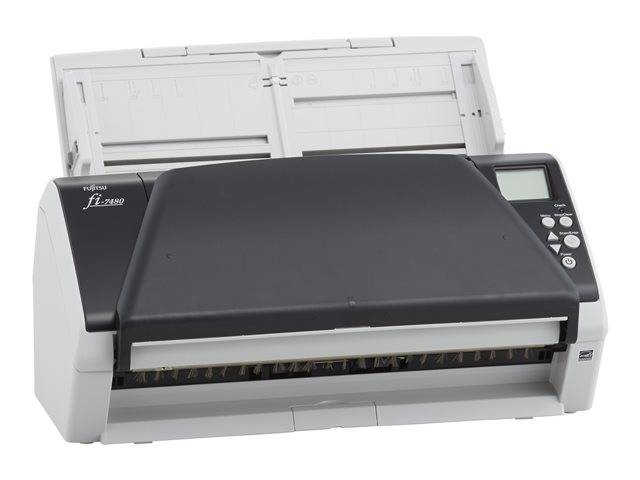

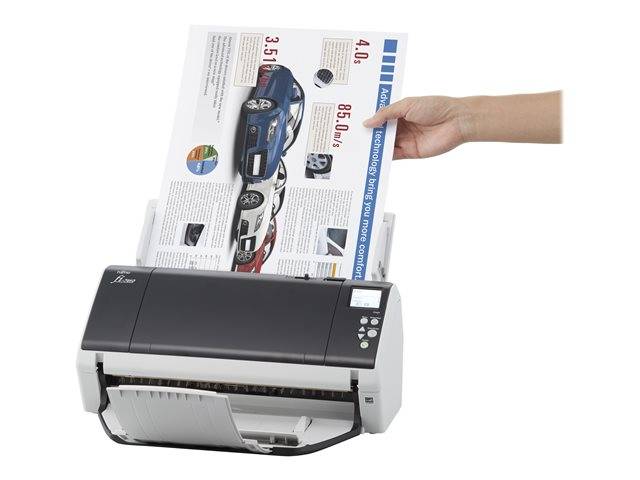

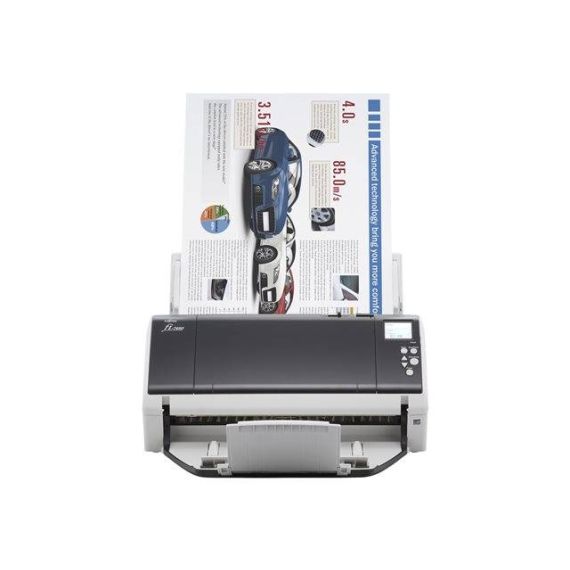

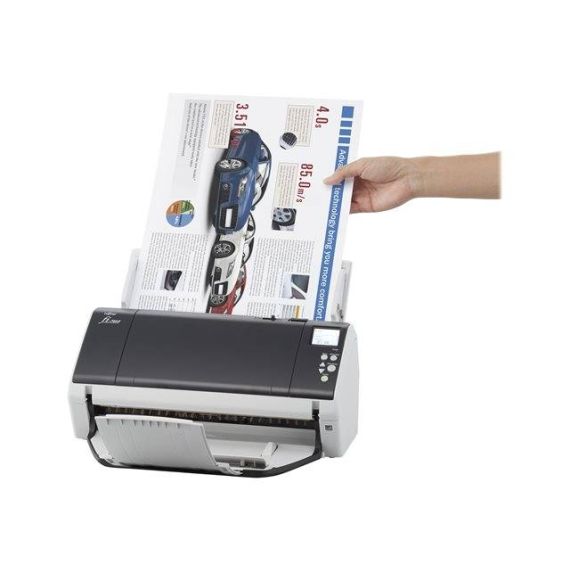

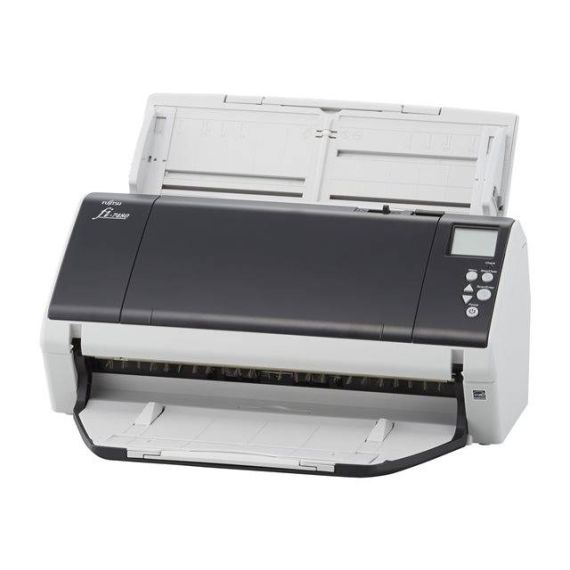

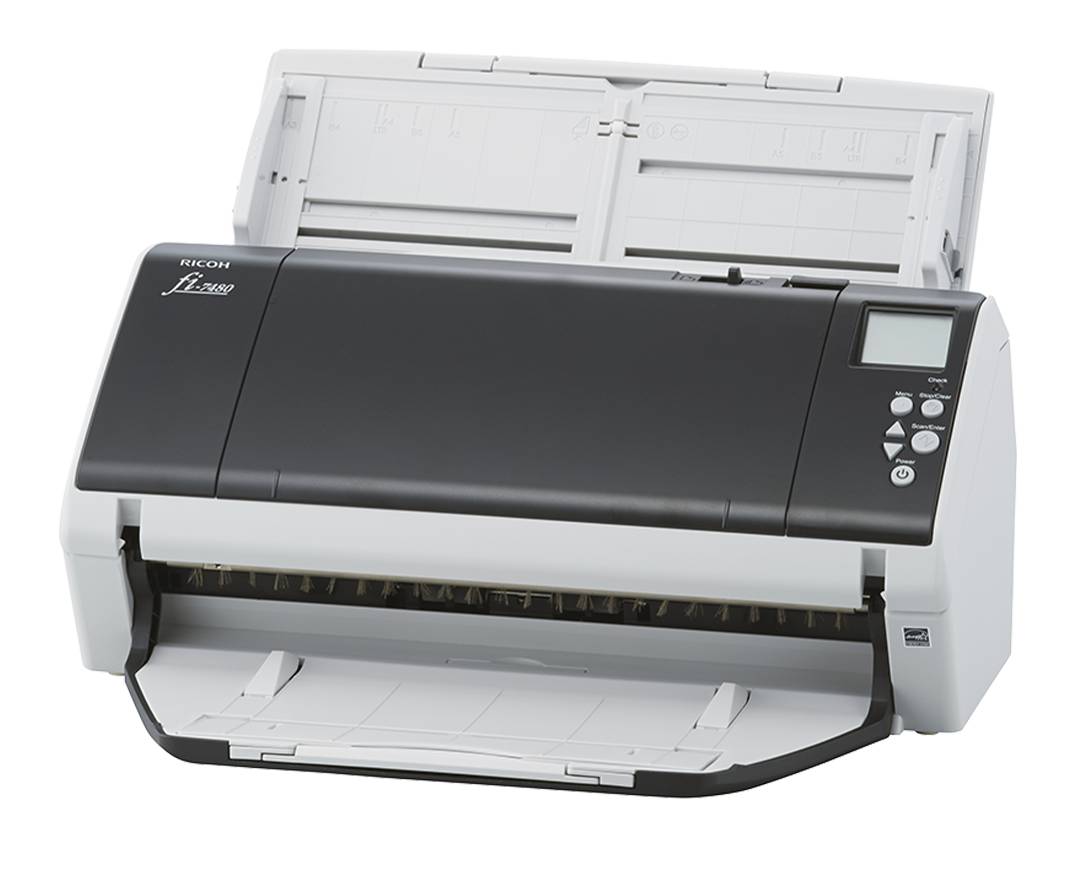

Fujitsu fi-7480 / Document scanner / Duplex / 304.8 x 431.8 mm / 600 dpi x 600 dpi / up to 160 ppm (mono) / up to 160 ppm (colour) / ADF (100 sheets) / USB 3.0 | PA03710-B001
Fujitsu fi-7480 / Document scanner / Duplex / 304.8 x 431.8 mm / 600 dpi x 600 dpi / up to 160 ppm (mono) / up to 160 ppm (colour) / ADF (100 sheets) / USB 3.0 | PA03710-B001
Description The fi-7480 is easy to set up, use and maintain and comes bundled with a user friendly and intuitive scanner driver PaperStream IP along with batch scanning automation and enhancement software PaperStream Capture. A4 landscape scanning speeds in both color or black and white at up to 300 dpi is 80 pages per minute or 160 images per minute through the 100 page capacity ADF. The fi-7480 can scan a huge variety of material from plastic cards to booklets to even folded A1 in size.The fi-7480 scanner comes with a unique paper protection function that is based on acoustic sensors; iSOP (Intelligent Sonic Paper Protection), iSOP reduces the risk of having documents damaged by sensing the audible noise of paper movements and stopping the feeding of sheets when an irregular noise is encountered.The scanner additionally makes use of an ultrasonic sensor that accurately detects multifeed errors where two or more sheets are fed through the scanner at once plus intelligent multifeed function that is designed for documents that intentionally feature paper attachments of defined sizes or locations such as sticky notes or photos. The scanner can automatically recognize the location of the attachment and will then exclude that zone from triggering alert conditions.Skew Reducer helps ensure straight paper feeding, should you be scanning mixed batches of differing thicknesses of documents then the "skew reducer" eliminates the risk of physical skew being carried over from one sheet in a mixed batch to the next ensuring that each document is captured with the utmost precision and simplicity. Multi-segmented pick rollers that rotate independently ensure that if a document goes through skewed then this will not affect the alignment of the next document.Integrated within the operating panel a backlight enhanced LCD shows useful information such as current scanner settings, operating status and a paper counter, in addition the fi-7480 comes with Scanner Central Admin tools that includes functions that system administrators can use to manage the installation and operation of multiple scanners, monitor operation status and update drivers and software from one location. This ability dramatically reduces the cost and work that goes into setting up, operating and maintaining many scanners in an organization and also in expanding the scanner network to multiple locations.The fi-7480 comes bundled with PaperStream IP, an integrated scanner driver and image enhancement module that is built on TWAIN/ISIS standards offering user friendly operability, intuitive high quality image creation and real time processing that will benefit post scan routines like OCR. PaperStream Capture enhances the document capture process from adjusting scanning settings to performing batch scanning, verifying data and releasing to directories, repositories or subsequent process routines. Users can complete data capture tasks easily with the extremely user-friendly graphical user interface (GUI). Moving scanned batches into a queue for later retrieval is possible as well. |
Product Specification
Type | Document scanner - desktop |
Interface Type | USB 3.0 |
Max Supported Document Size | 304.8 x 431.8 mm |
Input Type | Colour |
Grayscale Depth (External) | 8-bit (256 grey levels) |
Colour Depth (External) | 24-bit (16.7 million colours) |
Optical Resolution | 600 dpi x 600 dpi |
Interpolated Resolution | 1200 dpi x 1200 dpi |
Automatic Duplexing | Yes |
Scan Element Type | Dual CCD |
Bulb / Light Source Type | White LED array |
Max Document Scan Speed B/W | 160 ppm |
Max Document Scan Speed Colour | 160 ppm |
Scanner Speed Details | 80 ppm - landscape colour - A4 ¦ 80 ppm - landscape greyscale - A4 ¦ 80 ppm - landscape B&W - A4 ¦ 160 ipm - duplex - landscape colour - A4 - 200 dpi ¦ 160 ipm - duplex - landscape greyscale - A4 - 200 dpi ¦ 160 ipm - duplex - landscape B&W - A4 - 200 dpi ¦ 160 ipm - duplex - landscape colour - A4 - 300 dpi ¦ 160 ipm - duplex - landscape greyscale - A4 - 300 dpi ¦ 160 ipm - duplex - landscape B&W - A4 - 300 dpi ¦ 65 ppm - portrait B&W - A4 ¦ 65 ppm - portrait greyscale - A4 ¦ 65 ppm - portrait colour - A4 ¦ 130 ipm - portrait B&W - A4 - 200 dpi ¦ 130 ipm - portrait greyscale - A4 - 200 dpi ¦ 130 ipm - portrait colour - A4 - 200 dpi ¦ 130 ipm - portrait B&W - A4 - 300 dpi ¦ 130 ipm - portrait greyscale - A4 - 300 dpi ¦ 130 ipm - portrait colour - A4 - 300 dpi |
Scanner Features | Multi Color Dropout, Image Emphasis, Long Paper Mode, Dynamic Threshold, Error Diffusion, automatic colour detection, Dither, Advanced DTC, Multi-Image Output, built-in LCD screen, Ultrasonic Multi Feed Detection, Punch Hole Removal, Deskew, Blank Page Detection, edge cleanup |
Compliant Standards | TWAIN, ISIS |
Max Document Size | 304.8 mm x 5588 mm |
Supported Document Type | Plain paper, plastic card |
Document Feeder Type | Automatic |
Document Storage Capacity | 100 sheets |
Interfaces | USB 3.0 - Type B |
Cables Included | 1 x USB cable |
Compliant Standards | RoHS |
ENERGY STAR Certified | Yes |
Power Device | External power adapter |
Voltage Required | AC 120/230 V |
Power Consumption Operational (Standby) | 43 Watt |
Power Consumption Stand by | 0.35 Watt |
Power Consumption Sleep | 1.4 Watt |
Software Included | Drivers & Utilities, ScanSnap Manager, ABBYY FineReader for ScanSnap, Scanner Central Admin, Software Operation Panel, PaperStream IP, PaperStream Capture |
OS Required | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Windows 8 (32/64 bits), Microsoft Windows Server 2008 R2 (64-bits), Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 (64-bit), Microsoft Windows Server 2012 R2 (64-bit), Windows 10 (32/64 bits), Microsoft Windows Server 2016 (64-bit) |
Width | 38 cm |
Depth | 20.9 cm |
Height | 16.8 cm |
Weight | 7.6 kg |
Min Operating Temperature | 5 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 20 - 80% (non-condensing) |
