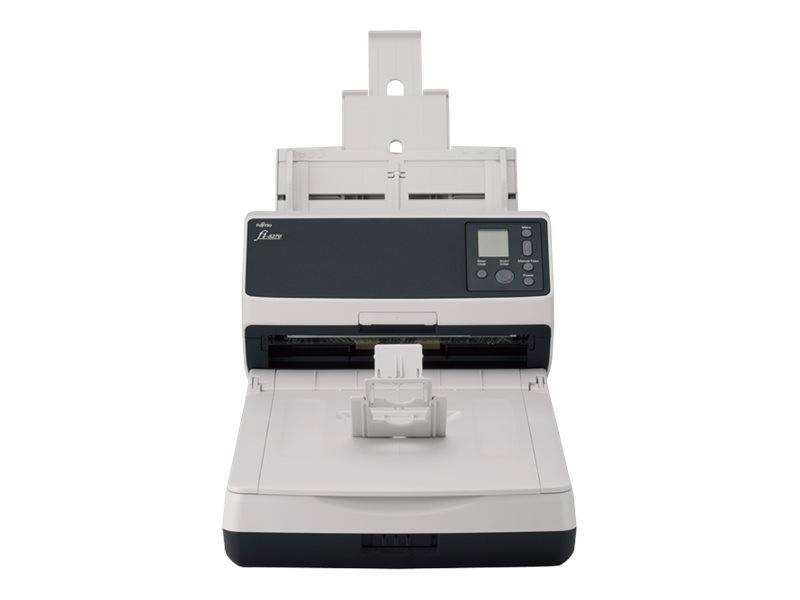

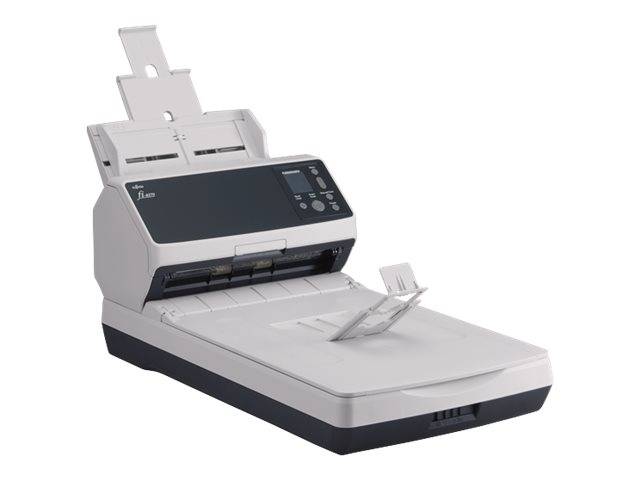

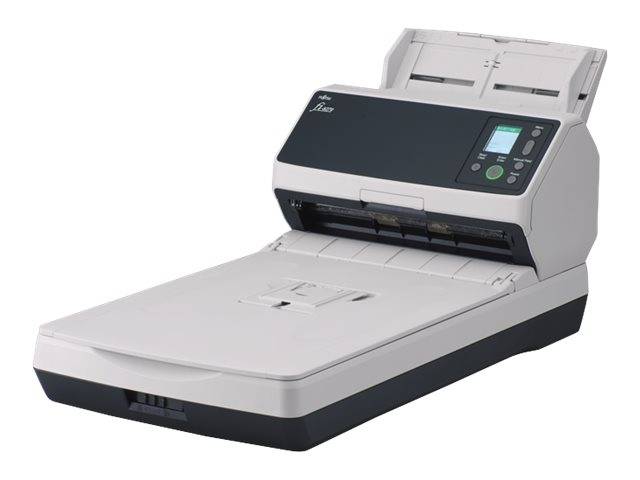

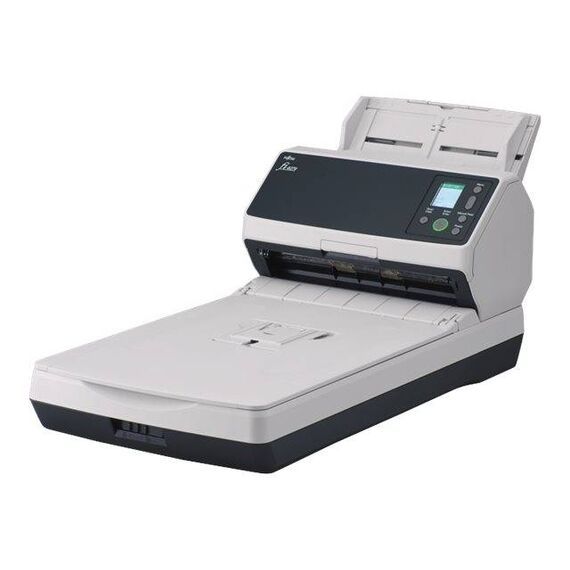

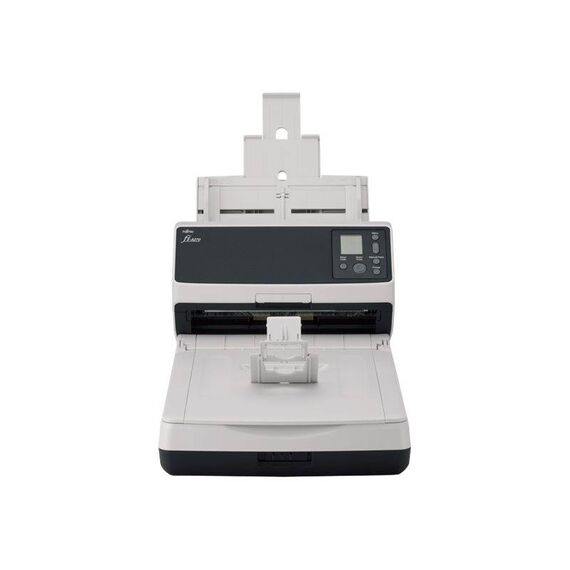

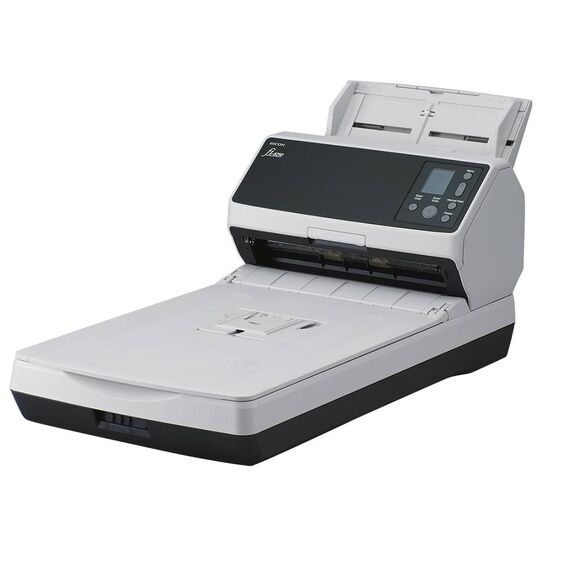

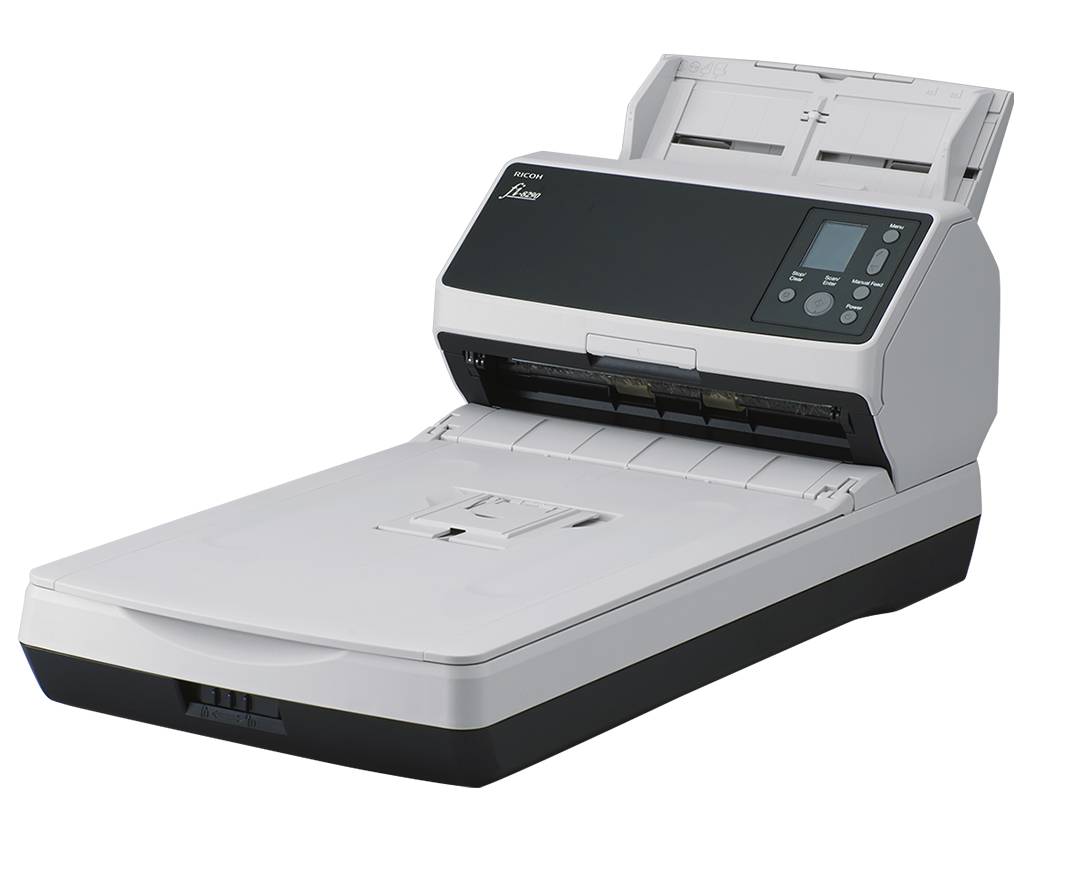

Fujitsu fi-8290 / Document scanner / flatbed: CCD / ADF: dual CIS / Duplex / 216 x 355.6 mm / 600 dpi x 600 dpi / up to 90 ppm (mono) / up to 90 ppm (colour) / ADF (100 sheets) / up to 13000 scans per day / Gigabit LAN, USB 3.2 Gen 1 | PA03810-B501
Please sign in so that we can notify you about a reply
Product Specification
| Type | Document scanner - desktop |
| Interface Type | Gigabit LAN, USB 3.2 Gen 1 |
| Max Supported Document Size | 216 x 355.6 mm |
| Scanner | Scanner |
| Input Type | Colour |
| Grayscale Depth (External) | 8-bit (256 grey levels) |
| Colour Depth (External) | 24-bit (16.7 million colours) |
| Optical Resolution | 600 dpi x 600 dpi |
| Interpolated Resolution | 1200 dpi x 1200 dpi |
| Automatic Duplexing | Yes |
| Scanning Sensor Type | Flatbed: CCD / ADF: dual CIS |
| Bulb / Light Source Type | Flatbed: white LED / ADF: dual RGB LED |
| Max Document Scan Speed B/W | 90 ppm |
| Max Document Scan Speed Colour | 90 ppm |
| Duty Cycle | 13000 scans per day |
| Scanner Speed Details | 90 ppm - portrait - A4 - 200 dpi ¦ 90 ppm - portrait - A4 - 300 dpi ¦ 180 ipm - duplex - portrait - A4 - 200 dpi ¦ 180 ipm - duplex - portrait - A4 - 300 dpi ¦ 1.7 sec/scan - portrait flatbed - 200 dpi ¦ 1.7 sec/scan - portrait flatbed - 300 dpi |
| Scanner Features | Color Dropout, Image Emphasis, Dynamic Threshold, Error Diffusion, automatic colour detection, Dither, Advanced DTC, Punch Hole Removal, Deskew, Blank Page Detection, descreening, Vertical Line Reduction, halftone removal |
| Scan File Formats | BMP, JPEG, PNG, TIFF, PDF, Multi-TIFF, DOC, XLS, JPEG 2000 |
| Compliant Standards | TWAIN, ISIS |
| Media Handling | Media Handling |
| Max Document Size | 216 mm x 6096 mm |
| Supported Document Type | Plain paper, bulk objects (such as books, magazines and other bound materials), business card, passport, envelope, post card |
| Supported Document Size Details | Long document - up to 216 x 6096 mm ¦ ADF - up to 216 x 355.6 mm |
| Document Feeder Type | Manual, automatic |
| Document Storage Capacity | 100 sheets |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | USB 3.2 Gen 1 - Type B ¦ Gigabit LAN |
| Miscellaneous | Miscellaneous |
| Included Accessories | ADF paper chute |
| Cables Included | 1 x USB cable |
| Compliant Standards | RoHS |
| Environmental Standards | Environmental Standards |
| ENERGY STAR Certified | Yes |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational (Standby) | 30 Watt |
| Power Consumption Stand by | 0.2 Watt |
| Power Consumption Sleep | 2 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | ABBYY FineReader for ScanSnap, Scanner Central Admin, Software Operation Panel, PaperStream Capture, Error Recovery Guide, PaperStream NX Manager, PaperStream ClickScan |
| OS Required | Apple MacOS, Microsoft Windows Server 2008 R2, Ubuntu, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Windows 11 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 30 cm |
| Depth | 57.7 cm |
| Height | 23.4 cm |
| Weight | 8.8 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Advanced Exchange Service - replacement - 1 year - response time: next business day |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 15 - 80% (non-condensing) |
Features - Fujitsu - PA03810-B501
More Details
Product Code
CG59103
EAN Code
4939761312243
Manufacturer
Fujitsu
