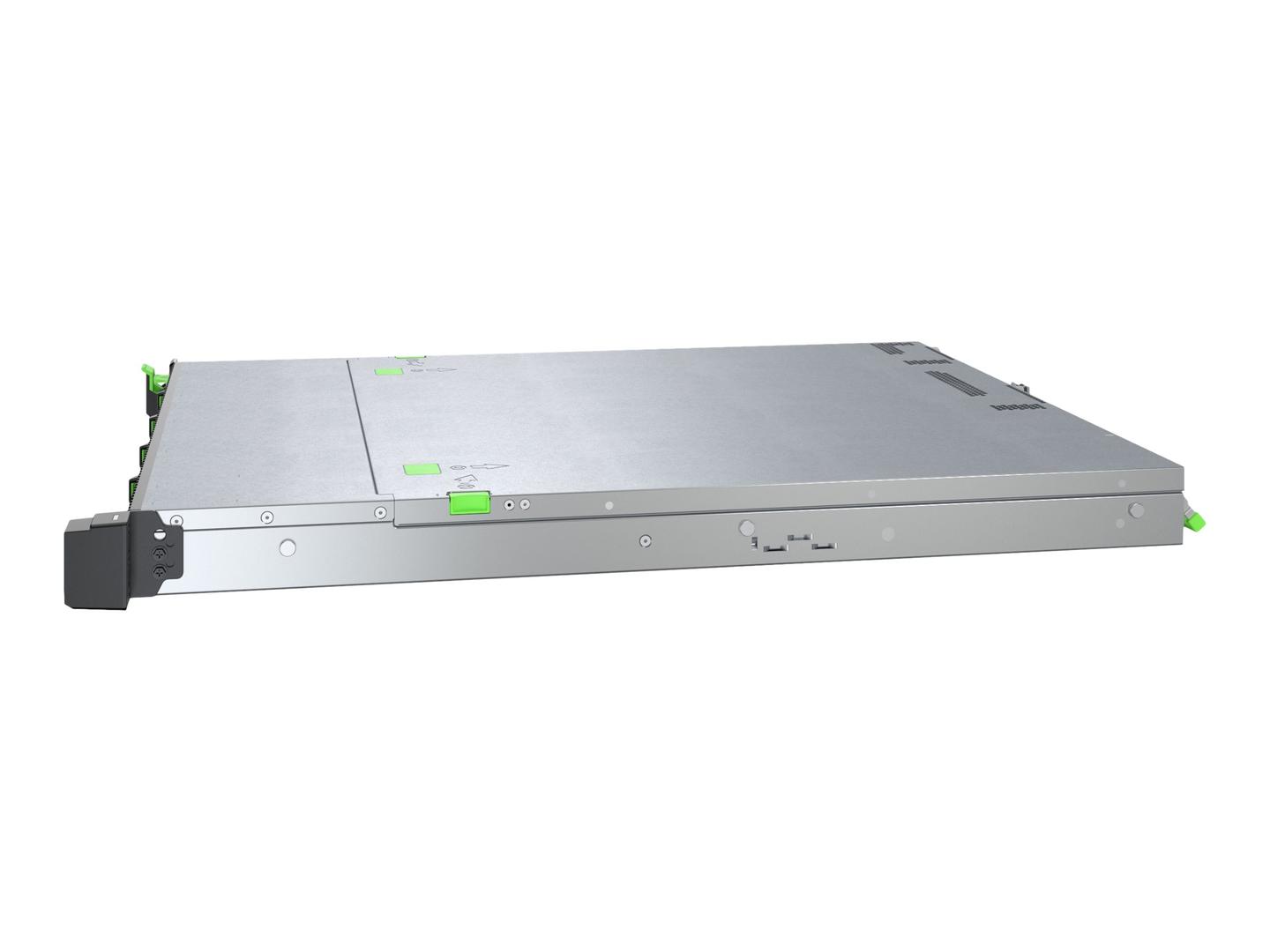

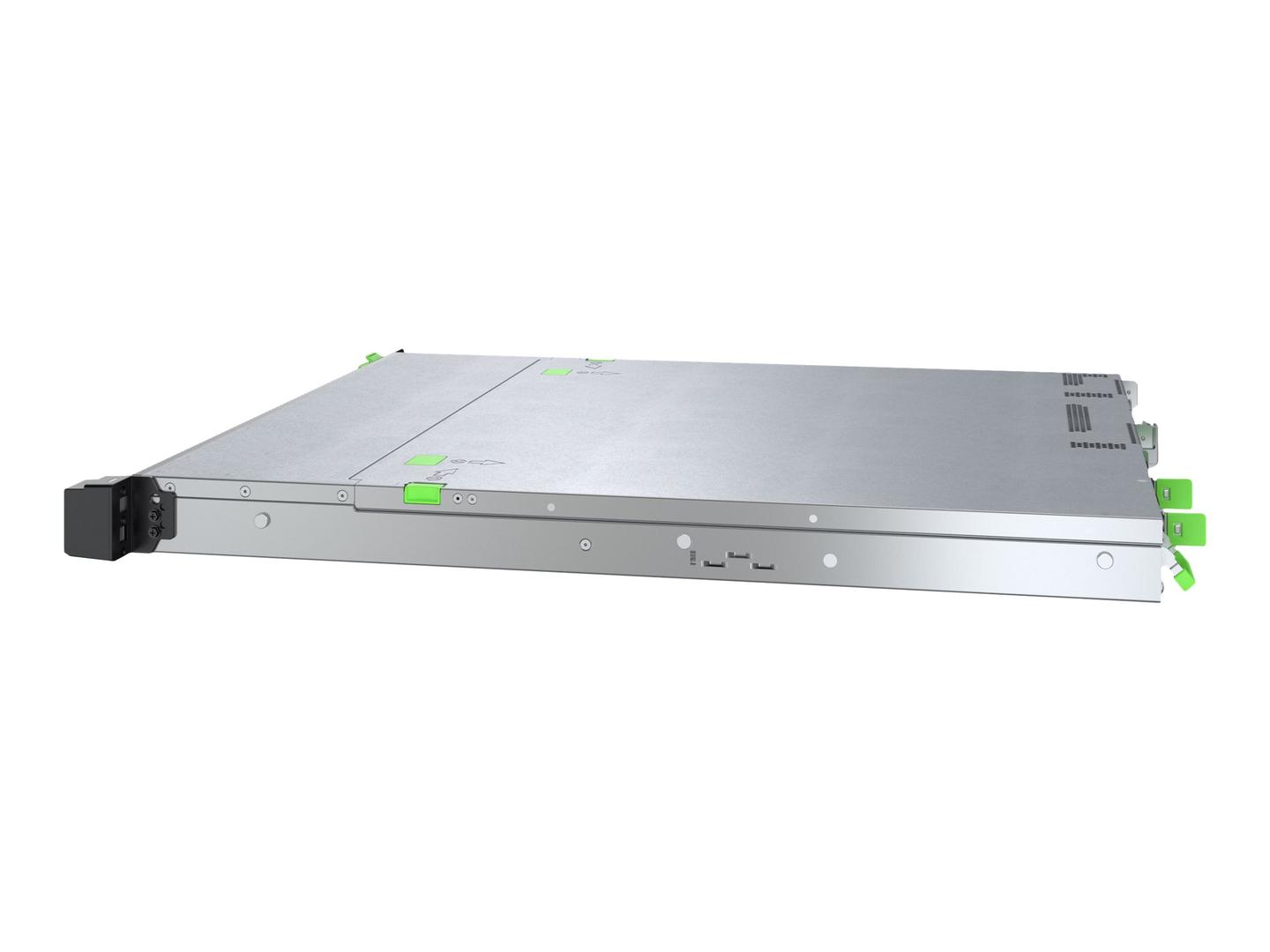

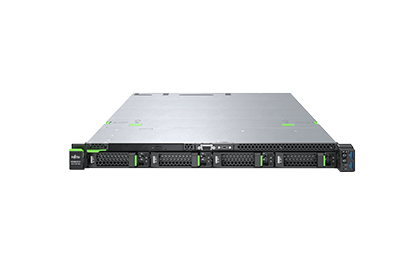

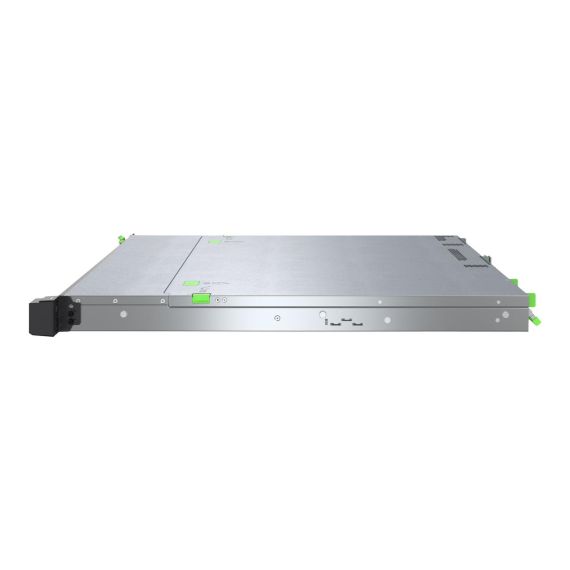

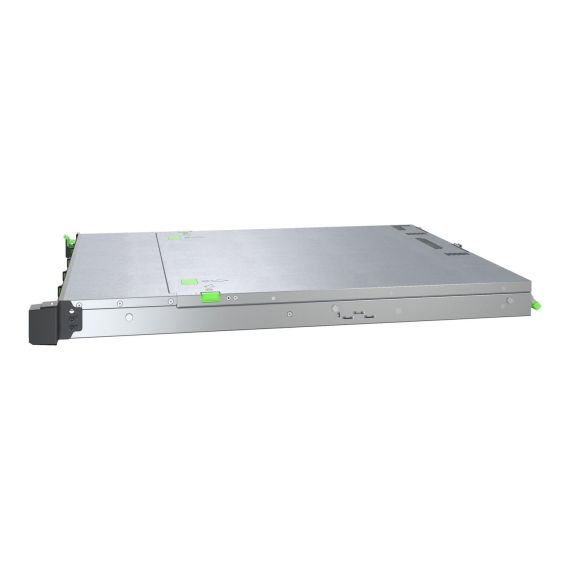

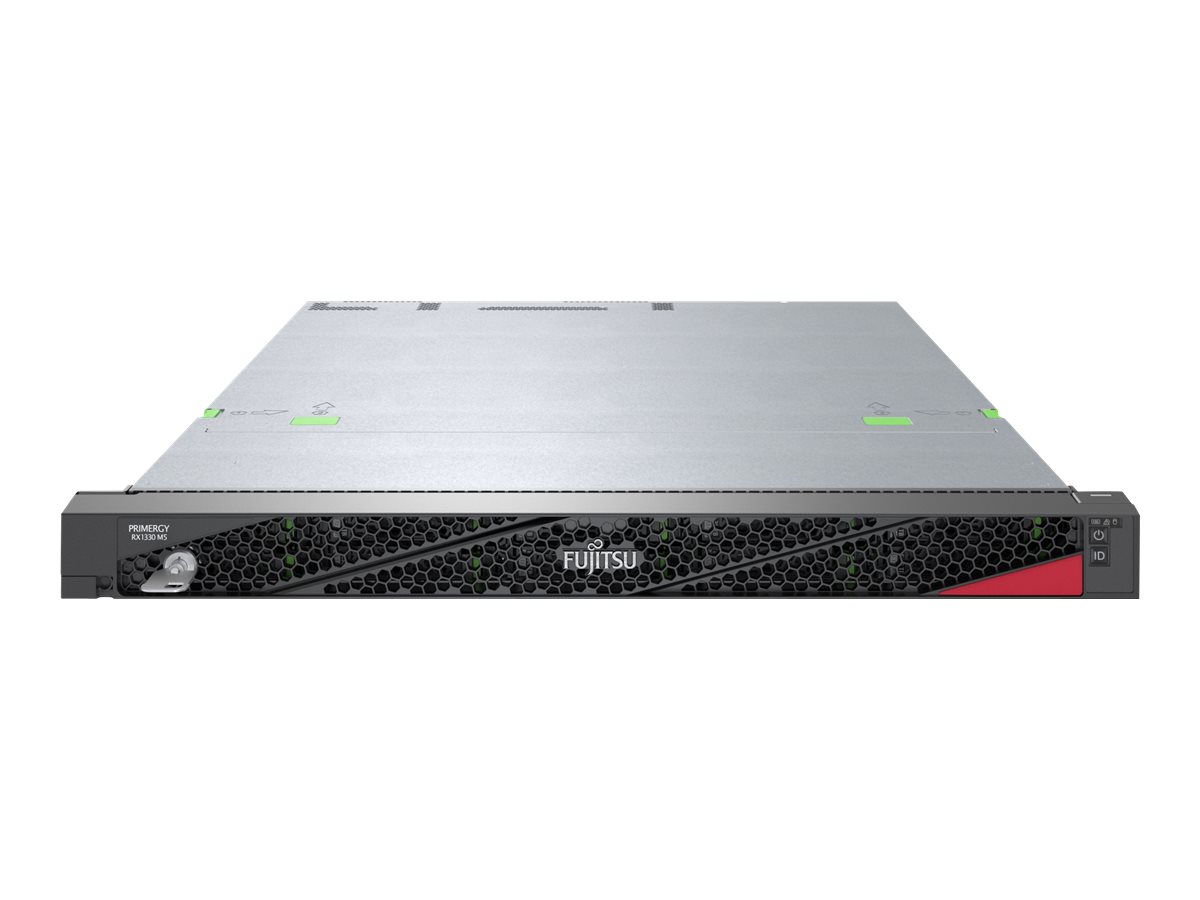

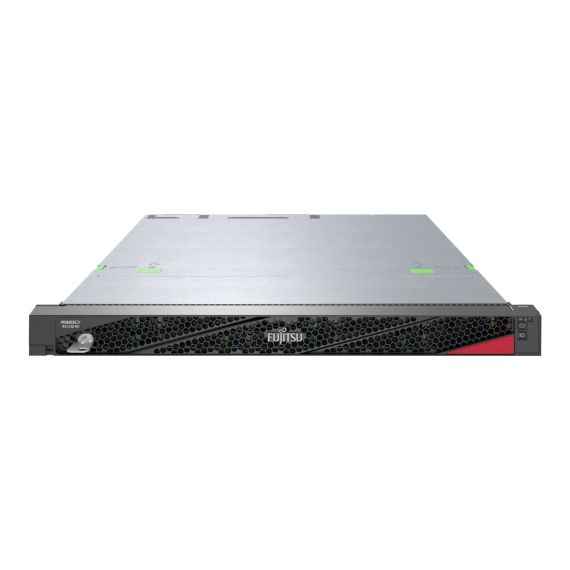

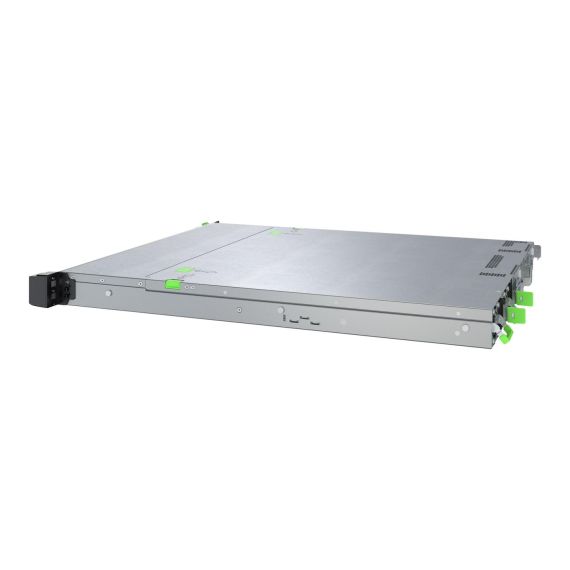

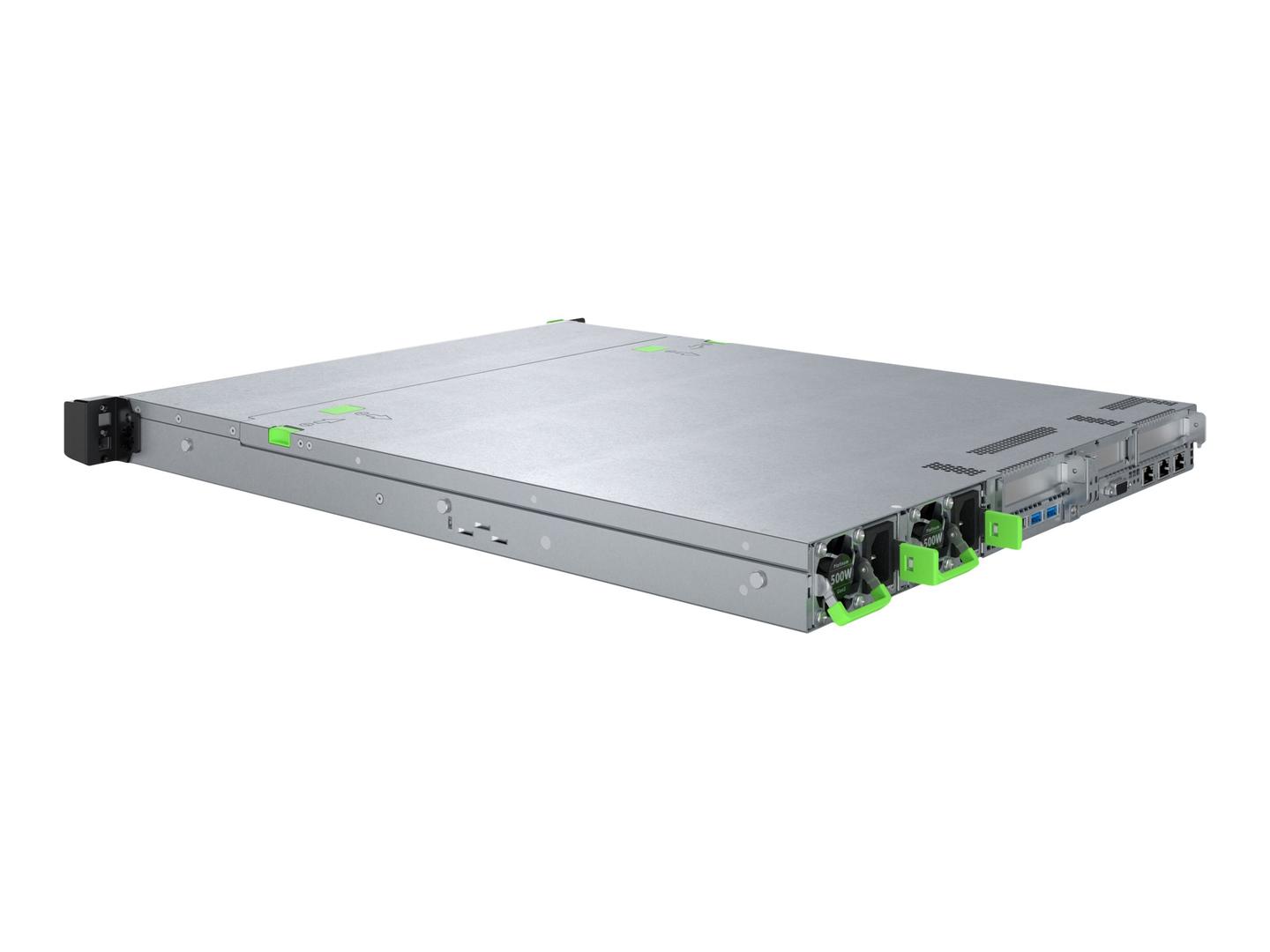

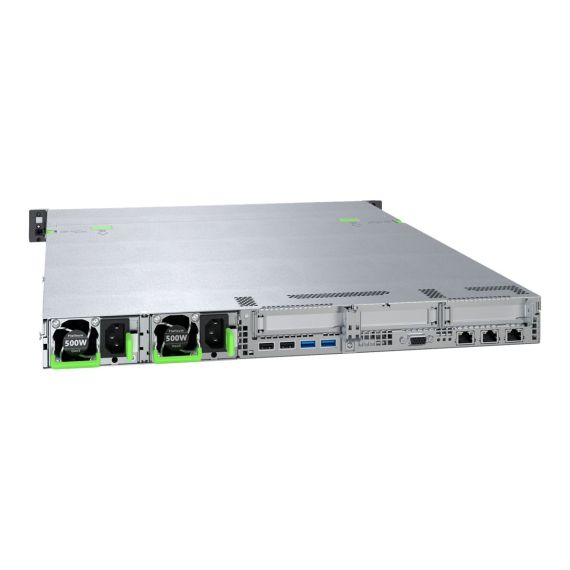

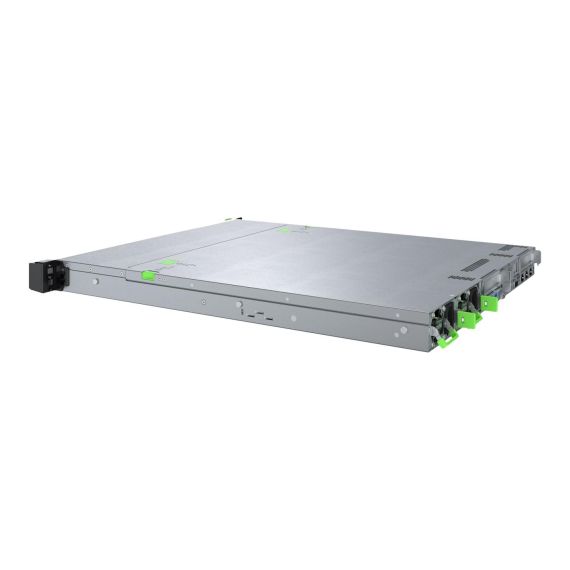

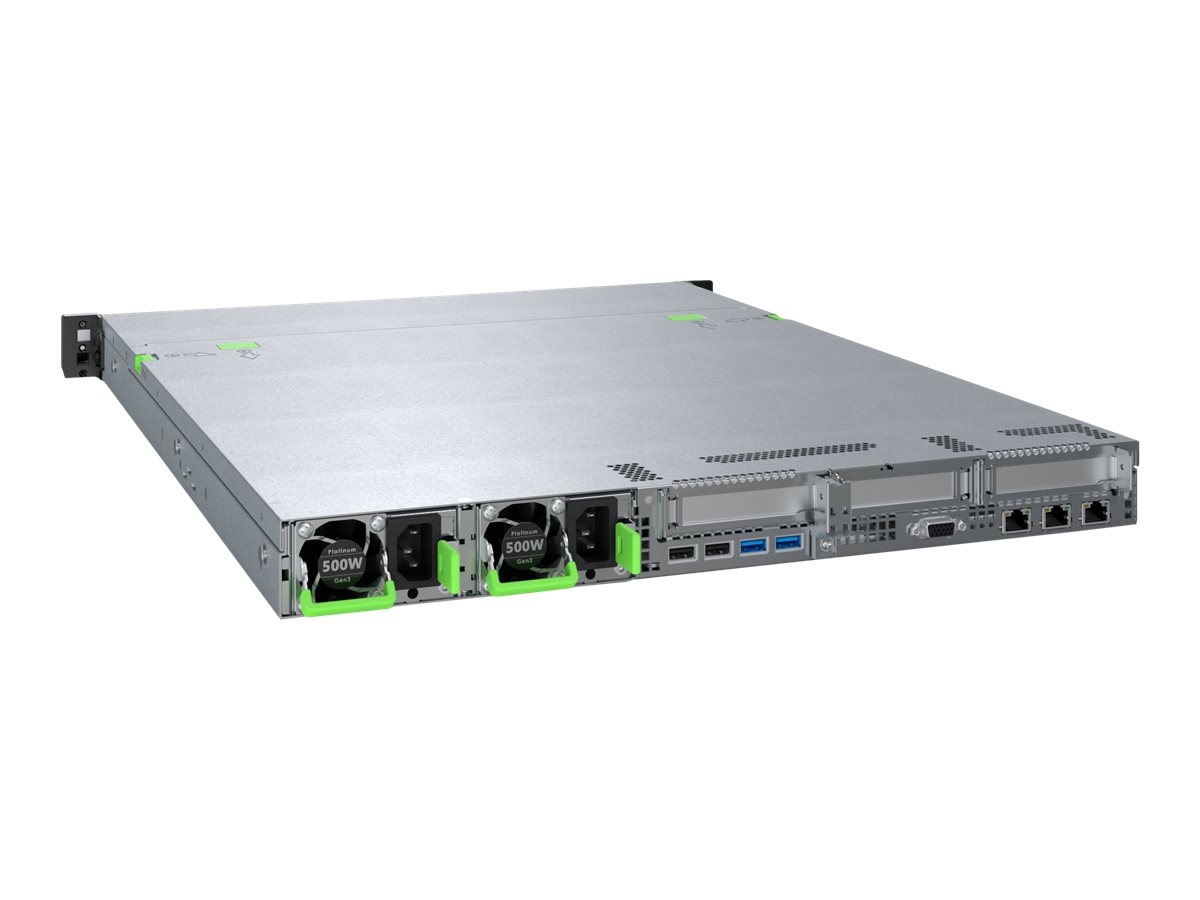

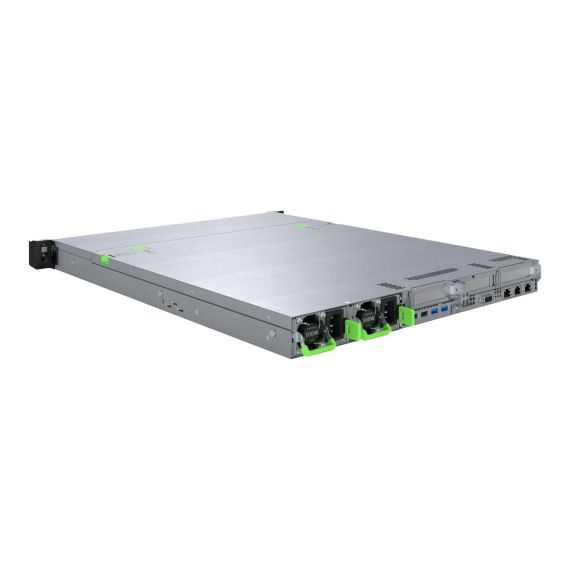

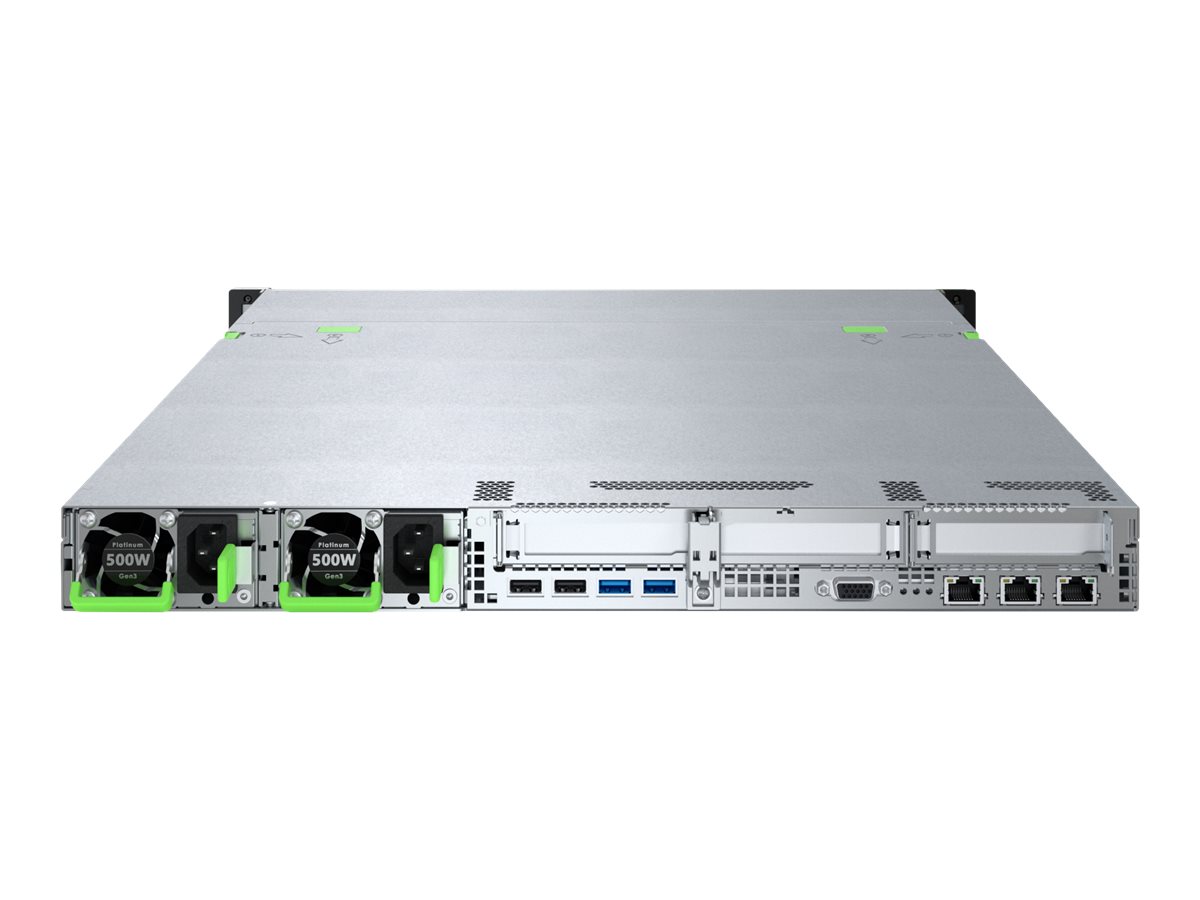

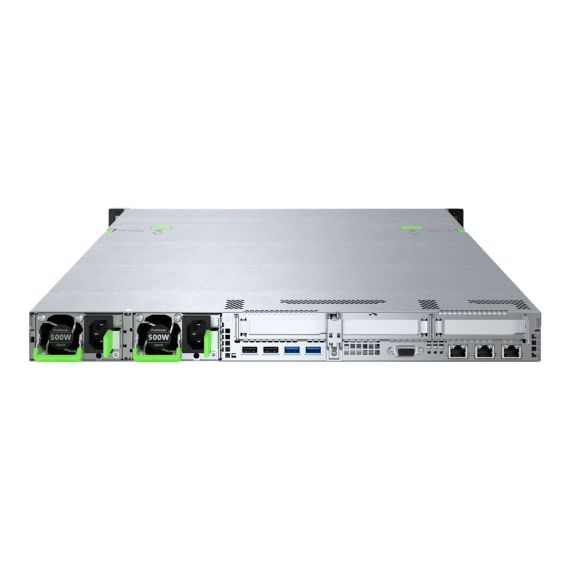

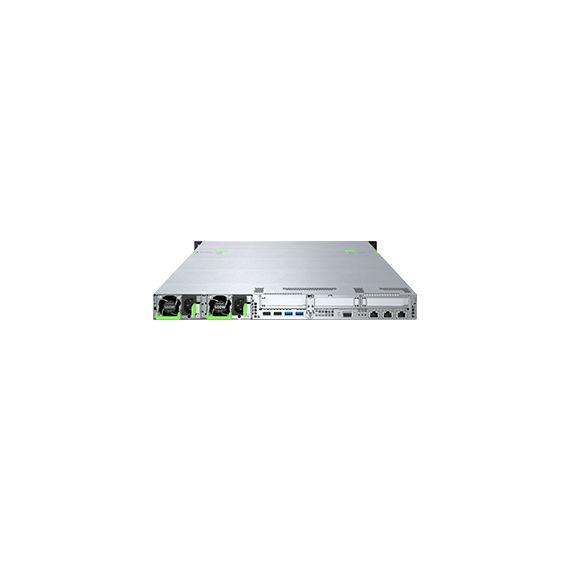

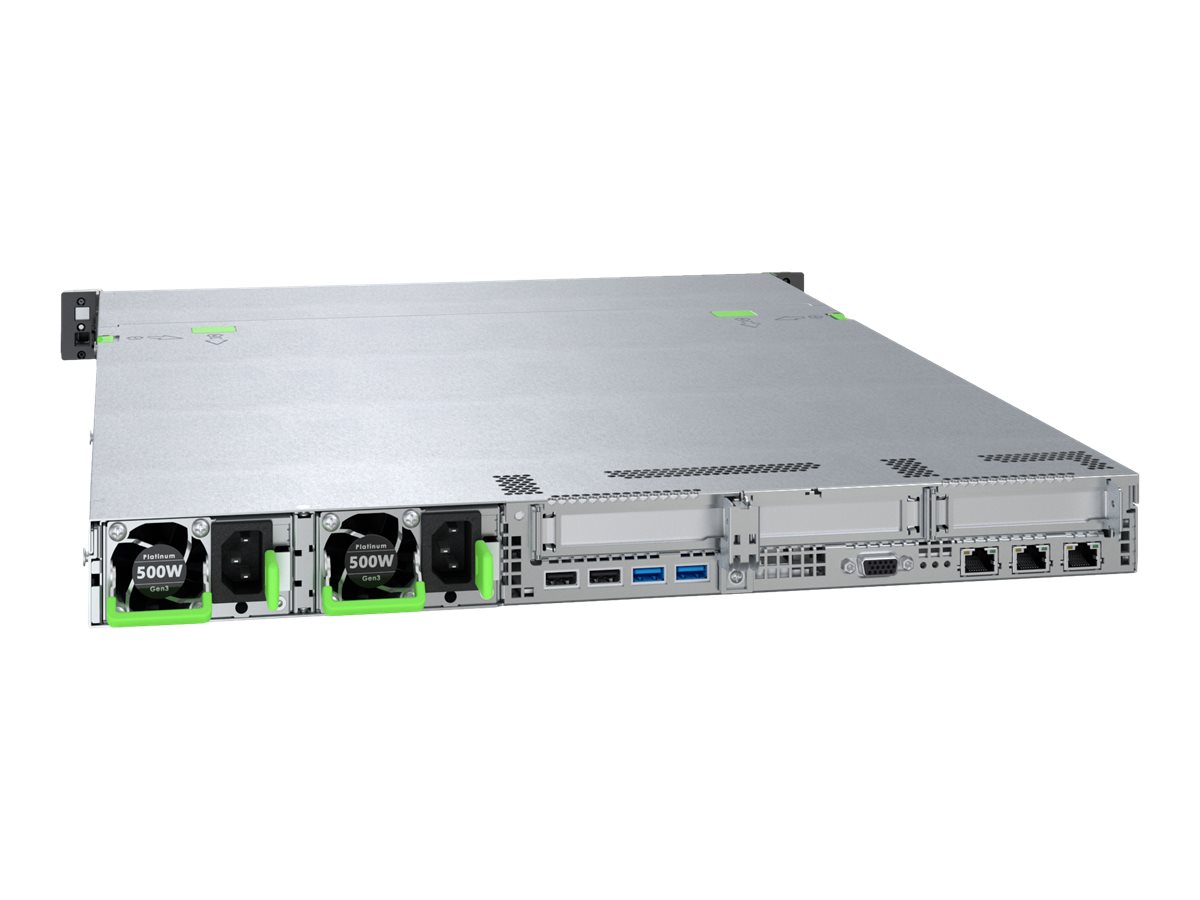

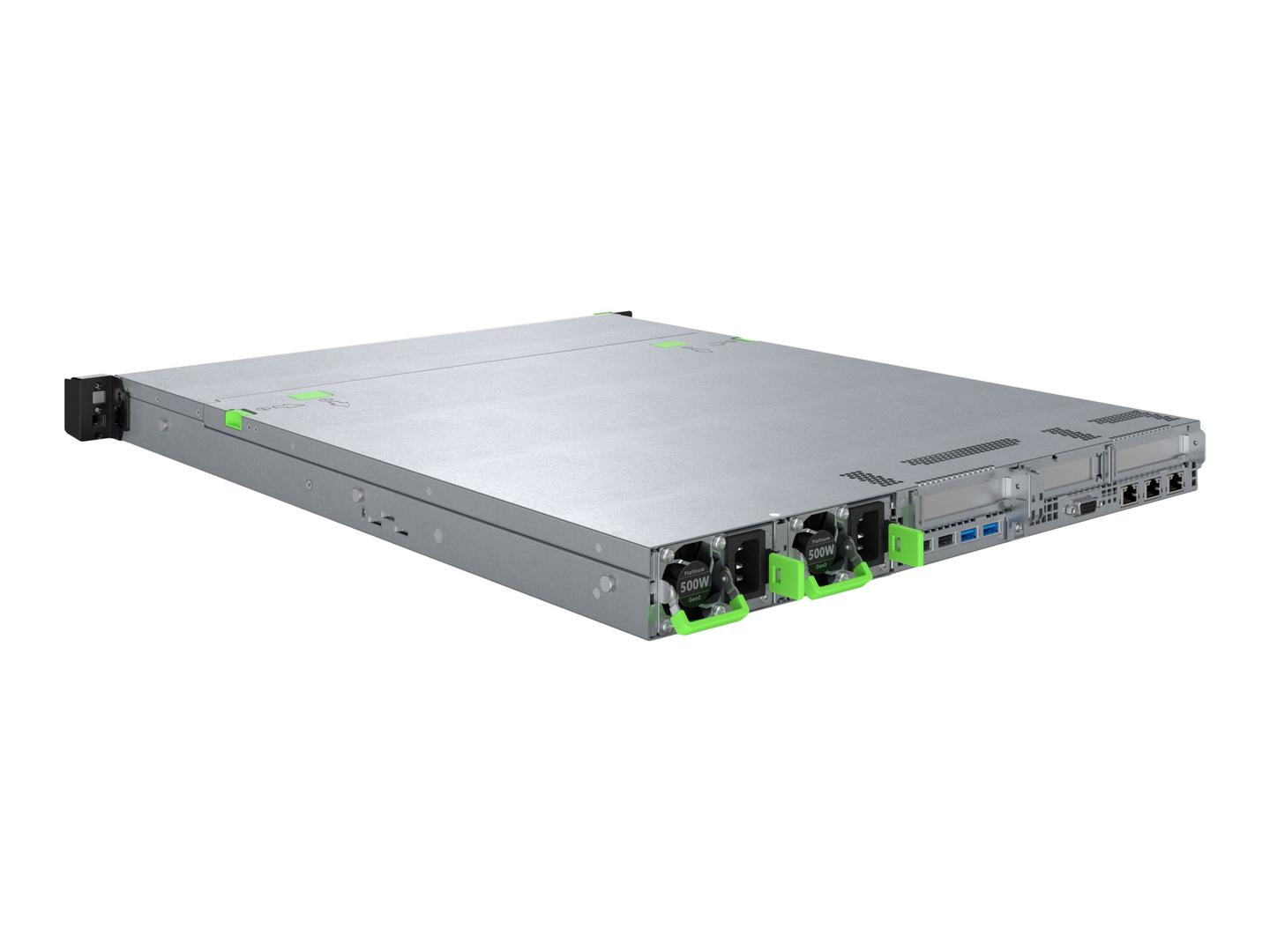

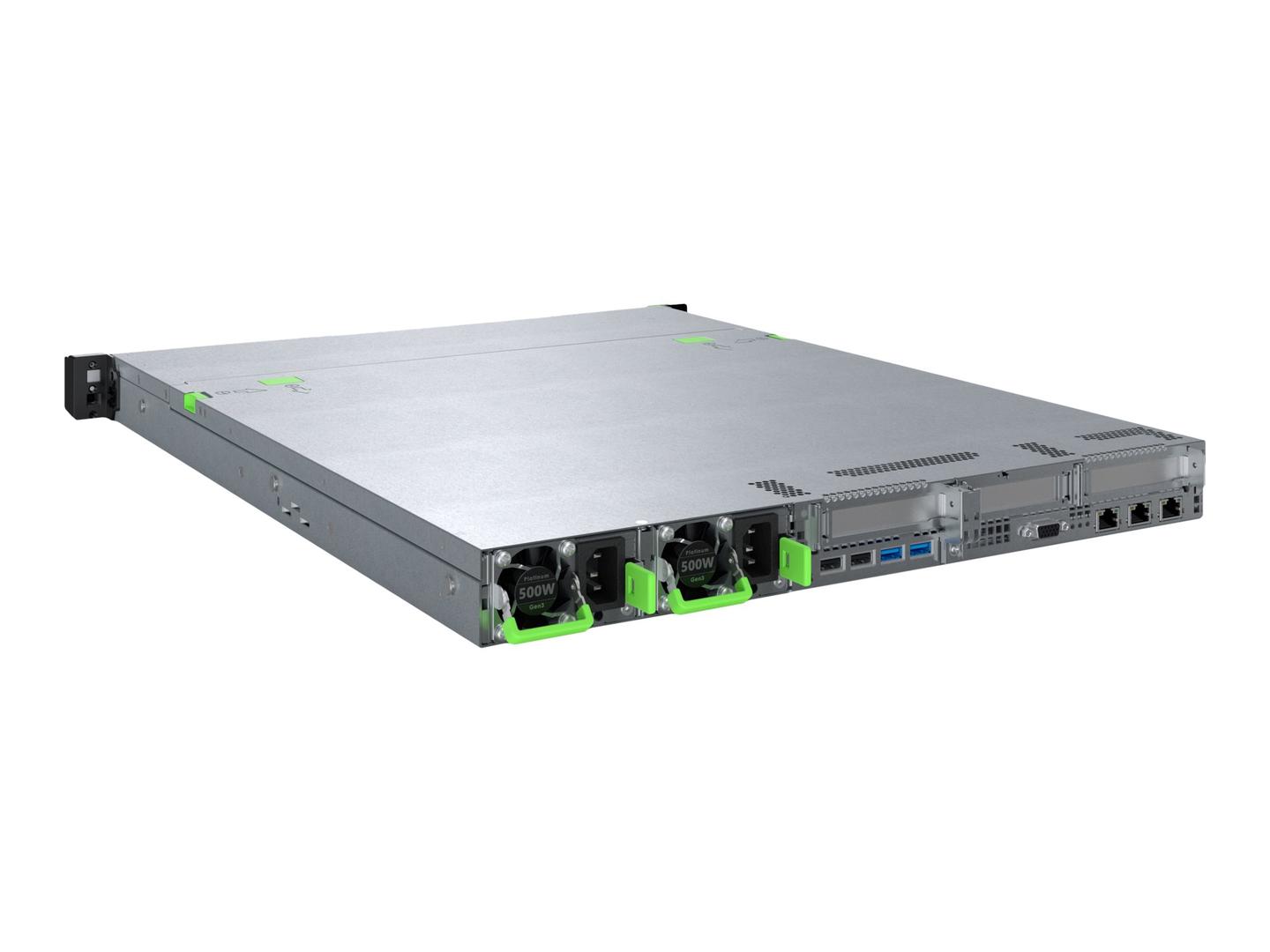

Fujitsu PRIMERGY RX1330 M5 - Server - rack-mountable 1U - 1-way - 1 x Xeon E-2334 / up to 4.8 GHz - RAM 16 GB - SATA/SAS/PCI Express - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none | VFY:R1335SC033IN
Please sign in so that we can notify you about a reply
Product Features
- Boost your productivity
Workload optimized performance for space and power constrained environments from the edge to the data center. - Scale your it according to your needs
The PRIMERGY RX1330 M5 delivers the flexibility to increase compute, storage, and memory capacity based on various configuration options and different base units. - Simplify your IT
iRMC S6 enhances server administrator productivity with a variety of user-friendly features for remote management. Moreover, Infrastructure Manager (ISM) enables organizations to have centralized control over the entire infrastructure using a single user interface. - Grow your business
The variety of expansion options makes the RX1330 M5 an ideal rack server platform for growing businesses. Outstanding configuration flexibility caters to a variety of business requirements and a range of HPE Qualified Options to fit most needs.
Special Fetures
- Mono-socket x86 server providing an ideal mix of performance and cost in a compact 1U space
- Ideal foundation for many SMBs across industries and for a wide range of workloads such as file/print applications, web hosting, communication, collaboration, and virtualization
- Cost-efficient performance based on Intel processor
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | 5 x fans, status LED |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 8 |
| Localisation | Region: Europe |
| Processor / Chipset | |
| CPU | Intel Xeon E-2334 |
| Clock Speed | 3.4 GHz |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache |
| Chipset Type | Intel C256 |
| Cache Memory | |
| Installed Size | L3 Cache - 8 MB |
| Cache Per Processor | 8 MB |
| RAM | |
| Installed Size | 16 GB (installed) / 128 GB (max) |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (Total) / 3 (empty) |
| Features | ECC |
| Configuration Features | 1 x 16 GB |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x SATA |
| Channel Qty | 7 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Interfaces | VGA |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I210 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Remote Management Controller (iRMC S6) |
| Features | PXE support |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" <br /> 4 (total) / 4 (free) x internal 2.5" <br /> 2 (total) / 2 (free) x internal M.2 <br /> 1 (total) / 1 (free) x external 5.25" (9.5mm height) |
| Slots | 2 (total) / 2 (free) x PCIe 4.0 x8 - low-profile <br /> 1 (total) / 1 (free) x PCIe 3.0 x4 - low-profile |
| Interfaces | 2 x USB 2.0 (2 rear) <br /> 4 x USB 3.2 Gen 1 (2 front, 2 rear) <br /> 1 x USB-C 3.2 Gen 2 (1 front) <br /> 2 x LAN (Gigabit Ethernet) <br /> 1 x VGA - DB-15 <br /> 1 x management (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Rack mounting kit, power supply dummy |
| Cables Included | No power cord is included |
| Compliant Standards | CB, RoHS, WEEE, GS, NRTLc/us, FCC Class A certified, ICES-003, NMB-003 Class A, VCCI Class A, JIS C 61000-3-2, EAC, KC, CCC, RCM, BSMI, ErP Lot 9 |
| Power | |
| Device Type | Power supply - hot-plug |
| Max Supported Qty | 1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 500 Watt |
| Efficiency | 96% Titanium |
| Operating System / Software | |
| OS Provided | No operating system |
| OS Certified | Microsoft Windows Server 2019 Datacenter, Microsoft Windows Server 2019 Essentials, Microsoft Windows Server 2019 Standard, Microsoft Windows Server 2022 Datacenter, Microsoft Windows Server 2022 Essentials, Microsoft Windows Server 2022 Standard, Red Hat Enterprise Linux 8.0, SUSE Linux Enterprise Server 15, VMware vSphere 7.0, VMware vSphere 8.0 |
| Software | iRMC S6 eLCM activation licence |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Dimensions & Weight | |
| Dimensions & Weight Details | 48.26 cm - 61.2 cm - 4.3 cm - with front bezel |
| Width | 43.54 cm |
| Depth | 61.2 cm |
| Height | 4.3 cm |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 85% (non-condensing) |
| Sound Emission | 26 dBA |
Features - Fujitsu - VFY:R1335SC033IN
CPU Type
- Intel Xeon
More Details
Product Code
CF83655
EAN Code
4065221880493
Manufacturer
Fujitsu
