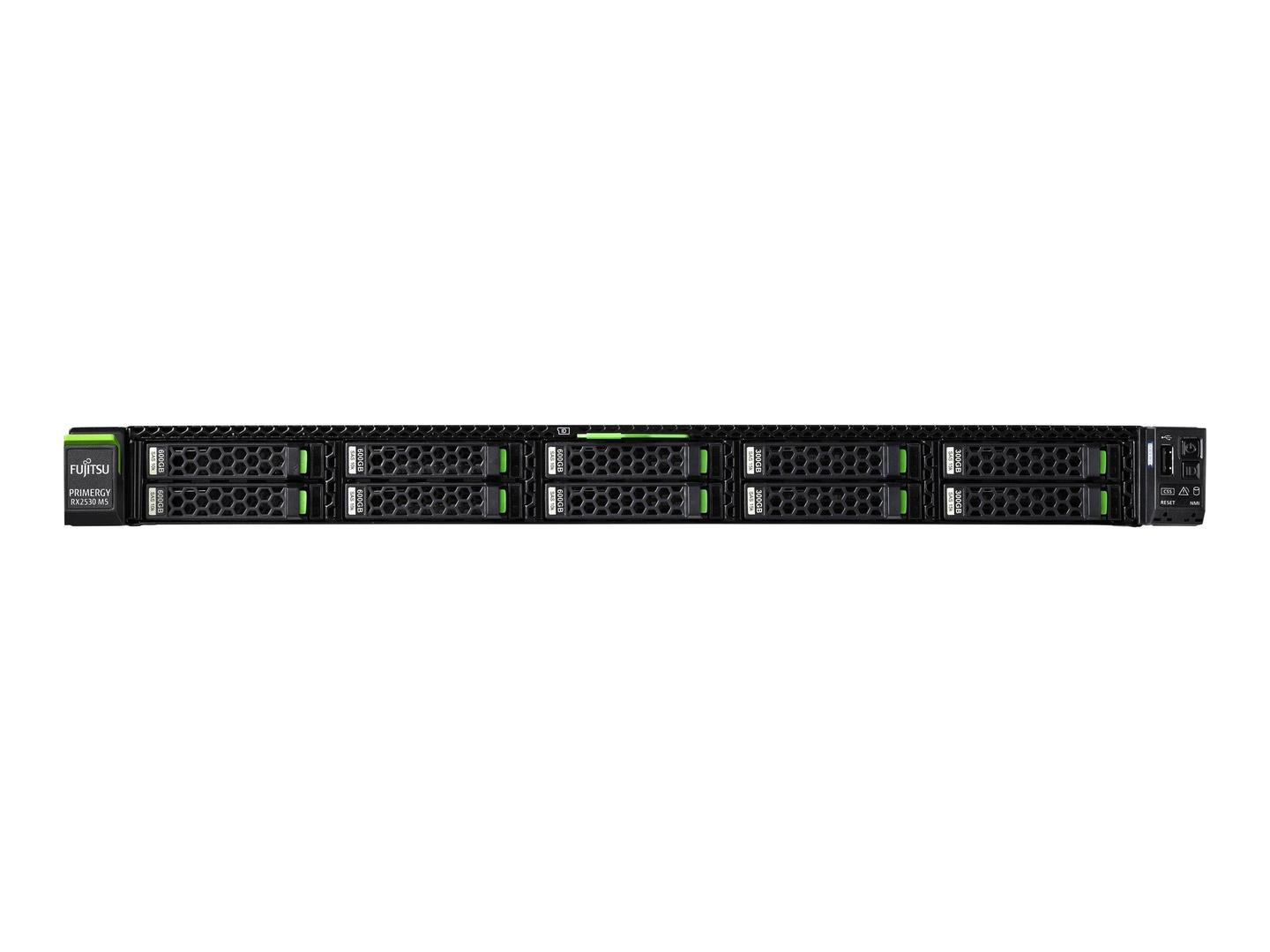

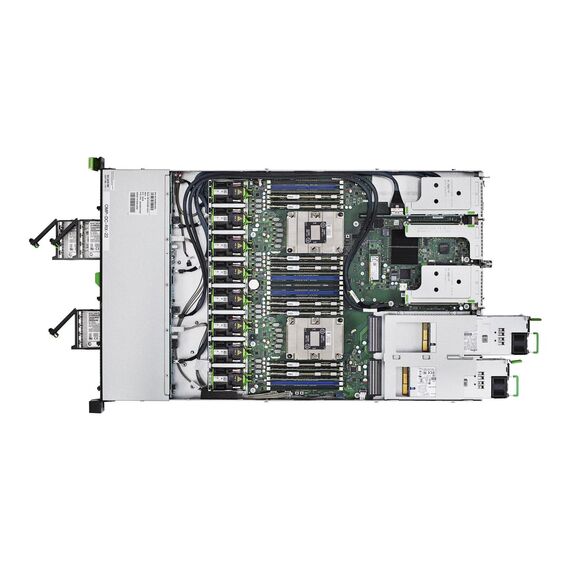

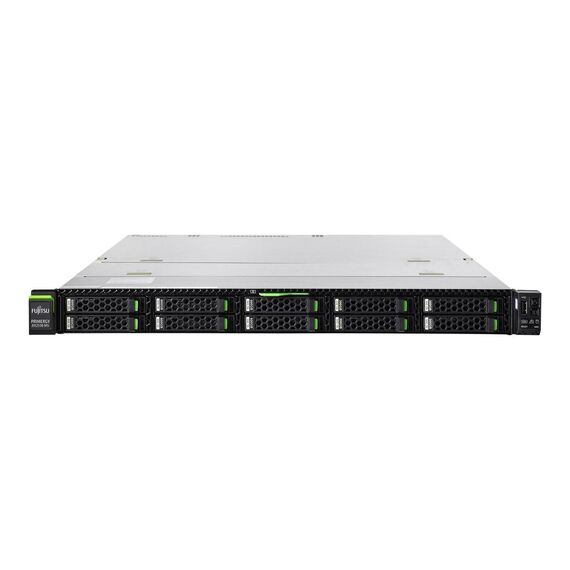

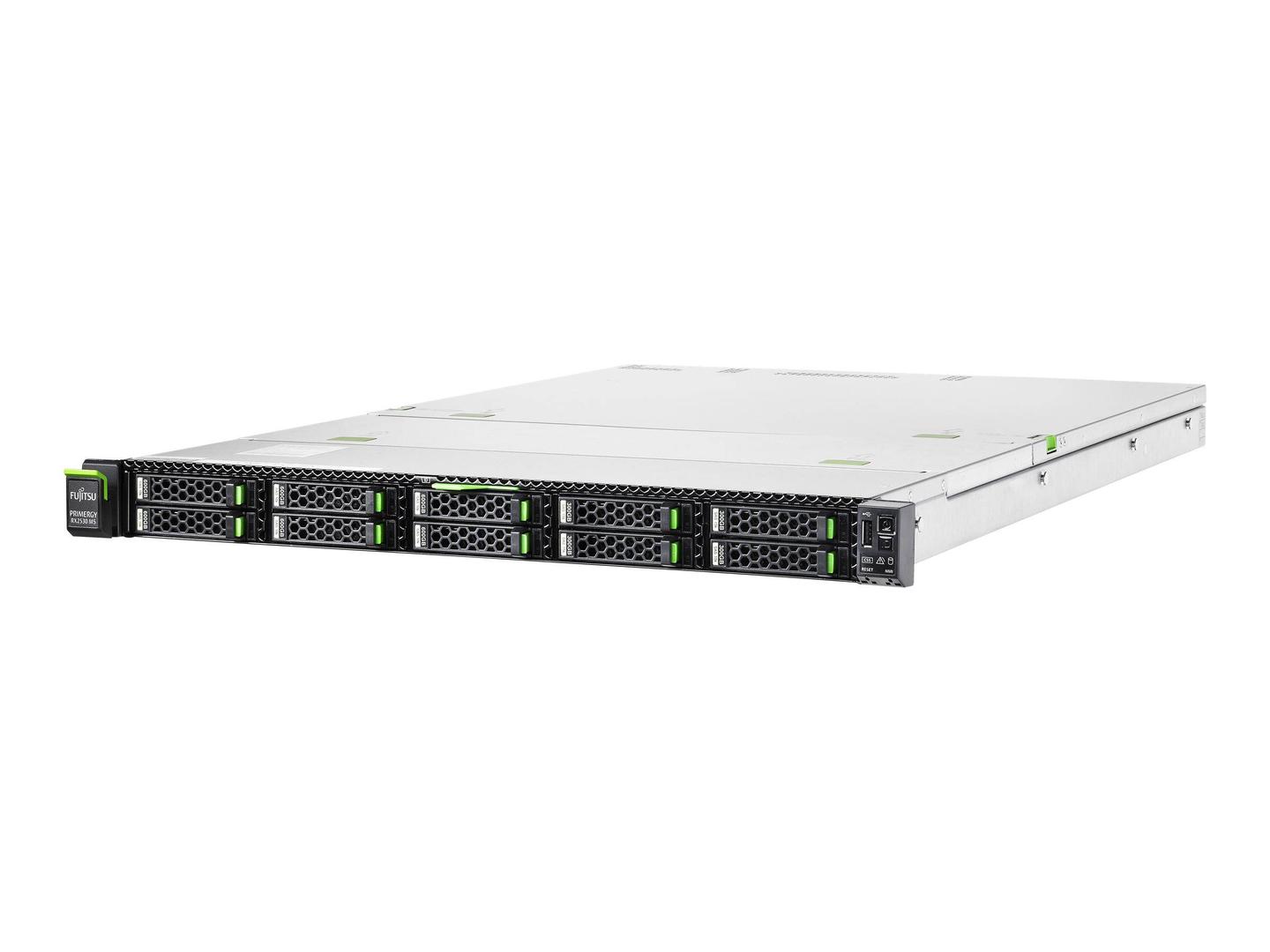

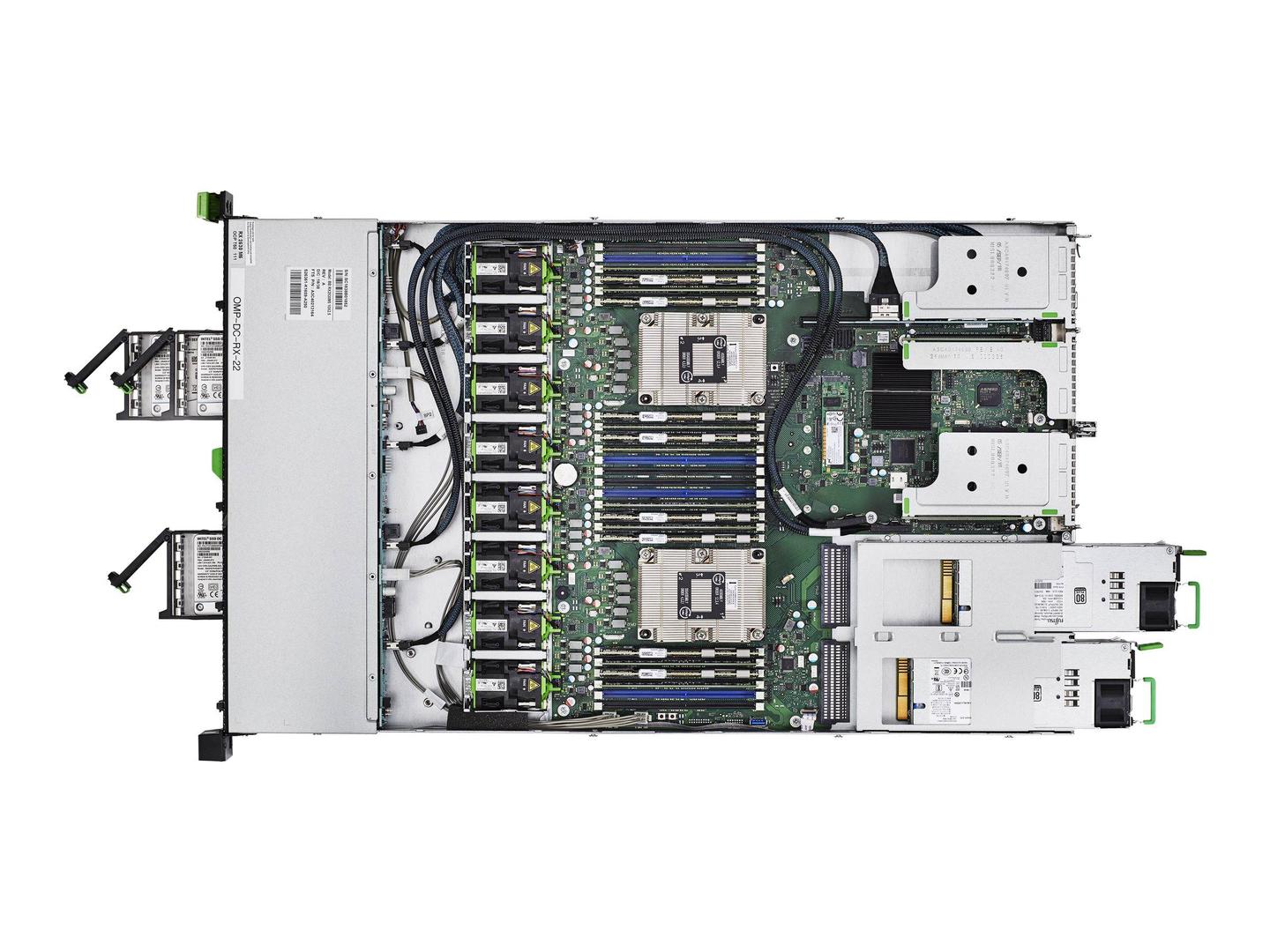

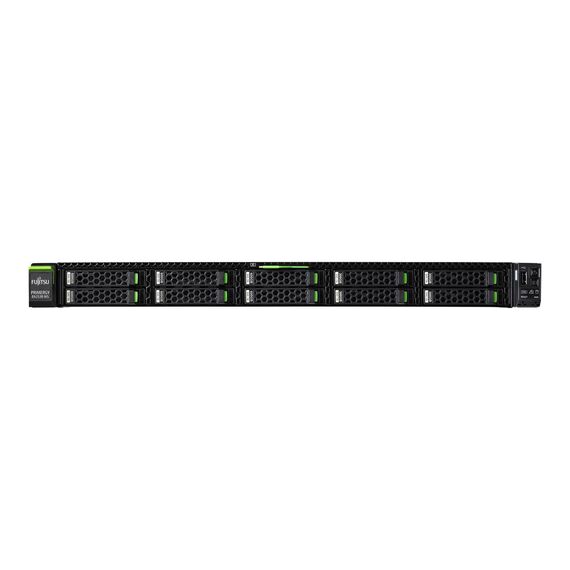

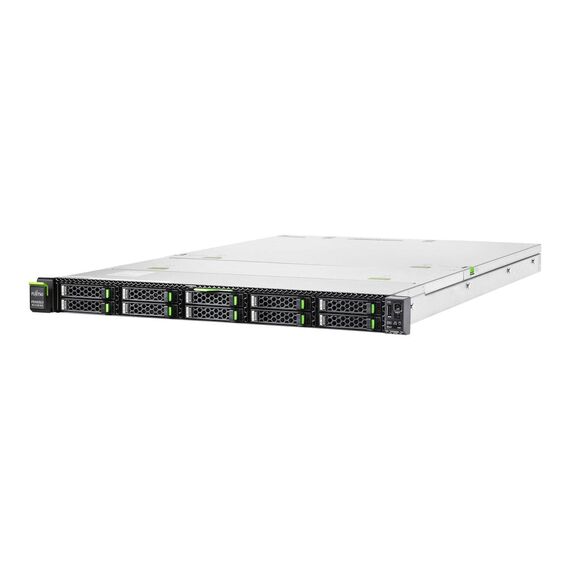

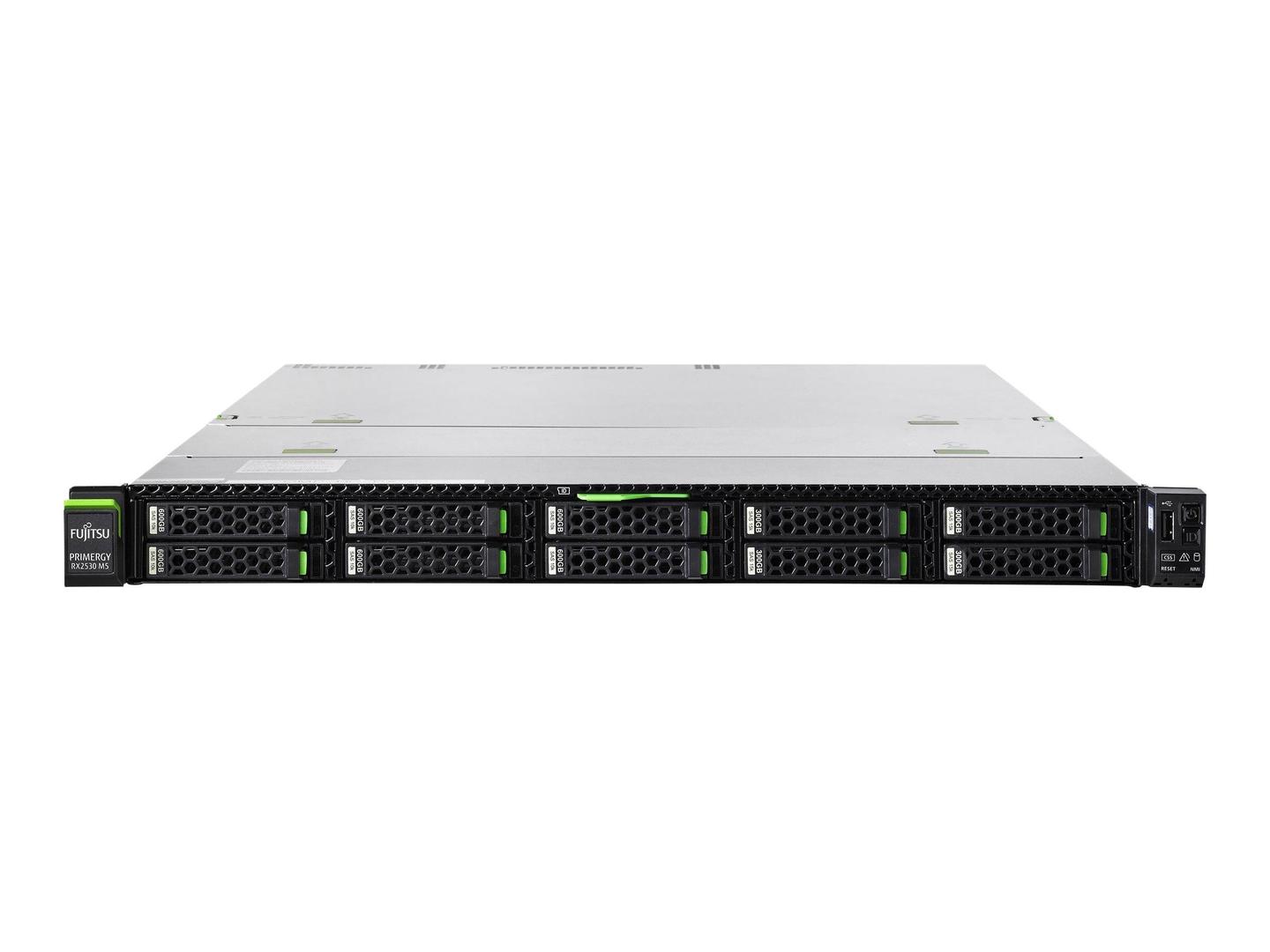

Fujitsu PRIMERGY RX2530 M5 / Server / rack-mountable / 1U / 2-way / 1 x Xeon Silver 4208 / 2.1 GHz / RAM 16 GB / SATA / hot-swap 2.5" bay(s) / no HDD / GigE / no OS | VFY:R2535SC050IN
Please sign in so that we can notify you about a reply
Special Features
- Foundation for trust and security
- Flexible expandability
- Comprehensive infrastructure management
Product Specification
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 8 |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Xeon Silver 4208 |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket P |
| Chipset Type | Intel C624 |
| Cache Memory | Cache Memory |
| Installed Size | 11 MB |
| Cache Per Processor | 11 MB |
| RAM | RAM |
| Installed Size | 16 GB / 7.5 TB (max) |
| Technology | DDR4 SDRAM - Advanced ECC |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 2933 MHz |
| Slots | 24 (Total) / 23 (empty) |
| Features | Registered, single rank, Memory Mirroring, Independent Memory Mode, memory rank sparing, memory scrubbing |
| Configuration Features | 1 x 16 GB |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1 |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Video Interfaces | VGA |
| Networking | Networking |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Integrated Remote Management Controller (iRMC S5) |
| Features | Wake on LAN (WoL), PXE support |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF ¦ 1 (total) / 1 (free) x external 5.25" Ultra Slim |
| Slots | 1 PCIe 3.0 x8 - low-profile ¦ 2 PCIe 3.0 x16 - low-profile ¦ 1 PCIe 3.0 x16 - low-profile (2 processors must be installed) |

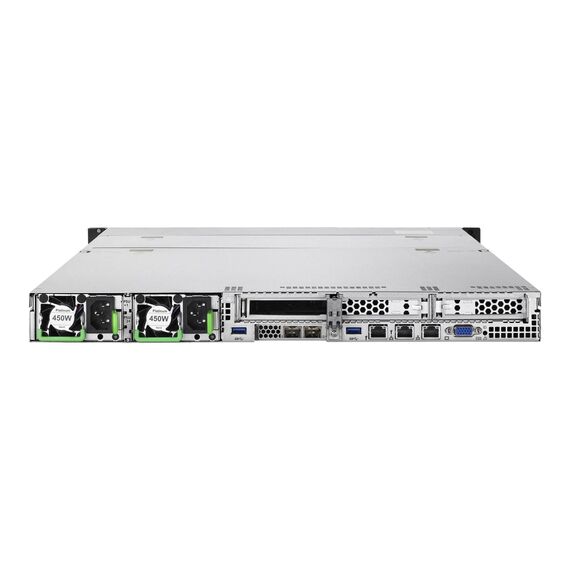

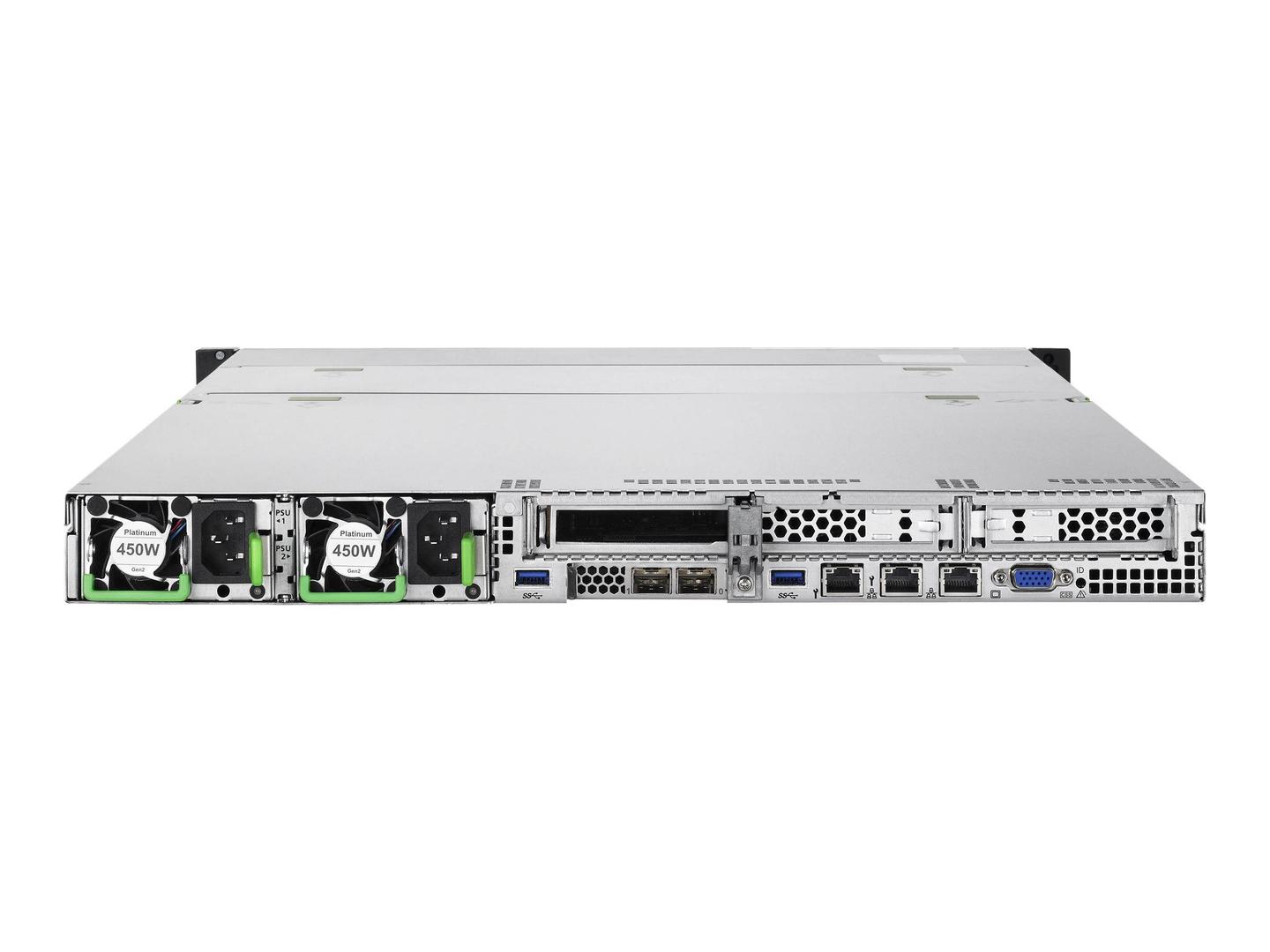

| Interfaces | 5 x USB 3.0 (2 front, 2 rear, 1 internal) ¦ 1 x VGA ¦ 1 x management - RJ-45 ¦ 4 x LAN (Gigabit Ethernet) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rack mounting kit F1 Slimline |
| Compliant Standards | FCC Class A certified, BSMI, GS, CB, ICES-003 Class A, RoHS, WEEE, KC, VCCI V-3 Class A ITE, cCSAus, JIS C 61000-3-2, EAC, NMB-3 Class A, RCM |
| Power | Power |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Software | ServerView |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years - on-site |
| Dimensions & Weight | Dimensions & Weight |
| Width | 48.3 cm |
| Depth | 77.07 cm |
| Height | 4.3 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
Features - Fujitsu - VFY:R2535SC050IN
More Details
Product Code
04:305821
EAN Code
4059595838167
Manufacturer
Fujitsu
