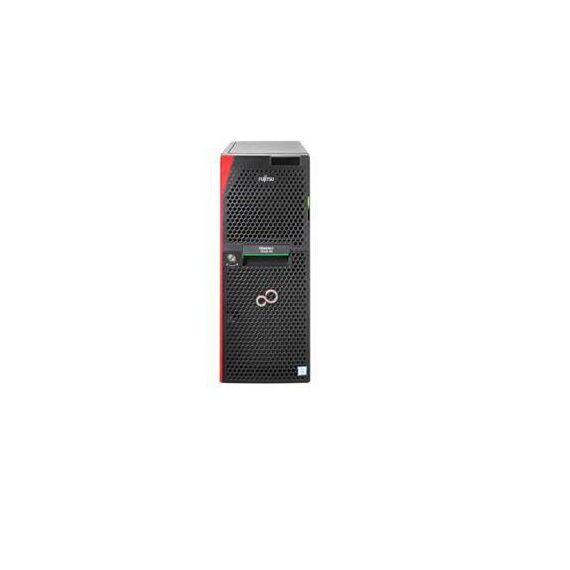

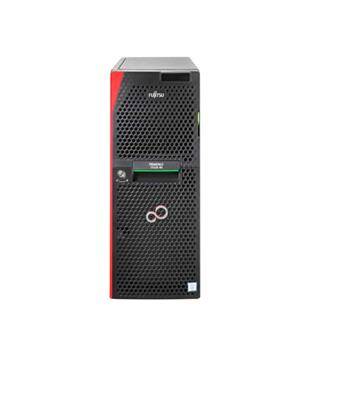

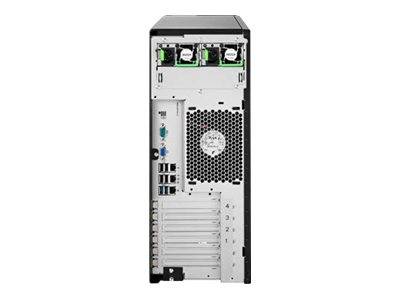

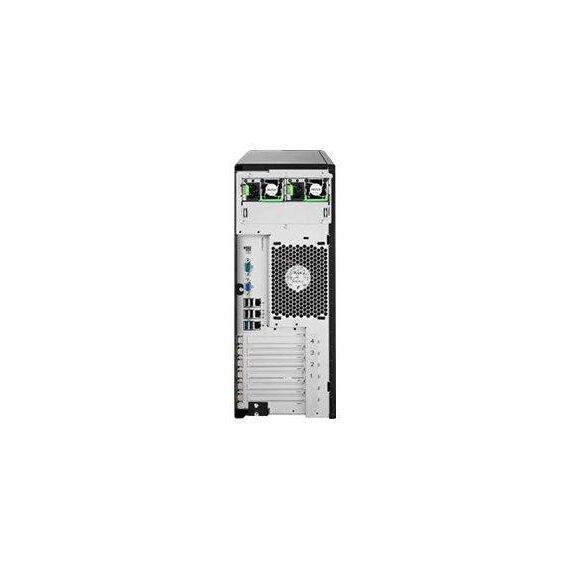

Fujitsu PRIMERGY TX1330 M3 / Server / tower / Xeon E3-1220V6 / 3 GHz / RAM 8 GB / SATA / hot-swap 3.5" / no HDD / DVD SuperMulti / GigE / no OS | VFY:T1333SC010IN
Fujitsu PRIMERGY TX1330 M3 / Server / tower / Xeon E3-1220V6 / 3 GHz / RAM 8 GB / SATA / hot-swap 3.5" / no HDD / DVD SuperMulti / GigE / no OS | VFY:T1333SC010IN
Description The FUJITSU Server PRIMERGY TX1330 M3 is a highly expandable mono-socket server for Small and Medium Enterprises which need application oriented performance coupled with high storage expandability, and growth potential via a comprehensive range of options. It features the latest Intel Xeon product family processor, plus up to 64 GB RAM for managing application oriented performance for today and tomorrow. The server is designed for scalability and workload versatility with features such as up to twenty-four 2.5-inch drives, data backup options, and 4x PCIe slots coupled with compatible RAID and networking options. Reliability is enhanced with the Fujitsu Battery Backup unit, and high-efficiency (94%) redundant power supplies. Comprehensive server management plus silent operation ease both administration and deployment, making the platform ideal for SME environments. Fujitsu PRIMERGY TX1330 M3 / Server / tower / Xeon E3-1220V6 | VFY:T1333SC010INSpecial Features
Product features
|
Product Specification
Type | Server |
Product Form Factor | Tower |
Server Scalability | 1-way |
Front Accessible Bays Qty | 3 |
Hot-Swap Bays Qty | 4 |
Localisation | Asia Pacific, EMEIA |
CPU | Intel Xeon E3-1220V6 / 3 GHz |
Max Turbo Speed | 3.3 GHz |
Number of Cores | Quad-Core |
CPU Qty | 1 |
Max CPU Qty | 1 |
CPU Upgradability | Upgradable |
Processor Main Features | Intel Turbo Boost Technology 2 |
CPU Socket | LGA1151 Socket |
Chipset Type | Intel C236 |
Installed Size | 8 MB |
Cache Per Processor | 8 MB |
Installed Size | 8 GB / 64 GB (max) |
Technology | DDR4 SDRAM - ECC |
Effective Memory Speed | 2400 MHz |
Rated Memory Speed | 2400 MHz |
Form Factor | DIMM 288-pin |
Features | Unbuffered, dual channel memory architecture, single rank |
Configuration Features | 1 x 8 GB |
Type | No HDD |
Type | 1 x SATA |
Controller Interface Type | SATA 6Gb/s |
Channel Qty | 4 |
RAID Level | RAID 0, RAID 1, RAID 10 |
Type | DVD SuperMulti - SATA |
Monitor Type | None. |
Video Interfaces | VGA |
Ethernet Ports | 2 x Gigabit Ethernet |
Ethernet Controller | Intel I210 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol | IPMI 2.0 |
Remote Management Controller | Integrated Remote Management Controller (iRMC S4) |
Features | Wake on LAN (WoL), PXE support |
Bays | 4 (total) / 4 (free) x hot-swap 3.5" ¦ 3 (total) / 2 (free) x external 5.25" |
Slots | 1 (total) / 0 (free) x CPU ¦ 4 (total) / 3 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 - full-height (x1 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 - full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - full-height |
Interfaces | 5 x USB 2.0 (4 rear, 1 internal) ¦ 5 x USB 3.0 (2 front, 2 rear, 1 internal) ¦ 1 x VGA ¦ 1 x serial ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x management - RJ-45 |
Cables Included | No power cord is included |
Compliant Standards | FCC Class A certified, VCCI, C-Tick, BSMI, GS, CB, CCC, RoHS, WEEE, cULus, GOST-R, KC, cCSAus, JIS C 61000-3-2 |
Device Type | Power supply |
Nominal Voltage | AC 120/230 V (50/60 Hz) |
Power Provided | 300 Watt |
80 PLUS Certification | 80 PLUS Gold |
Efficiency | 90% |
OS Provided | No operating system |
Software | ServerView |
Service & Support | Limited warranty - 1 year - on-site |
Width | 17.7 cm |
Depth | 56 cm |
Height | 45.5 cm |
Weight | 15 kg |
Min Operating Temperature | 10 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 10 - 85% (non-condensing) |
