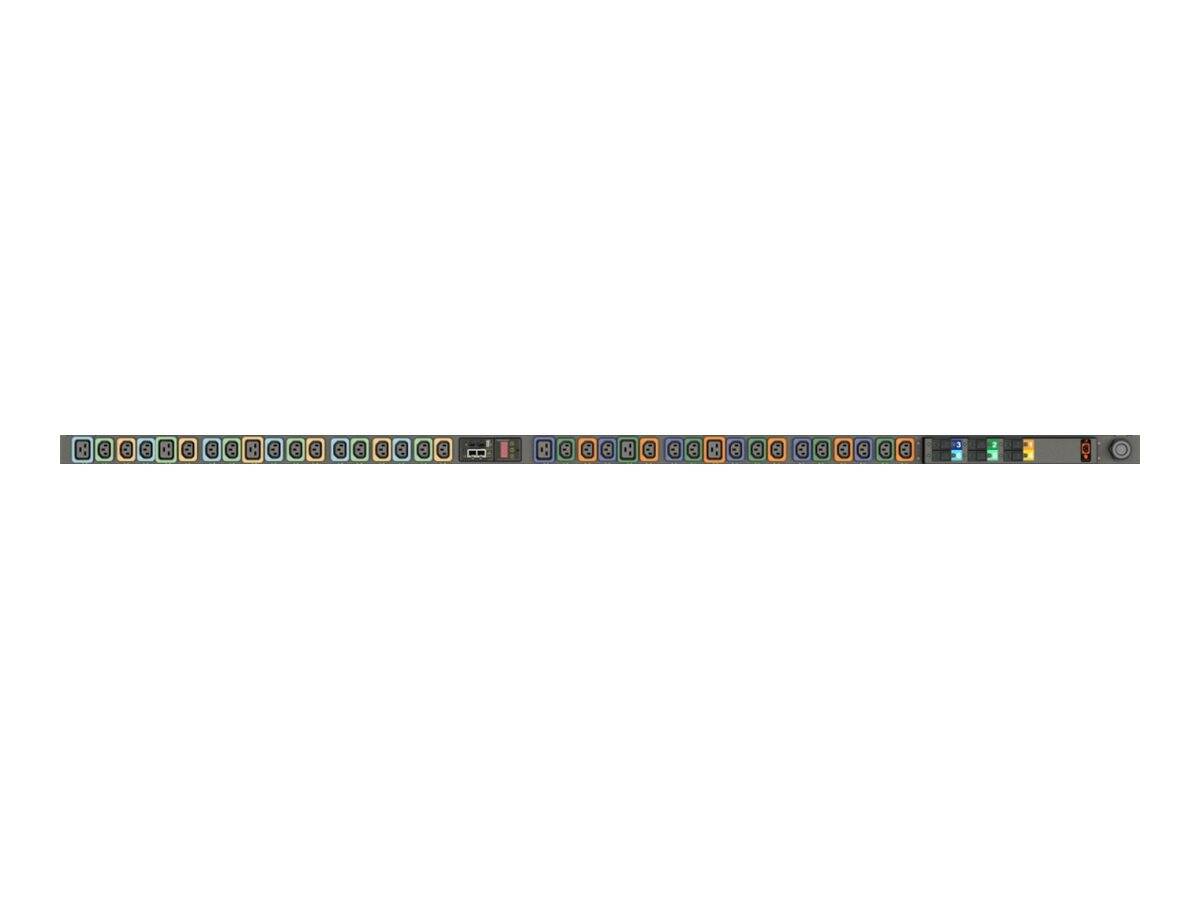

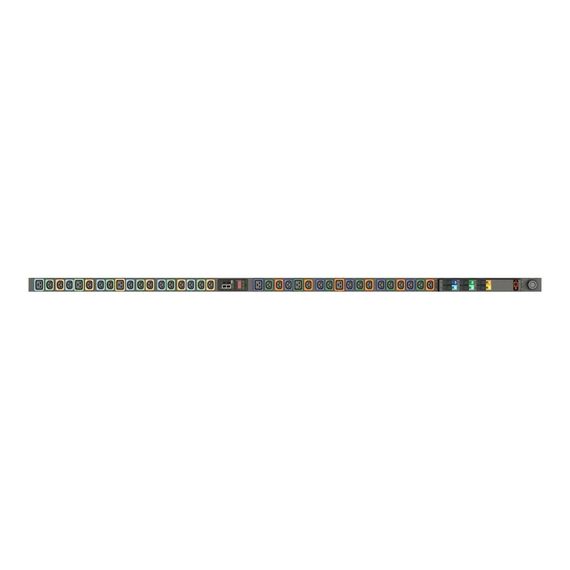

Geist Switched Outlet Level Monitoring EC MGU3EGW1-36PT63-3PS56B2A10-S-A / Zero U / power distribution unit (rack-mountable) / AC 230/400 V / 22 kW / 3-phase WYE (star) / Ethernet 10/100, RS-232, USB / input: IEC 60309 3P+N+E / output connecto | GU30010L
GU30010L
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 3 m |
| Colour | Black powder coat |
| Power Device | Power Device |
| Input Voltage | AC 230/400 V |
| Input Voltage Range | AC 200 - 240 / 346 - 415 V |
| Input Wiring | 3-phase WYE (star) |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Power Output Connectors Details | 30 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Max Electric Current | 32 A |
| Power Capacity | 22 kW |
| Circuit Protection | Circuit breaker |
| Networking | Networking |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6, JSON, RSTP, TACACS+, LDAP, RADIUS |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x RS-232 - RJ-45 ¦ 1 x USB |
| Miscellaneous | Miscellaneous |
| Cables Included | Power cable 3 m |
| Rack Mounting Kit | Included |
| Features | Vertical orientation, tool-less, LED display, splash-proof plug, remote outlet switching, rotating display, single pole magnetic breaker, locking outlets, circuit/breaker current monitoring, phase monitoring, Visible Light Communication (VLC) technology, U-lock outlets, IP reset button, hard reboot button, power cable IP44 compliant, hot-swappable controller, Interchangeable Monitoring Device (IMD) module |
| Compliant Standards | EN55024, CB, EMC, RoHS, IEC 60950-1, China RoHS, RCM, IEC 62053-21, EN 55032, ANSI C12.1 |
| TAA Compliant | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years with product registration (within 120 days of purchase) ¦ Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5.1 cm |
| Depth | 6.6 cm |
| Height | 182.9 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 9.98 kg |
